Galvanised steel ground screw 76x2550 mm M2550/195/76/M18

DYJR5747

M series galvanised steel ground screw M2550/195/76/M18 for heavy installations, jetties and elevated structures. Features a 2550 mm total length, 76 mm tube diameter, 3.5 mm wall thickness, and an elevation height up to 1200 mm above ground level. Rated for loads up to 3000 kg.

More details

earth screw, ground screw, screw pile, galvanised ground screw, foundation anchor, ground anchor, jetty foundations, pier foundation

54,44 € tax incl.

Ask about product
Galvanised steel ground screw 76x2550 mm M2550/195/76/M18

Galvanised steel ground screw 76x2550 mm M2550/195/76/M18

M series galvanised steel ground screw M2550/195/76/M18 for heavy installations, jetties and elevated structures. Features a 2550 mm total length, 76 mm tube diameter, 3.5 mm wall thickness, and an elevation height up to 1200 mm above ground level. Rated for loads up to 3000 kg.



More info

Galvanised steel ground screw for elevated structures

The M series ground screw M2550/195/76/M18 is engineered for foundation support in large structures, jetties, piers and projects requiring elevation above ground level. Manufactured from galvanised steel, this screw pile delivers a 3000 kg load capacity without requiring concrete pouring or extensive excavation.

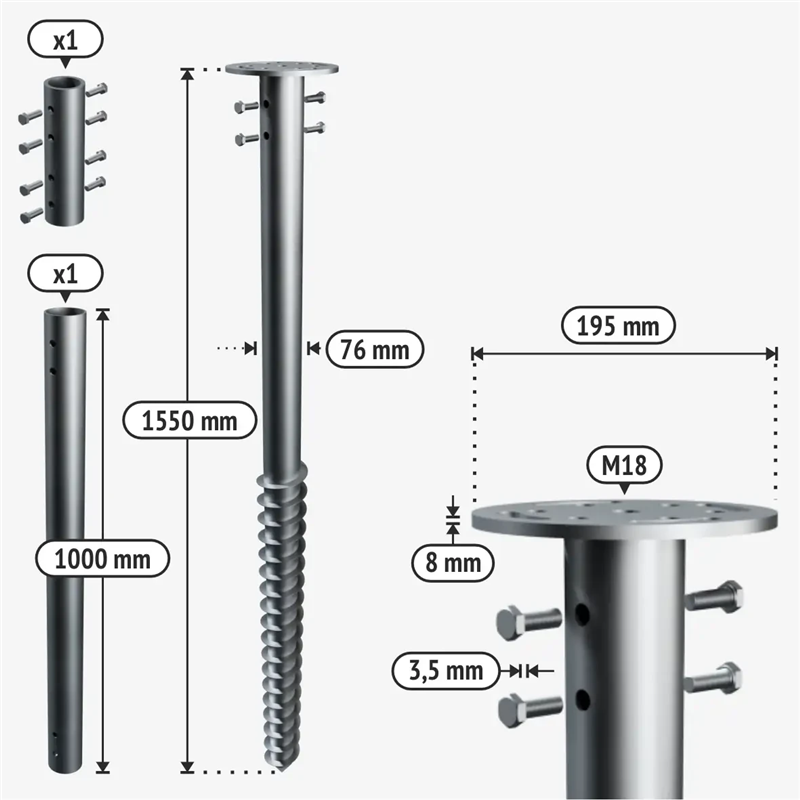

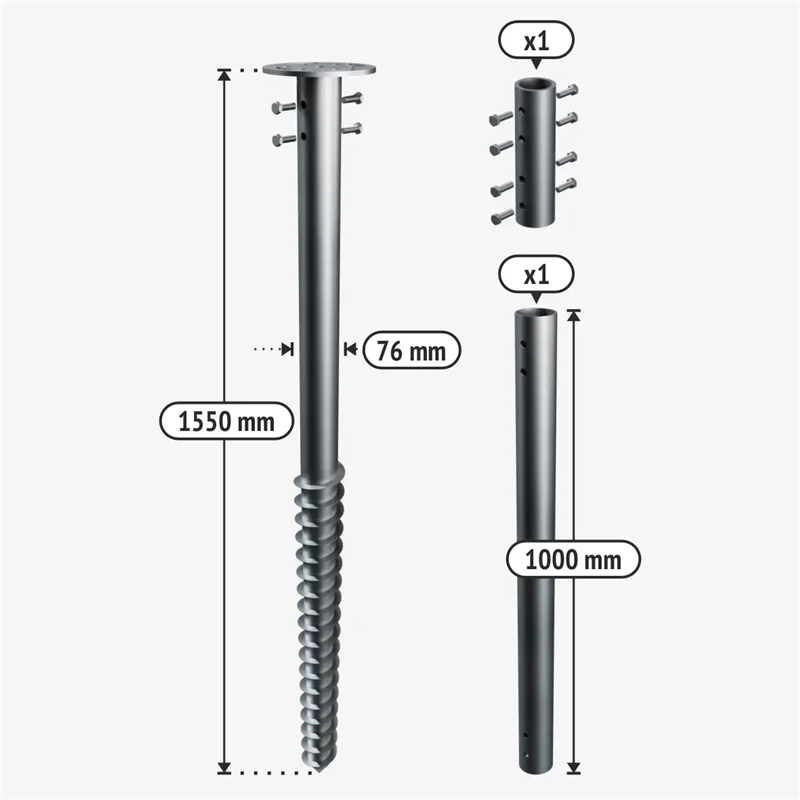

Technical specifications

Specification Value
Total length 2550 mm
Height above ground Up to 1200 mm
Load capacity 3000 kg
Outer diameter 76 mm
Wall thickness 3.5 mm
Material Galvanised steel
Thread type M18
Weight 19 kg

Applications

  • Large timber and steel frame buildings
  • Piers, jetties and waterside structures
  • Installations requiring elevation up to 1200 mm above terrain
  • Heavy-duty decking and terrace substructures
