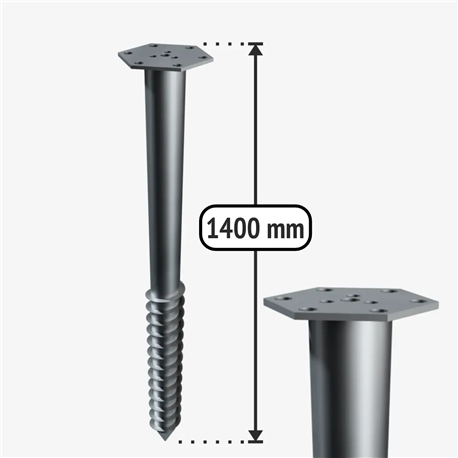

Galvanised ground screw M1400/76

Galvanised M-type ground screw M1400/76

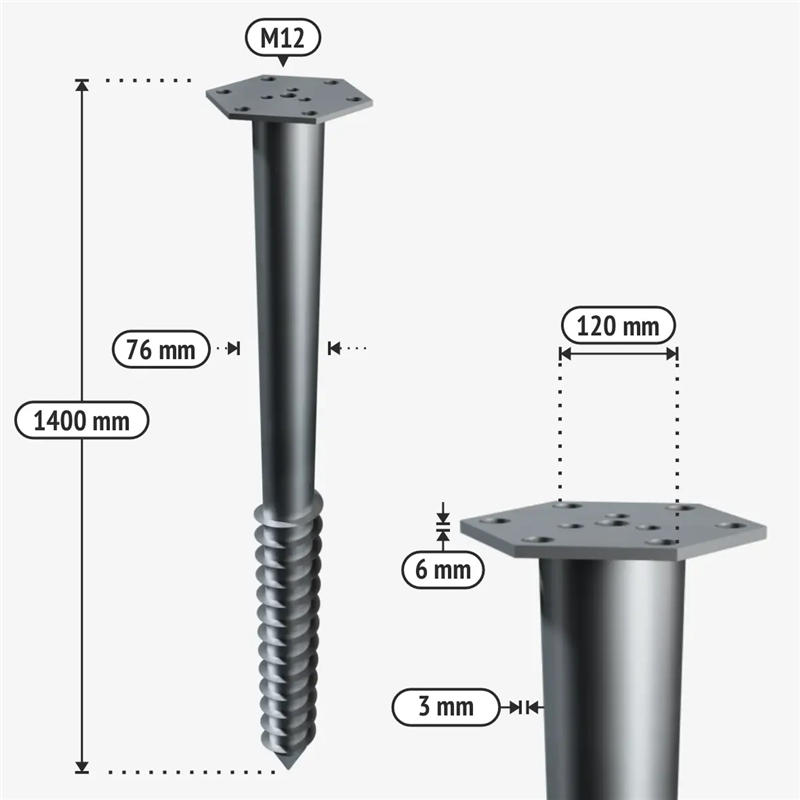

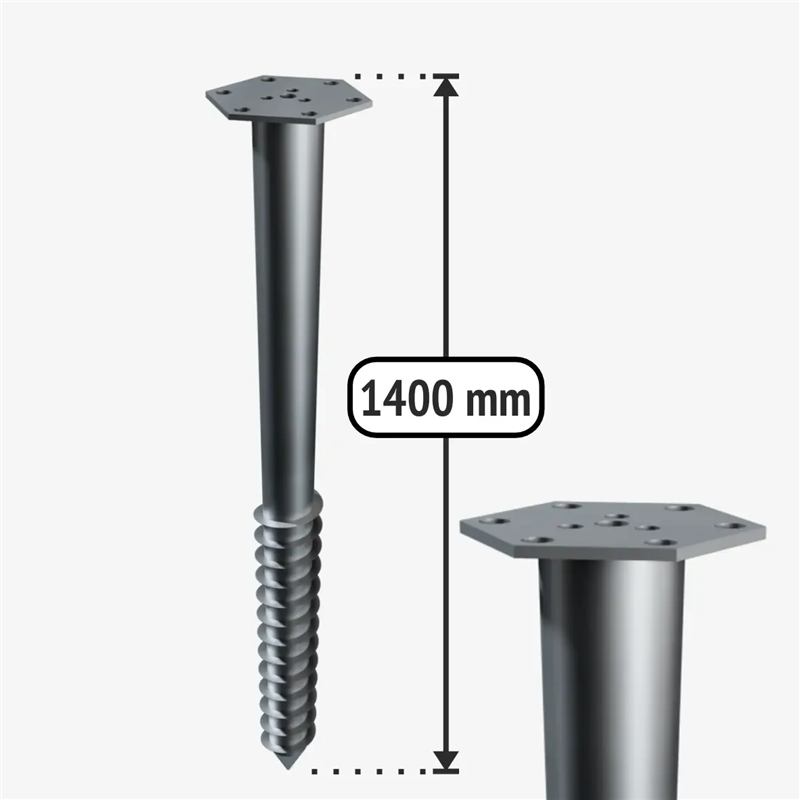

The M1400/76 ground screw provides a solid, load-bearing foundation for saunas, storage sheds, outbuildings, and timber-frame structures. Fabricated from 3.5 mm thick galvanised steel with a 76 mm tube diameter, this foundation pile delivers outstanding structural stability and accommodates loads of up to 1600 kg.

The M-type mounting plate is engineered to support structural framework beams and posts. Owing to its broad surface area, framework members do not require dead-centre alignment, accommodating installation tolerances if screws are not driven in an exact line. The plate incorporates a designated mount for a threaded rod alongside offset fastening holes. Utilising a threaded rod allows the framework elevation to be aligned with millimetre precision.

Key features and applications

• Suitable for saunas, garden sheds, storage buildings, and outbuilding frames
• Wide mounting plate accommodates off-centre structural positioning
• Integrated central threaded rod mount allows millimetre-accurate height levelling
• Auxiliary holes for securing bespoke brackets and structural connectors
• Durable galvanised steel construction for lasting corrosion protection

Technical specifications

Accessories and installation

• Compatible with various post brackets and structural timber connectors
• Compatible with threaded rods for precise elevation adjustment
• Mechanical installation equipment recommended for driving into the ground
