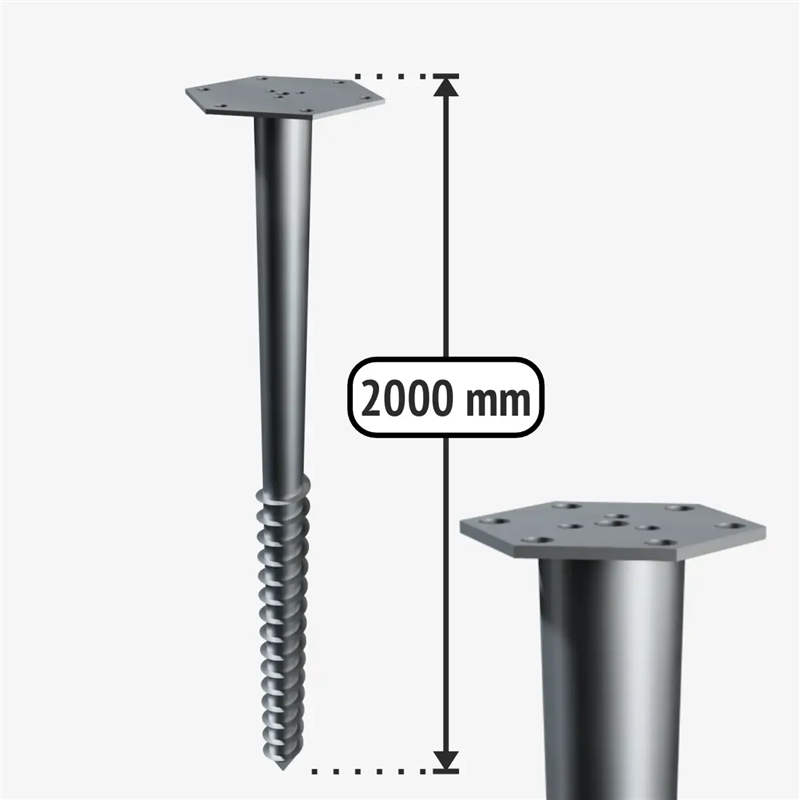

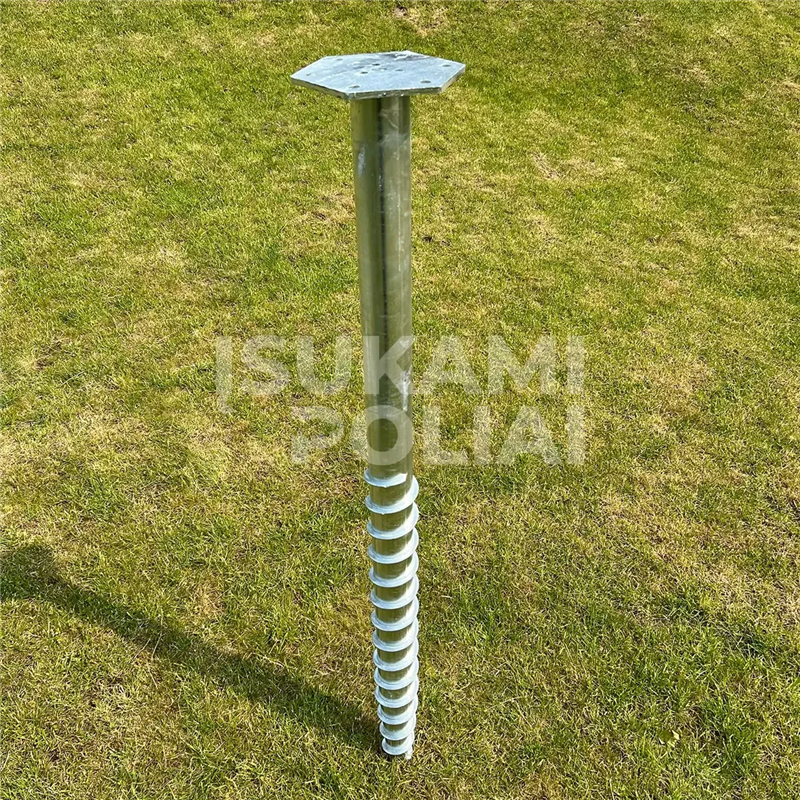

M-type ground screw foundation M2000

Galvanised M-type ground screw foundation M2000

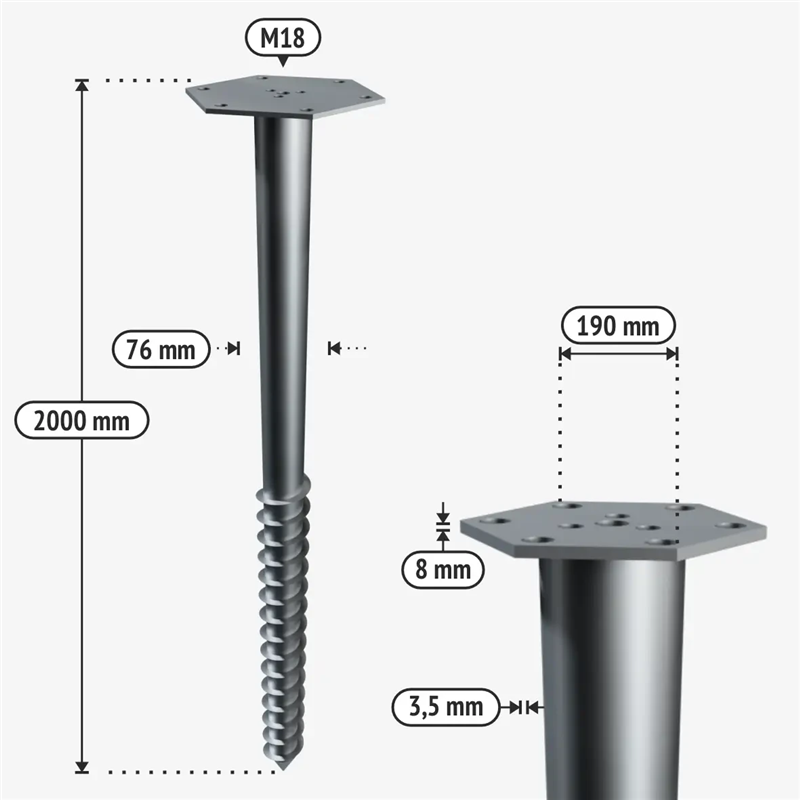

The M2000 M-type ground screw foundation is engineered for heavy structures and timber-frame building projects. Constructed from hot-dip galvanised steel with a 76 mm tube diameter and a 3.5 mm wall thickness, it accommodates vertical loads of up to 4000 kg. Suitability for specific structures should be assessed in accordance with soil conditions and architectural plans.

M-type mounting plate design

The integrated M-type top plate provides a versatile interface for supporting structural timber and subframes:

• The wide flange surface accommodates frame elements even when not perfectly aligned with the centre of the pile.
• Integrated threaded rod mounting enables structural height adjustment with millimetre precision.
• Additional fixing apertures allow direct bolting of custom brackets or off-centre framework.

Installation

Installation of this ground screw foundation requires mechanical screw driving equipment to ensure proper embedment depth and load-bearing performance.

Technical specifications
