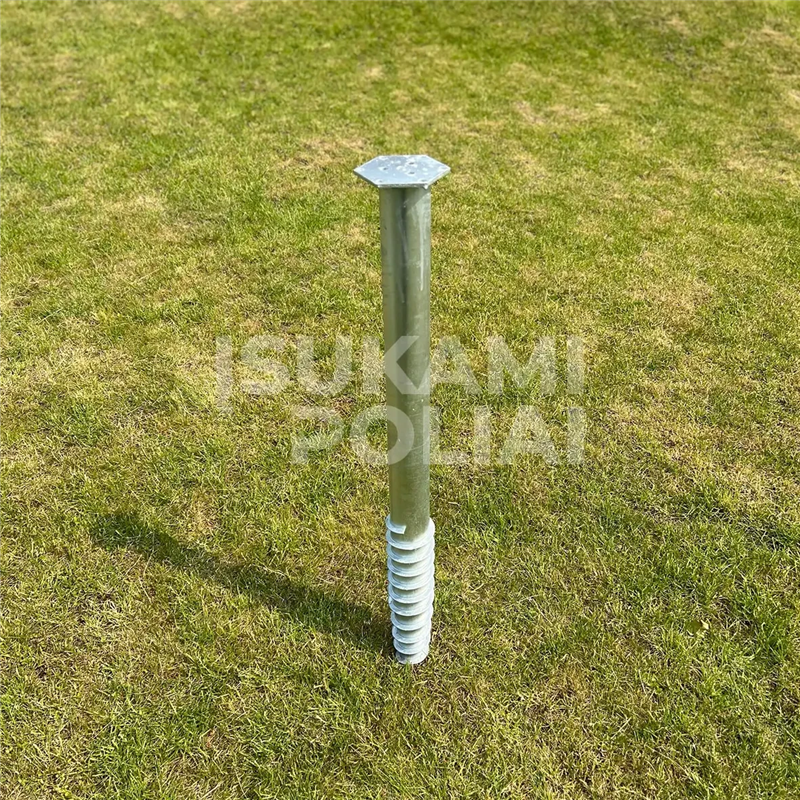

M-type galvanised ground screw pile M1200/76

TQUL6696

The M1200/76 is an M-type galvanised steel ground screw pile engineered for foundations of timber cabins, saunas, and storage sheds. Featuring a 76 mm tube diameter and a 3.5 mm wall thickness, it withstands loads of up to 1600 kg. The wide head plate accommodates frame mounting even with slight axial alignment offsets and incorporates a threaded rod mount for millimetre-accurate height adjustments.

More details

foundation screw, galvanised screw pile, M-type ground screw, ground screws, screw piles, 76mm screw pile, ground anchor, timber foundation

19,35 € tax incl.

Ask about product
M-type galvanised ground screw pile M1200/76

M-type galvanised ground screw pile M1200/76

The M1200/76 is an M-type galvanised steel ground screw pile engineered for foundations of timber cabins, saunas, and storage sheds. Featuring a 76 mm tube diameter and a 3.5 mm wall thickness, it withstands loads of up to 1600 kg. The wide head plate accommodates frame mounting even with slight axial alignment offsets and incorporates a threaded rod mount for millimetre-accurate height adjustments.



More info

Galvanised M-type ground screw for timber framework

The M1200/76 ground screw foundation is engineered for saunas, garden sheds, outbuildings, and timber-frame structures. Built with a 76 mm tube diameter and a 3.5 mm wall thickness, this screw pile delivers a load capacity of up to 1600 kg. Galvanised steel construction provides dependable resistance against corrosion in varied ground conditions.

Flexible frame mounting and alignment

The M-type mounting plate is designed to facilitate stable beam support and flexible installation:

  • Wide top plate supports timber frames even when screw piles are not positioned in an exact straight line
  • Integrated threaded rod mounting enables millimetre-precise height adjustment and levelling
  • Additional mounting holes allow secure fixing of custom brackets and support hardware

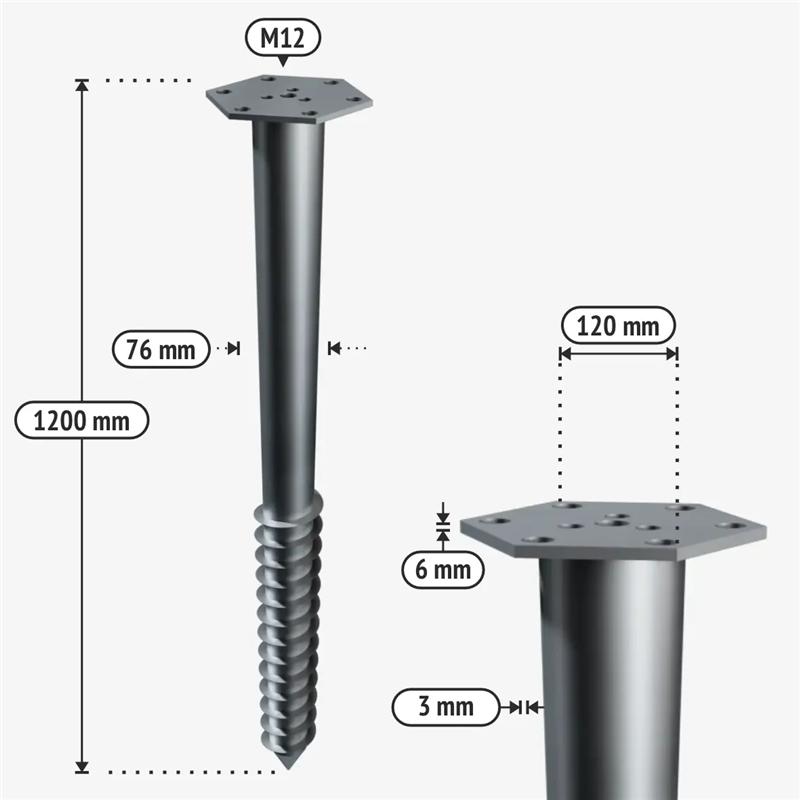

Technical specifications

Model M1200/76
Type M
Material Galvanised steel

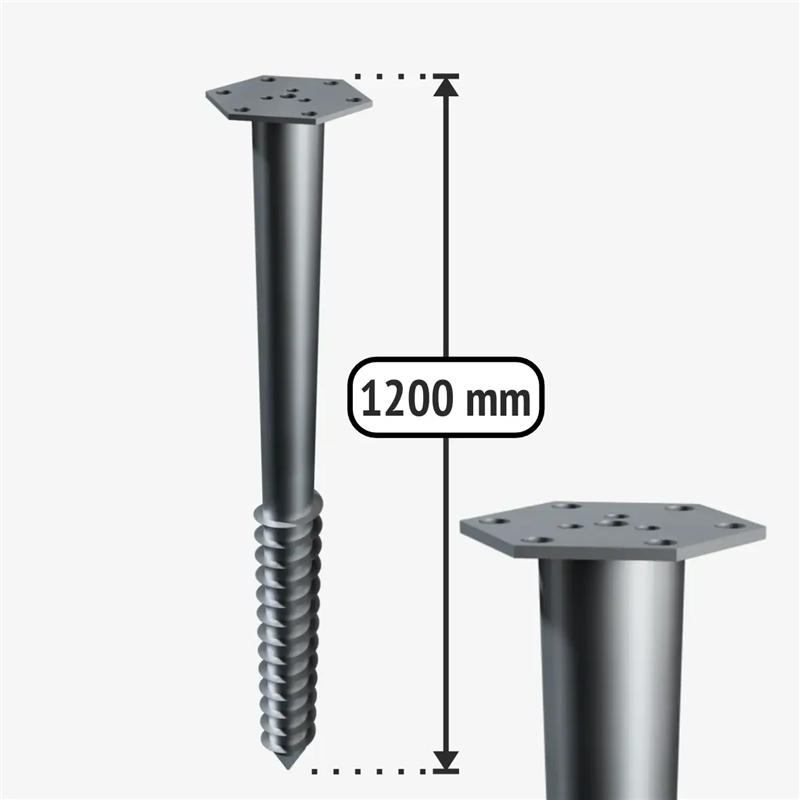

Total length 1200 mm
Diameter 76 mm
Wall thickness 3.5 mm
Maximum load capacity 1600 kg
Above-ground height Up to 250 mm
Weight 6.9 kg
