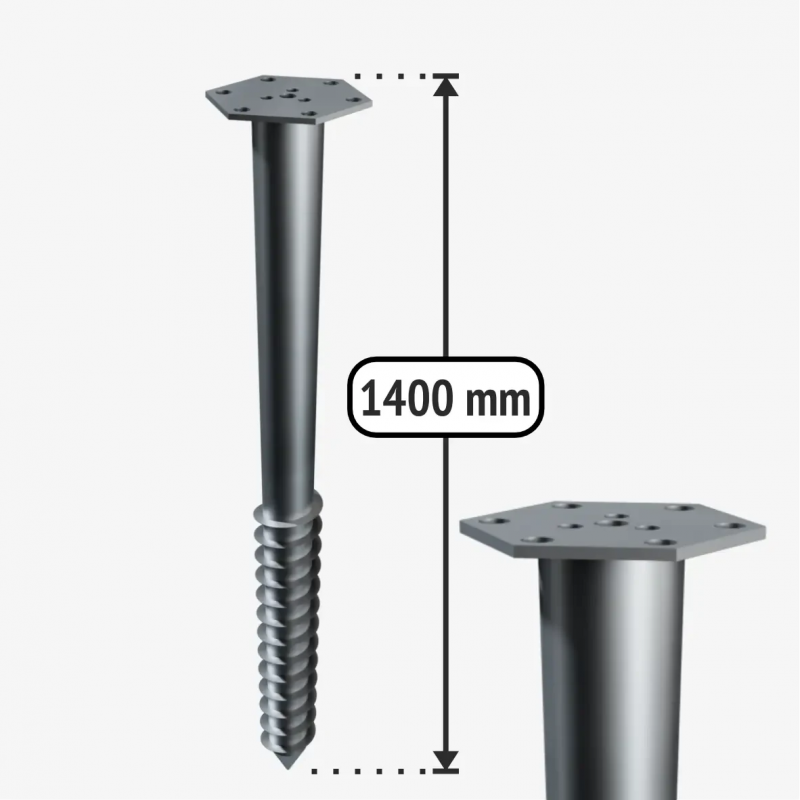

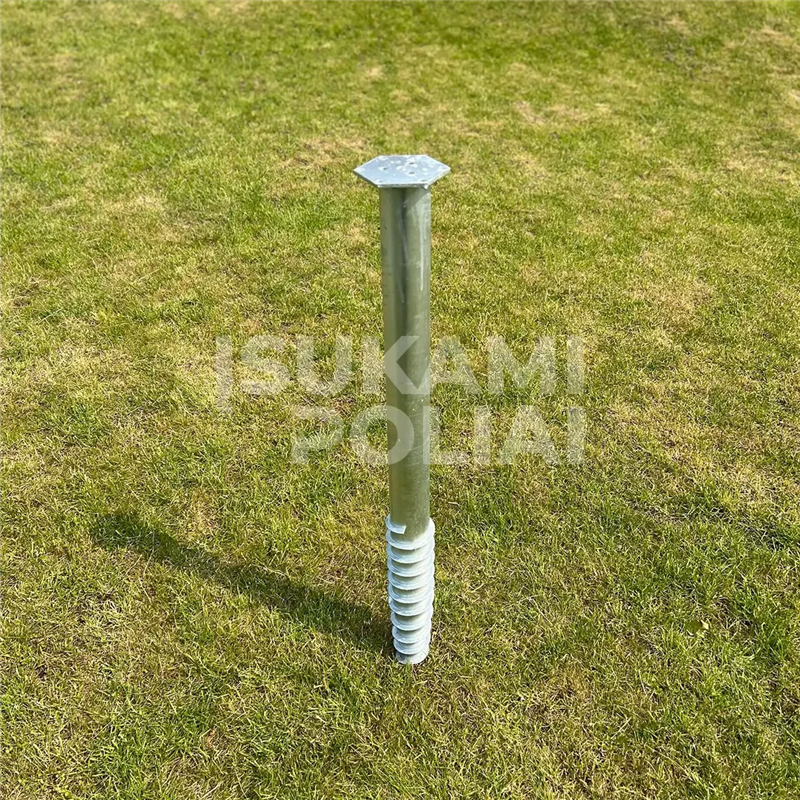

M-type galvanised steel ground screw M1400/68

M-Type Ground Screw for Timber and Modular Frameworks

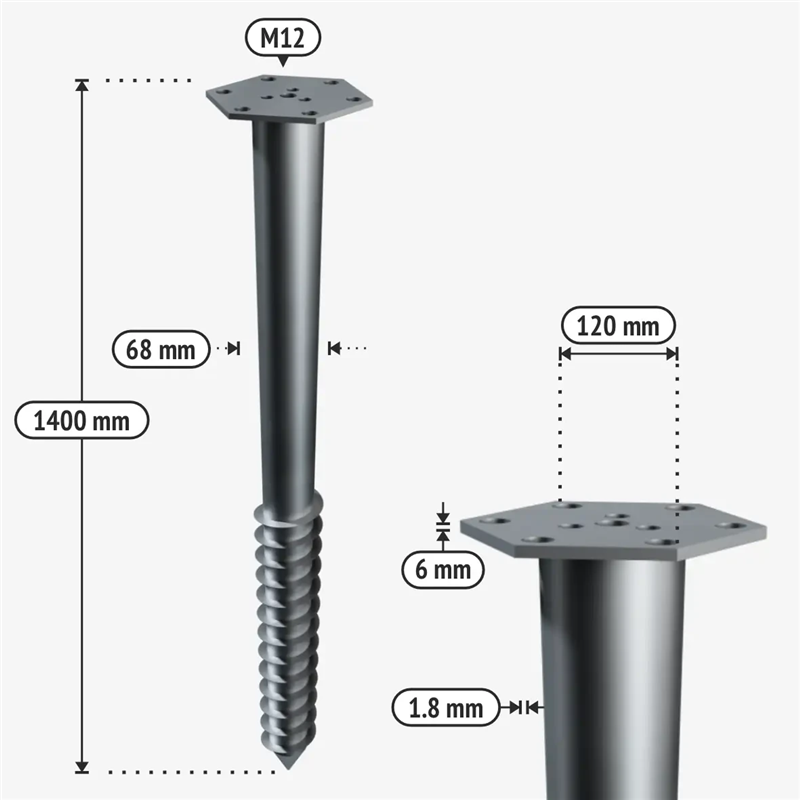

The M1400/68 galvanised steel ground screw provides a secure foundation for saunas, garden sheds, storage units, terraces, and other framed structures. Engineered with a 68 mm pipe diameter and a 1.8 mm wall thickness, this ground screw supports static loads of up to 1600 kg.

Design and Installation Features

• Wide M-type top plate facilitates reliable frame seating even if the screw is driven slightly off-line.
• Integrated mounting point for a threaded rod allows precise, millimetre-level height alignment of the supported structure.
• Auxiliary fixing holes ensure secure fastening when timber beams or framework sit away from the centre.
• Adaptable plate design accommodates custom mounting brackets and connector hardware.
• Installation using dedicated mechanical driving equipment is recommended.

Technical Specifications
