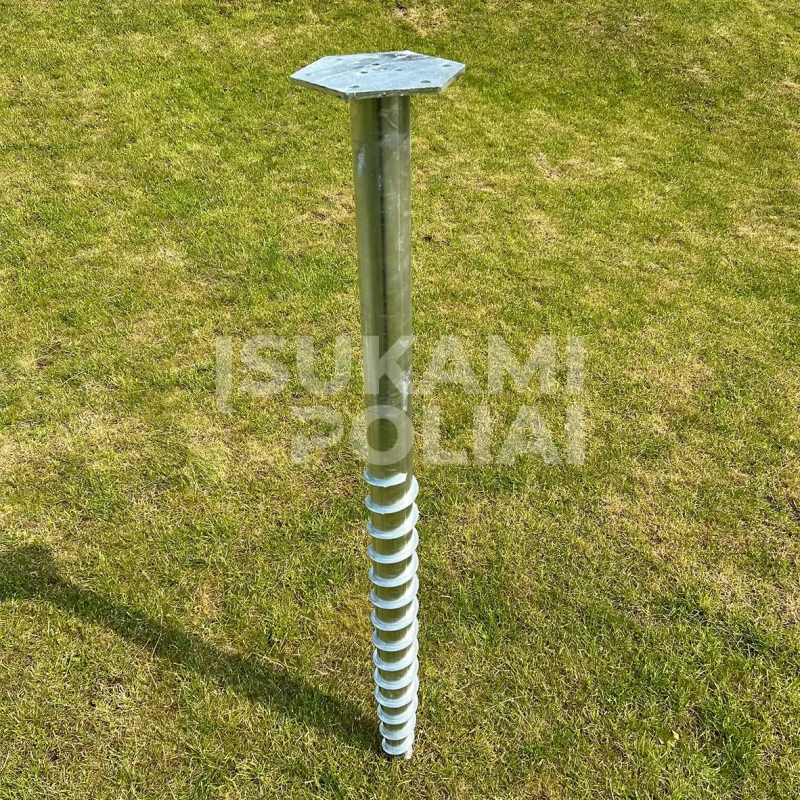

Ground screw foundation M1600 | 76x1600 mm

WRKB1366

The M1600 ground screw foundation supports substantial structures such as timber frame buildings and terraces. Fabricated from galvanised steel with a 76 mm diameter, it sustains loads up to 3000 kg. Its M-type mounting plate includes slots for a threaded rod and offset holes, enabling precise levelling and alignment of framework even if pile alignment deviates.

More details

M-type ground screw, galvanised ground screw, ground screws, screw piles, timber frame foundations, foundation screw piles, ground screw M1600, screw anchors

31,70 € tax incl.

Ask about product
Ground screw foundation M1600 | 76x1600 mm

Ground screw foundation M1600 | 76x1600 mm

The M1600 ground screw foundation supports substantial structures such as timber frame buildings and terraces. Fabricated from galvanised steel with a 76 mm diameter, it sustains loads up to 3000 kg. Its M-type mounting plate includes slots for a threaded rod and offset holes, enabling precise levelling and alignment of framework even if pile alignment deviates.



More info

Heavy-duty ground screw foundation M1600

The M1600 ground screw foundation is engineered for substantial structures, including timber frame buildings, terraces, and outbuildings. Featuring a 76 mm tube diameter and durable galvanised steel fabrication, this screw pile delivers a load capacity of up to 3000 kg, subject to soil composition and structural engineering specifications.

M-type mounting plate and installation features

  • Broad support plate: Designed to carry structural framework securely. The plate area accommodates slight alignment deviations during installation without losing contact area under the frame.
  • Millimetre-level levelling: Integrated location for a threaded rod combined with offset mounting holes enables precise height and axis adjustment.
  • Bracket compatibility: Allows bolting of various standard or custom timber connection brackets directly onto the steel plate.
  • Installation method: Ground insertion requires the use of specialised mechanical ground screw driving machinery.

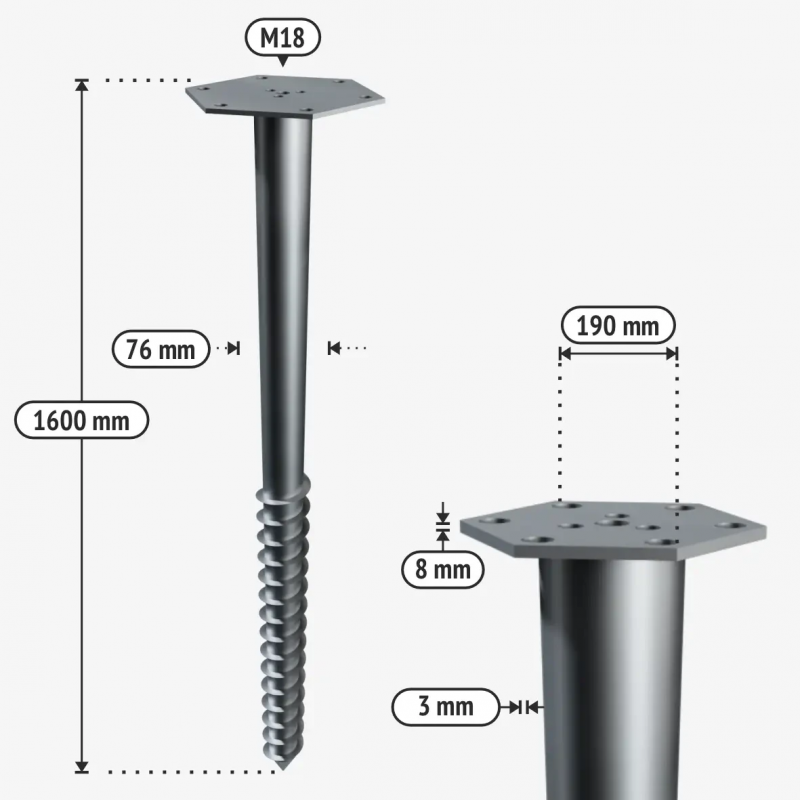

Technical specifications

SKU M1600/190/76/M18
Type M

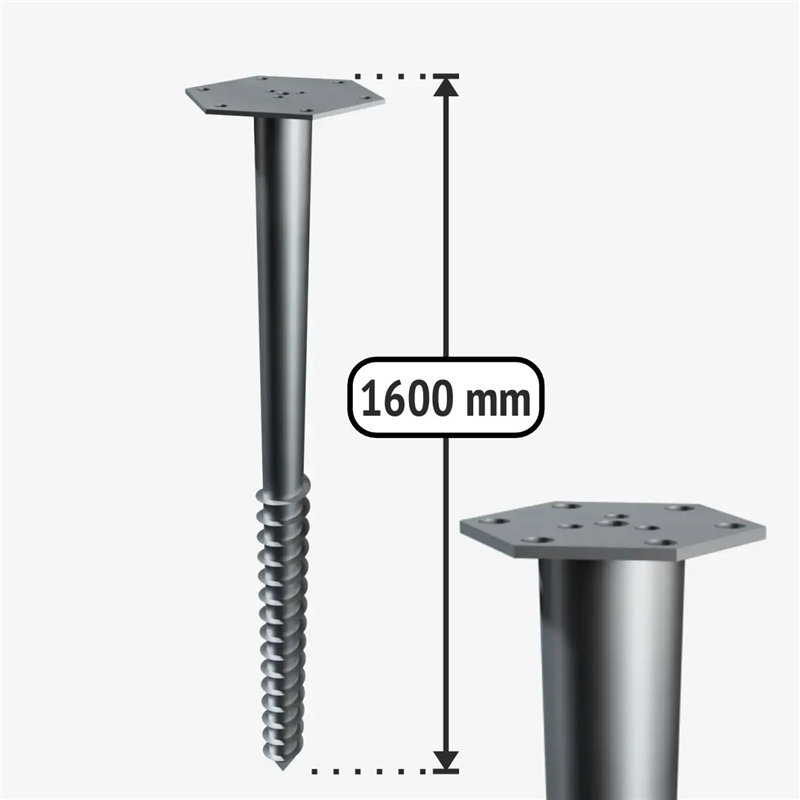

Length / height 1600 mm
Tube diameter 76 mm
Metal thickness 3.5 mm
Material Galvanised steel
Load capacity 3000 kg
Height above ground Up to 300 mm
Weight 10.1 kg
