FOUR-SIDED PLANER LANTZMANN QUATPROF 200/125-5 View larger

FOUR-SIDED PLANER LANTZMANN QUATPROF 200/125-5

QUATPROF 200/125-5

  • Four-sided planer Lantzmann with 4 heads

More details

30 129,00 € tax incl.

Ask about product
FOUR-SIDED PLANER LANTZMANN QUATPROF 200/125-5

FOUR-SIDED PLANER LANTZMANN QUATPROF 200/125-5

  • Four-sided planer Lantzmann with 4 heads



More info

Description:

  • Four-sided planer Lantzmann with 4 heads

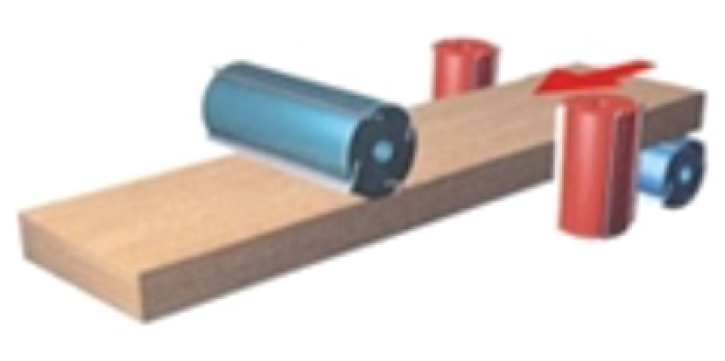

Shaft arrangement:

  1. Horizontal bottom

  2. vertical right

  3. Vertical left

  4. Horizontal top

  5. Horizontal bottom

Technical indicators:

Max. working width (milling head diameter 125 mm) 200 mm
Min. working width (milling head diameter 125 mm) 20 mm
Max. working height (milling head diameter 125 mm) 125 mm
Min. working height (milling head diameter 125 mm) 8 mm
Min. working length (one) 630 mm
Min. working length (continuous) 250 mm
Shaft diameter 40 mm
Diameter of the upper feed wheel 140 mm
Feed rate 8 ~ 33m / min
Shaft revolutions 6800 rpm
Air pressure 0,3–0,6MPa
The need for compressed air 0,15m3 / min
Vacuum cleaner outlet diameter Ø 120mm x 5
Extractor system air requirement 150m3/min /
Length 3950 mm
Width 1900 mm
Height 2110 mm
Weight net 3700 kg



Milling head sizes:

Front lower cutter (planing) Ø 125mm
Front Lower Trim Cutter (D x H) Ø 152 12 mm x
Vertical cutter Ø 108 ~ Ø 180 mm
Upper cutter Ø 108 ~ Ø 180 mm
Rear lower incisor Ø 108 ~ Ø 200 mm

Engine power:

Front lower / vertical shaft motor 5,5 kW each
Upper shaft motor 7,5 kW
Rear lower shaft motor 5,5 kW
Feed motor 4 kW
Beam lift motor 0,75 kW
