U-type ground screw U1300/101/68/M12

U-Profile Ground Screw Anchor U1300/101/68/M12

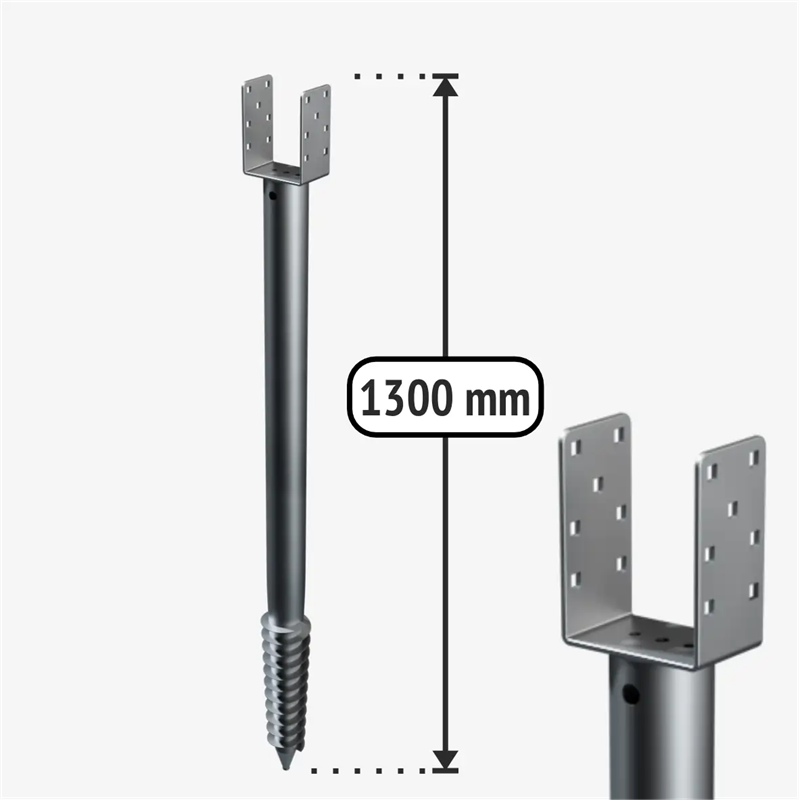

The U1300/101/68/M12 galvanised steel ground screw provides a solid and fast foundation solution without excavating or pouring concrete. It is engineered for building terraces, sheds, saunas, timber frame structures, and fencing. The total length allows flexible installation depth to compensate for slopes and uneven ground while maintaining required elevation above ground level.

Design and Installation Features

The ground screw features a U-shaped bracket at the top, facilitating the direct attachment of both timber beams and steel framework. Pre-drilled holes in the sides of the U-profile allow fast and secure fastening of the frame structure at the desired elevation. An integrated base opening accommodates an M12 threaded rod or auxiliary mounting brackets, allowing millimetre-precise leveling of structural timbers.

• Durable foundation for decks, outbuildings, saunas, and fencing
• U-shaped bracket for fixing timber and metal frame profiles
• Compensates for slope and ground unevenness without groundworks
• Side mounting holes and M12 threaded rod mounting point
• Corrosion-resistant galvanised steel construction

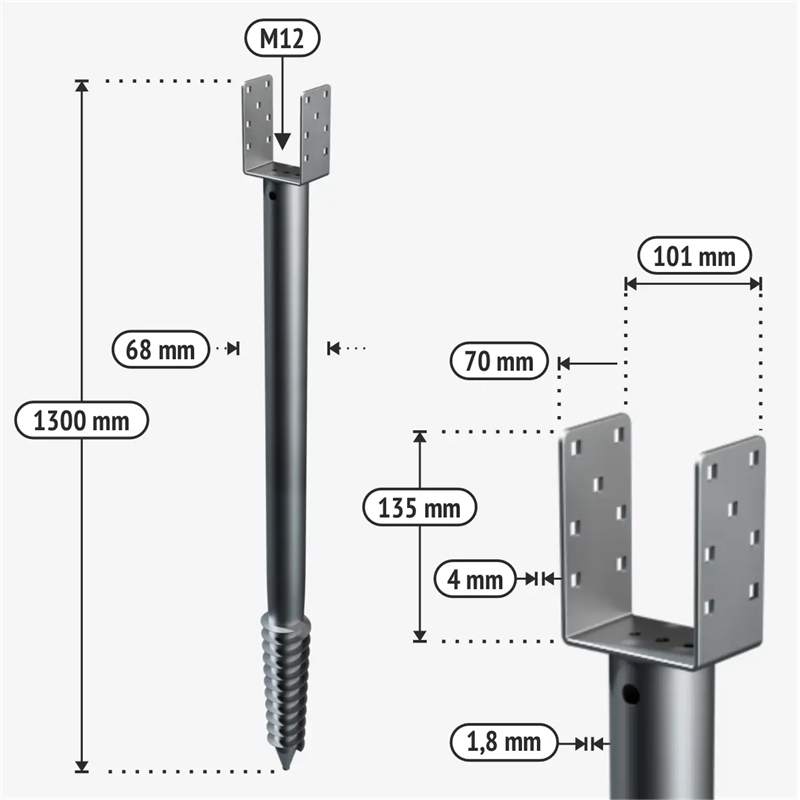

Technical Specifications

Installation Tools and Accessories

• Manual ground screw installation tool for small quantities
• Ground screw drive reducer / gear unit for larger volumes
• M12 threaded rod for elevation adjustment
• Structural mounting brackets
