U-type Galvanised ground screw 1450 mm U1450/121/68/M12

VCJL6223

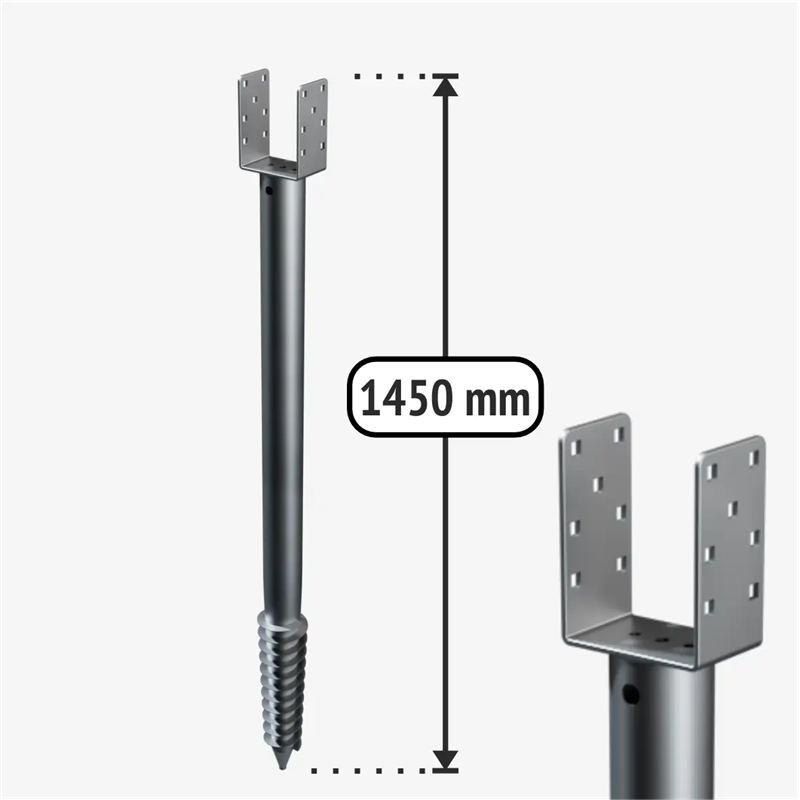

Hot-dip galvanised U-type ground screw U1450/121/68/M12 engineered for decking, timber structures, garden rooms, and fencing. With a total length of 1450 mm and an above-ground clearance of up to 260 mm, it accommodates sloping terrain effortlessly. Features a robust U-bracket with side fixing holes, an M12 threaded rod mounting base for precise levelling, and a load capacity of up to 1200 kg.

More details

foundation screw, galvanised screw pile, ground screw, screw pile, timber frame foundation, U-type ground screw, decking foundation, U1450

18,14 € tax incl.

Ask about product
U-type Galvanised ground screw 1450 mm U1450/121/68/M12

U-type Galvanised ground screw 1450 mm U1450/121/68/M12

Hot-dip galvanised U-type ground screw U1450/121/68/M12 engineered for decking, timber structures, garden rooms, and fencing. With a total length of 1450 mm and an above-ground clearance of up to 260 mm, it accommodates sloping terrain effortlessly. Features a robust U-bracket with side fixing holes, an M12 threaded rod mounting base for precise levelling, and a load capacity of up to 1200 kg.



More info

Galvanised U-type ground screw for foundations

Hot-dip galvanised ground screw with a U-shaped mounting bracket designed for rapid and solid foundation installation without concrete. Ideal for decking, garden rooms, timber frames, saunas, outbuildings, and fencing, particularly on uneven ground or raised structures.

Features and advantages

  • Integrated U-bracket allows straightforward anchoring of timber joists and metal beams.
  • Side mounting holes enable secure fastening at the required structural height.
  • Bottom plate features an M12 threaded rod mounting point for millimetre-accurate levelling.
  • Hot-dip galvanised steel construction provides lasting corrosion resistance in diverse soil conditions.
  • Suitable for manual installation with turning levers or mechanical ground screw drive units.

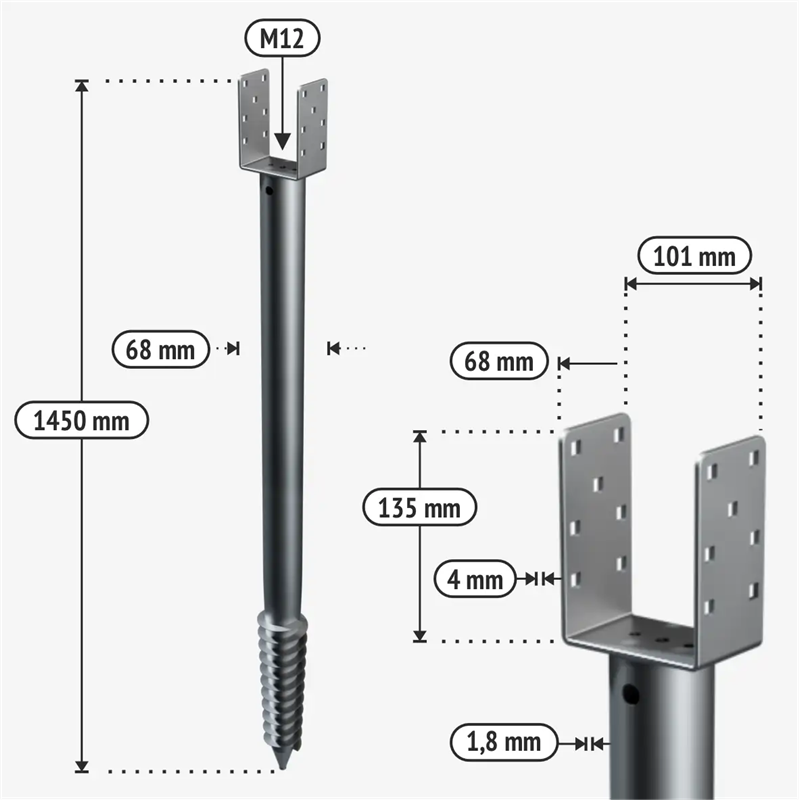

Technical specifications

Specification Value
Model U1450/121/68/M12
Type U
Length 1450 mm
Max. height above ground 260 mm
Tube diameter 68 mm
Wall thickness 1.8 mm
Load capacity 1200 kg
Material Galvanised steel
Weight 5.12 kg
