New G- type Galvanised ground screw pile G1550/76/M12 View larger

G- type Galvanised ground screw pile G1550/76/M12

EQEF1710

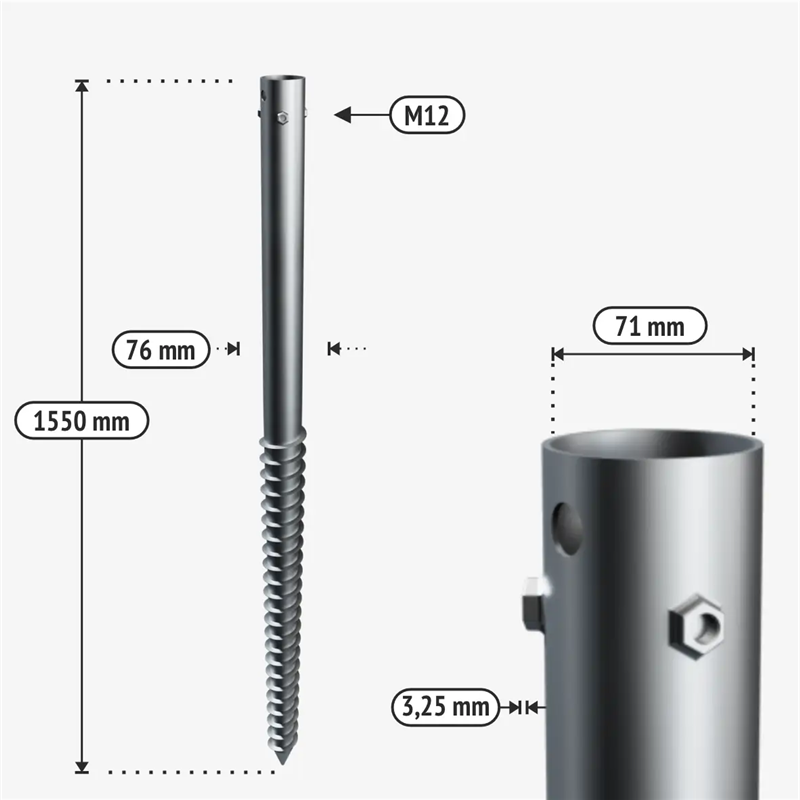

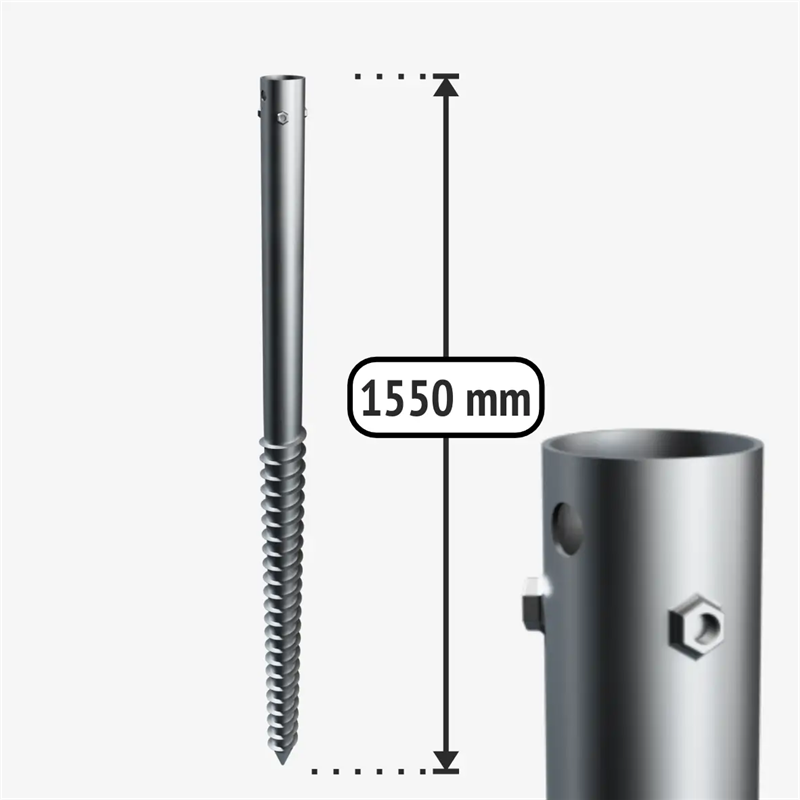

Galvanised steel ground screw pile G1550/76/M12 with a length of 1550 mm and diameter of 76 mm. Designed for mounting solar panel systems, fencing, and temporary structures. Manufactured from 3.25 mm thick galvanised steel, providing excellent corrosion resistance and dependable ground anchorage without concrete.

More details

foundation screw, ground screw, screw pile, galvanised ground screw, ground screw pile, G1550/76, no-dig foundation, solar ground mount

28,07 € tax incl.

Ask about product
G- type Galvanised ground screw pile G1550/76/M12

G- type Galvanised ground screw pile G1550/76/M12

Galvanised steel ground screw pile G1550/76/M12 with a length of 1550 mm and diameter of 76 mm. Designed for mounting solar panel systems, fencing, and temporary structures. Manufactured from 3.25 mm thick galvanised steel, providing excellent corrosion resistance and dependable ground anchorage without concrete.



More info

Versatile ground screw for reliable foundations

The G1550/76/M12 ground screw pile is a robust foundation solution suited for solar panel mounting systems, perimeter fencing, timber frames, and temporary or permanent structures. With an overall length of 1550 mm and a 76 mm diameter, it delivers rigid ground anchorage even in challenging soil conditions.

Key Features

  • Heavy-duty galvanised steel construction with 3.25 mm wall thickness for superior corrosion protection
  • Fast ground installation without requiring concrete, curing time, or extensive excavation
  • Suitable for solar array supports, fencing posts, and modular structures
  • Integrated M12 fixing points for straightforward top-flange connection

Technical specifications

Parameter Value
Model G1550/76/M12
Type G
Length 1550 mm
Diameter 76 mm
Wall thickness 3.25 mm
Material Galvanised steel
Weight 10.22 kg
