G-type Galvanised ground screw pile G900/68/M12

Compact ground screw pile for lightweight structures

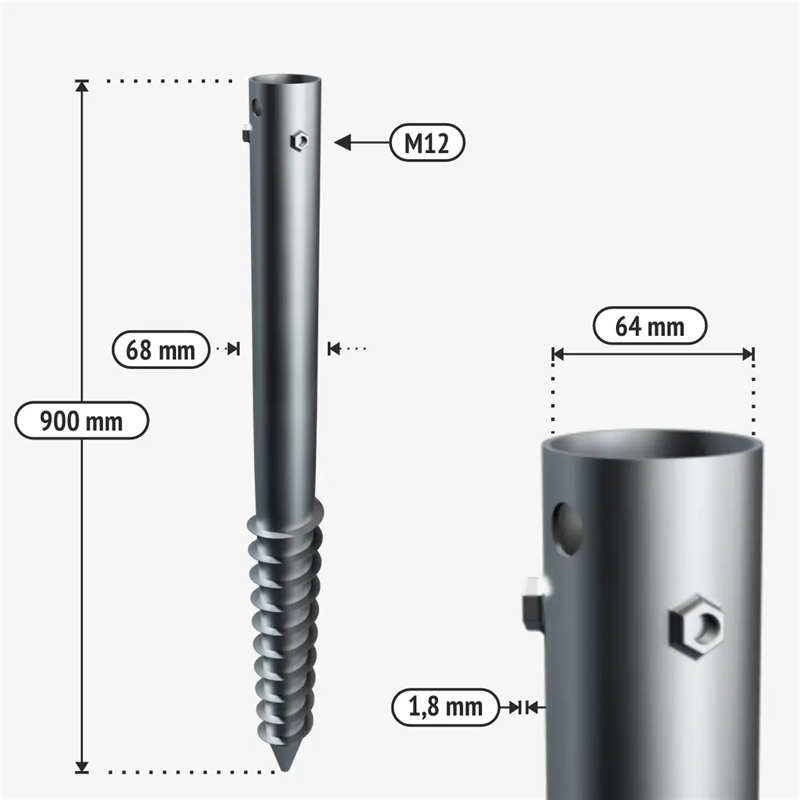

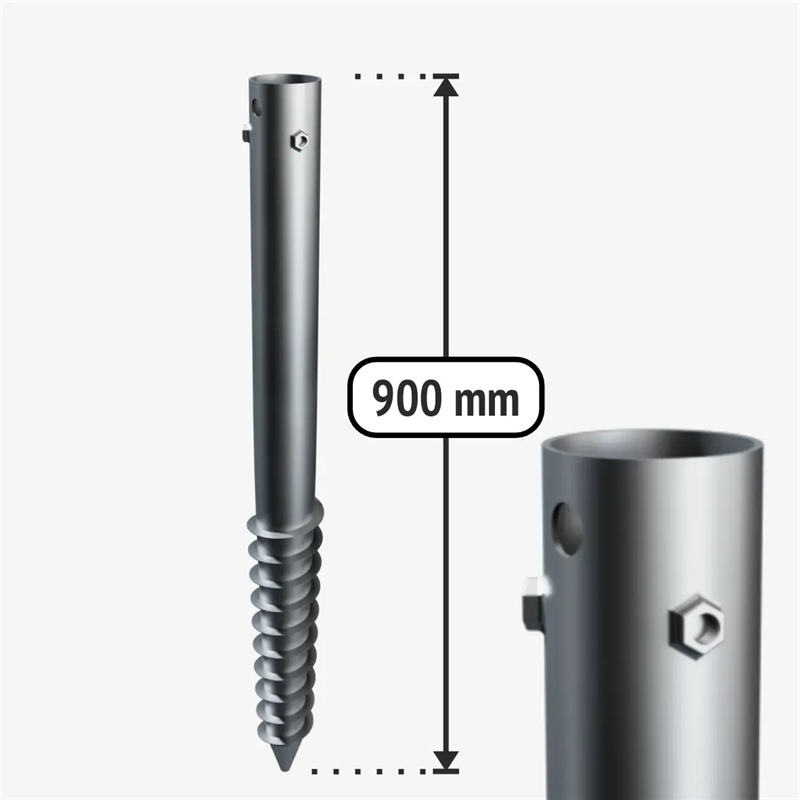

The G-type ground screw G900/68/M12 provides a swift and solid foundation anchor without the need for excavation or wet concrete. Built with a 900 mm overall length and a 68 mm pipe diameter, this galvanised steel foundation screw is suitable for securing fence posts, light frames, garden outbuildings and timber subframes directly into the soil.

Key features

• Manufactured from durable galvanised steel with 1.8 mm wall thickness
• Standard 68 mm tube diameter and 900 mm length for reliable soil anchorage
• Immediate load-bearing capacity without concrete pouring
• Corrosion-resistant finish for long-term exterior use
• G-type mounting interface for secure mechanical connection

Technical specifications
