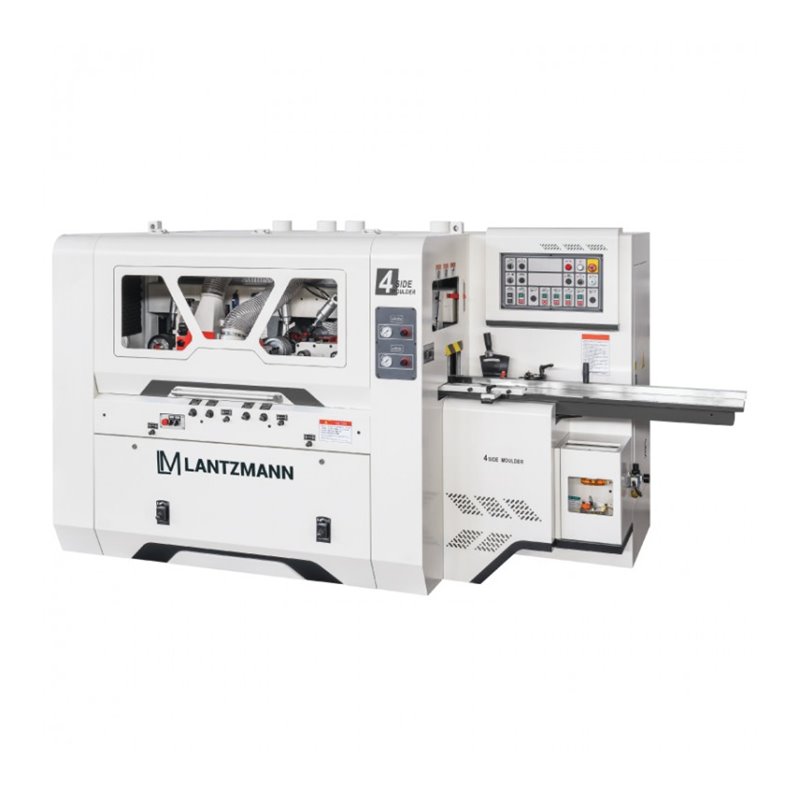

FOUR-SIDED PLANER LANTZMANN QUATPROF 180/100-4 View larger

FOUR-SIDED PLANER LANTZMANN QUATPROF 180/100-4

QUATPROF 180/100-4

  • Four-sided planer Lantzmann with 4 heads

More details

20 990,00 € tax incl.

Ask about product
FOUR-SIDED PLANER LANTZMANN QUATPROF 180/100-4

FOUR-SIDED PLANER LANTZMANN QUATPROF 180/100-4

  • Four-sided planer Lantzmann with 4 heads



More info

Description:

  • Four-sided planer Lantzmann with 4 heads

Shaft arrangement:

  1. Horizontal bottom

  2. For vertical

  3. Vertical left

  4. Horizontal top

Technical indicators:



Working width (milling head diameter 125 mm) 20 - 180 mm
Working height (milling head diameter 125 mm) 8 - 100 mm mm
Min. working length (single / continuous)  530mm/300mm
Shaft diameter 40 mm
Diameter of the upper feed wheel 140 mm
Feed rate  8~33 m/min
Shaft revolutions 6800 rpm
Air pressure 0.3-0.6 MPa
The need for compressed air 0.15m3/min
Vacuum cleaner outlet diameter Ø 120mm x 4
Extractor system air requirement 120m3/min
Shaft axial stroke - lower/upper shaft 10 mm
Shaft axial travel - L/R vertical shaft 30 mm
Length 3400 mm
Width 1800 mm
Height 2050 mm
Weight net 2700 kg









Milling head sizes:

Bottom cutter (planing) Ø 125mm
Bottom trimming cutter (D x H) Ø 152 x 12 mm
L/R Vertical cutter Ø 115 ~ Ø 170 mm
Upper cutter Ø 105 ~ Ø 150 mm

Engine power:

Lower / vertical shaft 4 kW each
Upper shaft motor 5.5 kW
Feed motor 3 kW
Beam lift motor  0.75 kW
