Three-phase silent diesel generator SDG 22000S-A

KRAFTWELE SDG22000S

The SDG 22000S-A is a silent three-phase diesel generator delivering 20 kVA rated and 22 kVA maximum power. Equipped with a two-cylinder diesel engine, digital control display, AVR voltage regulation, electric start, and a 25 L fuel tank. Includes integrated transport wheels under removable support legs.

More details

AVR generator, three-phase generator, diesel generator, power generator, standby generator, silent diesel generator, 22 kVA generator, SDG 22000S-A

7 442,00 € tax incl.

Ask about product
Three-phase silent diesel generator SDG 22000S-A

Three-phase silent diesel generator SDG 22000S-A

The SDG 22000S-A is a silent three-phase diesel generator delivering 20 kVA rated and 22 kVA maximum power. Equipped with a two-cylinder diesel engine, digital control display, AVR voltage regulation, electric start, and a 25 L fuel tank. Includes integrated transport wheels under removable support legs.



More info

Three-phase soundproof diesel generator

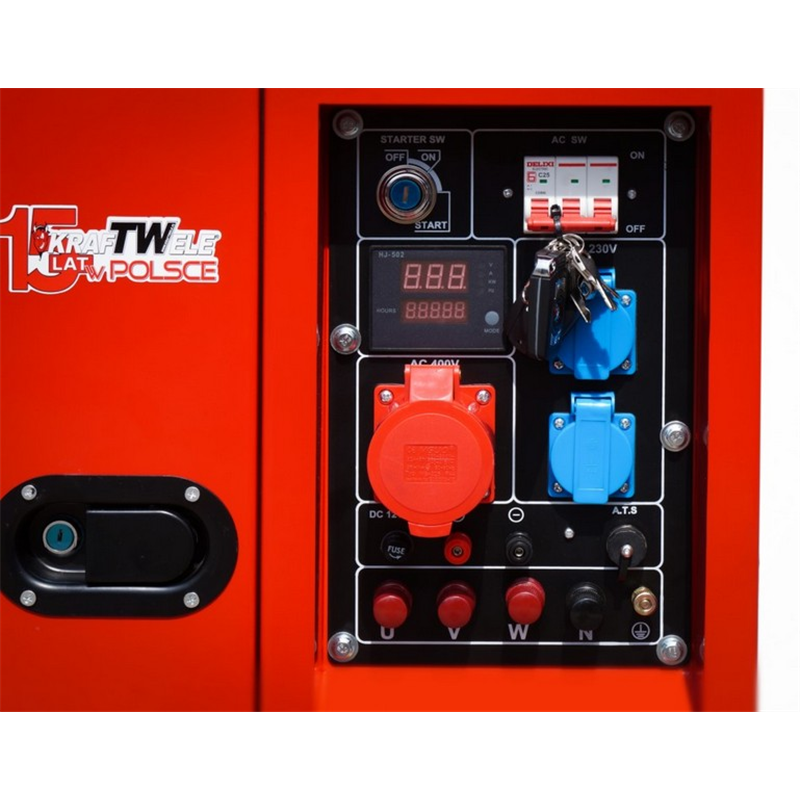

The SDG 22000S-A is a heavy-duty diesel generator driven by an efficient two-cylinder diesel engine. Operation and monitoring are managed via an intuitive digital control display. The generator supplies both 230 V and 400 V output and includes an automatic AVR voltage regulation system to maintain stable electrical parameters.

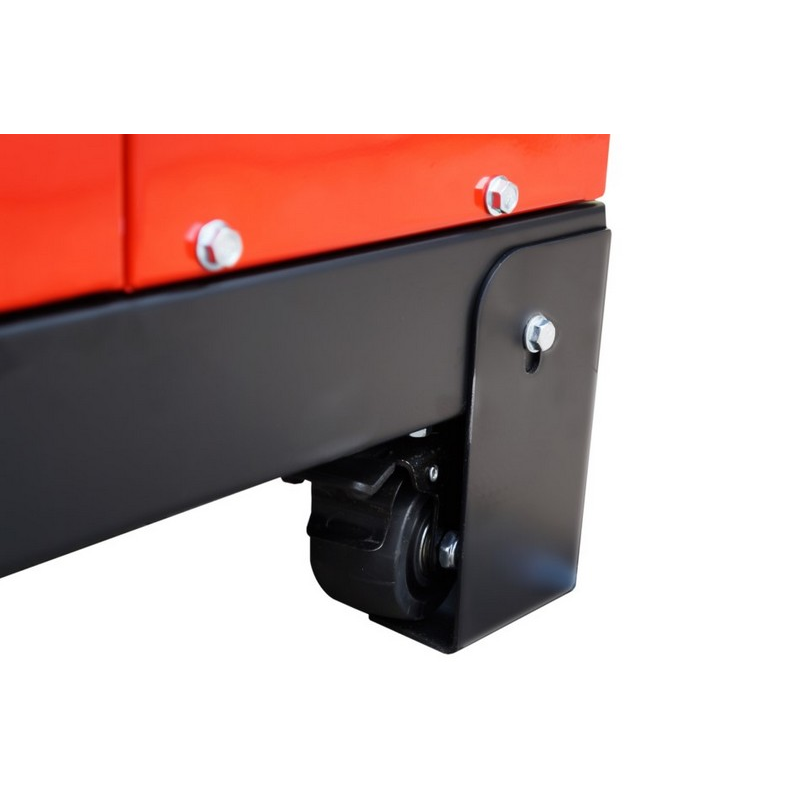

Housed in a silent, sound-attenuating canopy, the generator features an electric start mechanism. Built-in transport wheels located beneath the removable chassis supports allow for straightforward manoeuvring on site.

Technical specifications

Frequency 50 Hz
Voltage 230 V / 400 V
Rated power 20 kVA
Maximum power 22 kVA
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 25 L
Fuel consumption (at 50% load) 2.5 L/h
Dimensions (L x H x W) 1100 x 720 x 830 mm
Weight 360 kg

Optional accessories

  • ATS (Automatic Transfer Switch) module   (930 EUR)

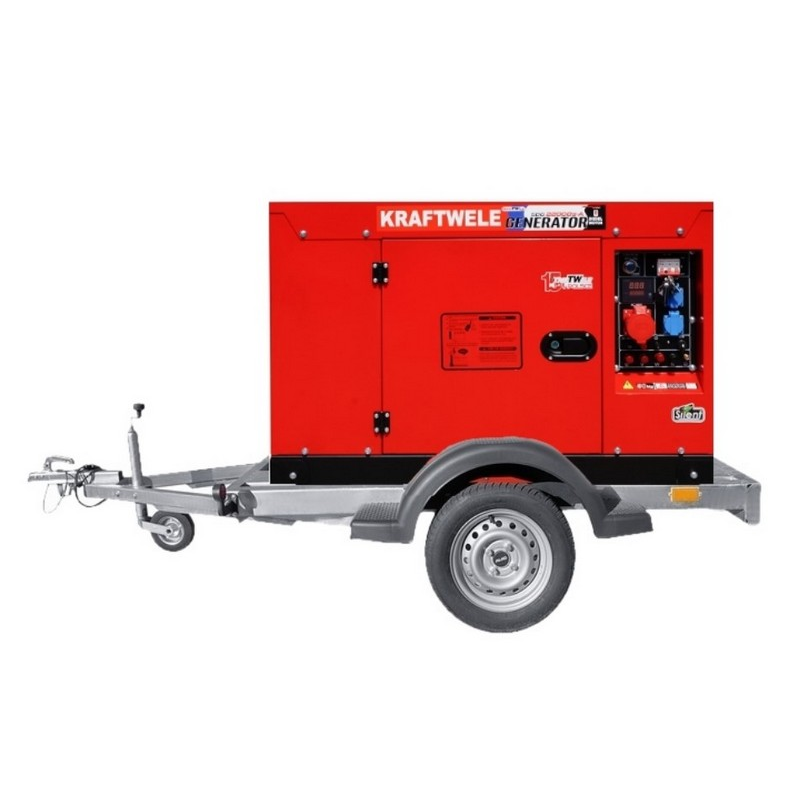

  • Transport trailer   (349 EUR)
