Diesel generator SDG 60000 DIGITAL SILENT

JKTR-4633

Industrial three-phase diesel generator featuring a turbocharged four-cylinder low-speed engine, AVR voltage regulation, and digital control panel. Delivers 55 kVA prime and 60 kVA maximum output. Equipped with a galvanised acoustic canopy, cold-start preheating system, 170-litre fuel tank, internal terminal strip, and external 230V/400V sockets.

More details

AVR generator, diesel generator, industrial generator, silent diesel generator, 3 phase generator, 55 kVA generator, 60 kVA standby generator, turbocharged generator

12 093,00 € tax incl.

Ask about product
Diesel generator SDG 60000 DIGITAL SILENT

Diesel generator SDG 60000 DIGITAL SILENT

Industrial three-phase diesel generator featuring a turbocharged four-cylinder low-speed engine, AVR voltage regulation, and digital control panel. Delivers 55 kVA prime and 60 kVA maximum output. Equipped with a galvanised acoustic canopy, cold-start preheating system, 170-litre fuel tank, internal terminal strip, and external 230V/400V sockets.



More info

Super Silent Turbocharged Diesel Generator with Digital Control

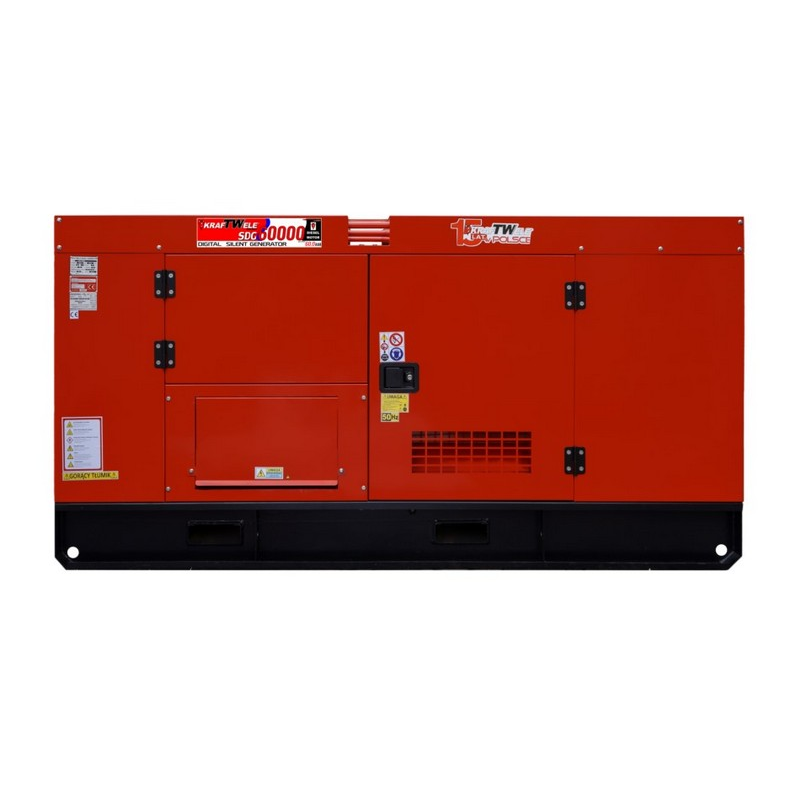

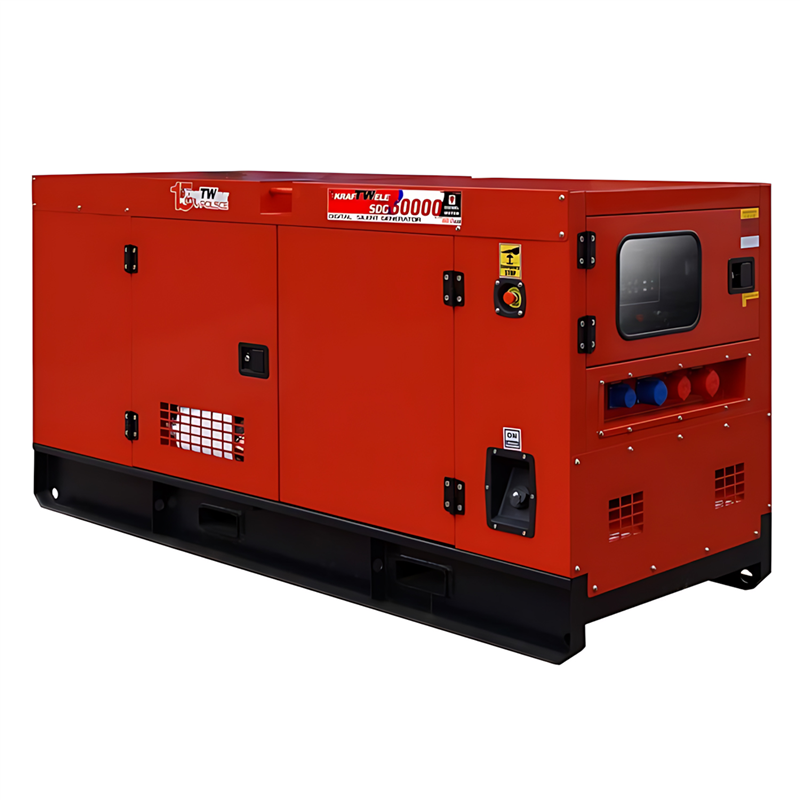

The SDG 60000 DIGITAL SILENT is a heavy-duty industrial three-phase diesel generator powered by a low-speed four-cylinder turbocharged diesel engine. Designed for prime and standby power generation, it features a digital control panel for operation monitoring and an Automatic Voltage Regulator (AVR) for stable voltage delivery.

Acoustic Canopy and Cold Start System

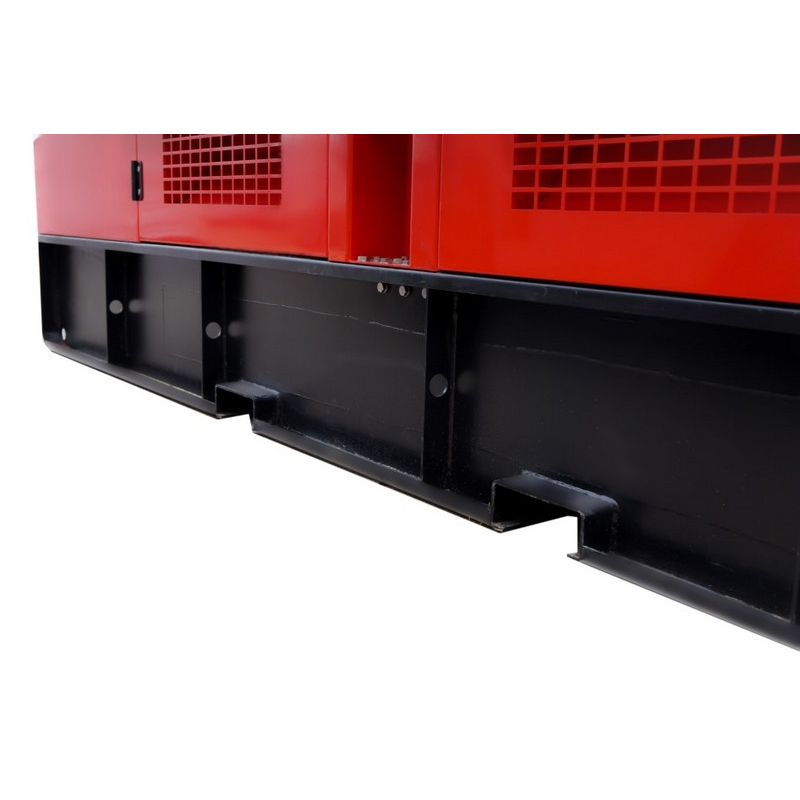

The sound-attenuated canopy is fabricated from galvanised steel sheet with weather-resistant protective paint and a shot-blasted base frame for corrosion resistance. A factory-fitted low-temperature start package includes a coolant heater, flame glow plug, and intake manifold preheater to ensure dependable cold-weather starting.

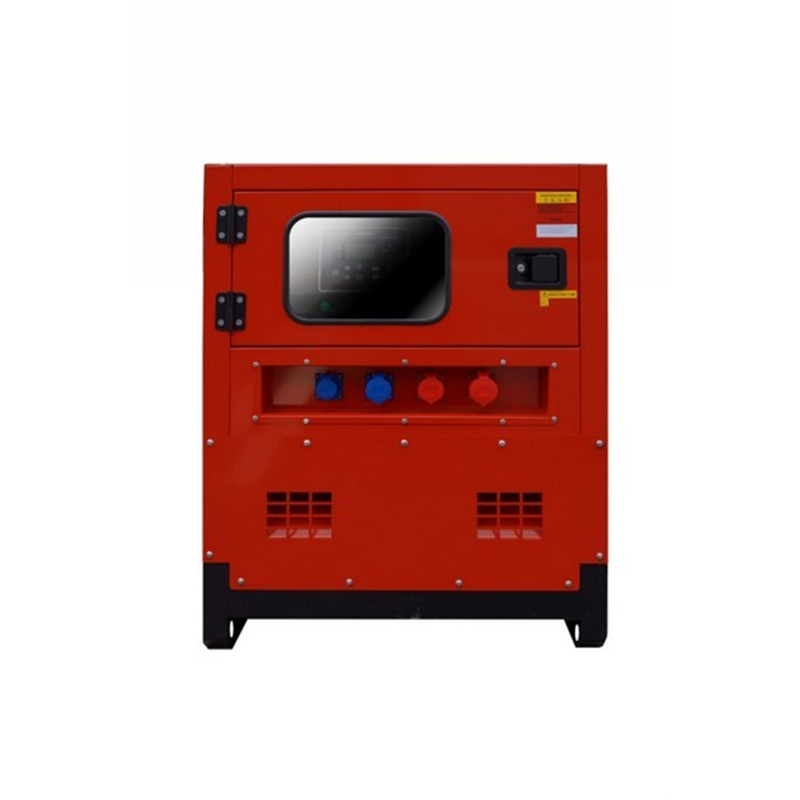

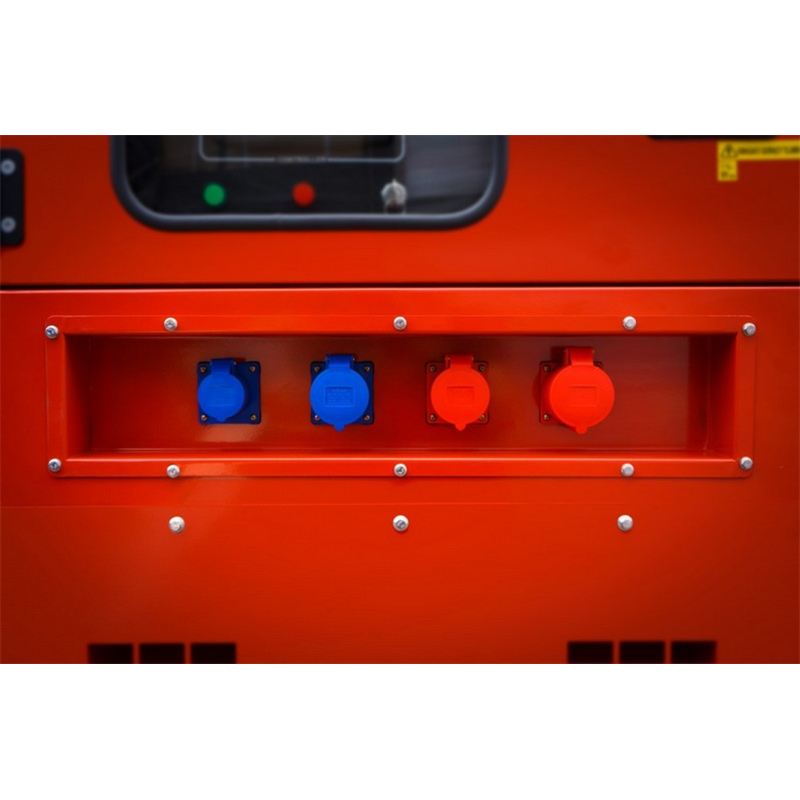

Power output is accessible via an internal high-capacity terminal strip and external industrial power sockets:

  • 1x 230V (16A)
  • 1x 230V (32A)
  • 1x 400V (16A)
  • 1x 400V (32A)

Technical Specifications

Rated power 55 kVA
Maximum power 60 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 170 L
Fuel consumption (at 50% load) 10.8 L/h
Dimensions (L x W x H) 2500 x 1300 x 1000 mm
Weight 1180 kg

Optional Accessories

  • Automatic Transfer Switch (ATS / AMF)   (1279 EUR)
  • Dedicated road transport trailer   (2441 EUR)
  • GSM / GPS communication module for Smartgen controller   (349 EUR)
