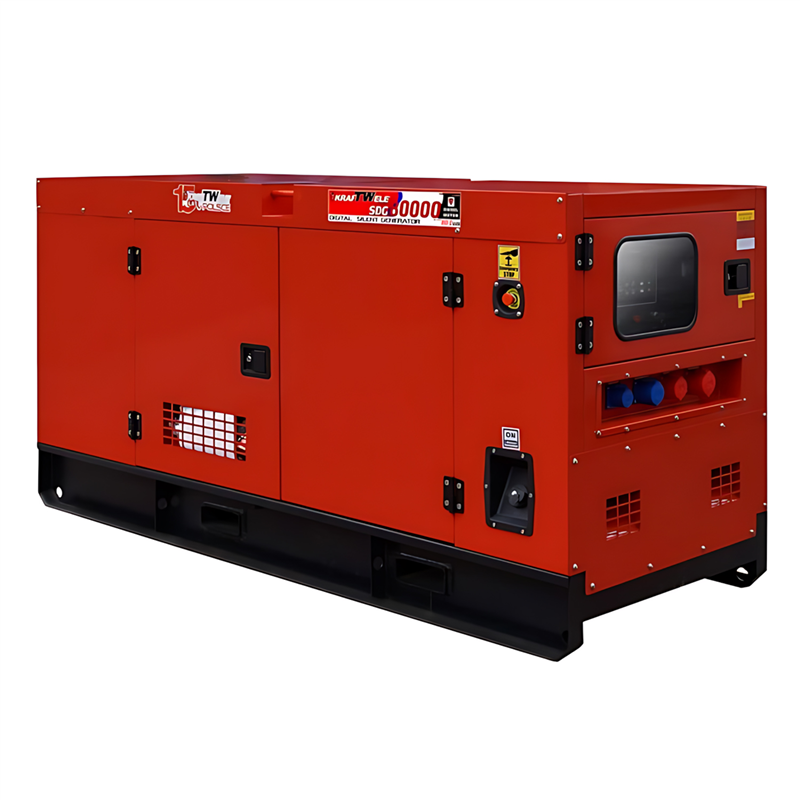

Soundproof diesel generator SDG80000

TCEY-6797

Soundproof diesel generator SDG80000 offering 75 kVA rated and 80 kVA maximum output at 230/400 V. Features a four-cylinder turbocharged diesel engine (Common Rail, Stage IIIa), AVR system, and electric starting. Includes a 170-litre fuel tank, low-temperature cold-start heating package, internal busbar, external 230V and 400V sockets, and a galvanised sound-attenuating canopy.

More details

three-phase generator, diesel generator, industrial generator, soundproof generator, standby generator, silent diesel generator, backup power generator, 80kVA generator

13 256,00 € tax incl.

Ask about product
Soundproof diesel generator SDG80000

Soundproof diesel generator SDG80000

Soundproof diesel generator SDG80000 offering 75 kVA rated and 80 kVA maximum output at 230/400 V. Features a four-cylinder turbocharged diesel engine (Common Rail, Stage IIIa), AVR system, and electric starting. Includes a 170-litre fuel tank, low-temperature cold-start heating package, internal busbar, external 230V and 400V sockets, and a galvanised sound-attenuating canopy.



More info

Three-phase soundproof diesel generator

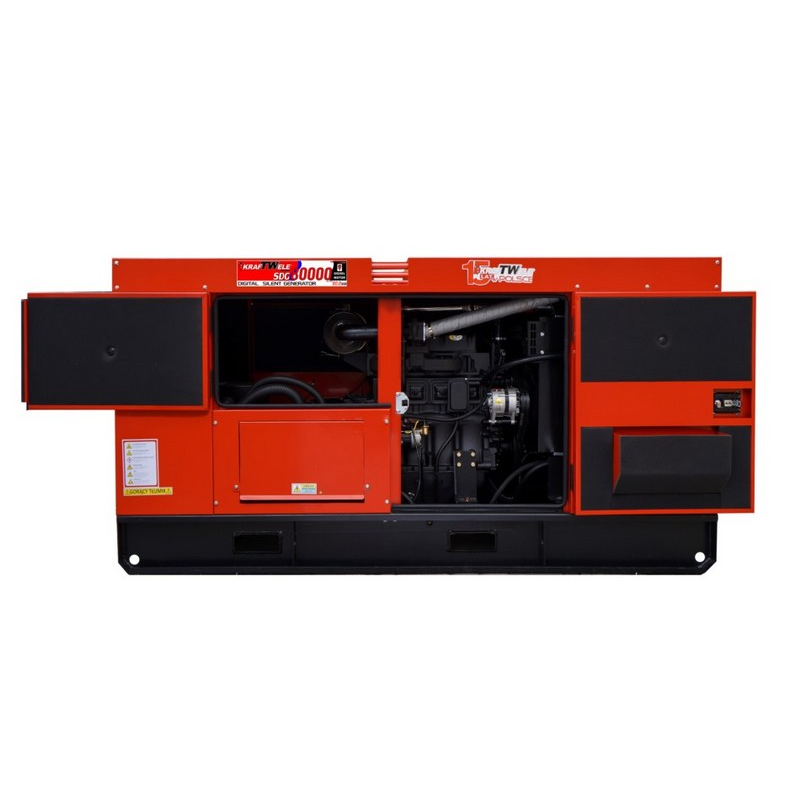

The SDG80000 is an industrial diesel generator from the DIGITAL SILENT series, powered by a low-speed, turbocharged four-cylinder diesel engine with a Common Rail fuel system compliant with Stage IIIa emissions standards. Delivering 75 kVA rated output and 80 kVA maximum output at 230/400 V, the unit is fitted with an Automatic Voltage Regulator (AVR) and an intuitive digital control panel for operational monitoring.

Construction and Key Features

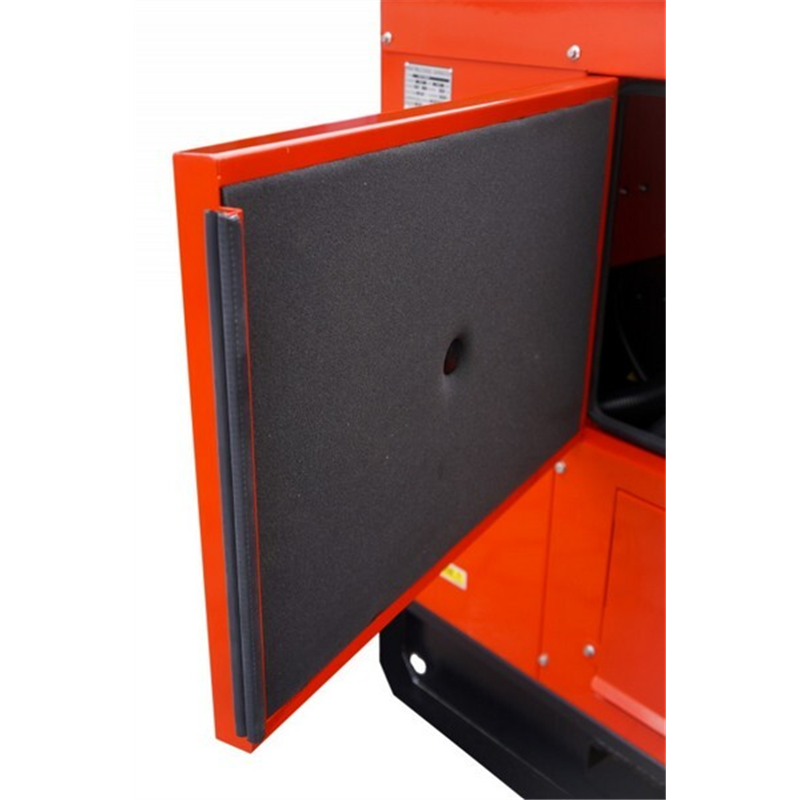

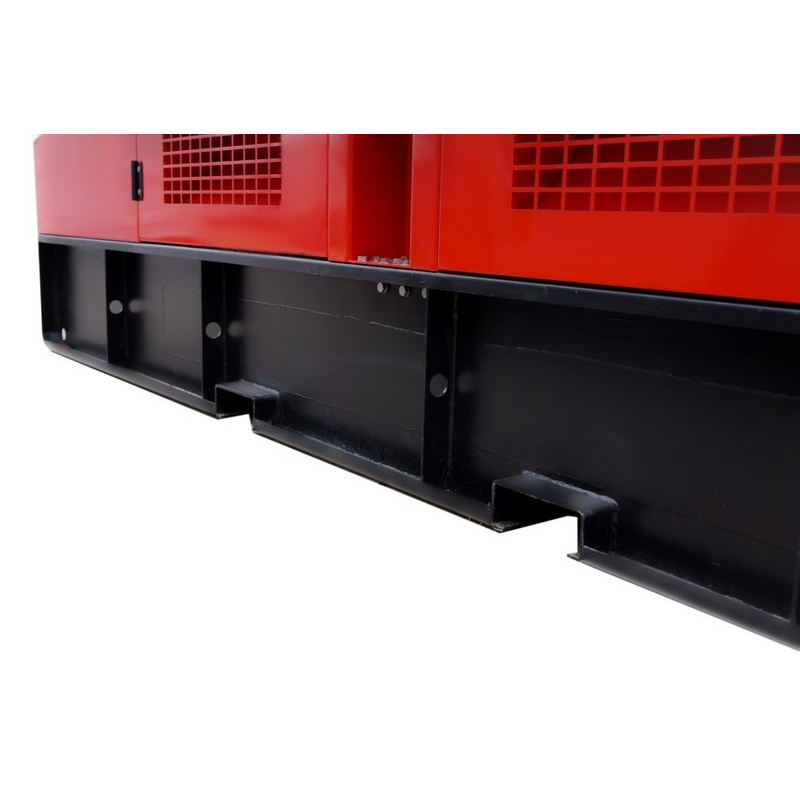

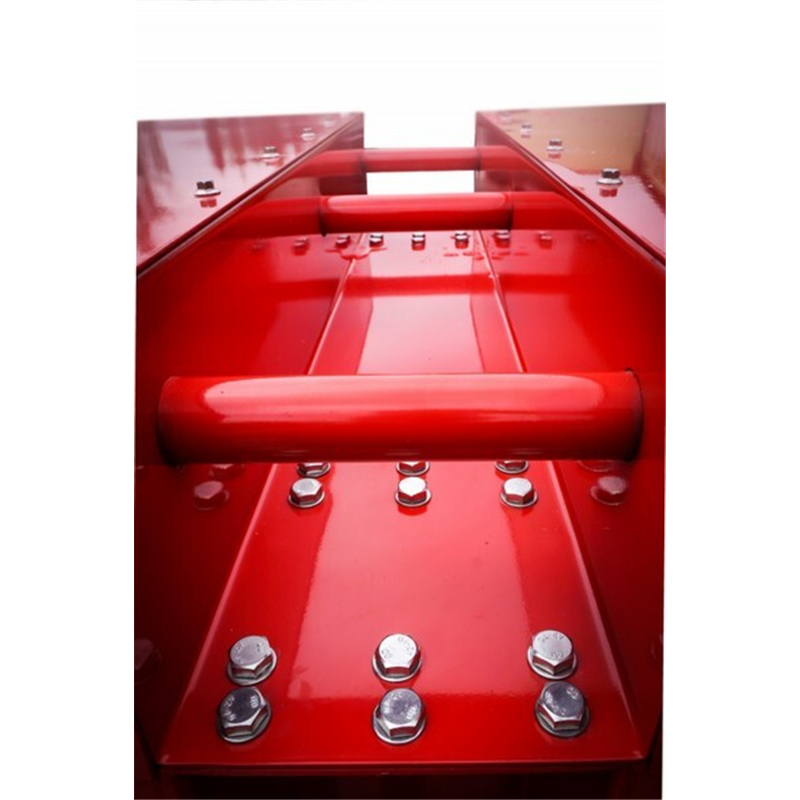

  • Galvanised steel acoustic canopy with weather-resistant finish and shot-blasted base frame for corrosion protection and sound attenuation
  • Standard low-temperature cold start package: coolant heater, flame glow plug, and intake manifold preheater

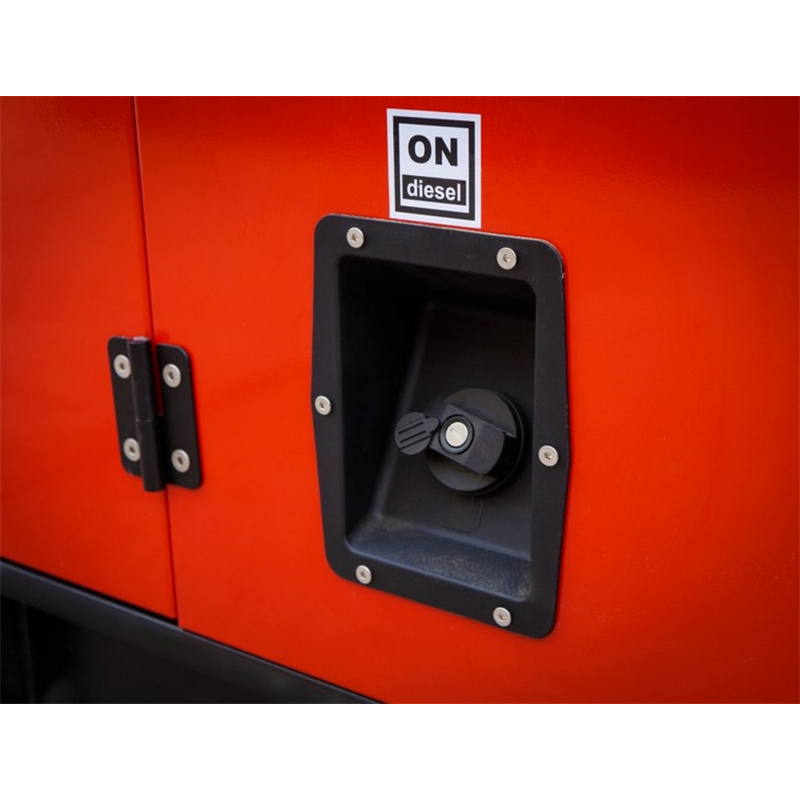

  • Electric starting system and integrated 170-litre fuel tank

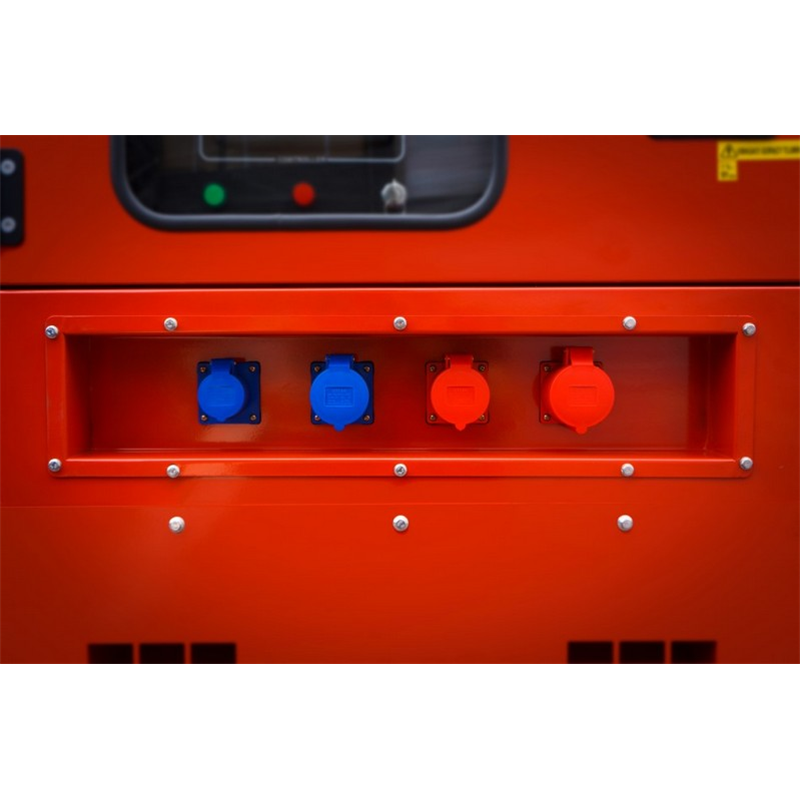

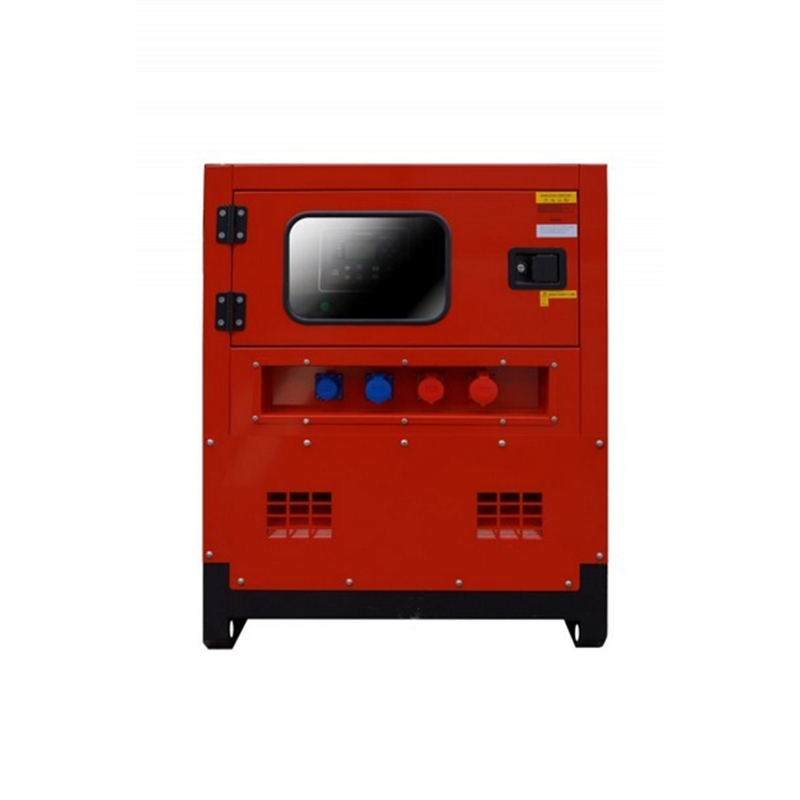

  • Internal power output busbar plus external sockets: two 230V outlets (16A, 32A) and two 400V outlets (16A, 32A)

Optional Extras

  • Automatic Transfer Switch (ATS / AMF)    (1279 EUR)
  • Transport trailer   (2442 EUR)
  • GSM / GPS communication module for Smartgen controller  (349 EUR)

Technical Specifications

Rated Output 75 kVA
Maximum Output 80 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage Regulation AVR
Starting System Electric
Fuel Tank Capacity 170 L
Fuel Consumption (at 50% load) 13.2 L/h
Dimensions (L x H x W) 2500 x 1000 x 1300 mm
Weight 1200 kg
