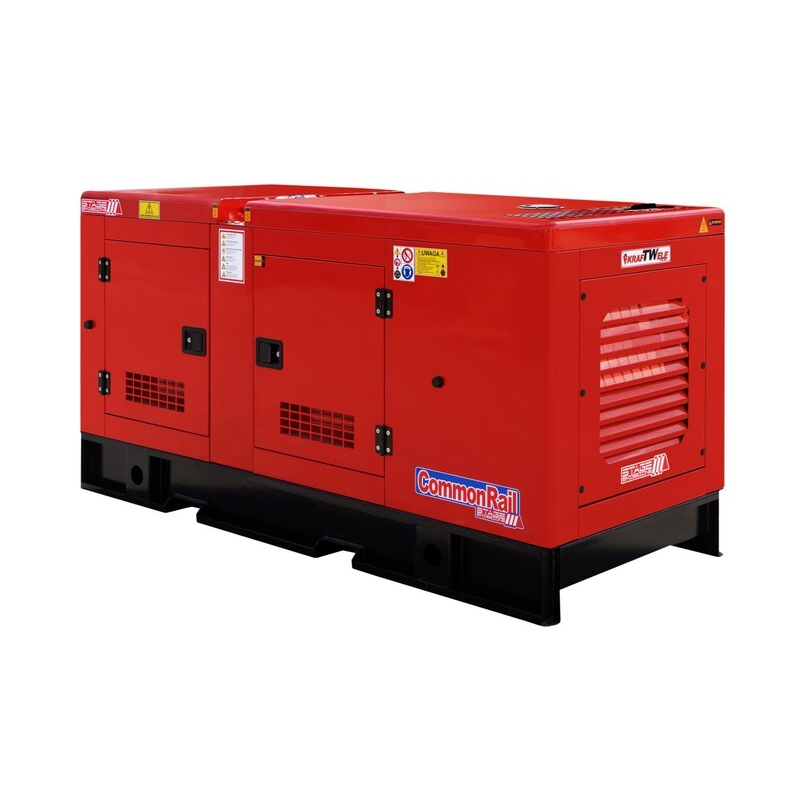

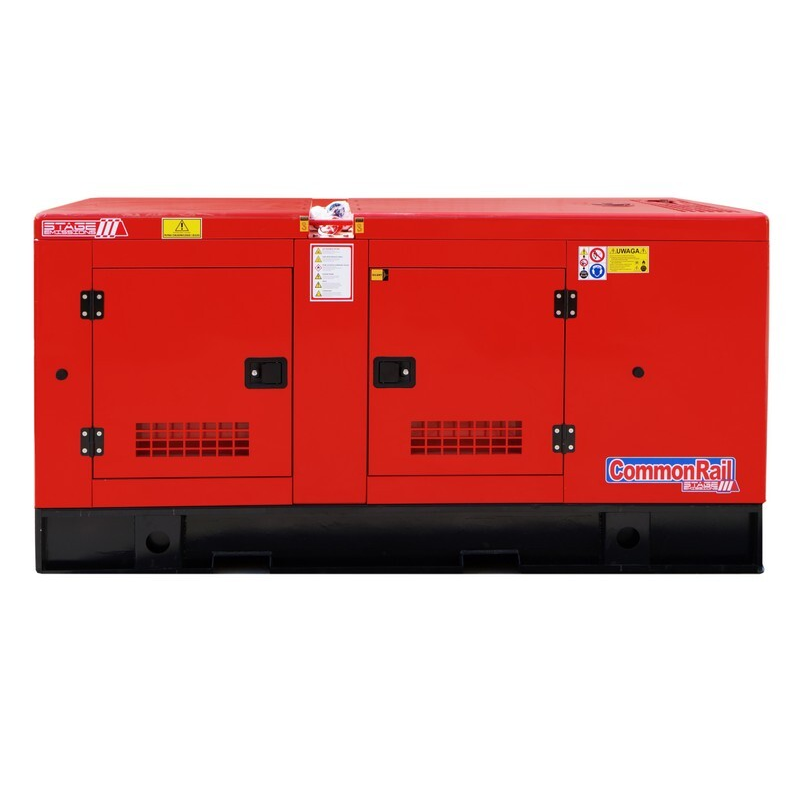

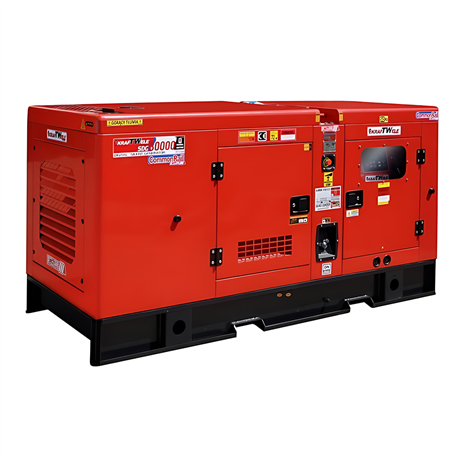

Silent diesel generator SDG 80000 COMMON RAIL

UEVG-9180

The SDG 80000 DIGITAL SILENT is a soundproofed diesel generator driven by a turbocharged four-cylinder Common Rail engine meeting Stage IIIa emissions standards. Delivering 75 kVA prime and 80 kVA standby output, it features AVR voltage regulation, a clear digital control panel, a 170-litre fuel tank, and a comprehensive cold-weather preheating system. Built in a galvanised acoustic canopy with a shot-blasted base frame and weather-resistant coating.

More details

AVR generator, diesel generator, industrial generator, silent diesel generator, three phase generator, standby power generator, 80 kVA generator, power generator 75 kVA

19 768,00 € tax incl.

Ask about product
Silent diesel generator SDG 80000 COMMON RAIL

Silent diesel generator SDG 80000 COMMON RAIL

The SDG 80000 DIGITAL SILENT is a soundproofed diesel generator driven by a turbocharged four-cylinder Common Rail engine meeting Stage IIIa emissions standards. Delivering 75 kVA prime and 80 kVA standby output, it features AVR voltage regulation, a clear digital control panel, a 170-litre fuel tank, and a comprehensive cold-weather preheating system. Built in a galvanised acoustic canopy with a shot-blasted base frame and weather-resistant coating.



More info

Silent diesel generator SDG 80000 DIGITAL SILENT

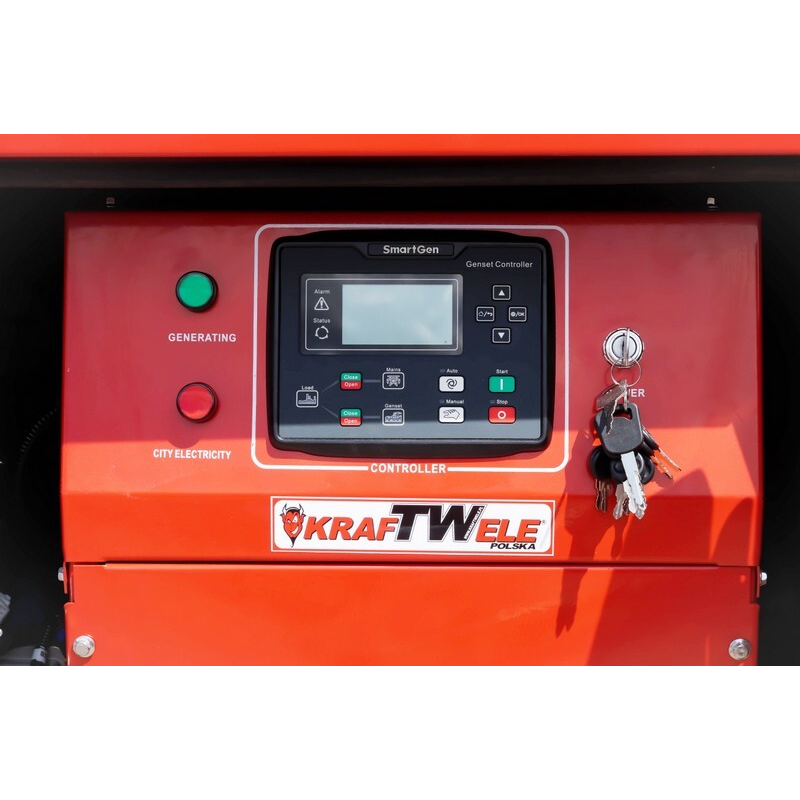

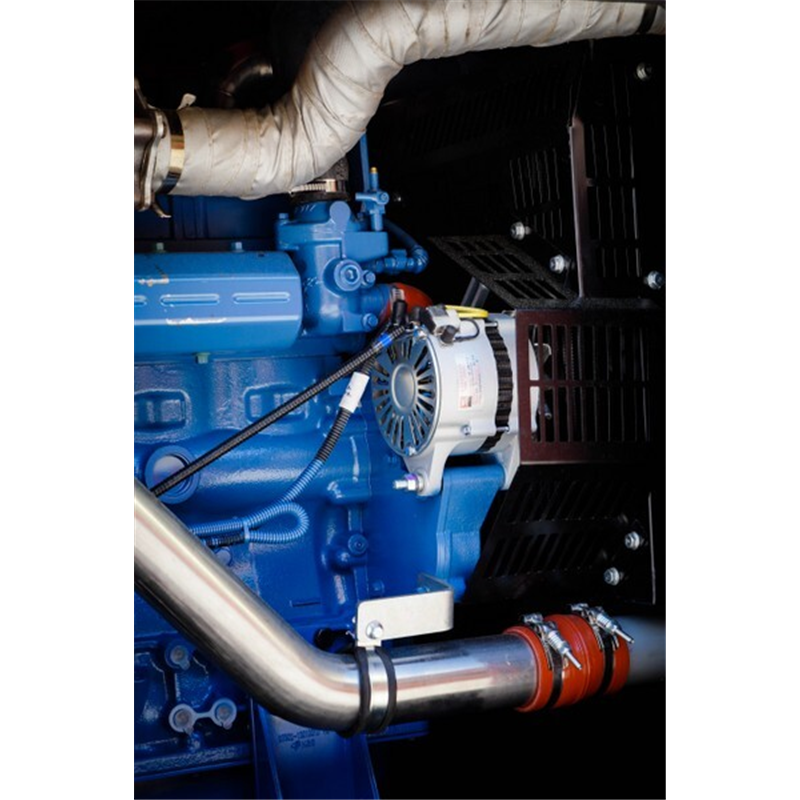

This diesel generator is powered by a low-speed, turbocharged four-cylinder diesel engine with Common Rail injection, meeting Stage IIIa emissions standards. An intuitive digital control panel provides comprehensive parameter monitoring and simple operation. For dependable cold-weather starting, the unit is fitted with a complete preheating system comprising a coolant heater, flame glow plug, and intake manifold heater.

Enclosure and electrical connections

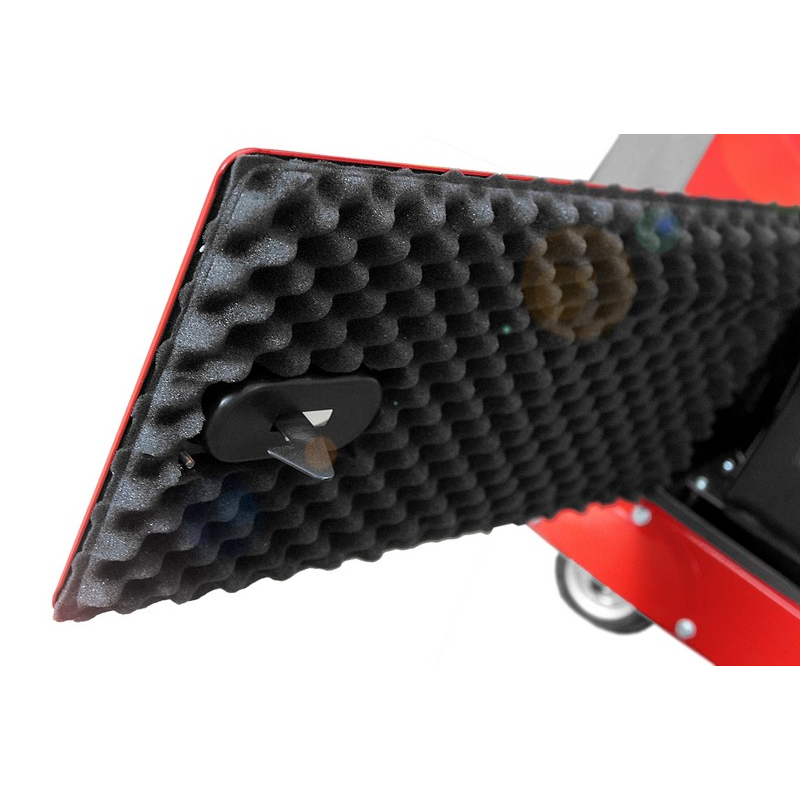

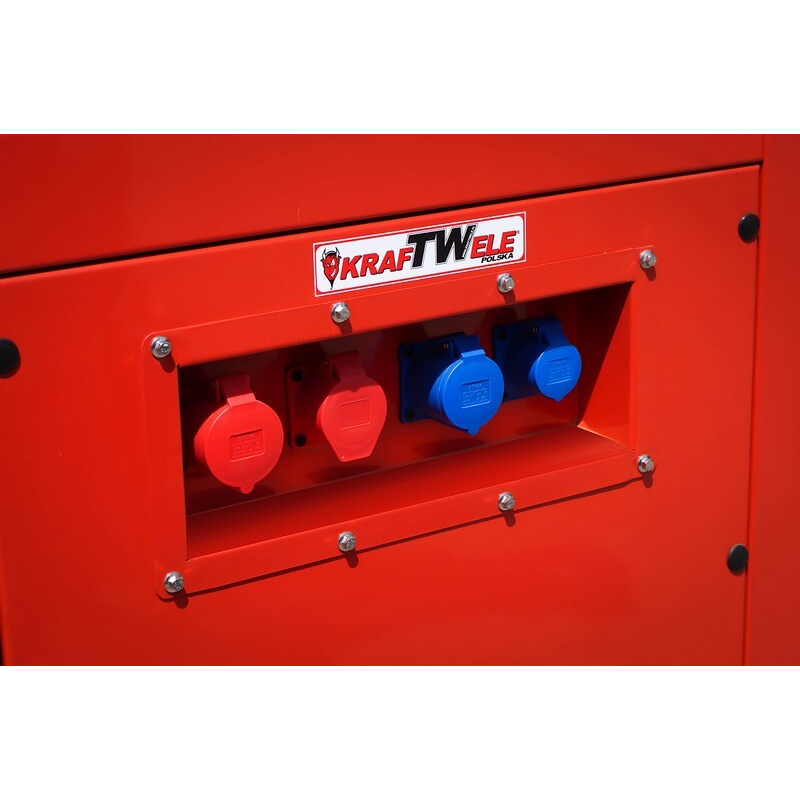

The Super Silent sound-attenuating canopy is constructed from galvanised steel sheet finished with a weather-resistant protective coating and mounted on a shot-blasted base frame for high corrosion resistance. In addition to an internal power terminal busbar, the generator provides external power outlets: two 230V sockets (16A, 32A) and two 400V sockets (16A, 32A).

Technical specifications

Prime power 75 kVA
Standby power 80 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric

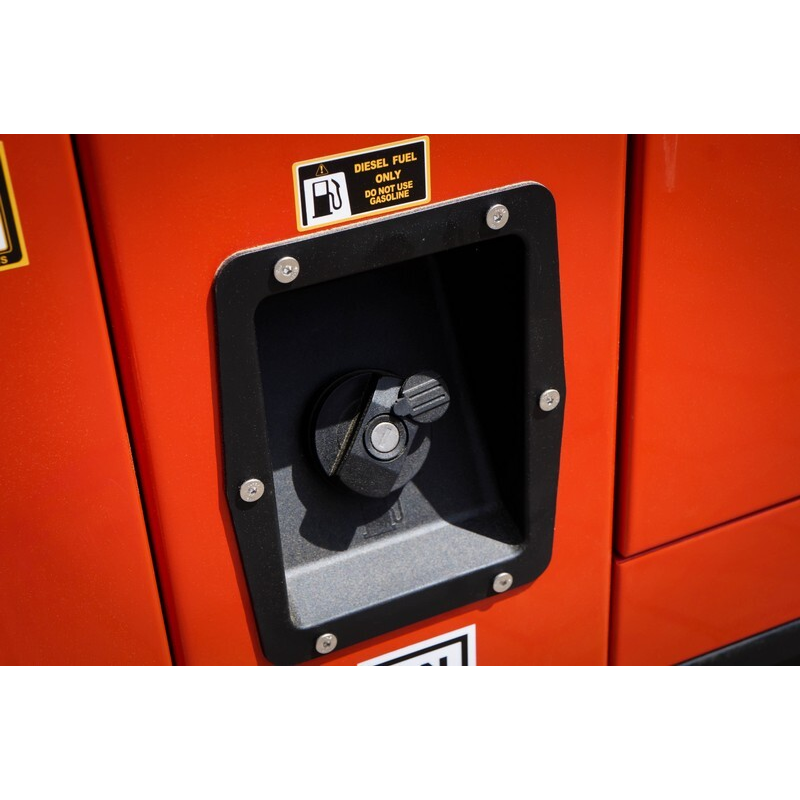

Fuel tank capacity 170 L
Fuel consumption (at 50% load) 13.2 L/h
Dimensions (L x W x H) 2500 x 1000 x 1300 mm
Weight 1200 kg

Optional accessories

  • ATS (Automatic Transfer Switch) system  (1279 EUR)
  • Transport road trailer   (2442 EUR)
  • GSM / GPS communication module for SmartGen controller  (349 EUR)
