Diesel generator SDG 130000 DIGITAL SILENT

Design and Performance

The SDG 130000 DIGITAL SILENT diesel generator from the SUPER SILENT series is built to provide reliable three-phase and single-phase power in demanding industrial environments. The unit is driven by a six-cylinder low-speed turbocharged diesel engine delivering 125 kVA nominal output and 130 kVA maximum output at 50 Hz. Output stability is maintained by an electronic AVR system, and operation is managed via a clear digital control panel.

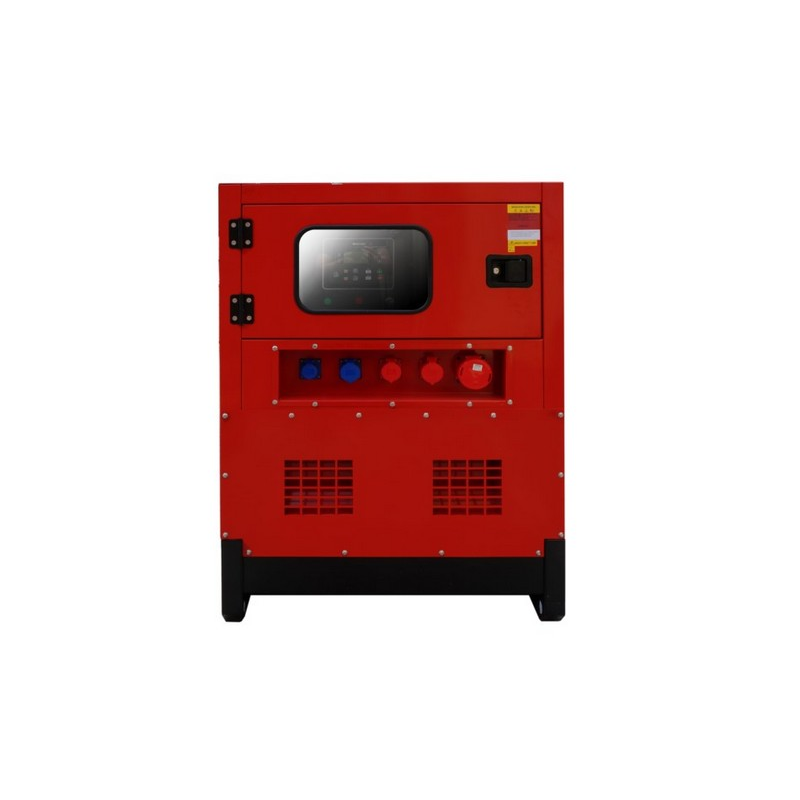

For power distribution, the generator features an internal power terminal strip alongside external outlets: two 230V sockets (16A, 32A) and three 400V sockets (16A, 32A, 63A).

Cold Start Pre-heating System

Equipped as standard with a comprehensive cold-weather starting system:

• Coolant heater
• Flame glow plug
• Intake manifold pre-heater

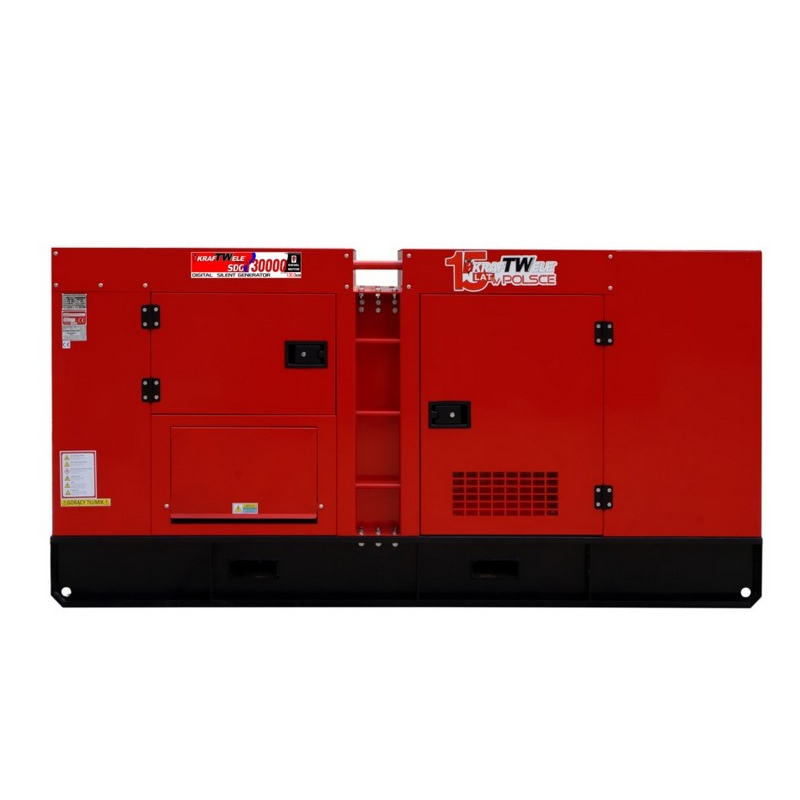

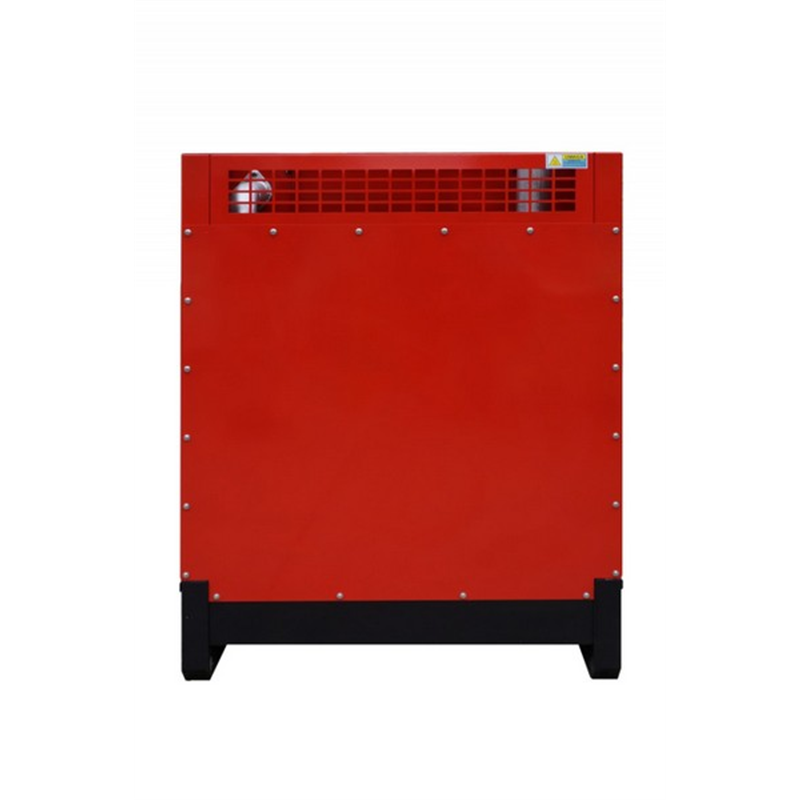

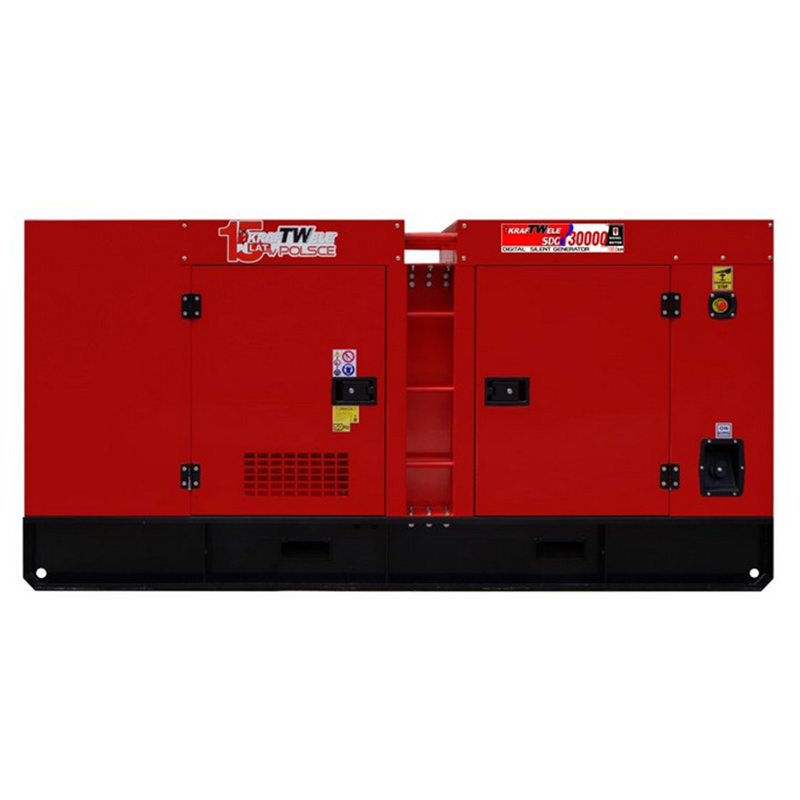

Silent Canopy Construction

The sound-attenuated enclosure provides effective acoustic dampening and long-term weather protection:

• Acoustic insulation for reduced noise emissions
• Galvanised steel sheet construction for corrosion resistance
• Weather- and UV-resistant powder coating

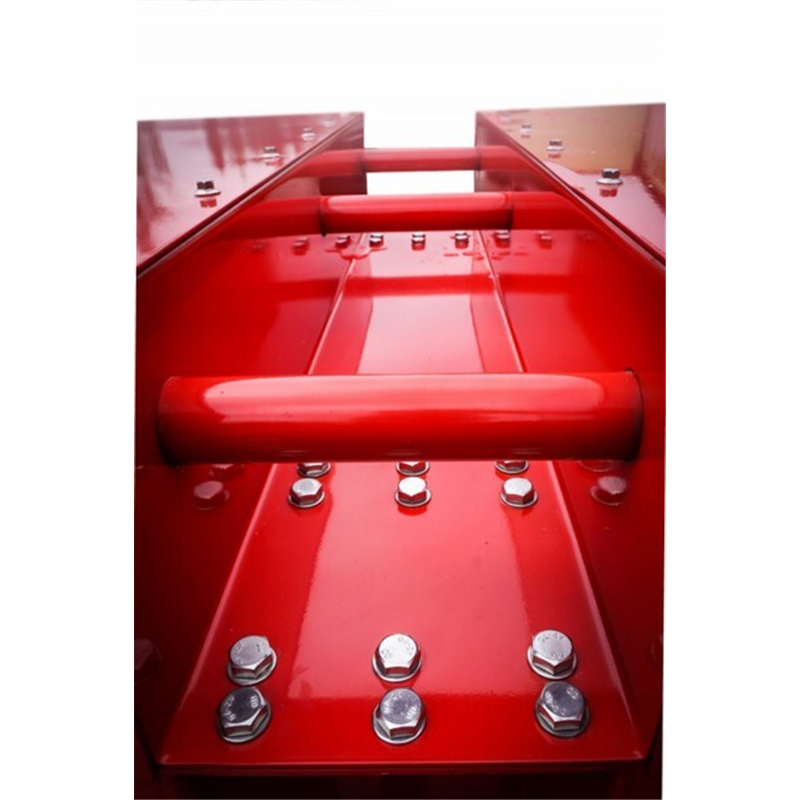

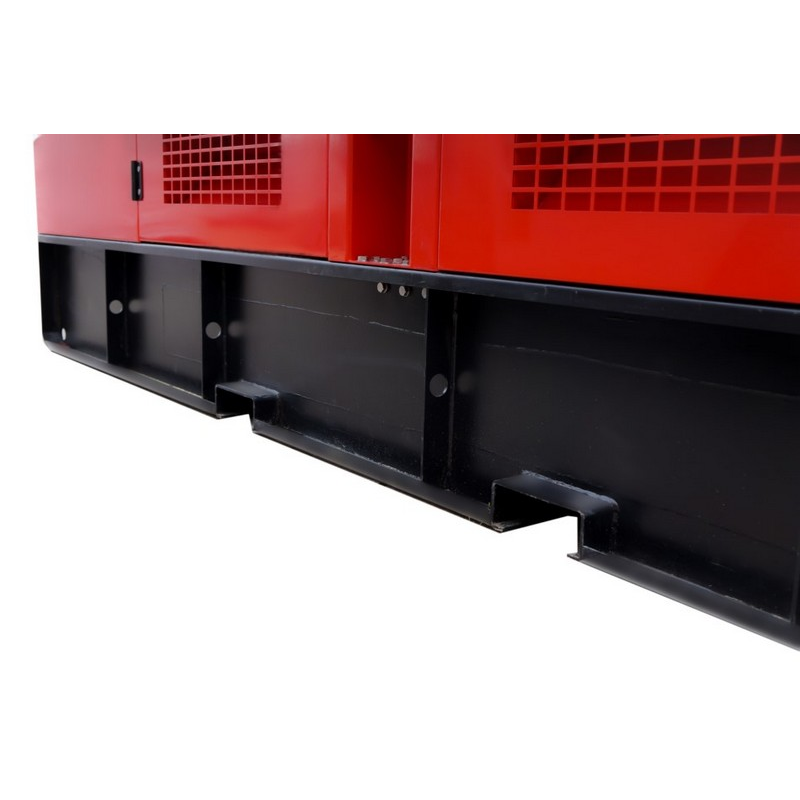

• Shot-blasted base frame for enhanced structural durability

Optional Accessories

• Automatic Transfer Switch (ATS) system  (1512 EUR)
• Transport trailer mounting   (3488 EUR)
• SmartGen GSM / GPS remote communication module   (349 EUR)

Technical Specifications
