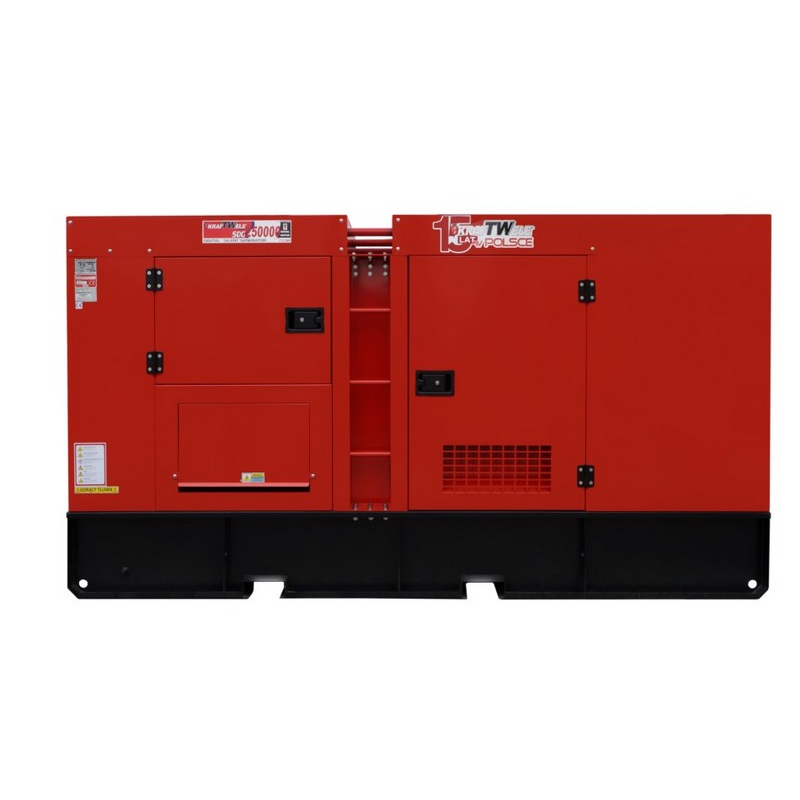

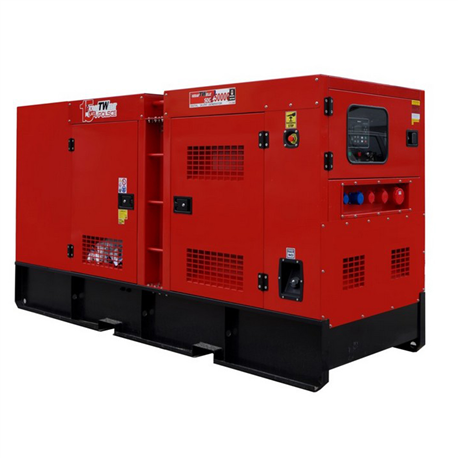

Diesel generator 240 kVA SDG 250000 DIGITAL SILENT

Silenced 240 kVA Turbocharged Diesel Generator

The SDG 250000 DIGITAL SILENT from the Super Silent series is a heavy-duty three-phase diesel generator designed for prime and standby power generation. It is powered by a low-speed, six-cylinder turbocharged diesel engine designed for demanding industrial applications.

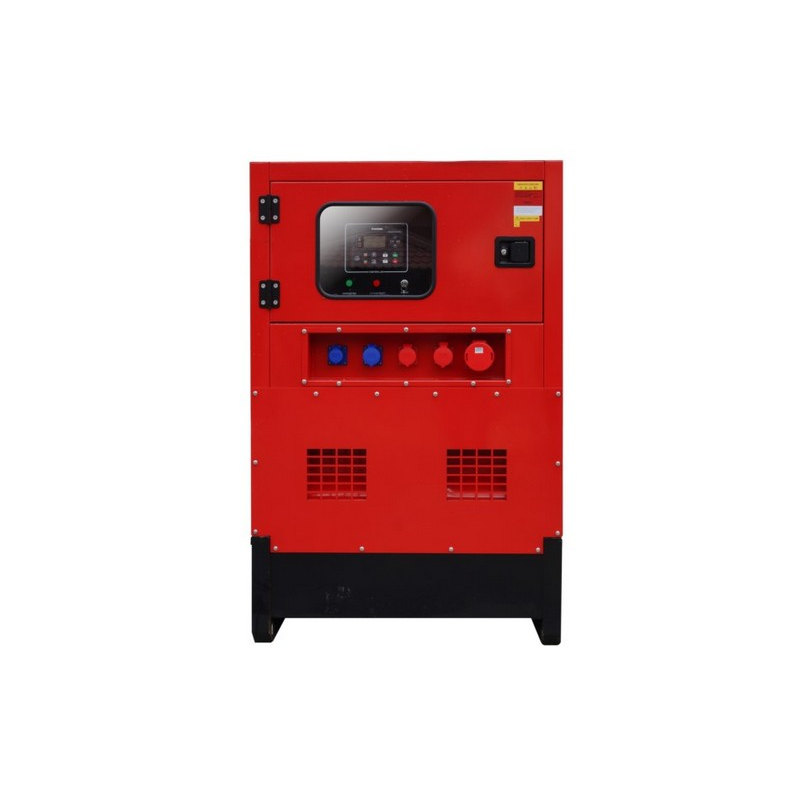

System monitoring and operation are managed via a digital SmartGen control panel with an intuitive display. An automatic voltage regulator (AVR) ensures stable voltage delivery under fluctuating electrical loads.

Design and Functional Features

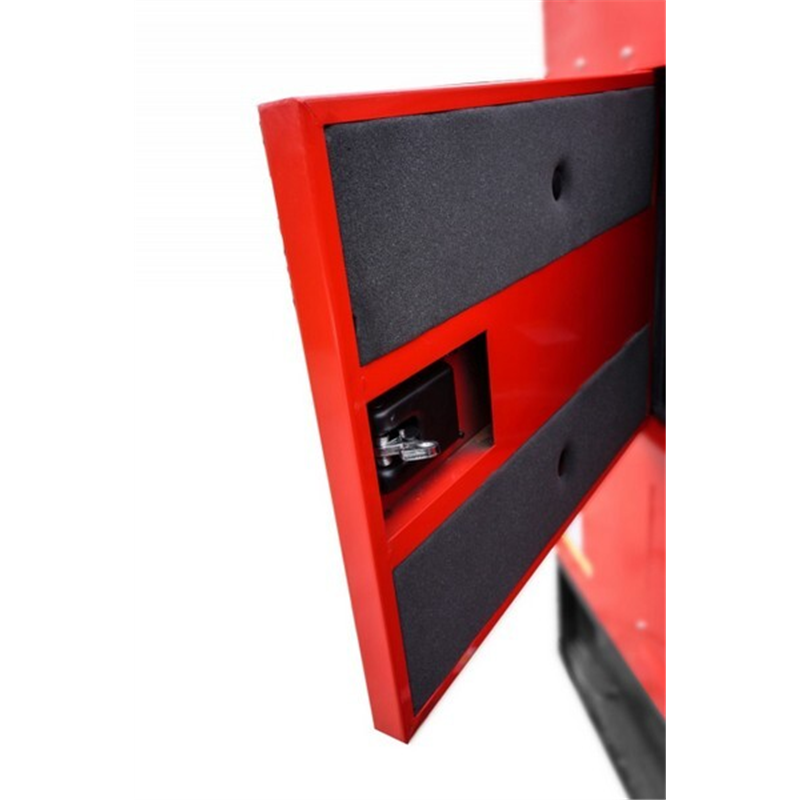

• Super Silent acoustic canopy for reduced operational noise levels

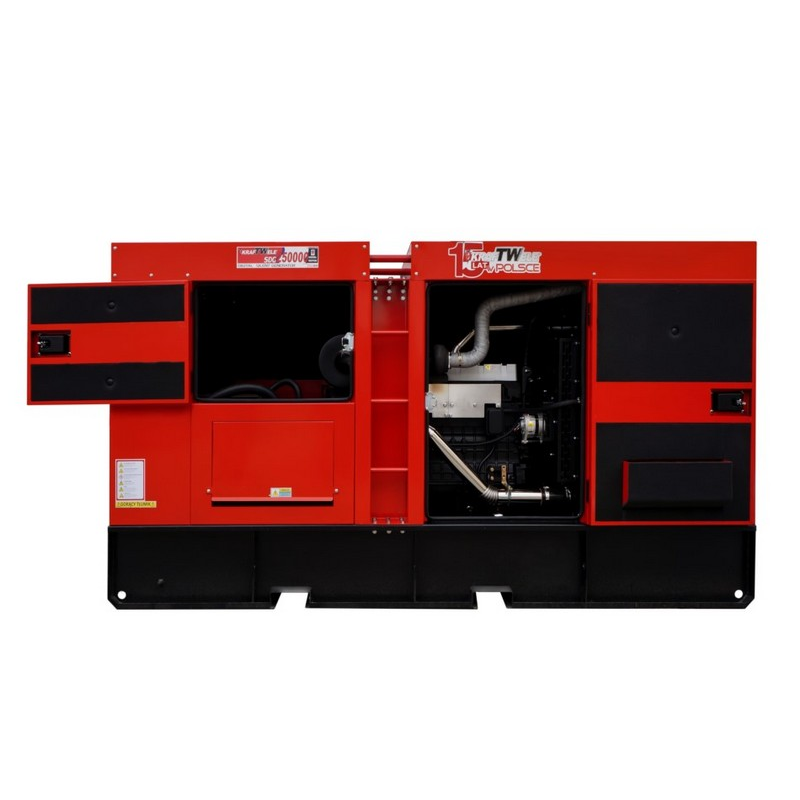

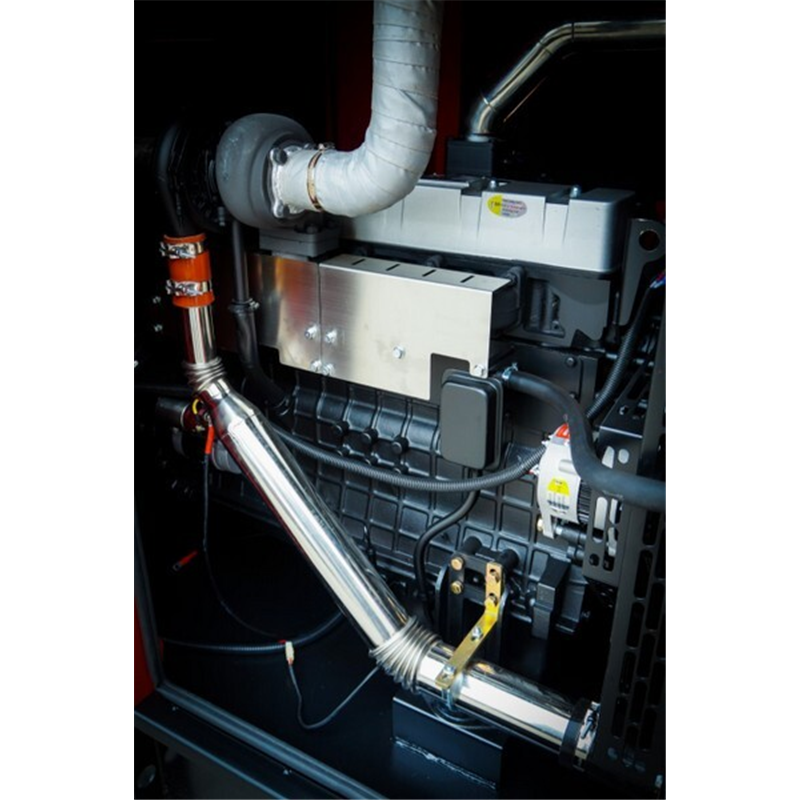

• Six-cylinder, turbocharged low-speed diesel engine for extended service life and fuel efficiency
• Factory-fitted cold-start preheating system for low-temperature operation: coolant heater, flame glow plug, and intake manifold preheater
• Internal power terminal block for direct high-capacity distribution

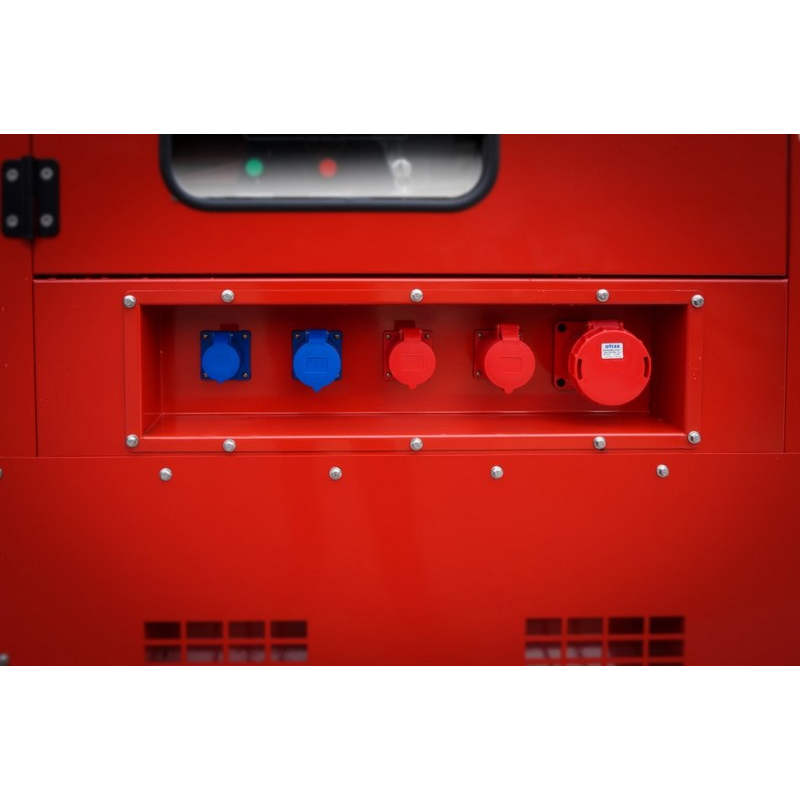

• External connection sockets: 2x 230V (16A, 32A) and 3x 400V (16A, 32A, 63A)
• Electric key start mechanism
• Integrated 360-litre fuel tank for extended continuous runtime

Optional Extras

• Automatic Transfer Switch (ATS / AMF panel)  (2093 EUR)
• Road / site transport trailer  (3488 EUR)
• GSM / GPS telemetry module for the SmartGen controller    (348 EUR)

Technical Specifications
