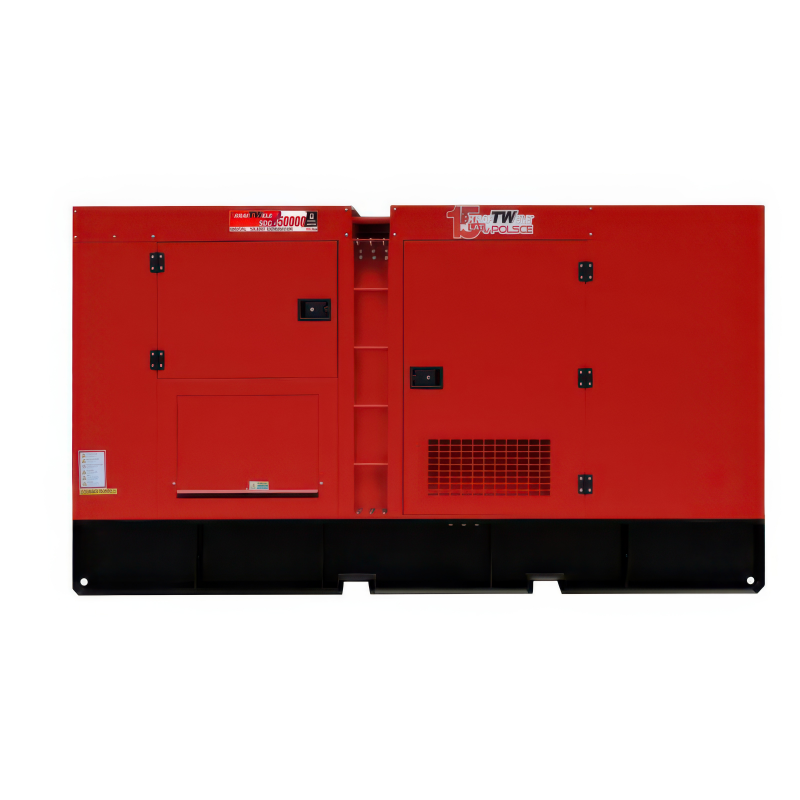

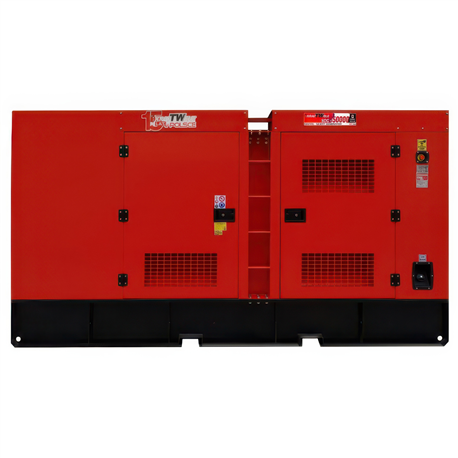

Silent diesel generator SDG 350000 DIGITAL SILENT

SRTN-5158

The SDG 350000 DIGITAL SILENT is a heavy-duty three-phase diesel generator delivering 340 kVA nominal and 350 kVA maximum output. Powered by a turbocharged six-cylinder low-speed diesel engine, it features an AVR system, 500-litre fuel tank, and digital Smartgen controller. Standard cold-weather starting aids, an internal busbar, and multiple 230 V and 400 V outlets provide dependable performance for industrial standby and continuous power applications.

More details

AVR generator, three-phase generator, diesel generator, silent generator, industrial power generator, 350 kVA generator, backup generator, KRAFTWELE SDG 350000

37 210,00 € tax incl.

Ask about product
Silent diesel generator SDG 350000 DIGITAL SILENT

Silent diesel generator SDG 350000 DIGITAL SILENT

The SDG 350000 DIGITAL SILENT is a heavy-duty three-phase diesel generator delivering 340 kVA nominal and 350 kVA maximum output. Powered by a turbocharged six-cylinder low-speed diesel engine, it features an AVR system, 500-litre fuel tank, and digital Smartgen controller. Standard cold-weather starting aids, an internal busbar, and multiple 230 V and 400 V outlets provide dependable performance for industrial standby and continuous power applications.



More info

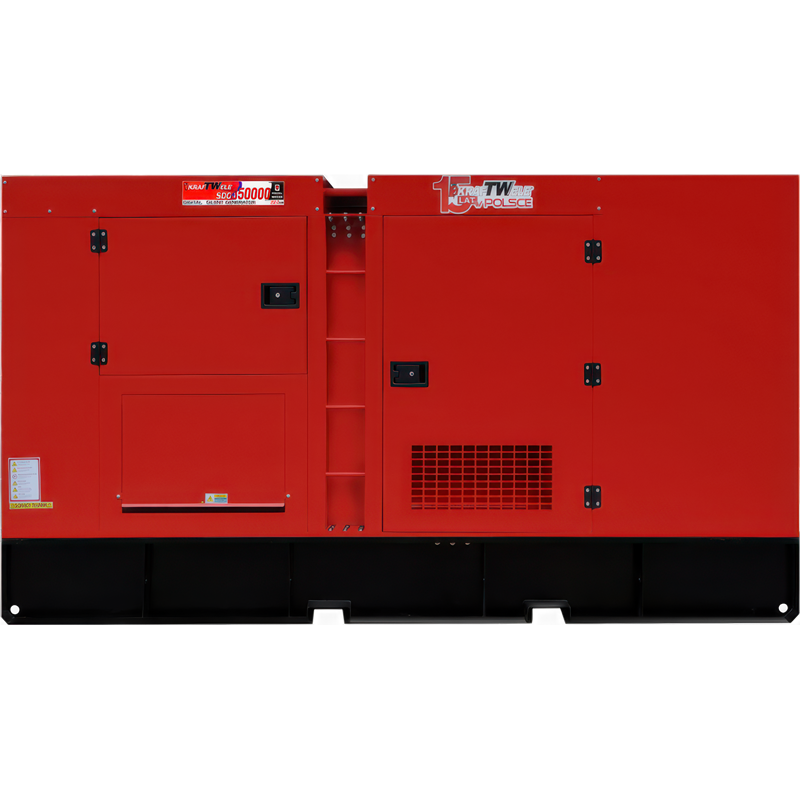

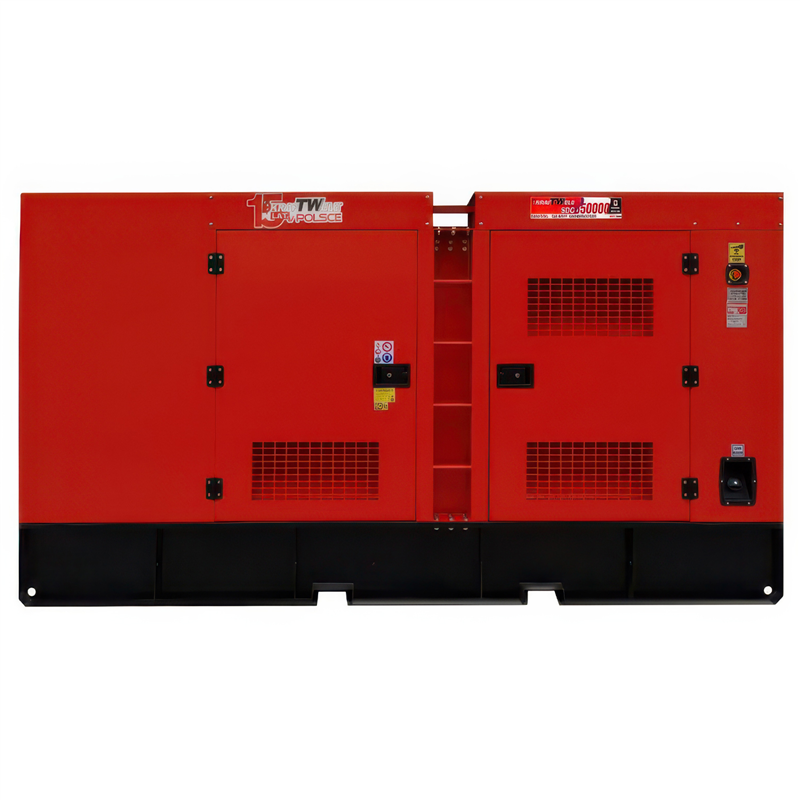

High-capacity silent three-phase diesel generator

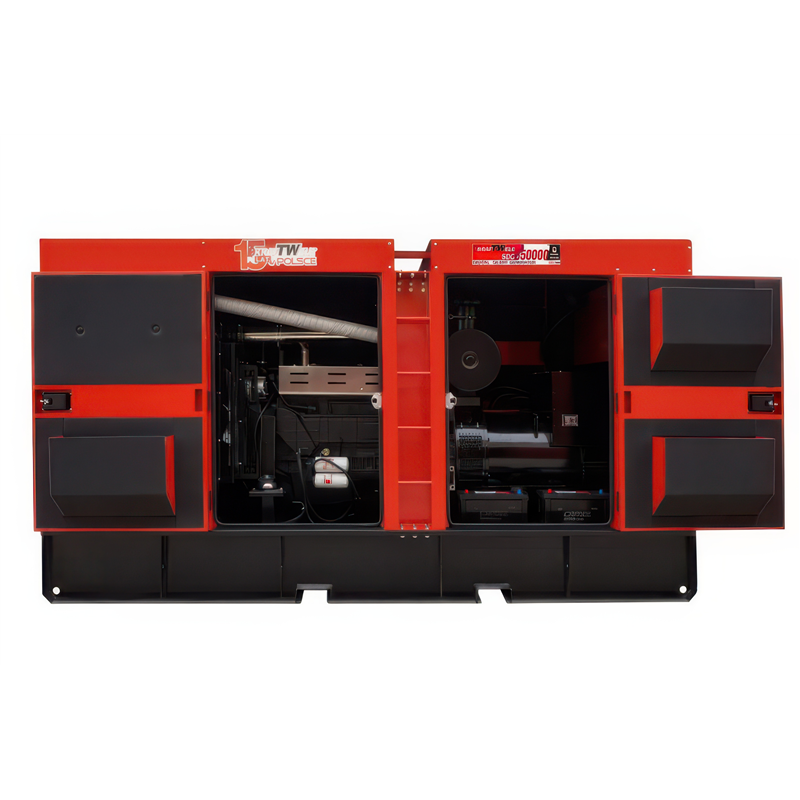

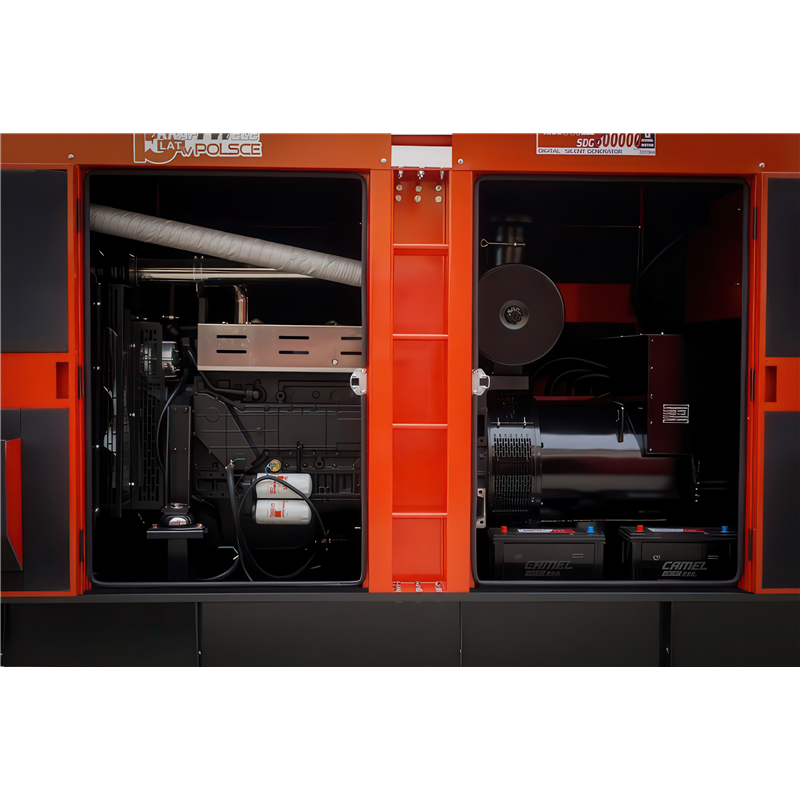

The SDG 350000 DIGITAL SILENT is a heavy-duty diesel generator from the Super Silent series, powered by a low-speed six-cylinder turbocharged diesel engine. It is engineered to deliver reliable continuous or standby power for demanding industrial and commercial operations.

Digital control and cold-start preheating

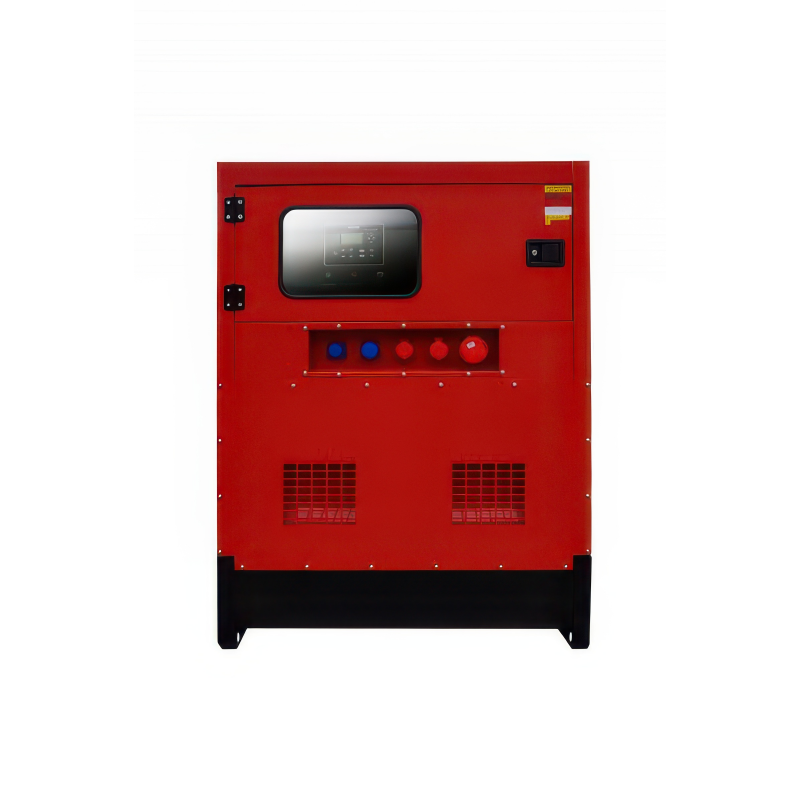

The generator is equipped with a digital Smartgen control panel for comprehensive monitoring and operation. For dependable cold-weather starting, the unit comes standard with an engine preheating package comprising a coolant heater, flame glow plug, and intake manifold preheater.

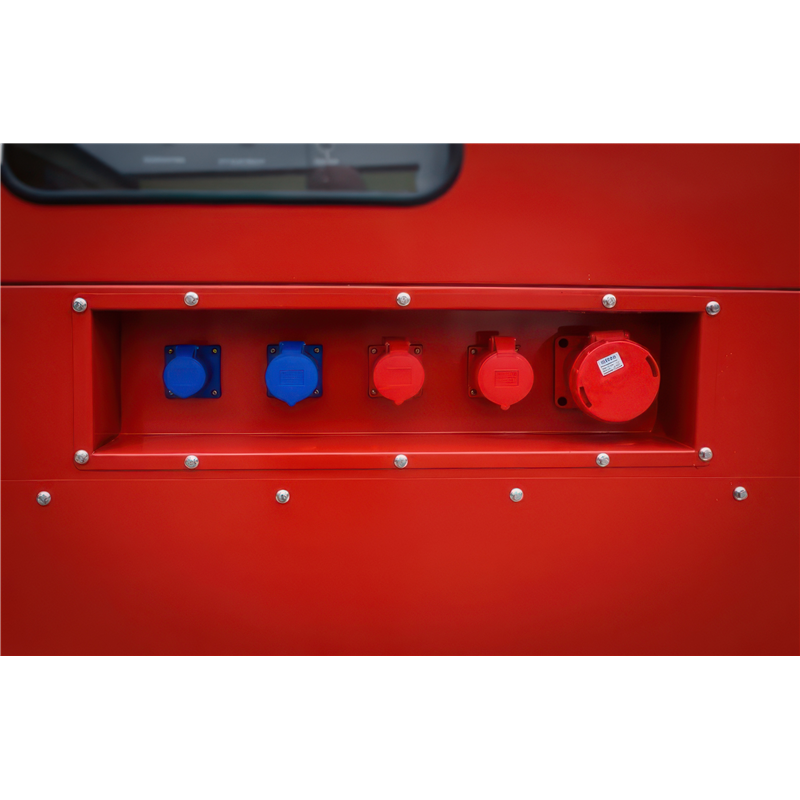

Power output is available via an internal busbar terminal strip as well as external industrial sockets:

  • 2x 230 V (16 A, 32 A)
  • 3x 400 V (16 A, 32 A, 63 A)

Optional accessories

  • Automatic Transfer Switch (ATS) unit  (2558 EUR)
  • Road transport trailer  (5465 EUR)
  • GSM / GPS module for Smartgen controller remote monitoring  (348 EUR)

Technical specifications

Nominal power 340 kVA
Maximum power 350 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric

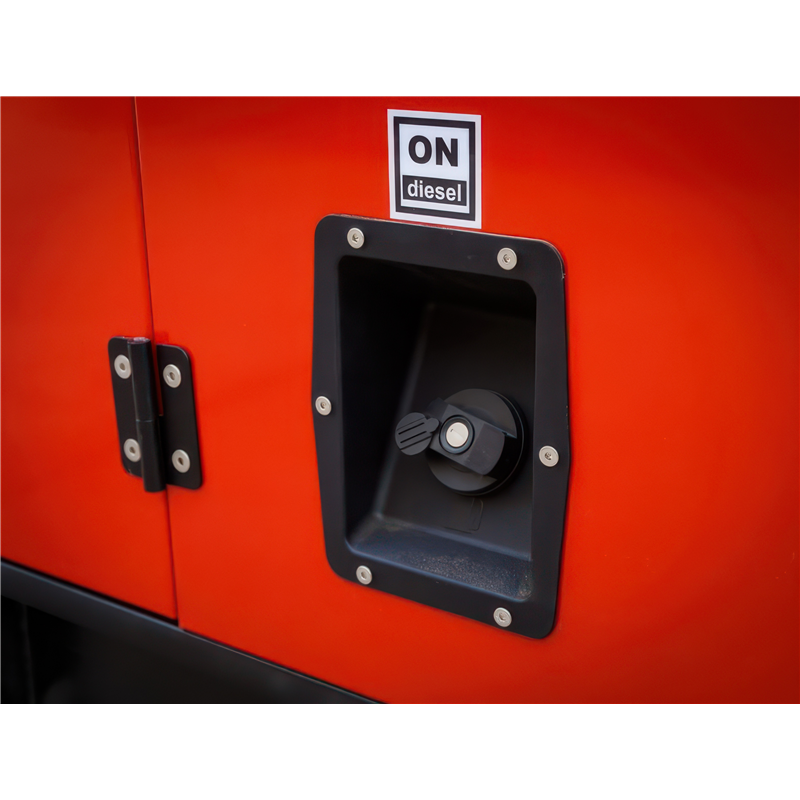

Fuel tank capacity 500 L
Fuel consumption (at 50% load) 26.5 L/h
Dimensions (L x W x H) 3650 x 2000 x 1400 mm
Weight 2900 kg
