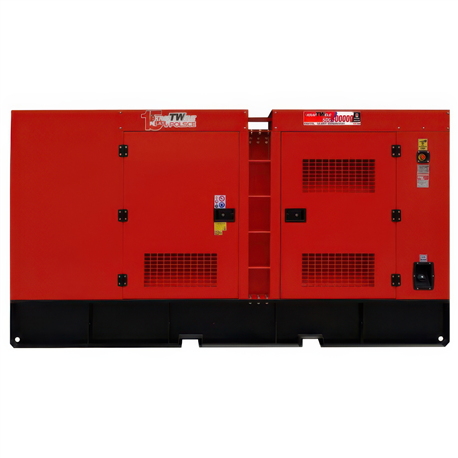

Silent diesel generator SDG 400000 DIGITAL SILENT

GUKE-1580

Three-phase silent diesel generator delivering 390 kVA nominal and 400 kVA maximum output. Powered by a 6-cylinder turbocharged low-speed diesel engine with digital control panel, electric start, and AVR voltage stabilisation. Standard equipment includes a cold-weather engine pre-heating system, 500-litre fuel tank, internal power busbar, and external 230V/400V power sockets.

More details

AVR generator, three-phase generator, diesel generator, industrial generator, silent generator, 400 kVA generator, diesel power plant, standby genset

39 535,00 € tax incl.

Ask about product
Silent diesel generator SDG 400000 DIGITAL SILENT

Silent diesel generator SDG 400000 DIGITAL SILENT

Three-phase silent diesel generator delivering 390 kVA nominal and 400 kVA maximum output. Powered by a 6-cylinder turbocharged low-speed diesel engine with digital control panel, electric start, and AVR voltage stabilisation. Standard equipment includes a cold-weather engine pre-heating system, 500-litre fuel tank, internal power busbar, and external 230V/400V power sockets.



More info

High-Capacity 400 kVA Silent Three-Phase Diesel Generator

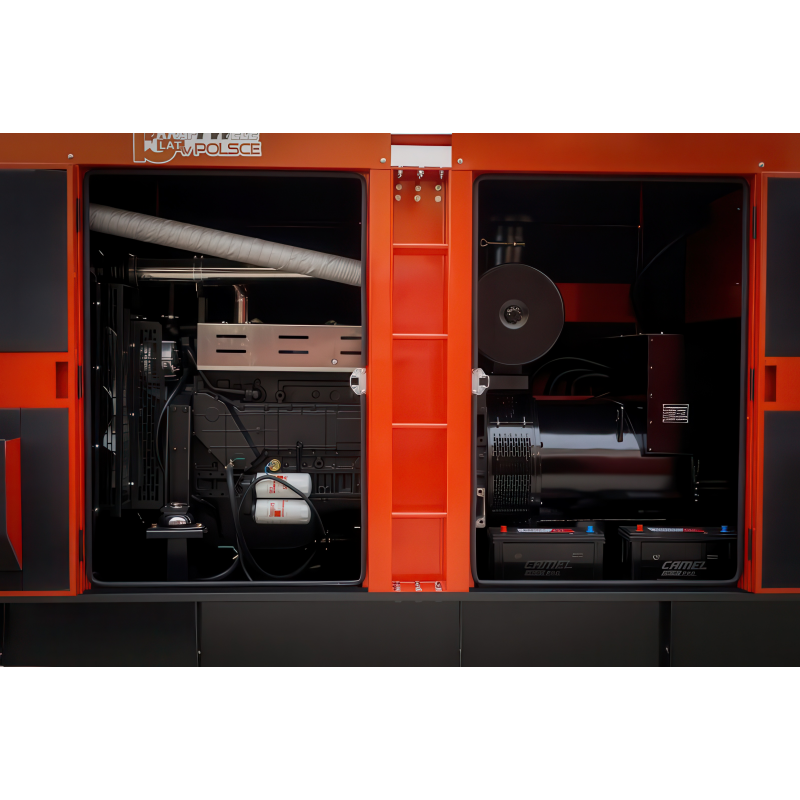

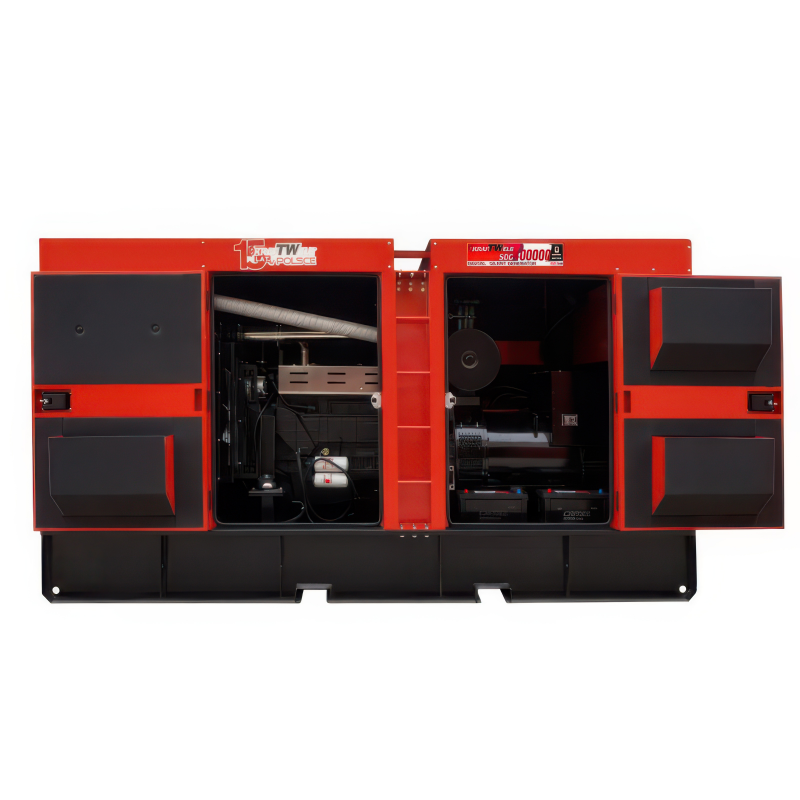

The SDG 400000 DIGITAL SILENT is a heavy-duty diesel generator housed in an acoustic Super Silent canopy, engineered for prime and standby power supply. Driven by a robust six-cylinder low-speed turbocharged diesel engine, it delivers dependable performance under demanding industrial conditions.

Features and Standard Equipment

  • Sound-attenuated Super Silent enclosure for reduced operating noise levels
  • Clear digital control panel for continuous monitoring and operation management
  • Integrated cold-weather starting system (coolant heater, flame glow plug, and intake manifold pre-heater)
  • Automatic Voltage Regulation (AVR) for stable power output
  • Internal power distribution busbar for high-capacity connections
  • External socket panel: 2x 230 V (16 A, 32 A) and 3x 400 V (16 A, 32 A, 63 A)
  • High-capacity 500-litre fuel tank for extended autonomy
  • Electric starting system for reliable ignition

Optional Accessories

  • Automatic Transfer Switch (ATS)  (32556 EUR)
  • Transport road/site trailer  (5465 EUR)
  • GSM / GPS communication module for Smartgen controller  (349 EUR)

Technical Specifications

Nominal output 390 kVA
Maximum output 400 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 500 L
Fuel consumption (at 50% load) 42.4 L/h
Dimensions (L x H x W) 3650 x 1400 x 2000 mm
Weight 3000 kg
