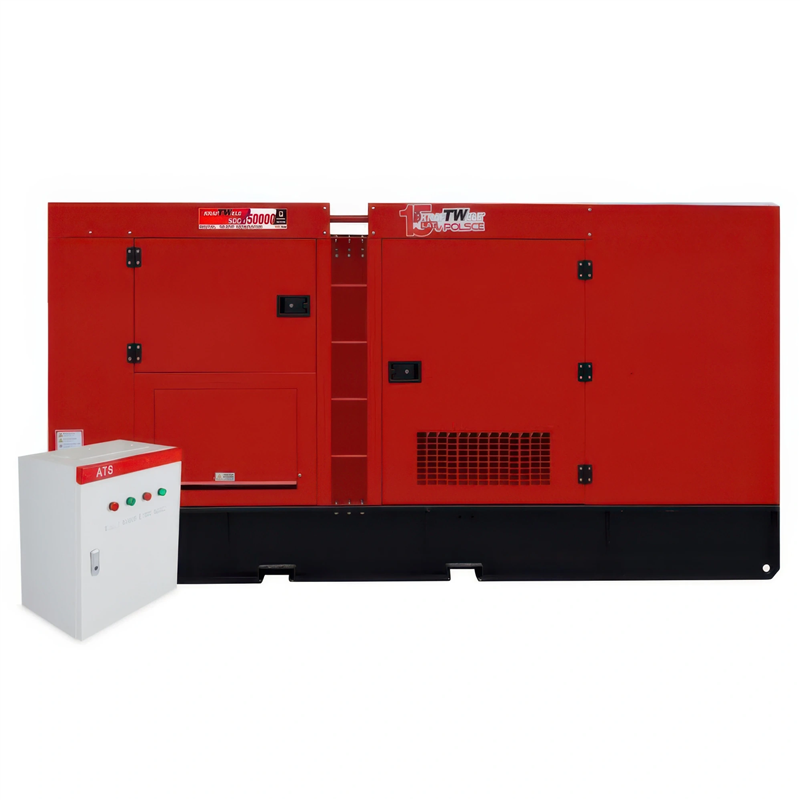

Soundproof diesel generator SDG 550000 SILENT

YDCU-9131

Soundproof diesel generator delivering 530 kVA prime power and 550 kVA maximum output. Powered by a 6-cylinder low-speed turbocharged diesel engine with a digital Smartgen control unit and AVR voltage regulation. Features an integrated cold-weather starting system with coolant preheater, flame glow plug, and manifold heater. Equipped with internal busbars and external 230V and 400V power sockets.

More details

diesel generator, industrial generator, soundproof generator, standby power, three phase generator, 550 kVA generator, backup power generator, diesel genset

46 512,00 € tax incl.

Ask about product
Soundproof diesel generator SDG 550000 SILENT

Soundproof diesel generator SDG 550000 SILENT

Soundproof diesel generator delivering 530 kVA prime power and 550 kVA maximum output. Powered by a 6-cylinder low-speed turbocharged diesel engine with a digital Smartgen control unit and AVR voltage regulation. Features an integrated cold-weather starting system with coolant preheater, flame glow plug, and manifold heater. Equipped with internal busbars and external 230V and 400V power sockets.



More info

Industrial Soundproof Diesel Generator 550 kVA

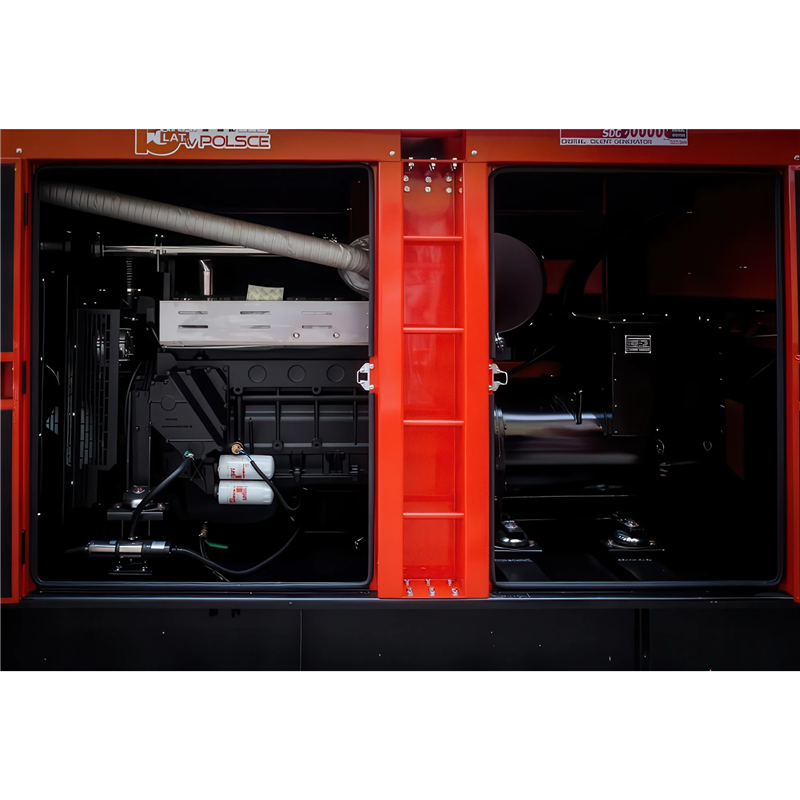

The soundproof diesel generator is a high-capacity power generation unit from the SUPER SILENT range, engineered for demanding prime and standby industrial applications. It is powered by a six-cylinder low-speed turbocharged diesel engine delivering high efficiency, extended service life, and reduced operational noise.

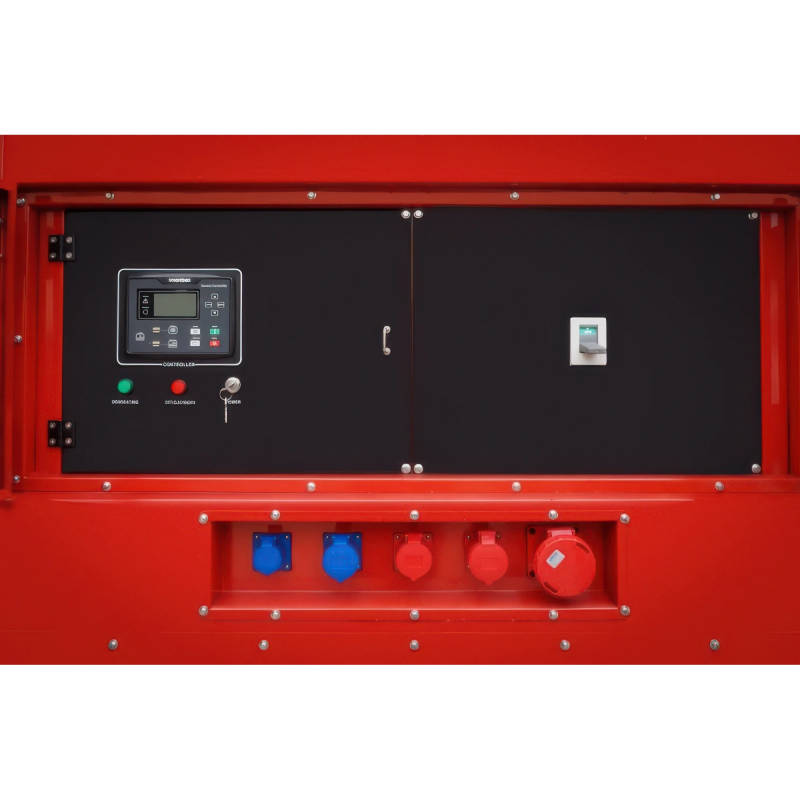

System monitoring and operation are managed via a digital control panel, providing real-time operational feedback. All units come factory-equipped with a comprehensive low-temperature starting system, including an engine coolant heater, flame glow plug, and intake manifold preheater for dependable cold starts.

Power output is available via an internal heavy-duty terminal busbar, alongside external 230V and 400V sockets for versatile power distribution on site.

Technical specifications

Prime power 530 kVA
Maximum power 550 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 650 L
Fuel consumption (at 50% load) 46.5 L/h
Dimensions (L x H x W) 3900 x 1600 x 2000 mm
Weight 3950 kg
Power sockets (230 V) 1x 16A, 1x 32A
Power sockets (400 V) 1x 16A, 1x 32A, 1x 63A

Optional accessories and equipment

  • Automatic Transfer Switch (ATS / AMF panel)  (4302 EUR)
  • Site transport trailer chassis
  • GSM / GPS communication module for Smartgen controller  (349 EUR)
