Silent three-phase diesel generator 650 kVA SDG 650000 SILENT

JNQV-6856

The Kraftwele SDG 650000 SILENT is a heavy-duty three-phase diesel generator delivering up to 650 kVA maximum output (630 kVA nominal). Powered by a low-speed six-cylinder turbocharged diesel engine with a digital control panel and AVR voltage stabilisation. Standard equipment includes a cold-weather starting system (coolant heater, flame glow plug, intake manifold preheater), an 850-litre fuel tank, an internal terminal busbar, and external 230V/400V sockets.

More details

three-phase generator, diesel generator, silent generator, standby generator, 650 kVA generator, AVR diesel generator, emergency generator, industrial power generator

76 744,00 € tax incl.

Ask about product
Silent three-phase diesel generator 650 kVA SDG 650000 SILENT

Silent three-phase diesel generator 650 kVA SDG 650000 SILENT

The Kraftwele SDG 650000 SILENT is a heavy-duty three-phase diesel generator delivering up to 650 kVA maximum output (630 kVA nominal). Powered by a low-speed six-cylinder turbocharged diesel engine with a digital control panel and AVR voltage stabilisation. Standard equipment includes a cold-weather starting system (coolant heater, flame glow plug, intake manifold preheater), an 850-litre fuel tank, an internal terminal busbar, and external 230V/400V sockets.



More info

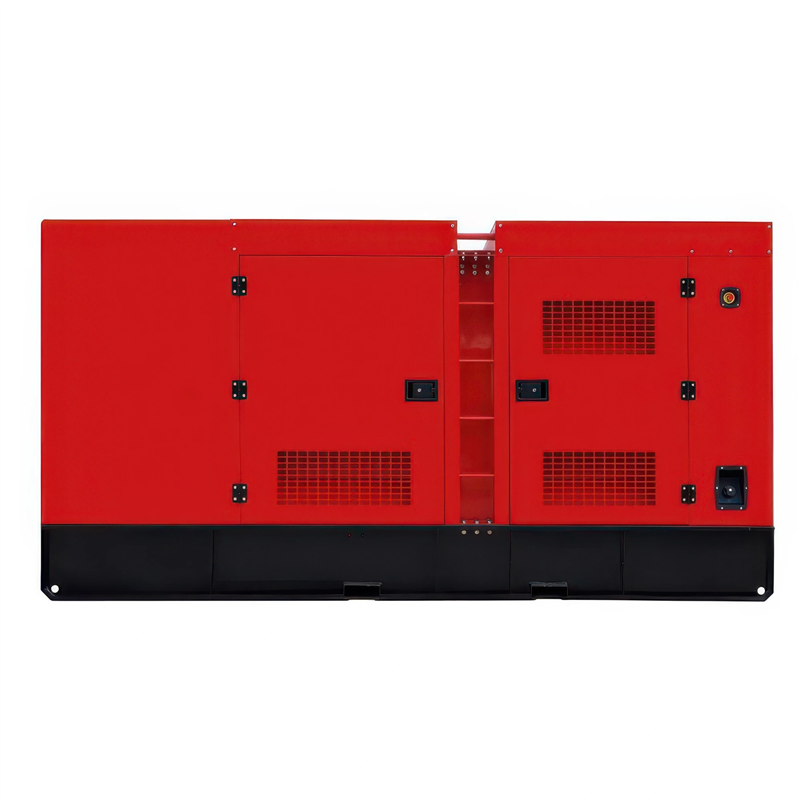

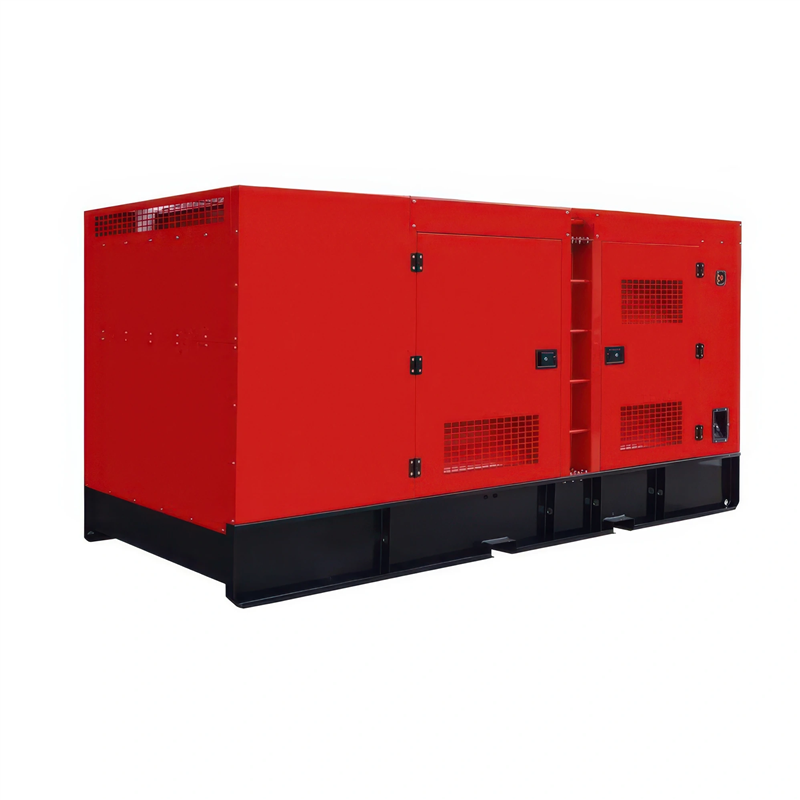

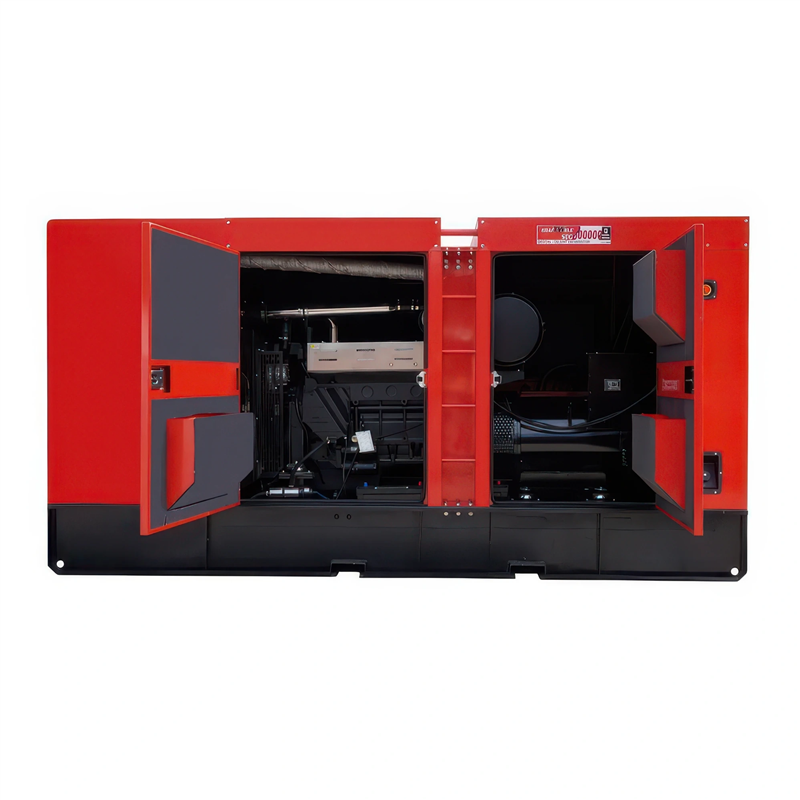

Heavy-duty silent diesel generator SDG 650000 SILENT

The SDG 650000 SILENT is an industrial three-phase diesel generator engineered for reliable prime and standby power generation. It is driven by a six-cylinder, low-speed turbocharged diesel engine and operated via a clear digital control interface with automatic voltage regulation (AVR).

The unit features a factory-fitted cold-start package for low-temperature operation (coolant heater, flame glow plug, and intake manifold preheater). Power output is accessible via an internal heavy-duty terminal busbar as well as multiple external 230 V and 400 V power sockets.

Technical specifications

Nominal power 630 kVA
Maximum power 650 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 850 L
Fuel consumption (at 50% load) 49.5 L/h
Dimensions (L x H x W) 4200 x 1800 x 2000 mm
Weight 4550 kg
Power connections Internal terminal busbar, 2x 230 V (16A, 32A), 3x 400 V (16A, 32A, 63A)

Optional accessories

  • Automatic Transfer Switch (ATS) system (6977 EUR)
  • Transport trailer chassis
  • GSM / GPS monitoring module for Smartgen controller  (348 EUR)
