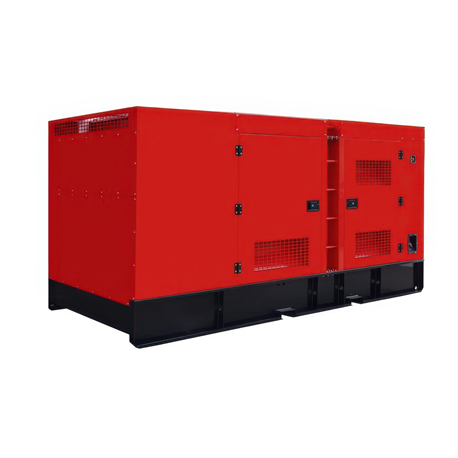

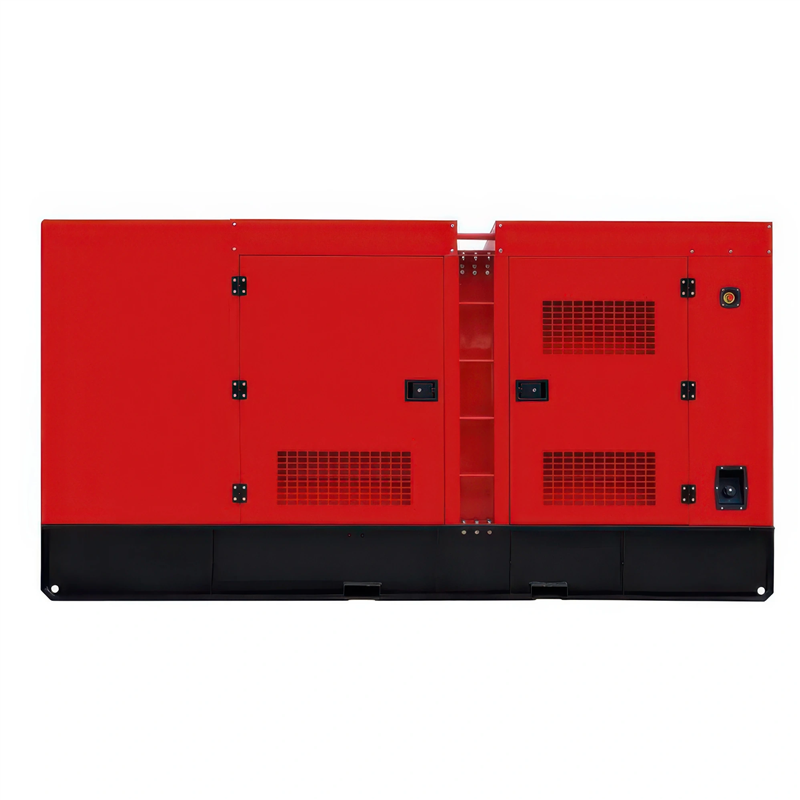

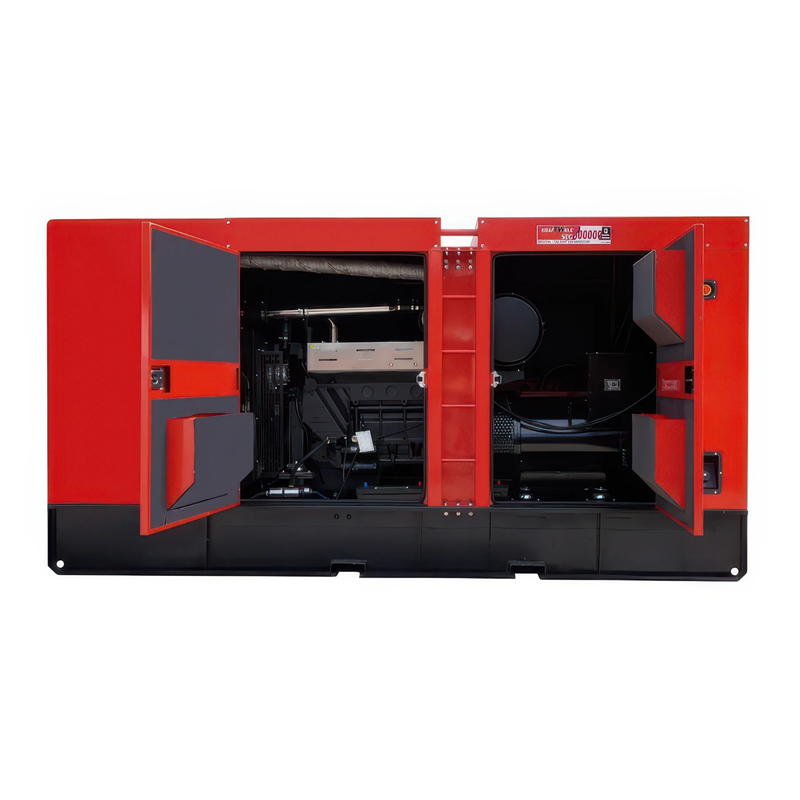

Silent three-phase diesel generator SDG 700000 SILENT

HCQV-7568

The SDG 700000 SILENT is a 700 kVA three-phase diesel generator with a turbocharged six-cylinder low-speed engine in a sound-attenuated housing. Features AVR voltage regulation, 850-litre fuel tank, cold-start assistance system, and multiple 230V/400V power sockets.

More details

three-phase generator, diesel generator, industrial generator, standby generator, 700 kVA generator, Kraftwele generator, SDG 700000 SILENT, silent diesel generator

81 396,00 € tax incl.

Ask about product
Silent three-phase diesel generator SDG 700000 SILENT

Silent three-phase diesel generator SDG 700000 SILENT

The SDG 700000 SILENT is a 700 kVA three-phase diesel generator with a turbocharged six-cylinder low-speed engine in a sound-attenuated housing. Features AVR voltage regulation, 850-litre fuel tank, cold-start assistance system, and multiple 230V/400V power sockets.



More info

High-capacity silent industrial diesel generator

The SDG 700000 SILENT is a heavy-duty three-phase diesel generator from the "SUPER SILENT" series, engineered for demanding continuous and standby power applications. It is powered by a low-speed, six-cylinder diesel engine equipped with a turbocharger for optimal fuel efficiency and performance.

Operation and monitoring are managed via an intuitive digital control panel. All Digital Silent series units come equipped with a cold-start package as standard, featuring a coolant pre-heater, flame glow plug, and intake manifold heater for dependable starting in low temperatures.

The generator features an internal power outlet alongside external power distribution sockets: two 230V sockets (16A, 32A) and three 400V sockets (16A, 32A, 63A).

Optional accessories and equipment

  • Automatic Transfer Switch (ATS / SZR)  (7674 EUR)
  • GSM / GPS communication module for SmartGen controller  (348 EUR)
  • Dedicated transport trailer

Technical specifications

Nominal power 680 kVA
Maximum power 700 kVA
Voltage 230 / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 850 l
Fuel consumption (at 50% load) 50.4 l/h
Dimensions (L x H x W) 4200 x 1800 x 2000 mm
Weight 4600 kg
