Single-phase diesel generator 9.8 kW SDG9800S 1F

KHAC-0702

Single-phase diesel generator SDG9800S 1F providing 9.5 kW rated and 9.8 kW maximum power at 230 V. Features an electric starter, automatic voltage regulation (AVR), and a 16-litre fuel tank with an average fuel consumption of 1.8 L/h. Built for reliable prime or backup power supply.

More details

diesel generator, backup generator, electric start generator, single phase generator, 230V power generator, 9.8 kW generator, generator with AVR, SDG9800S 1F

1 628,00 € tax incl.

Ask about product
Single-phase diesel generator 9.8 kW SDG9800S 1F

Single-phase diesel generator 9.8 kW SDG9800S 1F

Single-phase diesel generator SDG9800S 1F providing 9.5 kW rated and 9.8 kW maximum power at 230 V. Features an electric starter, automatic voltage regulation (AVR), and a 16-litre fuel tank with an average fuel consumption of 1.8 L/h. Built for reliable prime or backup power supply.



More info

Single-phase diesel generator with electric start and AVR

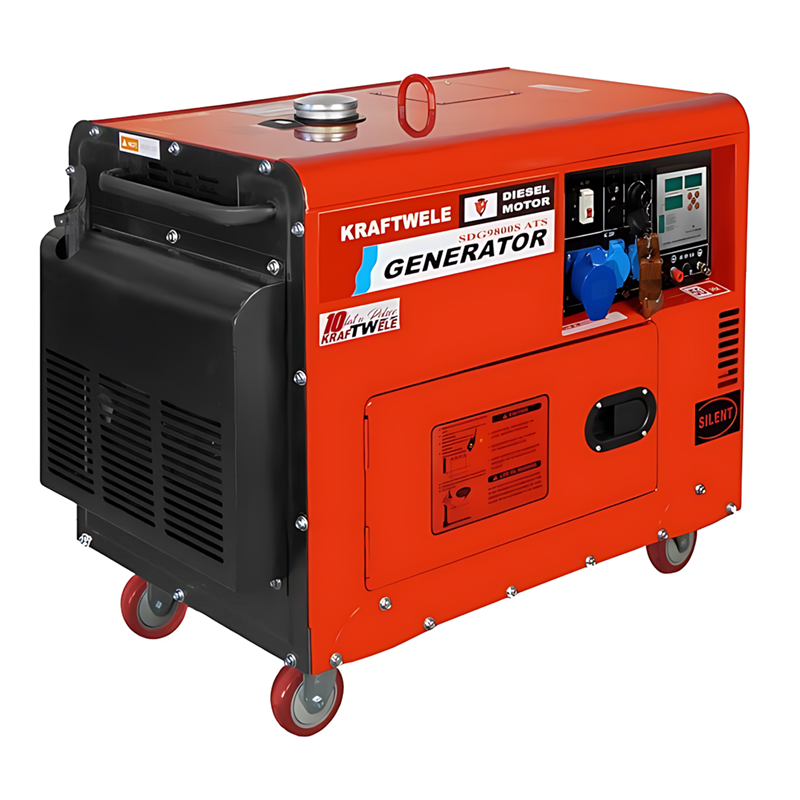

The SDG9800S 1F single-phase diesel generator provides a reliable 230 V power supply with a rated output of 9.5 kW and a maximum output of 9.8 kW. Fitted with an Automatic Voltage Regulator (AVR), the unit maintains output stability to safeguard connected electrical appliances against voltage fluctuations.

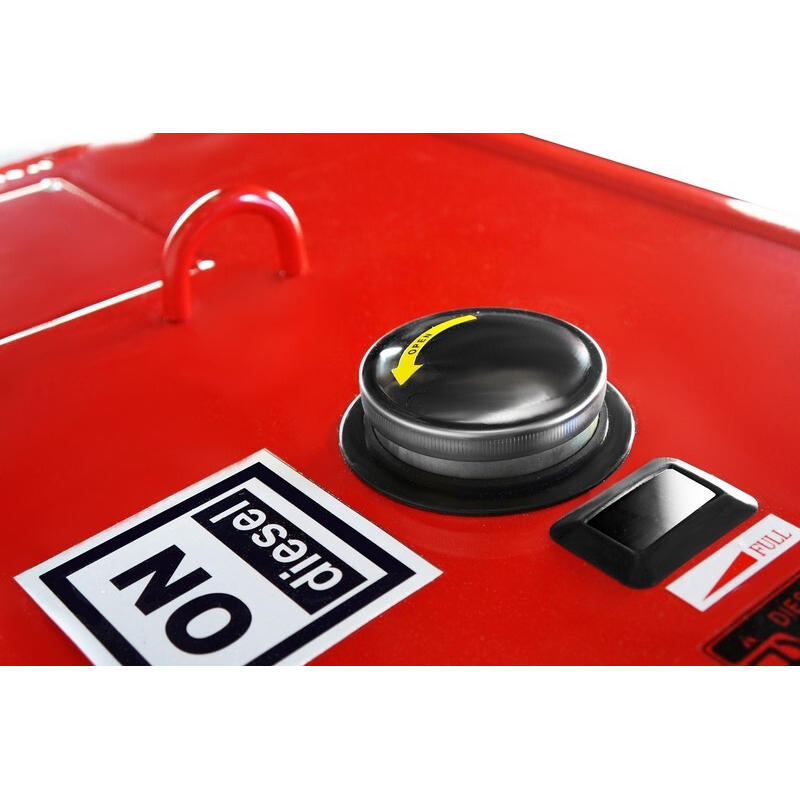

The generator features an electric starting system, a protective canopy, and a 16-litre fuel tank. With an average fuel consumption rate of 1.8 L/h, it delivers long runtime intervals between refuelling.

Technical specifications

Rated power 9.5 kW
Maximum power 9.8 kW
Voltage 230 V
Frequency 50 Hz
Phase configuration Single-phase (1F)
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 16 L
Fuel consumption 1.8 L/h
Dimensions (L x H x W) 840 x 520 x 660 mm
Weight 200 kg

Optional extras and accessories

  • Automatic Transfer Switch (ATS / SZR)   (279 EUR)
  • Transport trailer    (930 EUR)
