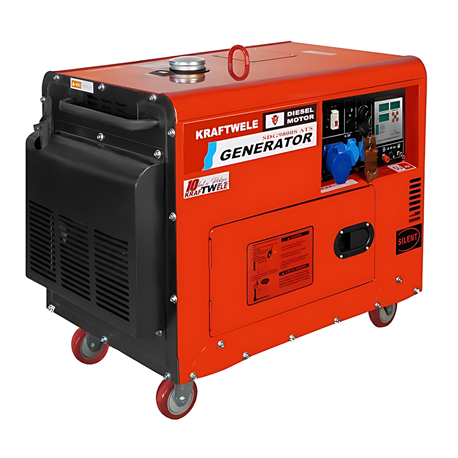

Single-phase generator 9.5kW SDG9800 DOUBLE TANK 1F

HSGQ-9370

The SDG9800 DOUBLE TANK 1F single-phase generator provides 9.5 kW rated power and 9.8 kW maximum output at 230 V / 50 Hz. Featuring an AVR voltage regulation system, electric start and a 30-litre fuel tank, it operates with a fuel consumption rate of 1.8 L/h. This 200 kg generator is built for reliable power supply in standby and prime power applications.

More details

AVR generator, industrial generator, standby power generator, electric start generator, 230V generator, 9.5kW generator, backup power, single phase generator

1 628,00 € tax incl.

Ask about product
Single-phase generator 9.5kW SDG9800 DOUBLE TANK 1F

Single-phase generator 9.5kW SDG9800 DOUBLE TANK 1F

The SDG9800 DOUBLE TANK 1F single-phase generator provides 9.5 kW rated power and 9.8 kW maximum output at 230 V / 50 Hz. Featuring an AVR voltage regulation system, electric start and a 30-litre fuel tank, it operates with a fuel consumption rate of 1.8 L/h. This 200 kg generator is built for reliable power supply in standby and prime power applications.



More info

Single-phase generator with AVR voltage regulation

The SDG9800 DOUBLE TANK 1F power generator is designed for single-phase (230 V) electrical supply, delivering a rated output of 9.5 kW and a maximum output of 9.8 kW at 50 Hz. The integrated Automatic Voltage Regulation (AVR) system maintains stable output voltage, protecting connected equipment from electrical fluctuations.

Equipped with an electric start mechanism and a 30-litre fuel tank, the generator is built for prolonged autonomous operation. Operating with an average fuel consumption rate of 1.8 L/h, it delivers dependable primary or standby power.

Technical specifications

Voltage 230 V
Frequency 50 Hz
Rated power 9.5 kW
Maximum power 9.8 kW
Control system AVR
Starting system Electric
Fuel tank capacity 30 L
Fuel consumption 1.8 L/h
Dimensions (L x H x W) 840 x 520 x 660 mm
Weight 200 kg

Optional accessories

  • ATS (Automatic Transfer Switch) module  (279 EUR)
  • Transport trailer   (930 EUR)
