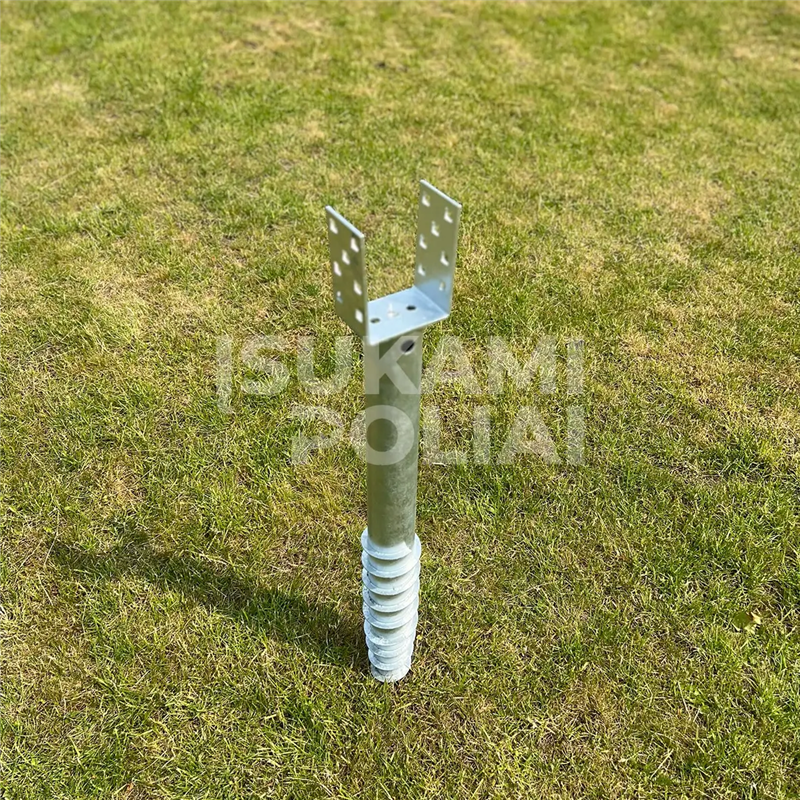

U-type ground screw U1000/101/68/M12

Galvanised U-type ground screw foundation

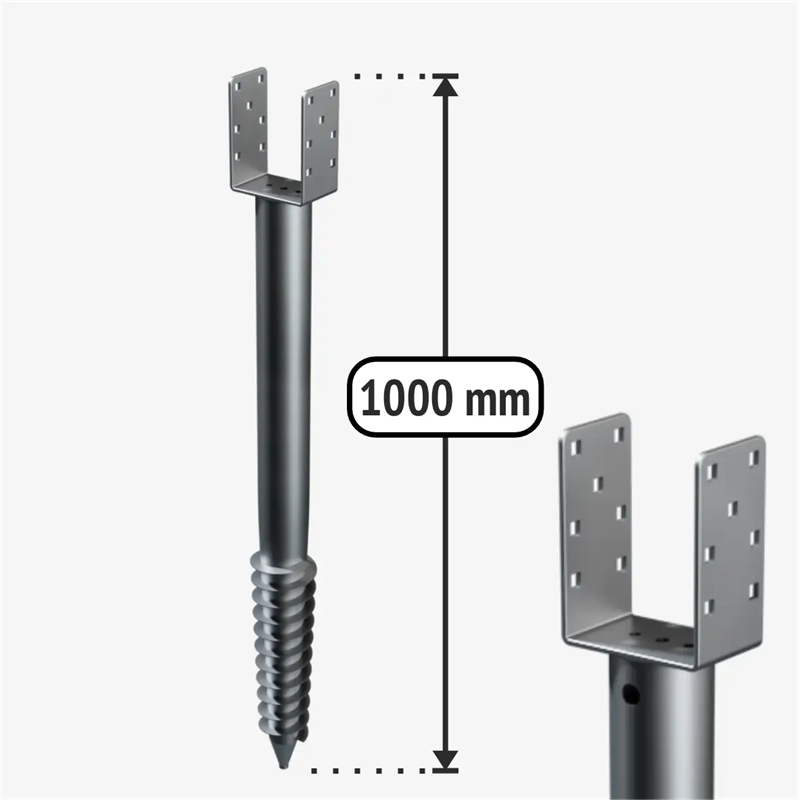

The U1000/101/68/M12 ground screw provides a solid, durable foundation without the need for concrete pouring or ground excavation. It is engineered for building terraces, timber decking, sheds, garden offices, saunas, fences, and greenhouses. The 1000 mm length allows adjustment for uneven terrain by regulating insertion depth, accommodating an above-ground height of up to 220 mm.

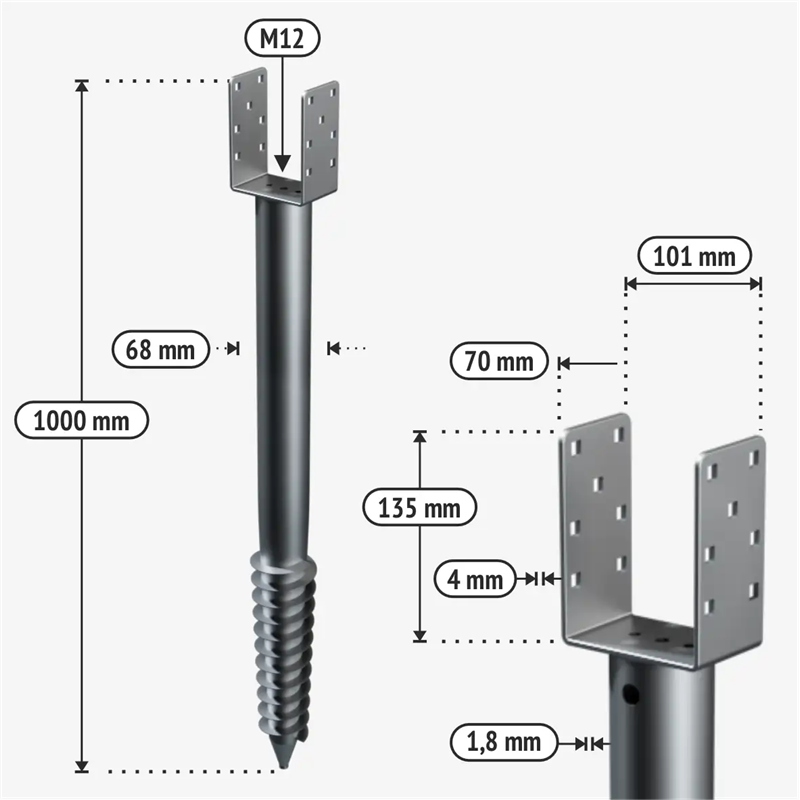

The integrated U-profile bracket simplifies the installation of timber joists and metal frames. Pre-drilled side mounting holes enable structural framing to be secured firmly at the required elevation. A threaded rod opening in the base of the U-plate facilitates millimetre-accurate leveling or the attachment of bespoke brackets.

Key features

• Concrete-free foundation installation with immediate load-bearing capacity
• Heavy-duty galvanised steel construction offering dependable corrosion resistance
• Integrated U-bracket designed for both timber and metal subframes
• Accommodates uneven topography with up to 220 mm above-ground clearance
• Central threaded rod fixture for precise height adjustment
• Suitable for manual installation or machine-assisted ground insertion

Technical specifications
