RESPO 3500P402T205 Heavy-Duty Flatbed Trailer 3500kg Twin Axle
RESPO 13207
More info

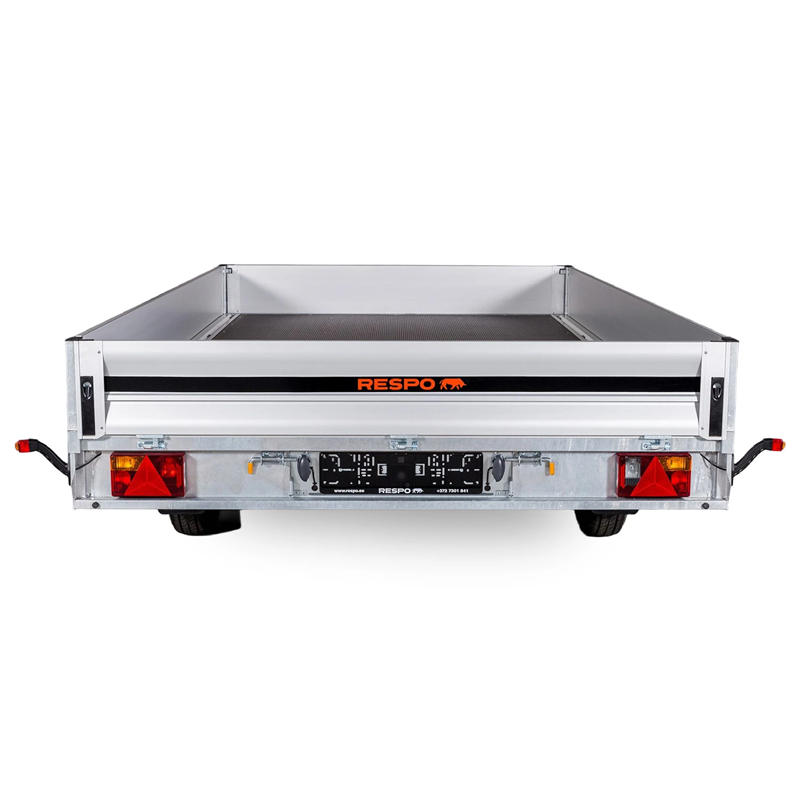

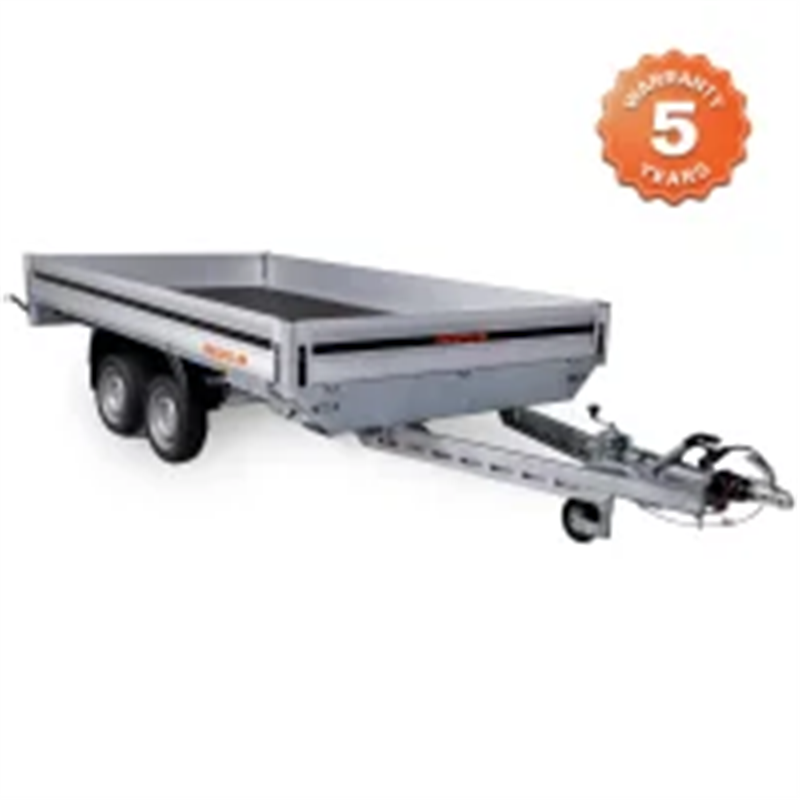

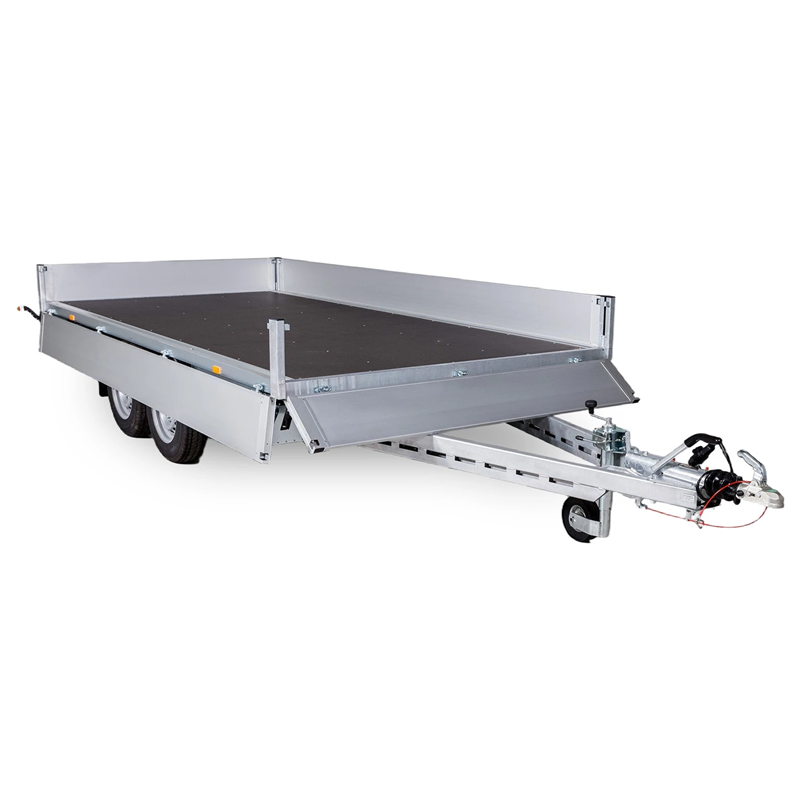

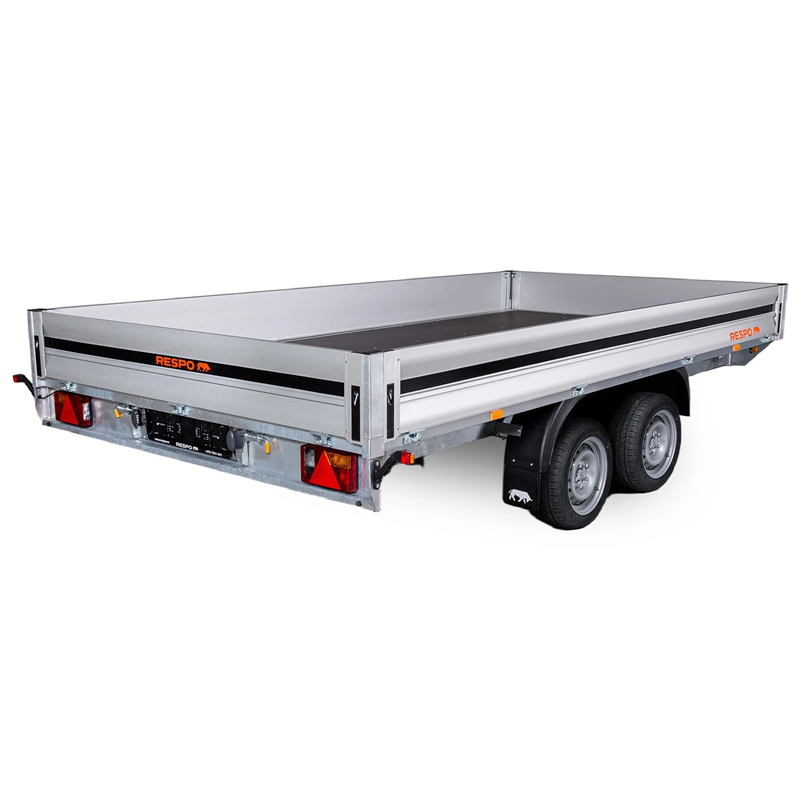

3500P402T205 Heavy-Duty Flatbed Trailer (3500kg)
The 3500P402T205 Flatbed Trailer is a robust and professional transport solution designed for heavy-duty commercial use. Engineered with a hot-dip galvanised (HDG) welded steel frame, this trailer offers exceptional structural integrity. The components are manufactured using Magnelis® coated sheet metal, which provides superior protection, being three times more resistant to corrosion than standard HDG sheet metal. This ensures a long service life even in challenging weather conditions.
Stability and reliability are paramount in this design, featuring a double torsion axle system that ensures smooth towing and better stability on difficult terrains. The trailer is equipped with a durable, waterproof plywood floor that is slip-resistant, ensuring cargo remains secure during transit. For maximum versatility, all side boards are fully removable, allowing for convenient loading and unloading from all sides—ideal for forklifts and palletised goods.
Key Features
- Superior Corrosion Resistance: Constructed with Magnelis® coated sheet metal for 3x better protection than regular galvanised steel.
- Heavy-Duty Frame: Hot-dip galvanised welded frame designed to handle a gross weight of 3500 kg.
- Versatile Loading: Fully removable sides, posts, and hatches allow the trailer to function as a completely flat platform.
- Enhanced Stability: Twin torsion axle system provides excellent suspension and tracking on uneven surfaces.
- Safety First: Equipped with waterproof LED lighting and balanced wheels with M+S tyres for all-weather safety.
Technical Specifications
| Model | 3500P402T205 |
| Gross Weight | 3500 kg |
| Payload Capacity | 2765 kg |
| Unladen Weight | 735 kg |

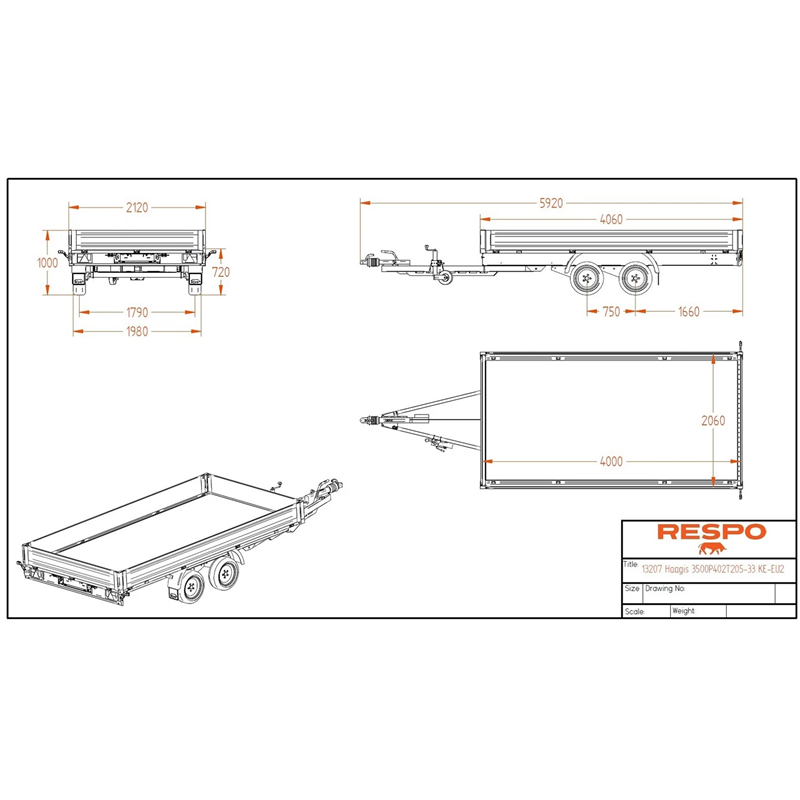

| Internal Dimensions (L x W) | 4.00 x 2.05 m |
| External Dimensions (L x W) | 5.91 x 2.12 m |
| Side Board Height | 0.30 m |
| Total Height | 1.07 m |
| Axle Type | 2x Torsion (Twin Axle) |
| Brakes | Yes |
| Tyres | 195/50R13C (M+S) |
| Plug Type | 13 pin |
| Floor Material | Waterproof Plywood |
| Tipping Mechanism | No |
Standard Equipment Included
- Heavy-duty jockey wheel with clamp
- Waterproof front LED lights
- Waterproof LED rear marker lights
- Waterproof LED rear combination lights
- Removable front and rear hatches
- Removable side panels
- Removable side posts
- 8 x Lashing eyes for cargo securing
- 2 x Corner support legs
- Durable plastic mudguards (fenders)
- Balanced wheels with M+S tyres
