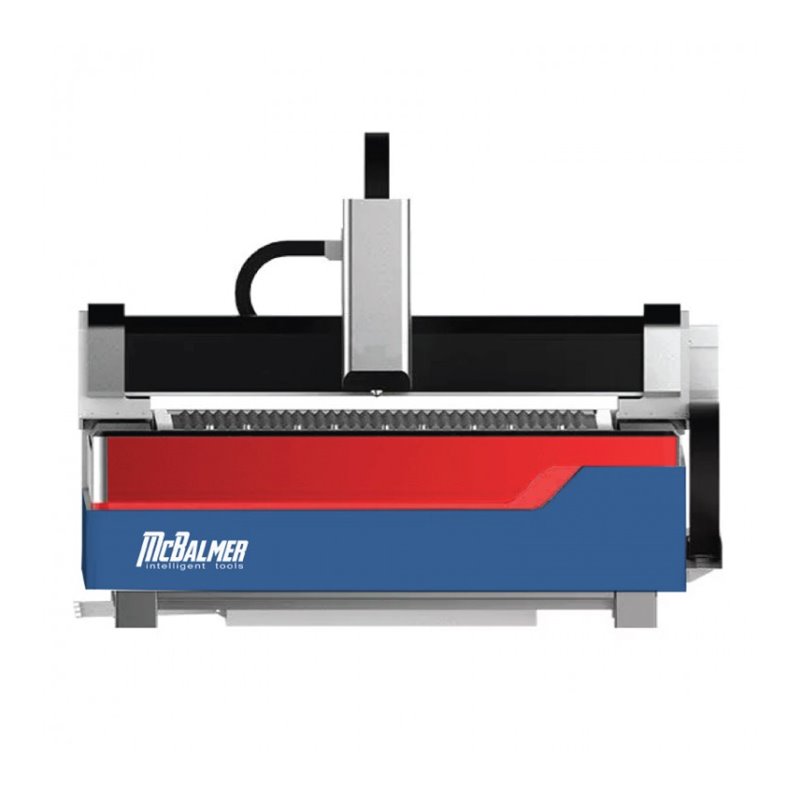

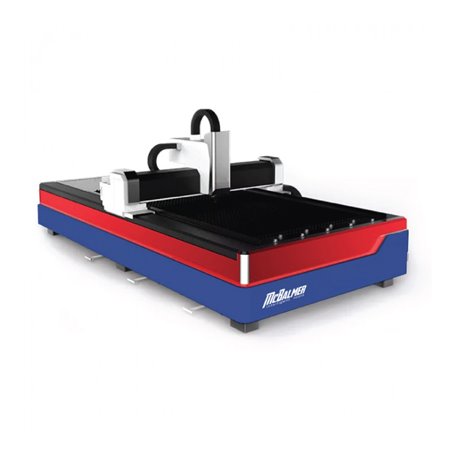

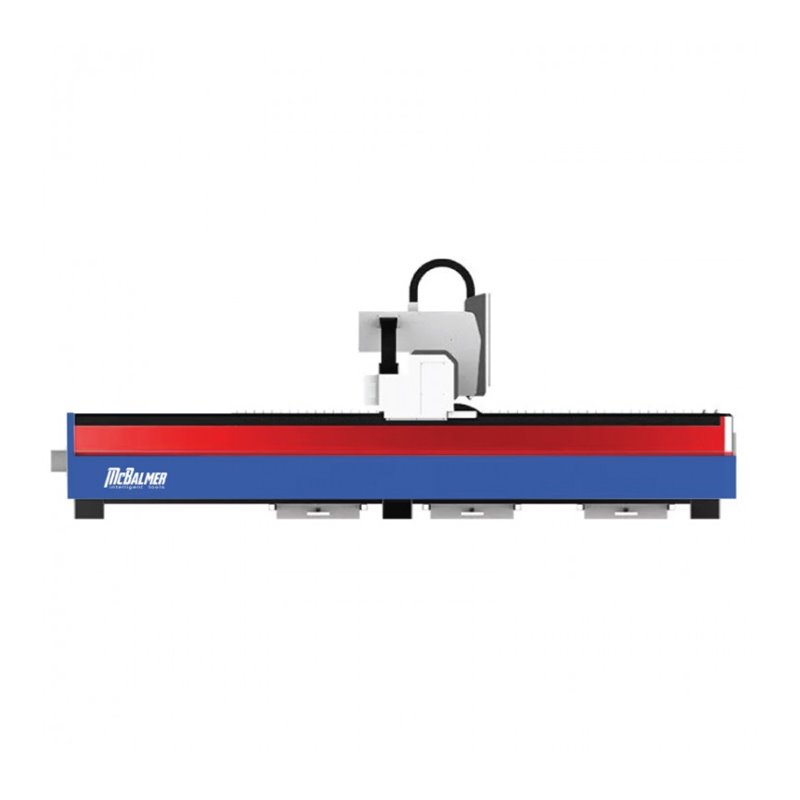

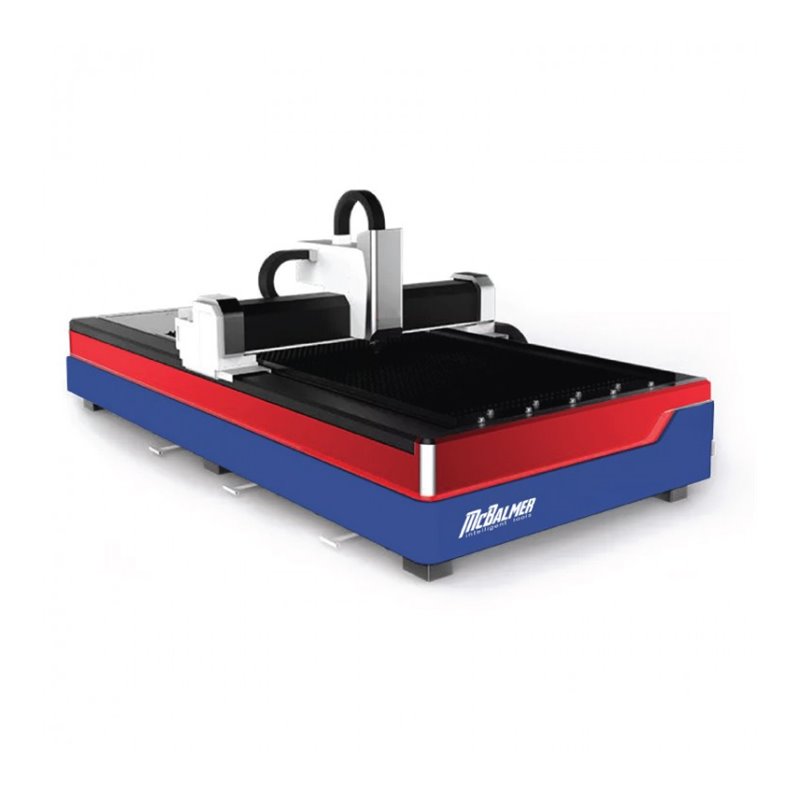

FIBER METAL LASER CUTTING MACHINE MCBALMER View larger
Previous Next

FIBER METAL LASER CUTTING MACHINE MCBALMER

Econom mcBalmer fiber

  • Economical Fiber laser cutting machine. Premium class performance

  • Low cost, easy maintenance and convenient operation

  • It can process most metal materials such as stainless steel, carbon steel and galvanized sheet

More details

0,00 € tax incl.

Ask about product
FIBER METAL LASER CUTTING MACHINE MCBALMER

FIBER METAL LASER CUTTING MACHINE MCBALMER

  • Economical Fiber laser cutting machine. Premium class performance

  • Low cost, easy maintenance and convenient operation

  • It can process most metal materials such as stainless steel, carbon steel and galvanized sheet



More info

Description:

  • Economical Fiber laser cutting machine. Premium class performance
  • Low cost, easy maintenance and convenient operation
  • It can process most metal materials such as stainless steel, carbon steel and galvanized sheet



Options:

  • Widely used in metal sheet processing, such as lighting, kitchenware, decorative material, etc. in production



Advantages:

  1. Fast cutting speed, high efficiency, safe operation and stable performance
  2. Imported servo motor and driving transmission mechanism with high cutting precision
  3. Software for designing various graphics or text with instant processing. Simple and convenient operation
Model 1530F 2040F 2560F
Equipment size 4320 x 2250 x 1950 mm 5350 x 2800 x 1950 mm 5350 x 3350 x 1950 mm
Work area 1515 x 3030 mm 2020 x 4040 mm 2525 x 6050 mm
Positioning accuracy ± 0.03 mm
Movement accuracy ± 0.02 mm
Max. acceleration 1.5 G
Laser power 1-4 kW
Laser Several options
Focusing method Automatic / manual
Max. connection speed 140 m/min

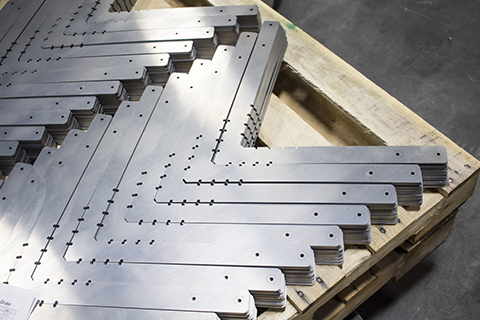

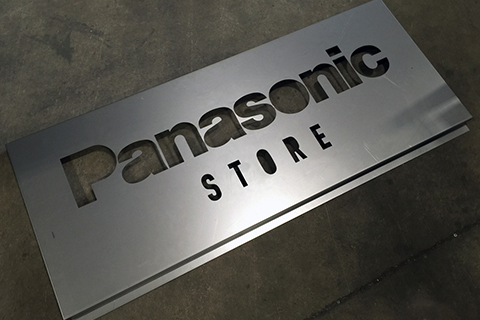

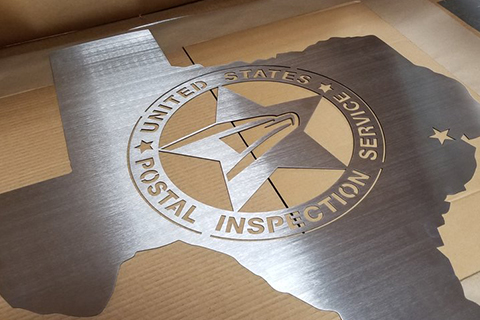

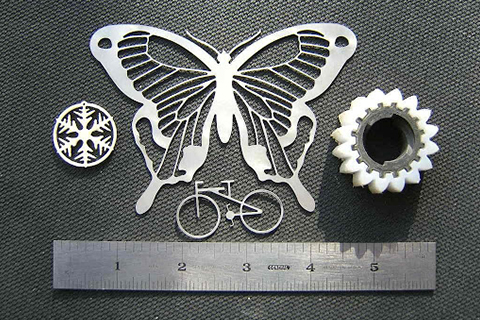

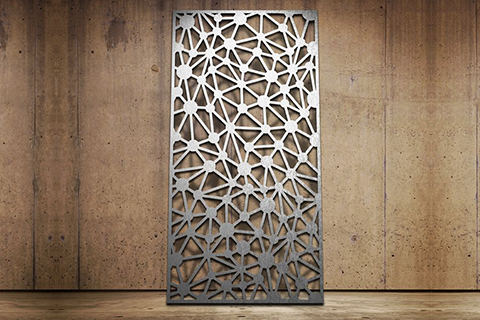

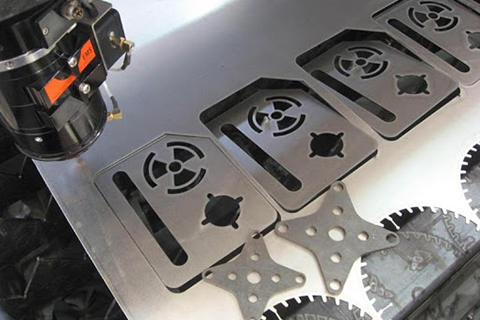

Examples:

Components:

Smart focusing laser head

  1. Cooling: Both the collimating lens and the focusing lens group are cooling accessories. In addition, a cooling airflow nozzle is added, which effectively protects the nozzle and the ceramic and extends the working time

  2. Driving Aperture: Through the 35mm aperture, stray light interference is effectively reduced

  3. Autofocus: Without human intervention, the focusing speed can reach 10 m/min, and the repeatability is about 50 microns

Thick wall carbon steel pipe welding bed



  1. High quality carbon steel welding bed is used, it is more stable and durable. The workbench uses 600℃ for stress relief

  2. Strong structural rigidity, small deformation and low vibration ensure cutting precision

 Cast aluminum beam



  1. Corrosion resistance. Light weight and high rigidity for fast movement during laser processing

  2. Perfect dynamic performance - anti-distortion, anti-tip, anti-deformation, etc.

CypCut laser cutting control system



  1. The software supports AI, DXF, PLT and international standard G codes, co-generates Mater Cam, Type3, Wentai, etc.

  2. Apart from the usual editing and assembly functions, it has a unique processing sequence review and a powerful material database for directly loading specifications
