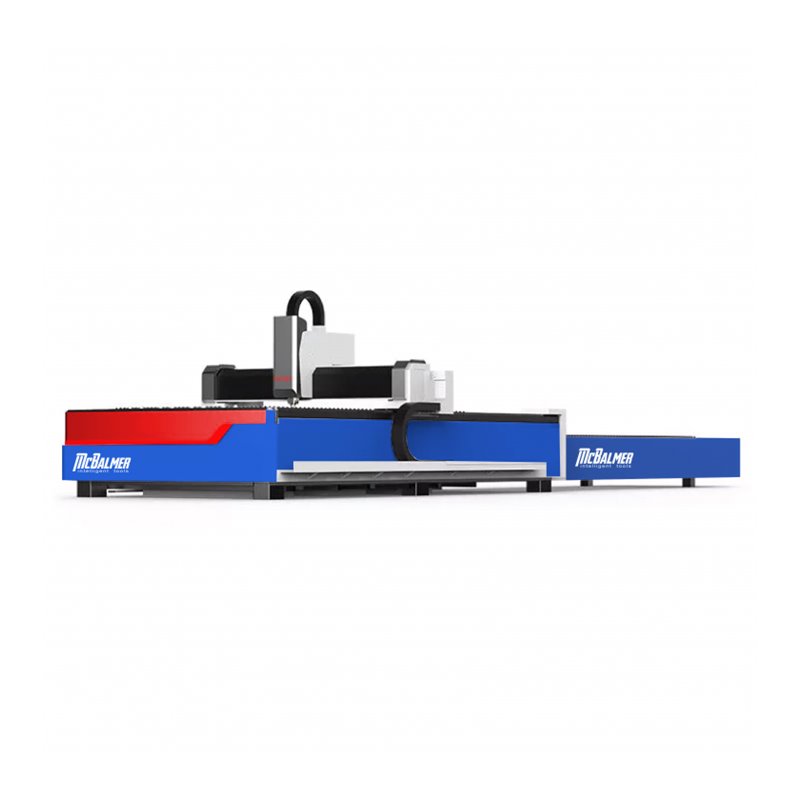

FIBER LASER CUTTING MACHINE WITH CHANGEABLE TABLE MCBALMER View larger

FIBER LASER CUTTING MACHINE WITH CHANGEABLE TABLE MCBALMER

FIBER LASER CUTTING

  • Metal fiber laser cutting machine with two work tables.
  • Both processing platforms enable the loading and unloading process simultaneously with the cutting process

More details

0,00 € tax incl.

Ask about product
FIBER LASER CUTTING MACHINE WITH CHANGEABLE TABLE MCBALMER

FIBER LASER CUTTING MACHINE WITH CHANGEABLE TABLE MCBALMER

  • Metal fiber laser cutting machine with two work tables.
  • Both processing platforms enable the loading and unloading process simultaneously with the cutting process



More info

Description:

  • Metal fiber laser cutting machine with two work tables.

  • Both processing platforms enable the loading and unloading process simultaneously with the cutting process.

  • This saves time for manual loading and unloading and improves production efficiency.

  • With fast processing speed and high production efficiency, this machine is always popular among users.



Advantages:

  1. Using the automatic exchange platform, the loading time only takes 10 seconds, which greatly shortens the working time and improves the work efficiency.

  2. Equipped with a positioning device that can roughly determine the location of the plate to ensure the machine's processing accuracy.

  3. All the main components are imported from international brands, which guarantees a long service life of the machine.





Model 1530E 1560E 2060E
Work area 1515 x 3030 mm 1515 x 6050 mm 2520 x 6050 mm
Working table capacity 800 kg 1300 kg 2200 kg
Positioning accuracy ± 0.03 mm
Accuracy of movement ±0.02 mm
Max. shift time 25 sec. 35 sec. 40 sec.
Max. acceleration 1.5 G
Laser power 1-4 kW
Laser Several options
Max. movement speed 140 m/min



Examples:

Components:

Smart focusing laser head



  1. Cooling: Both the collimating lens and the focusing lens group are cooling accessories. In addition, a cooling airflow nozzle is added, which effectively protects the nozzle and the ceramic and extends the working time

  2. Driving Aperture: Through the 35mm aperture, stray light interference is effectively reduced

  3. Autofocus: Without human intervention, the focusing speed can reach 10 m/min, and the repeatability is about 50 microns

Thick wall carbon steel pipe welding bed



  1. High quality carbon steel welding bed is used, it is more stable and durable. The workbench uses 600℃ for stress relief

  2. Strong structural rigidity, small deformation and low vibration ensure cutting precision

Cast aluminum beam



  1. Corrosion resistance. Light weight and high rigidity for fast movement during laser processing

  2. Perfect dynamic performance - anti-distortion, anti-tip, anti-deformation, etc.

CypCut laser cutting control system



  1. The software supports AI, DXF, PLT and international standard G codes, co-generates Mater Cam, Type3, Wentai, etc.

  2. Apart from the usual editing and assembly functions, it has a unique processing sequence review and a powerful material database for directly loading specifications
