RESPO 3500S322T170 Heavy-Duty Plant Trailer 3500kg

3500S322T170 Heavy-Duty Plant Trailer for Miniloaders and Excavators

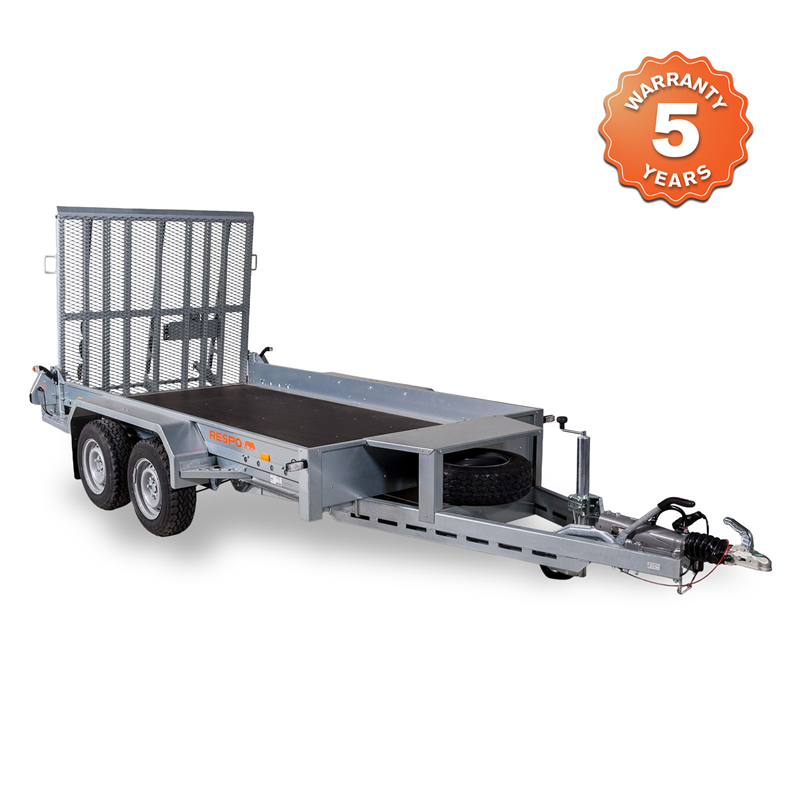

The 3500S322T170 is a robust heavy-duty trailer specifically designed for the safe transport of miniloaders and excavators. Engineered with a hot-dip galvanised welded frame for maximum corrosion resistance and durability, this trailer is built to withstand rigorous industrial use. With a gross weight of 3500 kg and a substantial payload capacity of 2689 kg, it offers the strength required for heavy machinery transport.

This model features a waterproof plywood floor that ensures a non-slip surface and longevity in various weather conditions. The trailer is equipped with a 2x Torsion axle system, providing stable towing characteristics even when fully loaded. For ease of loading, it includes a full-size trailer ramp and rear ground supports to stabilise the unit while machinery is being driven on or off.

Key Features and Benefits

• High Payload Capacity: Capable of carrying up to 2689 kg, making it ideal for medium-sized plant machinery.
• Durable Construction: Features a hot-dip galvanised frame and waterproof plywood flooring.
• Enhanced Visibility: Equipped with waterproof LED front lights, rear marker lights, and rear lights for safety during transport.
• User-Friendly Design: Includes walk-on metal fenders and side steps for easy access around the trailer and machine.
• All-Weather Performance: Fitted with M+S (Mud and Snow) tyres for reliable traction in varying road conditions.

Standard Equipment

The 3500S322T170 comes fully equipped with the following accessories and features included in the box:

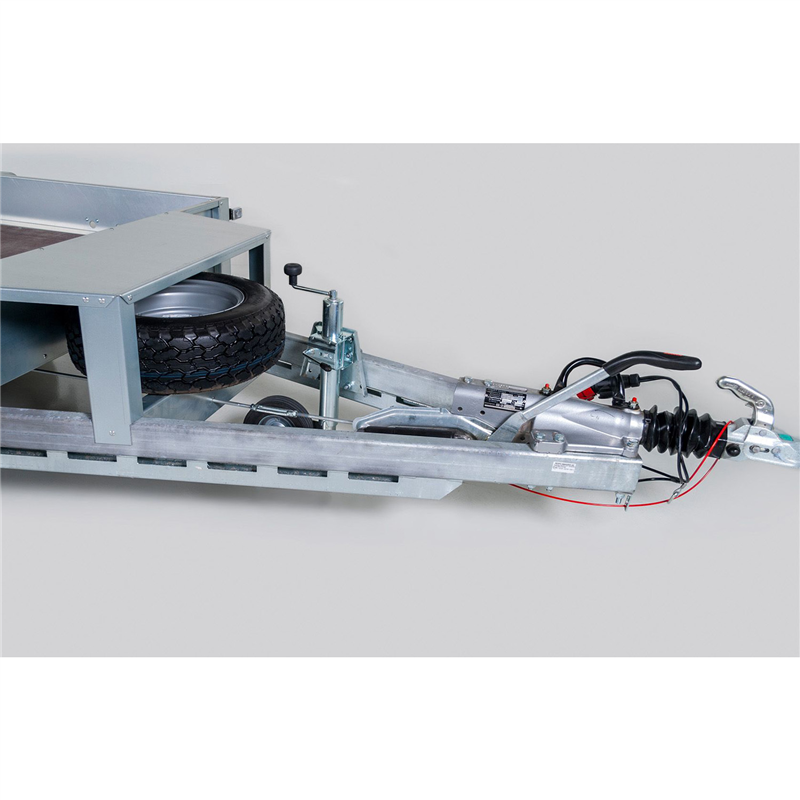

• Jockey wheel with clamp and solid wheel
• Waterproof front LED lights
• Waterproof LED rear marker lights
• Waterproof LED rear lights
• Bucket rest/shelf (Riiul)
• Removable front hatch

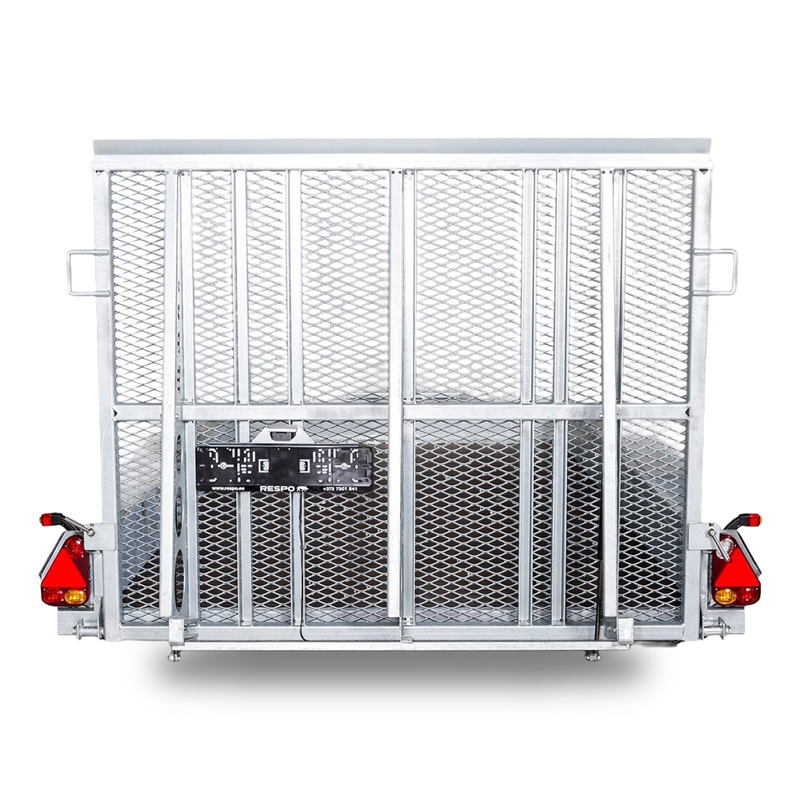

• Removable rear hatch
• Cargo securing eyelets
• Rear ground support (2 pcs)
• Full metal step on fenders
• Side steps
• Wheels with M+S tyres (185/70R13C)

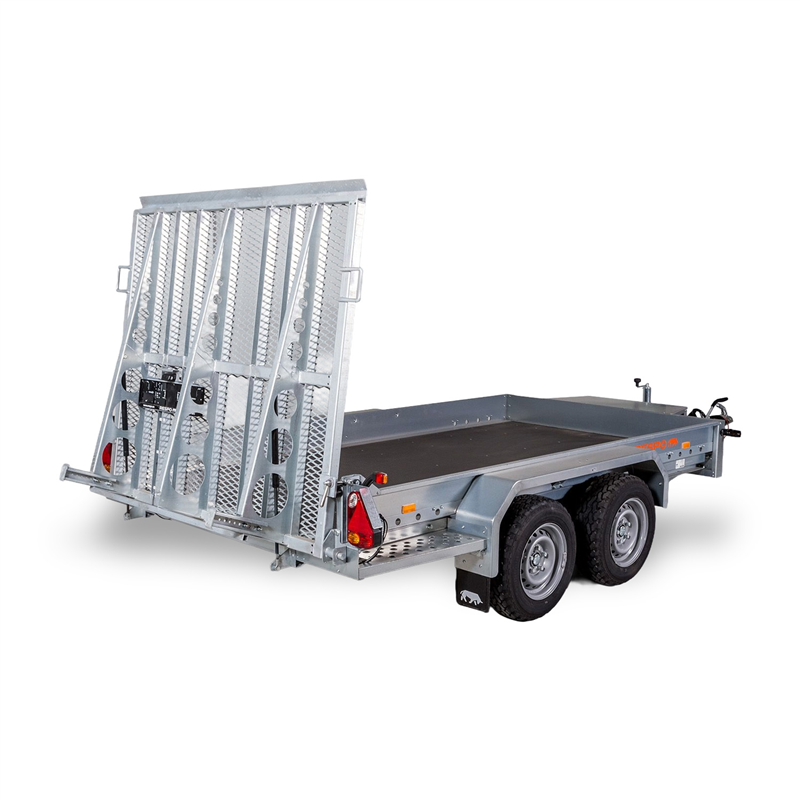

• Full-size trailer ramp
• Spare tyre and support plate

Technical Specifications
