RESPO 750M351L186 Heavy-Duty Single Axle Trailer 750kg

RESPO 9493

Premium welded frame trailer with Magnelis® coating and leaf spring suspension. Features 3.50x1.86m internal dimensions, waterproof LED lights, and tipping capability.

More details

Magnelis trailer, utility trailer, 750kg trailer, leaf spring trailer, single axle trailer, heavy duty trailer, tipping trailer, trailer

2 287,00 € tax incl.

Ask about product
RESPO 750M351L186 Heavy-Duty Single Axle Trailer 750kg

RESPO 750M351L186 Heavy-Duty Single Axle Trailer 750kg

Premium welded frame trailer with Magnelis® coating and leaf spring suspension. Features 3.50x1.86m internal dimensions, waterproof LED lights, and tipping capability.



More info

750M351L186 Heavy-Duty Single Axle Trailer (3.50m x 1.86m)

The 750M351L186 is a robust and user-friendly trailer designed for higher quality performance and longevity. Built on an extremely tough, welded steel frame, this trailer is engineered to withstand rigorous use. The load-bearing boards and fenders are constructed from high-quality sheet metal coated with Magnelis®, a metallic coating that offers superior protection, being three times more resistant to corrosion than regular hot-dip galvanised (HDG) steel.

Outstanding handling and stability are achieved through a suspension system featuring 4-sheet leaf springs, shock absorbers, and waterproof wheel hubs. The trailer bed features a durable plywood floor that is both waterproof and slip-resistant, ensuring your cargo remains secure during transport. With a gross weight of 750 kg and a tipping function, this trailer is an ideal solution for general utility and transport needs.

Key Features

  • Superior Corrosion Resistance: Coated with Magnelis®, offering 3x better protection than standard galvanisation.
  • Robust Construction: Hot-dip galvanised welded frame ensures structural integrity.
  • Advanced Suspension: Equipped with leaf springs and shock absorbers for a smooth ride.
  • Waterproof Components: Features waterproof wheel hubs and a waterproof plywood floor.
  • Full LED Lighting: Includes waterproof front, rear, and marker LED lights for maximum visibility.
  • Versatile Loading: Removable front and rear hatches, removable sides, and a tipping function facilitate easy loading and unloading.

Technical Specifications

Model750M351L186
Gross Weight750 kg
Unladen Weight366 kg
Payload Capacity384 kg

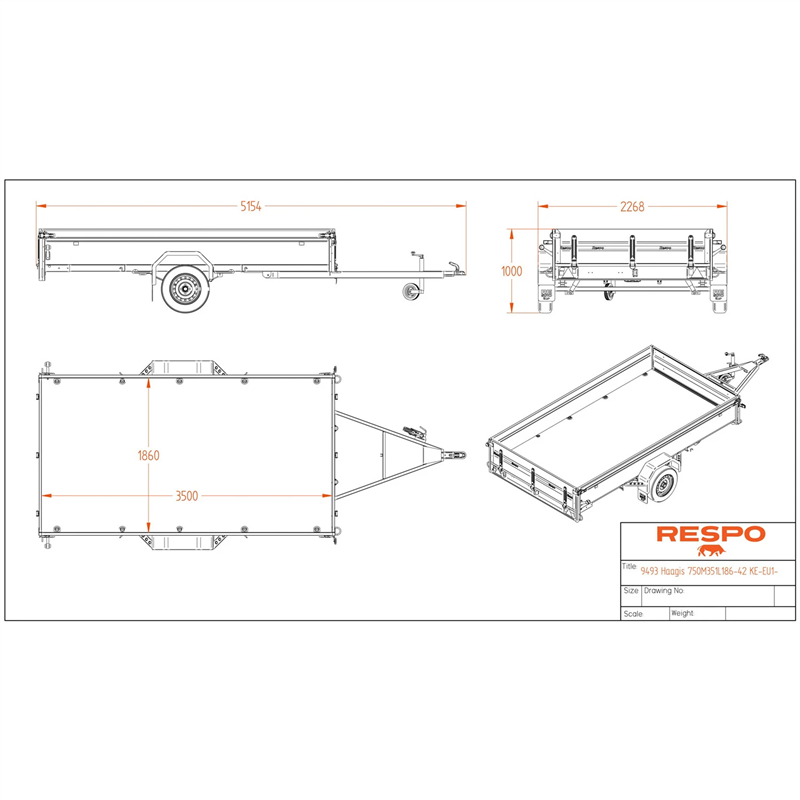

Internal Dimensions (L x W)3.50 x 1.86 m
External Dimensions (L x W)5.16 x 2.27 m
Edge Height0.42 m
Total Height0.96 m
Frame TypeHot-dip galvanised welded frame
Axle TypeLeaf spring
BrakesNo
Tipping MechanismYes
Tyres155R13 (M+S)
Plug Type13 pin

Standard Equipment Included

  • Jockey wheel with clamp
  • Solid wheel
  • Waterproof front LED lights
  • Waterproof LED rear marker lights
  • Waterproof LED rear lights
  • Removable front hatch
  • Removable rear hatch (Reinforced)
  • Removable sides
  • 8 x Lashing eyes
  • Tipping screw (Kallutuskruvi)
  • Full metal step on fenders
  • Side steps
  • Wheels with M+S tyres
