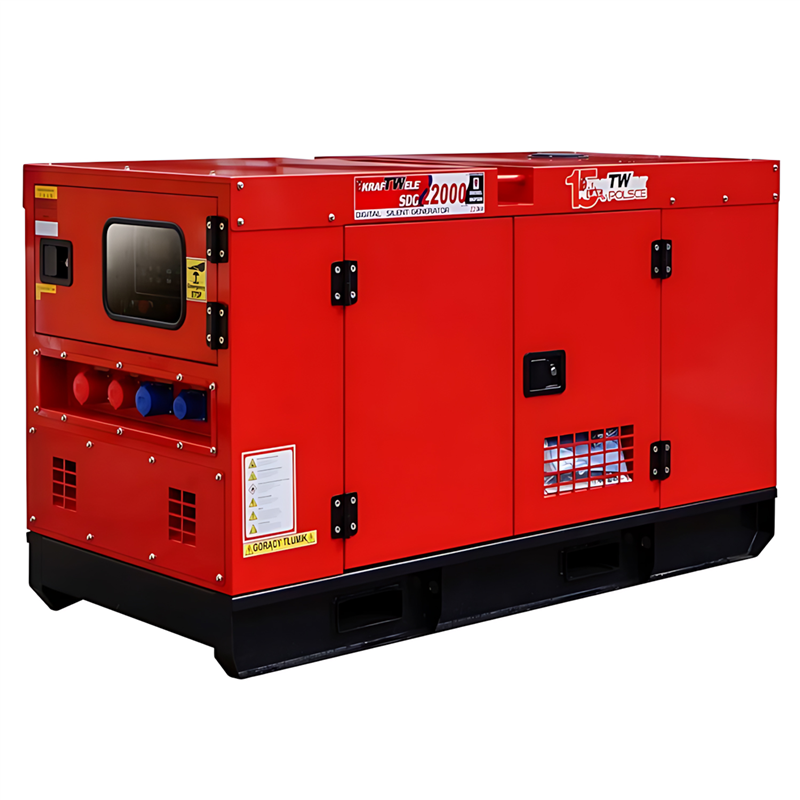

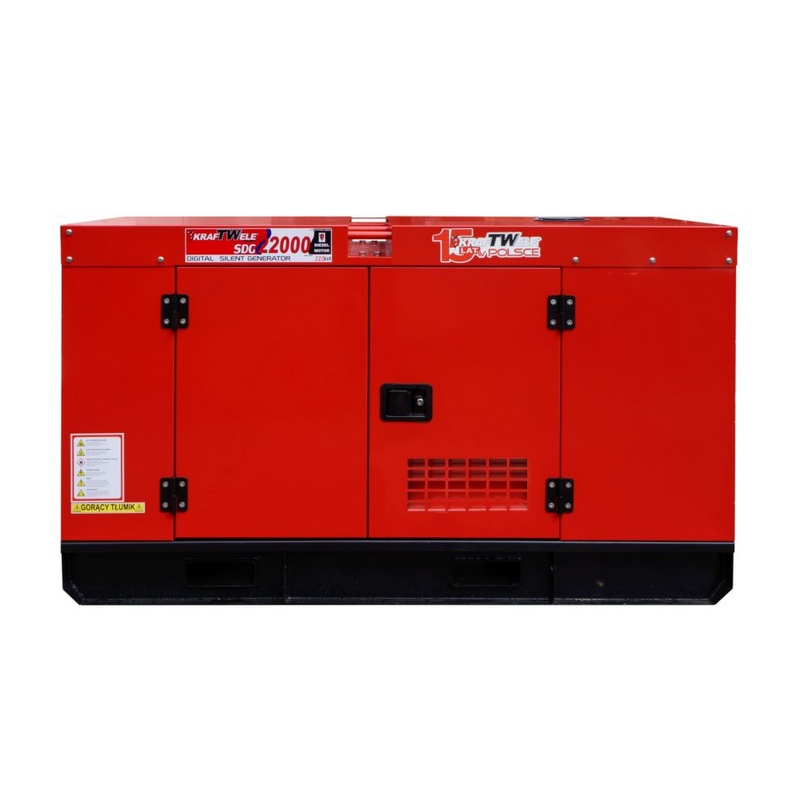

Silent diesel generator SDG 22000 DIGITAL SILENT

PGDL-6505

The SDG 22000 DIGITAL SILENT diesel generator features a four-cylinder low-speed diesel engine providing 20 kVA nominal and 22 kVA maximum output at 230V/400V. Equipped with AVR voltage regulation, a digital control panel, electric start, and a low-temperature cold-start kit (coolant heater, flame glow plug, intake preheater). Fitted with a 65 L fuel tank with 2.8 L/h consumption at 50% load.

More details

diesel generator, silent generator, silent diesel generator, three phase generator, standby genset, backup generator, industrial diesel generator, 22 kVA generator

7 999,00 € tax incl.

Ask about product
Silent diesel generator SDG 22000 DIGITAL SILENT

Silent diesel generator SDG 22000 DIGITAL SILENT

The SDG 22000 DIGITAL SILENT diesel generator features a four-cylinder low-speed diesel engine providing 20 kVA nominal and 22 kVA maximum output at 230V/400V. Equipped with AVR voltage regulation, a digital control panel, electric start, and a low-temperature cold-start kit (coolant heater, flame glow plug, intake preheater). Fitted with a 65 L fuel tank with 2.8 L/h consumption at 50% load.



More info

Silent diesel generator with digital control

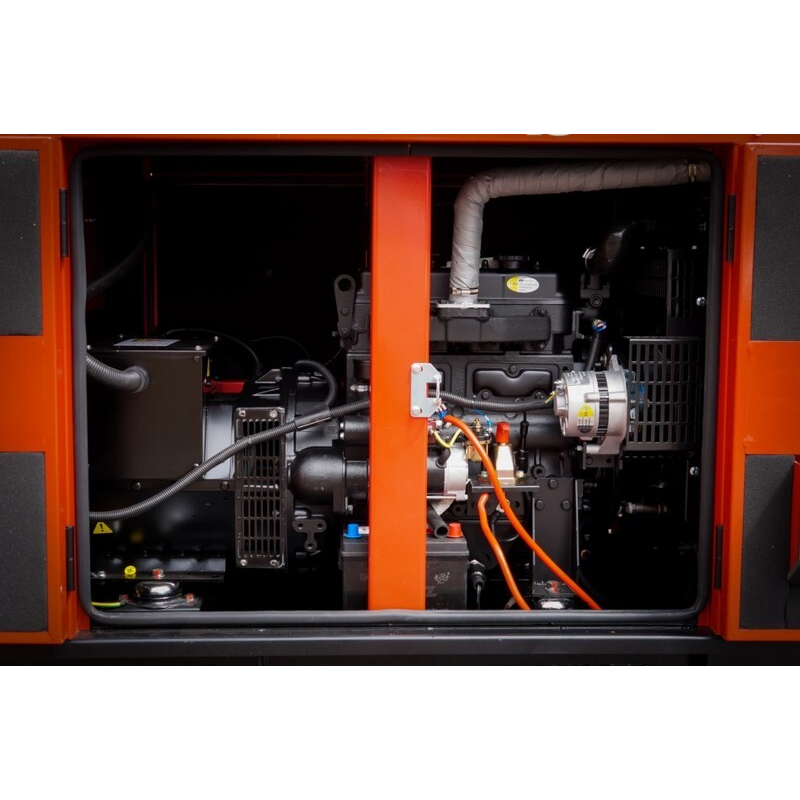

The SDG 22000 DIGITAL SILENT from the Super Silent range is designed to deliver stable 230V and 400V power. Driven by a four-cylinder low-speed diesel engine, this generator ensures high operational reliability, extended service life, and fuel-efficient performance.

Design and standard features

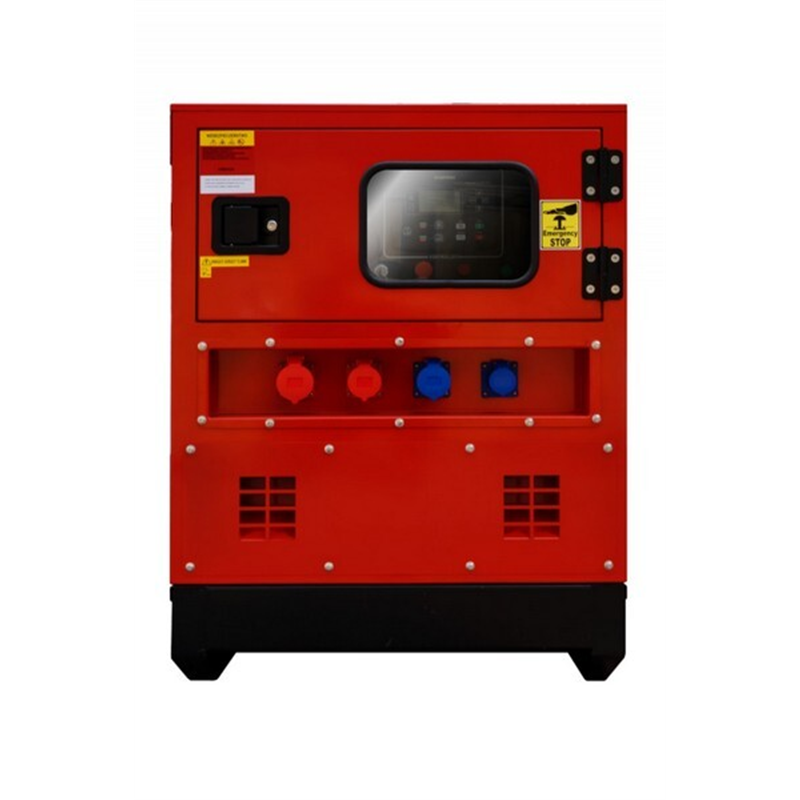

The unit features a clear digital control panel, electric starting, and AVR automatic voltage regulation. Standard equipment includes a comprehensive low-temperature starting system comprising a coolant heater, flame glow plug, and intake manifold preheater. Connections are facilitated via internal power distribution terminals alongside external weather-protected sockets.

Technical specifications

SpecificationValue
Nominal power 20 kVA
Maximum power 22 kVA
Voltage 230 V / 400 V
Frequency 50 Hz
Voltage regulation AVR
Starting system Electric
Fuel tank capacity 65 L
Fuel consumption (at 50% load) 2.8 L/h

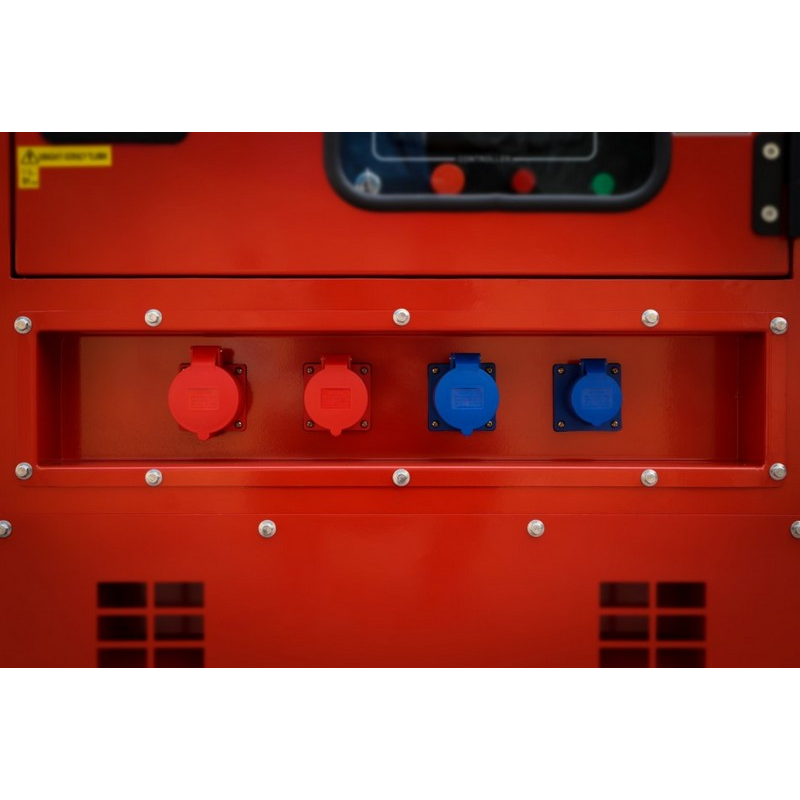

Sockets 2x 230V (16A, 32A), 2x 400V (16A, 32A)
Dimensions (L x H x W) 1850 x 850 x 1120 mm
Weight 710 kg

Optional accessories

  • Automatic Transfer Switch (ATS)    (930 EUR)
  • Transport trailer chassis    (930 EUR)
  • GSM / GPS communication module for Smartgen controller    (349 EUR)
