Mobile scissor lift PX-2800

Mobile scissor lift with 2,800 kg load capacity

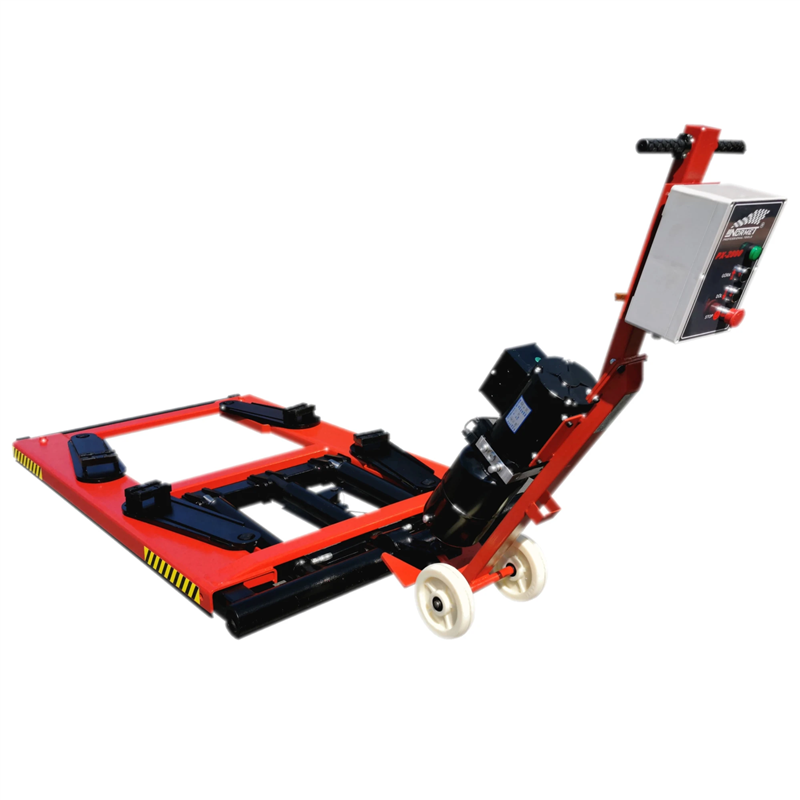

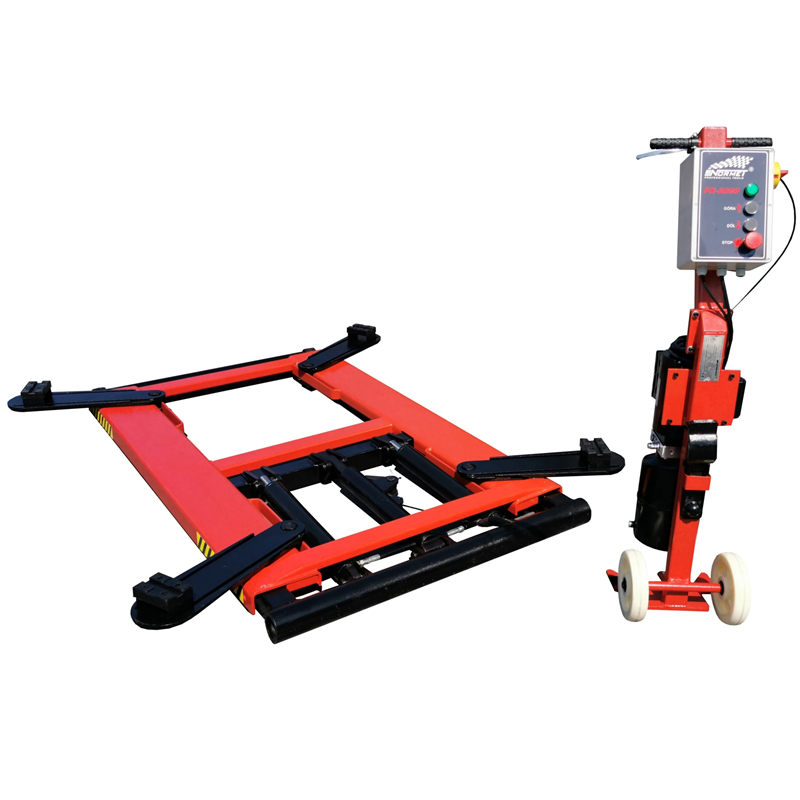

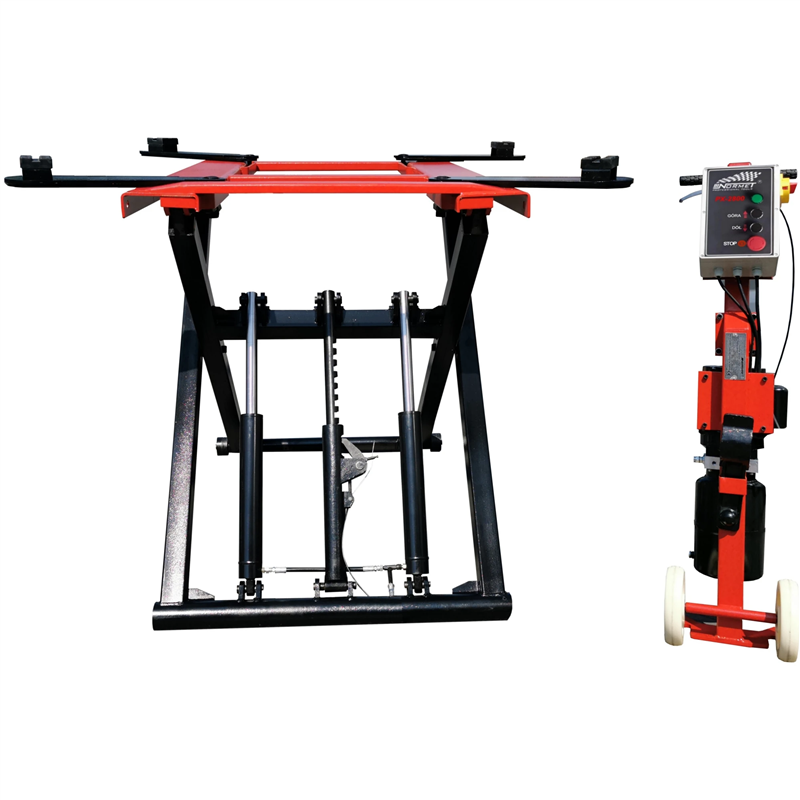

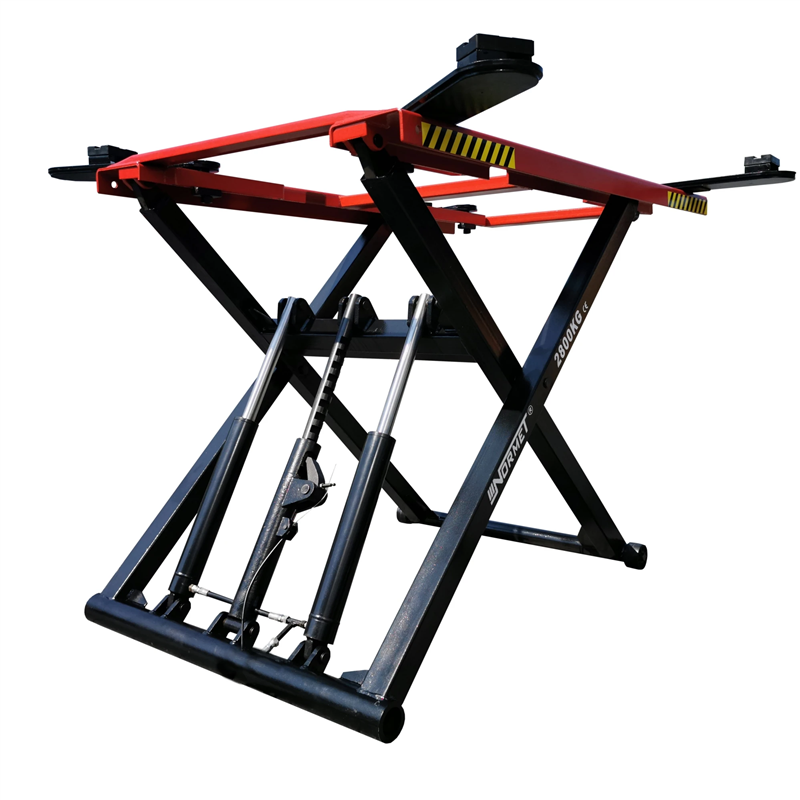

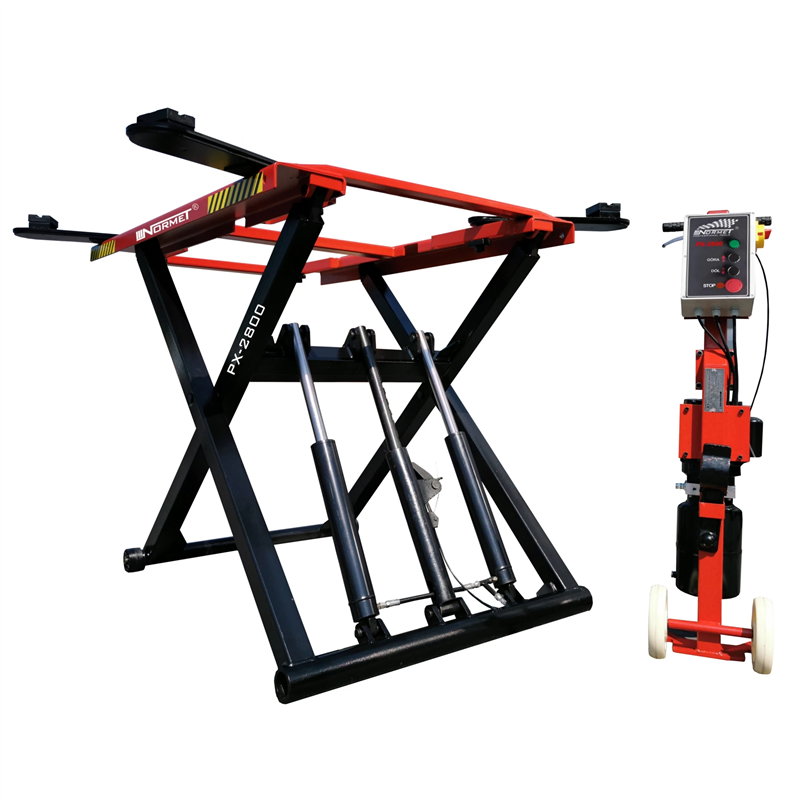

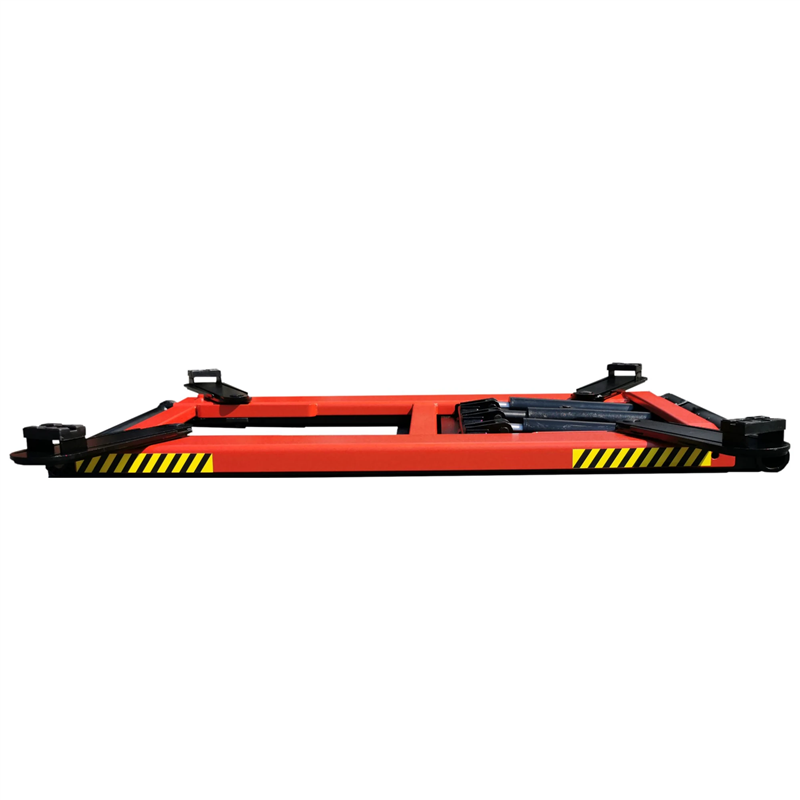

The PX-2800 is a compact electro-hydraulic scissor lift engineered for automotive workshops, tyre services, and private garages. With a low minimum height of 120 mm and an included mobile manoeuvring kit, the unit can be easily relocated across the workshop and accommodates vehicles with low ground clearance.

Key features

• Compact dimensions and mobile kit for unrestricted positioning and relocation
• 2,800 kg safe working load suitable for passenger cars and light vans
• Rapid lifting operation of approximately 20 seconds
• External control box equipped with up/down push buttons, emergency stop switch, and power indicator light
• Manual mechanical safety latch system for positive locking at working height
• Single-phase 230 V hydraulic power unit for standard electrical connections

Technical specifications

PX-2800230

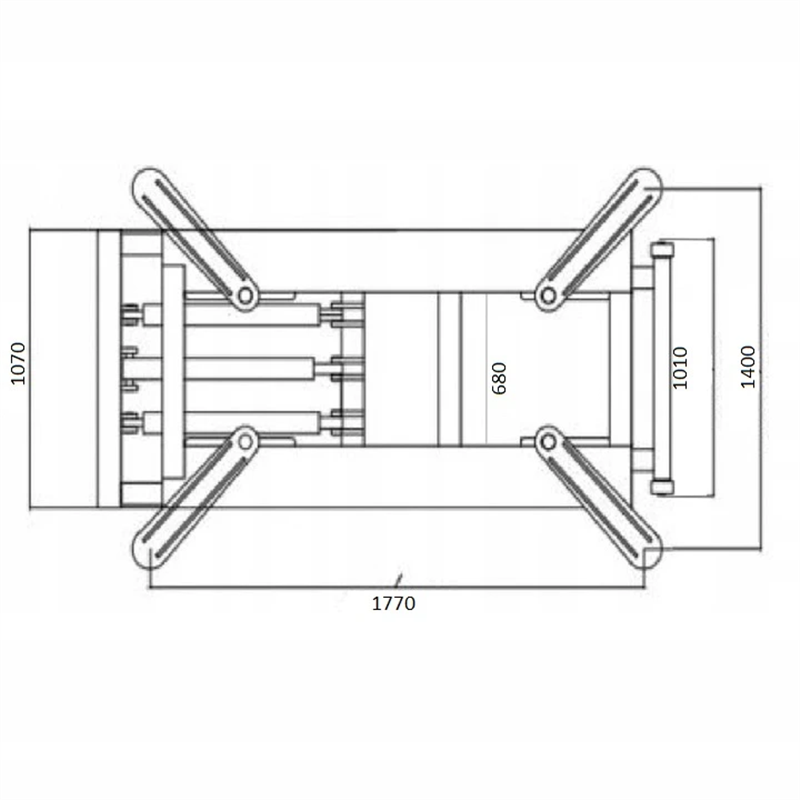

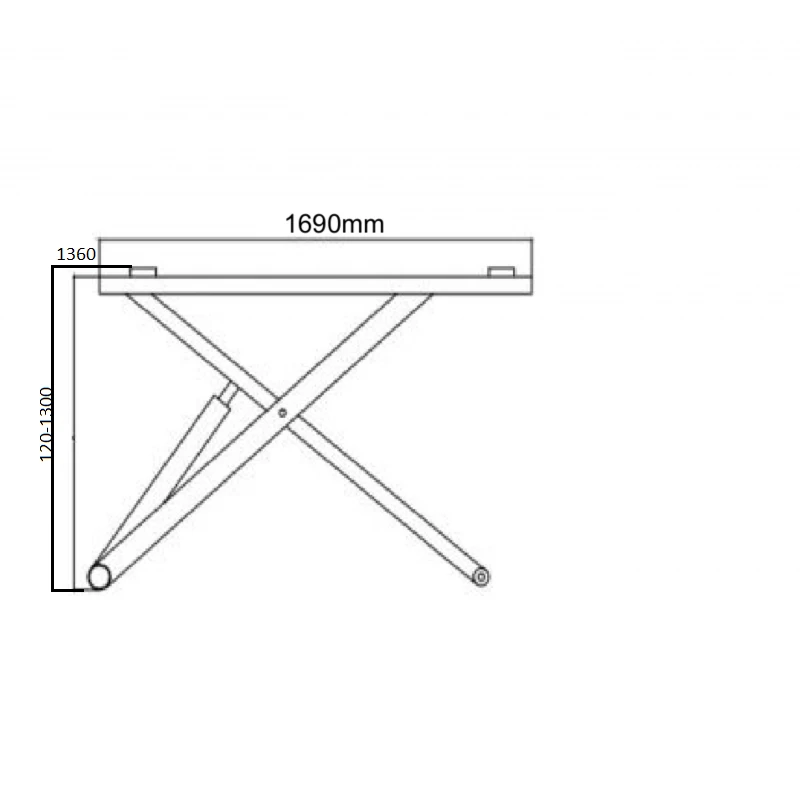

Lifting capacity2800 kgMaximum lifting height1300 mmMinimum lifting height120 mmLifting time20 sPower supply230 VMotor power2.2 kWDrive typeHydraulicSynchronisationPermanentSafety lock systemManualWidth1070 mmLength1690 mmWeight390 kg

ja2800 kg

Maksimālais pacelšanas augstums1300 mmMinimālais pacelšanas augstums120 mmPacelšanas laiks20 sBarošanas spriegums230 VMotora jauda2,2 kWPiedziņas veidsHidraulisksSinhronizācijaFiksētaDrošības fiksatoriManuāliPlatums1070 mmGarums1690 mmSvars390 kg
