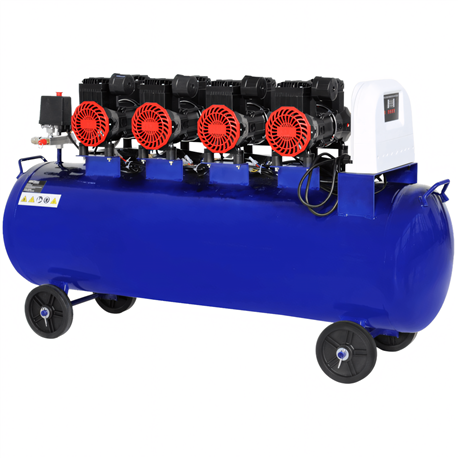

Kraftdele Oil-free compressor 120L 4 CYLINDER 230V 7kW (KD4095)

A specially designed exhaust system combined with aluminum valves provides higher air flow rates, resulting in more efficient operation and reduced noise levels. The use of reinforced rotating components and a crankshaft made of specially treated steel significantly reduces vibration and increases the stability of the entire structure.

The cylinder head and main compressor components are made of high-quality iron alloy, which ensures a very high air compression ratio and virtually eliminates the risk of leaks. The oil-free design ensures clean working air, eliminates the need for oil filters and reduces maintenance requirements. All this is complemented by a modern control panel and a durable air tank designed with safety and durability in mind.

PRODUCT FEATURES:

 Oil-free design – clean air and no lubrication required

 Four pistons – high efficiency and stable operation

 Large 120 liter tank – longer operation without frequent refilling

 High airflow efficiency

 Reduced vibration – stable and quiet operation

 Reinforced structural components – durability and reliability

 Modern control panel – easy to use

 Designed for continuous operation – demanding applications

TECHNICAL DATA:

 Model KD4095

 Type Oil-free compressor

 Tank capacity 120 l

 Motor power 7000 W

 Rotation speed 2850 rpm

 Maximum pressure 8 bar

 Suction performance: 910 l/min

 Capacity: 455 l/min at 8 bar

 Power supply: 230V / 50Hz

 Number of pistons: 4

 Lubrication: Oil-free

 Weight: 70 kg
