HORIZONTAL BAND SAW LANTZMANN BS790G (GASOLINE) View larger
Previous Next

HORIZONTAL BAND SAW LANTZMANN BS790G (GASOLINE)

BS790G

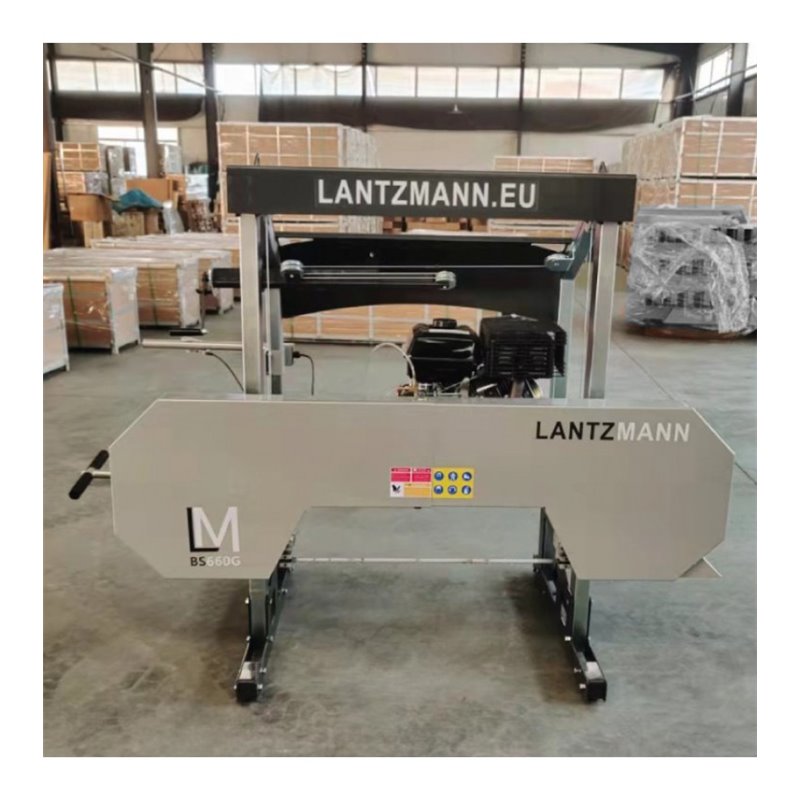

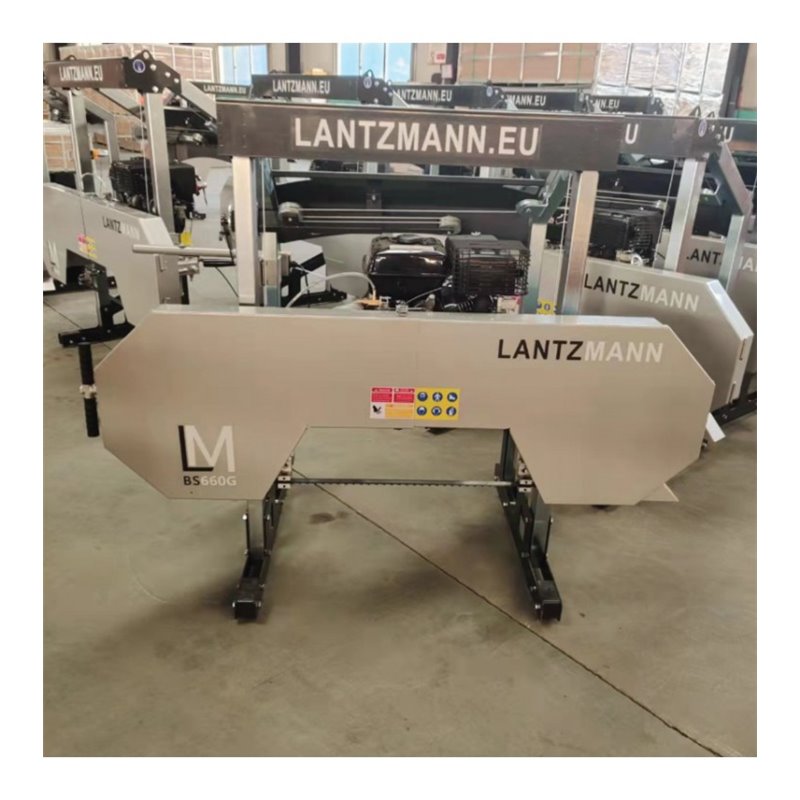

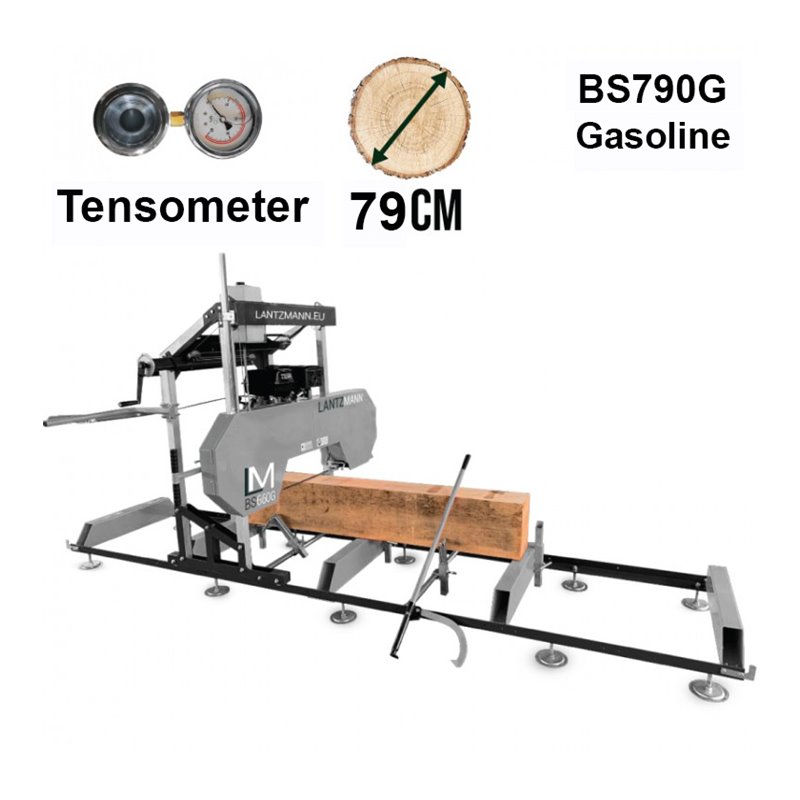

  • Horizontal band saw Lantzmann BS790G (gasoline)

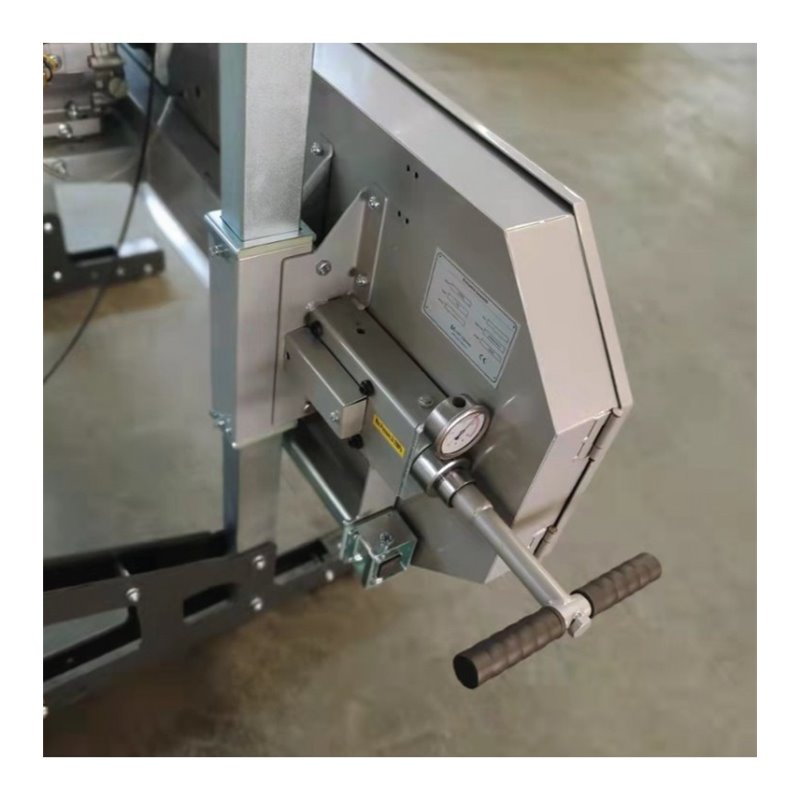

  • Complete with saw band tensioner
  • Cutting speed control
  • Water cooling system
  • Adjustment of cutting dimensions
  • Brush for removing sawdust

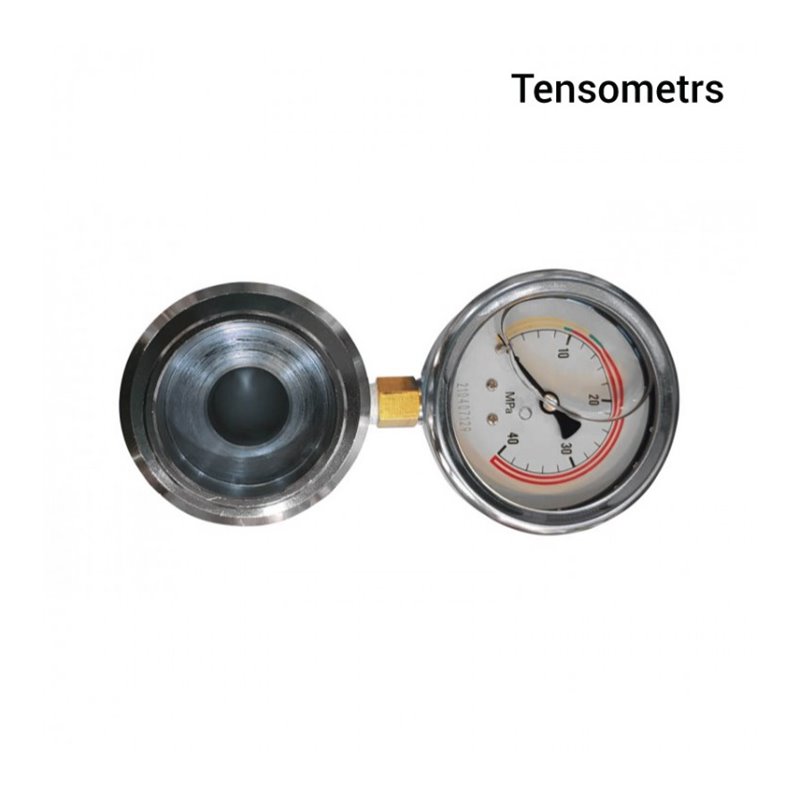

  • Tension indicator (tensometer)

More details

3 899,00 € tax incl.

The minimum purchase order quantity for the product is 4

Ask about product
HORIZONTAL BAND SAW LANTZMANN BS790G (GASOLINE)

HORIZONTAL BAND SAW LANTZMANN BS790G (GASOLINE)

  • Horizontal band saw Lantzmann BS790G (gasoline)
  • Complete with saw band tensioner
  • Cutting speed control
  • Water cooling system
  • Adjustment of cutting dimensions
  • Brush for removing sawdust
  • Tension indicator (tensometer)



More info

Description:

  • Horizontal band saw Lantzmann BS790G (gasoline)

  • Complete with saw band tensioner

  • Tension indicator (tensometer)

  • Fuel consumption ~ 3l/h

  • Available immediately!



Options:

  • Additional rail, 2 m

  • Saw band tensioner



Technical indicators:

Model

BS660G

BS790G

BS660E

BS790E

Motor

petrol, 9 HP (LIFAN, manual starter)

gasoline, 15 HP (LIFAN, manual starter)

electric motor, 5.5 kW

electric motor 7.5 kW

Power

301cc

420cc

400V, 50HZ, 3-phase

400V, 50HZ, 3-phase

Sawing diameter

660 mm

790 mm

660 mm

790 mm

Sawing length (standard equipment)

2794 mm

2794 mm

2794 mm

2794 mm

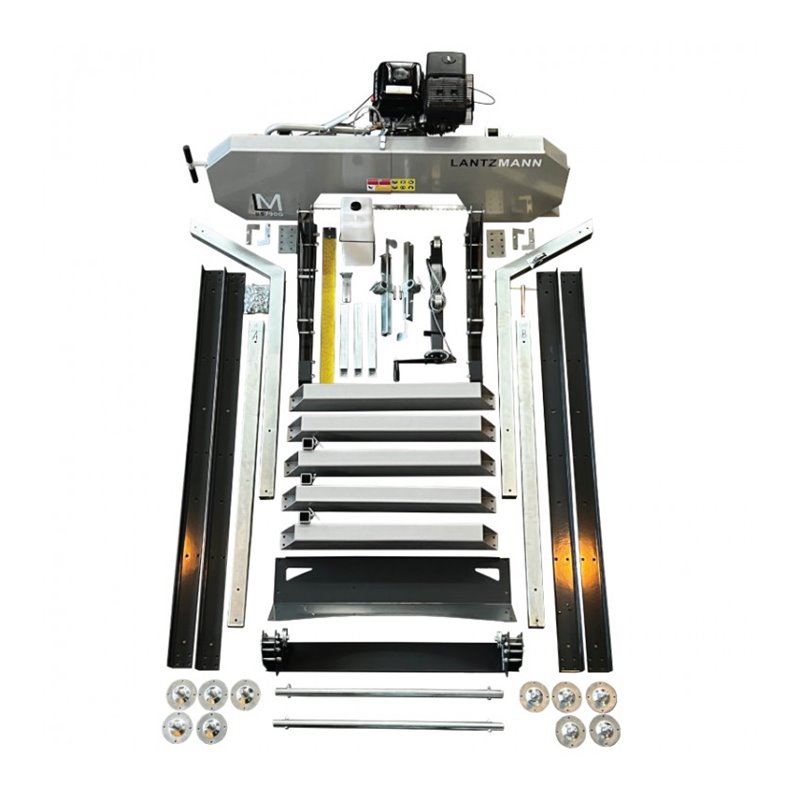

Frame

4 parts

4 parts

4 parts

4 parts

Standard rail size

4000x900 mm

4000x1030 mm

4000x900 mm

4000x1030 mm

Package dimensions

2080x570x830 mm

2150x570x830mm

2080x610x810mm

2150x610x810mm

Safe cutting speed

13-15 s/m

13-15 s/m

13-15 s/m

13-15 s/m

Blade speed

17 m/min

17 m/min

17 m/min

17 m/min

Tooth spacing

22mm (0.86")

22mm (0.86")

22mm (0.86")

22mm (0.86")

Saw band size

3690x34x0.9 mm

3960x34x0.9 mm

3690x34x0.9 mm

3960x34x0.9 mm

Saw blade wheel diameter

480mm (18.8")

480mm (18.8")

480mm (18.8")

480mm (18.8")

Sizes

4064x1778x1800 mm

4064x1778x1800 mm

4064x1778x1800 mm

4064x1778x1800 mm

Weight

315/355 kg

315/355 kg

352/380 kg

352/380 kg





Cutting speed control
Cutting speed control		 Water cooling system
Water cooling system		 Brush for removing sawdust
Brush for removing sawdust
Saw band
Saw band		 Belt
Belt		 Cutting height adjustment
Cutting height adjustment

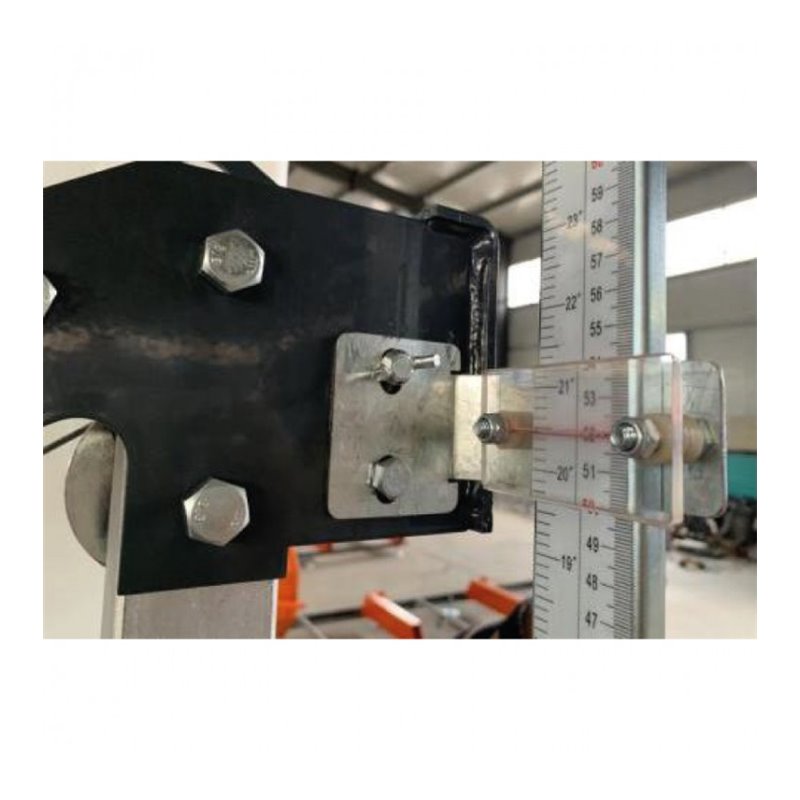

Adjusting the cutting size
Adjusting the cutting size		 Ruler
Ruler		 Fixing the tree
Fixing the tree
