AFLATEK AirPro500W-Twin Oil Compressor 12.5bar

AirPro500W-Twin

AFLATEK AirPro500W-Twin is a professional high-pressure twin-piston air compressor with a 500 L tank and two 5.5 kW motors. It delivers a nominal 890 L/min air output (average from 0 to 12.5 bar) and operates automatically between 10.5 – 12.5 bar. Ideal for industrial users requiring stable high-pressure air for heavy-duty pneumatic tools, truck service and production lines.

More details

industrial air compressor, portable air compressor, 12.5bar Air Compressor, AFLATEK AirPro500W, Electric Air Compressor, High Pressure Compressor, Twin Oil Compressor

1 742,40 € tax incl.

Ask about product
AFLATEK AirPro500W-Twin Oil Compressor 12.5bar

AFLATEK AirPro500W-Twin Oil Compressor 12.5bar

AFLATEK AirPro500W-Twin is a professional high-pressure twin-piston air compressor with a 500 L tank and two 5.5 kW motors. It delivers a nominal 890 L/min air output (average from 0 to 12.5 bar) and operates automatically between 10.5 – 12.5 bar. Ideal for industrial users requiring stable high-pressure air for heavy-duty pneumatic tools, truck service and production lines.



More info

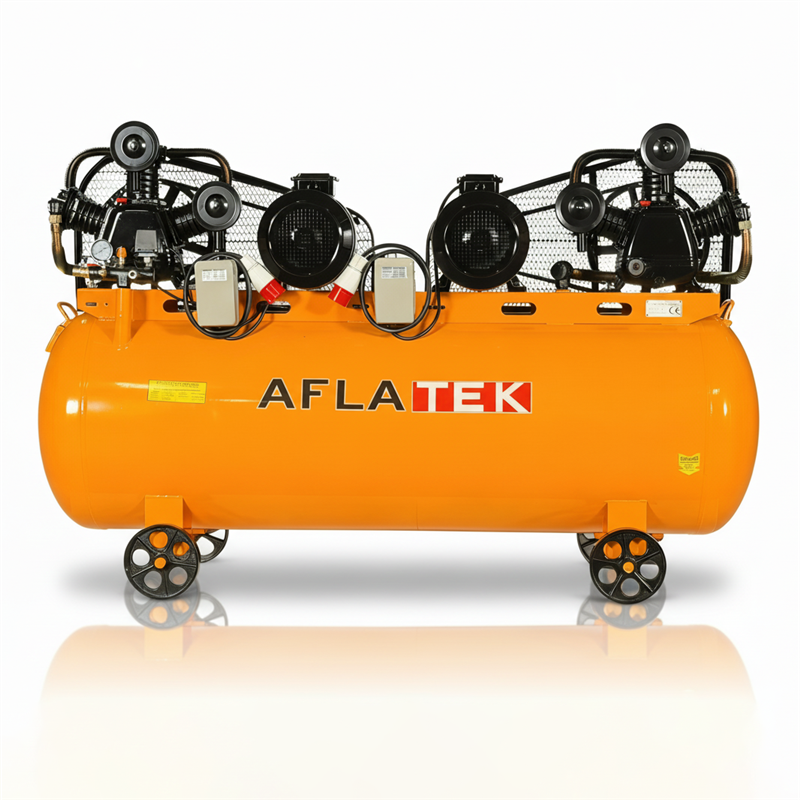

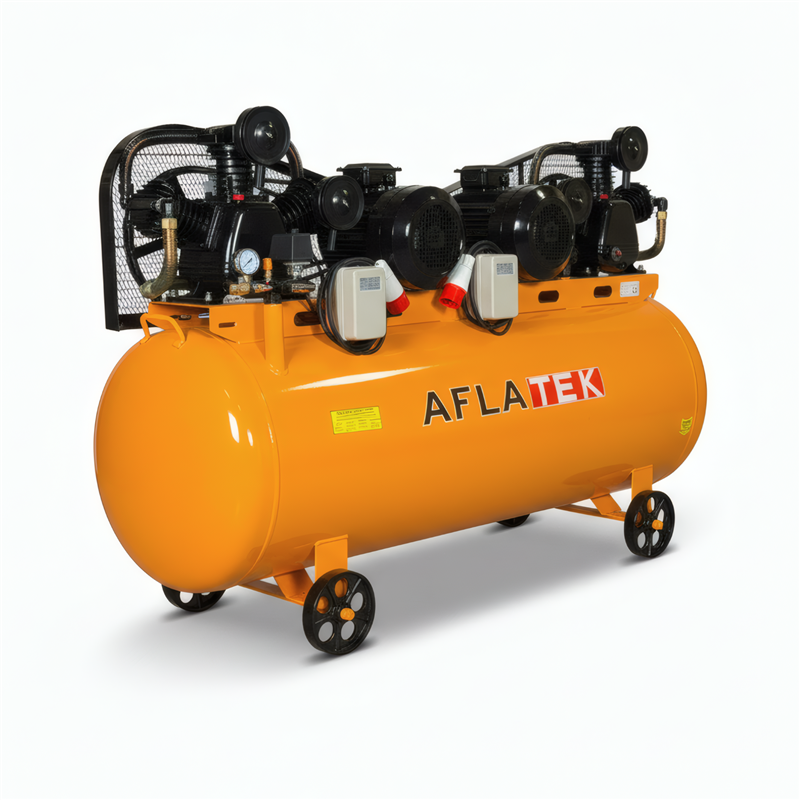

AFLATEK AirPro500W-Twin – 500 L Industrial High-Pressure Twin-Piston Air Compressor (400 V)

The AFLATEK AirPro500W-Twin is a professional high-pressure air compressor designed for demanding industrial and workshop environments where pressure requirements exceed the standard 8 bar range. Equipped with two W-0.67/12.5 cast-iron compressor blocks and dual 5.5 kW (7.5 HP) motors, it delivers stable operation up to 12.5 bar with a total nominal output of approximately 890 L/min.

✅ Key Features

  • High-pressure design – automatic stop at 12.5 bar and restart at ≈ 10.5 bar
  • Two 5.5 kW motors – total 11 kW combined output
  • 500 L horizontal tank – CE-certified, pressure-tested at 16 bar
  • Heavy-duty W-0.67/12.5 compressor blocks for increased pressure capability
  • Metal air filters for long-term durability and clean air intake
  • Pressure regulator and quick coupling included – ready to use
  • Independent motor control – run one or both motors as needed
  • Pre-wired D.O.L. starters (QCX5-22-5.5 kW each)
  • All labels in English and CE marking for EU market compliance
  • Delivered on wooden pallet base for easy transport with hand pallet truck

⚙️ Technical Specifications

Model AirPro500W-Twin
Tank volume 500 L (horizontal)
Compressor type 2 × W-0.67/12.5 cast-iron blocks
Nominal air displacement 2 × 445 L/min ≈ 890 L/min (total)
Approx. free air delivery @ 10 bar ≈ 600 – 650 L/min (total)
Working pressure range 12.5 bar
Tank test pressure 16 bar (not adjustable)
Motor power 2 × 5.5 kW / 7.5 HP
Voltage / Phase / Frequency 400 V / 3 Ph / 50 Hz
Amperage 2 × 11.1 A
Start type D.O.L. Starter QCX5-22-5.5 kW
Noise level ≈ 83 dB(A)
Protection class IP44, Class B
Air filters 2 × metal type
Quick coupling 1 × fast connection outlet
Power cable 1.5 m with 400 V plug (16 A 5-pin)
Net / Gross weight ≈ 340 kg / ≈ 390 kg
Dimensions (L × W × H) ≈ 1900 × 600 × 1150 mm

 Air Delivery Performance

The following values show nominal displacement and estimated effective air delivery during typical operation (10.5 – 12.5 bar range):

ParameterPer pumpTotal (Twin)
Nominal displacement (0 – 12.5 bar average) ≈ 445 L/min ≈ 890 L/min
Approx. real free air delivery @ 10 bar ≈ 300 – 325 L/min ≈ 600 – 650 L/min
Working pressure range 10.5 – 12.5 bar (auto on/off)
Tank test pressure 16 bar (not adjustable)

Note: Higher operating pressure naturally reduces air flow due to greater compression resistance. This model produces approximately 30–35 % less flow than the 8 bar version, but delivers significantly higher pressure and stronger performance for heavy-duty tasks.

 Ideal Applications

  • Industrial equipment and machinery requiring 10 – 12 bar air pressure
  • Truck tire service and agricultural machinery workshops
  • Sandblasting, powder coating and metal surface preparation
  • Heavy-duty pneumatic tools and continuous-duty stations
  • Professional applications where standard 8 bar is not sufficient

 Advantages of High-Pressure Twin Design

  • Automatic pressure control – starts at 10.5 bar, stops at 12.5 bar
  • Higher compression ratio – optimized for 12.5 bar output
  • Two independent motors – flexible operation and redundancy
  • Durable cast-iron blocks – low RPM and long service life
  • Fast 500 L tank refill even at high pressure levels

 Recommended Accessories

  • High-pressure air dryer (rated for 12.5 bar)
  • 3-stage moisture and oil separator set
  • Automatic condensate drain system
  • Oil and filter service kit (every 500 h)
  • Safety valve and regulator inspection (annually)

AFLATEK AirPro500W-Twin – built for professionals who require high pressure, strong air output, and long-term industrial reliability.
