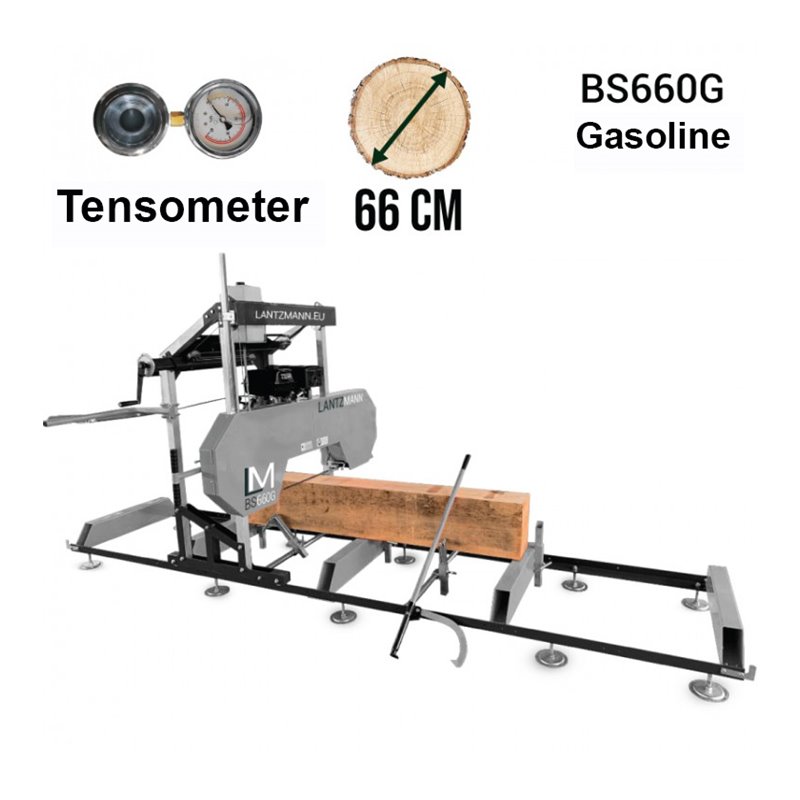

HORIZONTAL BAND SAW LANTZMANN BS660G (PETROL)
BS660G
- Horizontal band saw Lantzmann BS660G with gasoline engine
- Cutting speed control
- Water cooling system
- Adjustment of cutting dimensions
- Brush for removing sawdust
- Tension indicator (tensometer)
More info
Description:
-
Horizontal band saw Lantzmann BS660G with gasoline engine
-

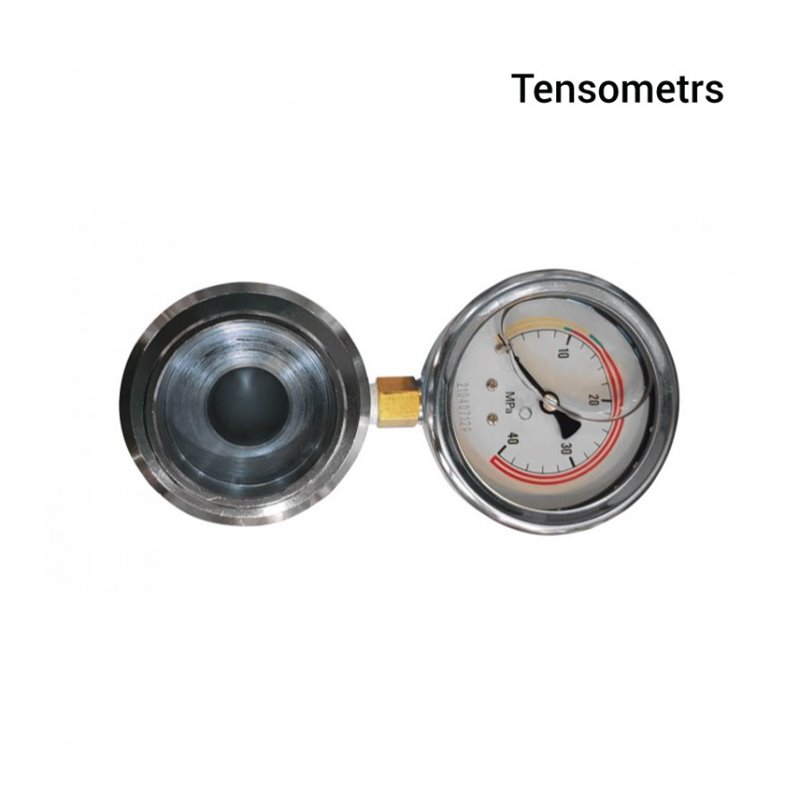

Tension indicator (tensometer)
-
Fuel consumption ~ 2l/h
Options:
-
Additional rail, 2 m
-
Saw band tensioner
Technical indicators:
|
Model |
BS660G |
BS790G |
BS660E |
BS790E |
|
Motor |
petrol, 9 HP (LIFAN, manual starter) |
gasoline, 15 HP (LIFAN, manual starter) |
electric motor, 5.5 kW |
electric motor 7.5 kW |
|
Power |
301cc |
420cc |
400V, 50HZ, 3-phase |
400V, 50HZ, 3-phase |
|
Sawing diameter |
660 mm |
790 mm |
660 mm |
790 mm |
|
Sawing length (standard equipment) |
2794 mm |
2794 mm |
2794 mm |
2794 mm |
|
Frame |
4 parts |
4 parts |
4 parts |
4 parts |
|
Standard rail size |
4000x900 mm |
4000x1030 mm |
4000x900 mm |
4000x1030 mm |
|
Package dimensions |
2080x570x830 mm |
2150x570x830mm |
2080x610x810mm |
2150x610x810mm |
|
Safe cutting speed |
13-15 s/m |
13-15 s/m |
13-15 s/m |
13-15 s/m |
|
Blade speed |
17 m/min |
17 m/min |
17 m/min |
17 m/min |
|
Tooth spacing |
22mm (0.86") |
22mm (0.86") |
22mm (0.86") |
22mm (0.86") |
| Saw band size |
3690x34x0.9 mm |
3960x34x0.9 mm |
3690x34x0.9 mm |
3960x34x0.9 mm |
| Saw blade wheel diameter |
480mm (18.8") |
480mm (18.8") |
480mm (18.8") |
480mm (18.8") |
| Sizes |
4064x1778x1800 mm |
4064x1778x1800 mm |
4064x1778x1800 mm |
4064x1778x1800 mm |
| Weight |
315/355 kg |
315/355 kg |
352/380 kg |
352/380 kg |
 Cutting speed control |
 Water cooling system |
 Brush for removing sawdust |
 Saw band |
 Belt |
 Cutting height adjustment |

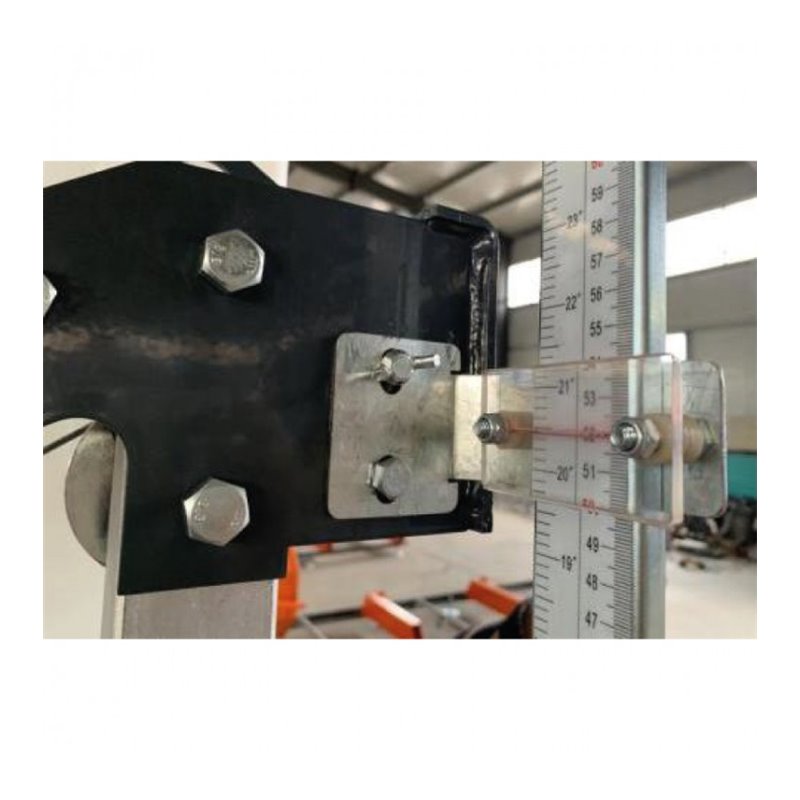

 Adjusting the cutting size |
 Ruler |
 Fixing the tree |
