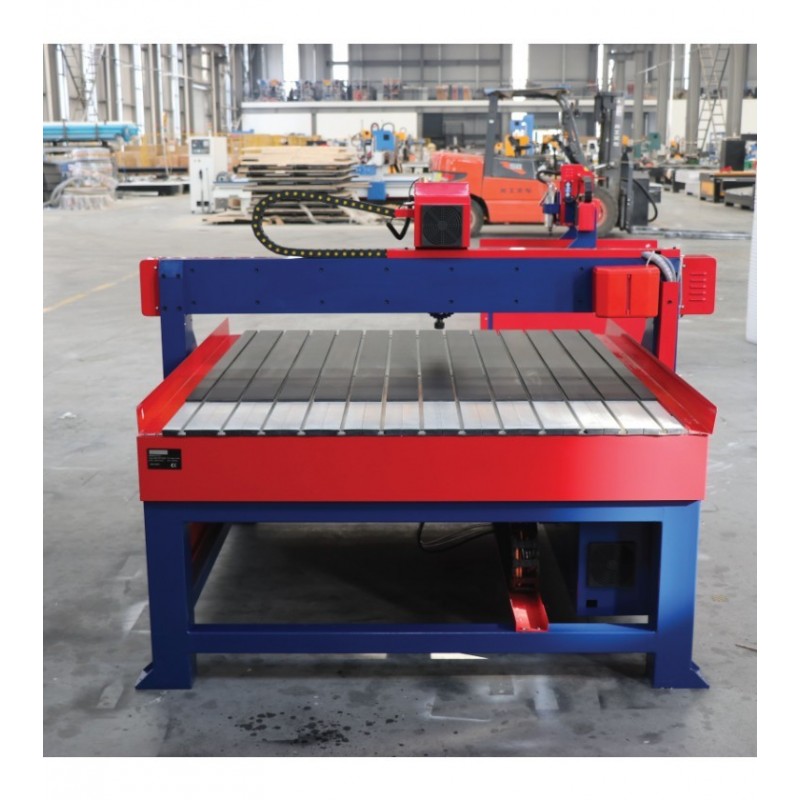

CNC machining center McBalmer 1325-200 6kW (Italian shaft)

McBalmer 1325-200-6kw

New product

  • CNC machine functions: milling, cutting, drilling and engraving of various timber (Solid wood, MDF, PVC) and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • The supplier offers the possibility to provide installation and operator training (when working with the equipment)

More details

17 726,50 € tax incl.

Ask about product
CNC machining center McBalmer 1325-200 6kW (Italian shaft)

CNC machining center McBalmer 1325-200 6kW (Italian shaft)

  • CNC machine functions: milling, cutting, drilling and engraving of various timber (Solid wood, MDF, PVC) and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • The supplier offers the possibility to provide installation and operator training (when working with the equipment)



More info

Description:

  • CNC machine functions: milling, cutting, drilling and engraving of various timber (Solid wood, MDF, PVC) and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • The supplier offers the possibility to provide installation and operator training (when working with the equipment)

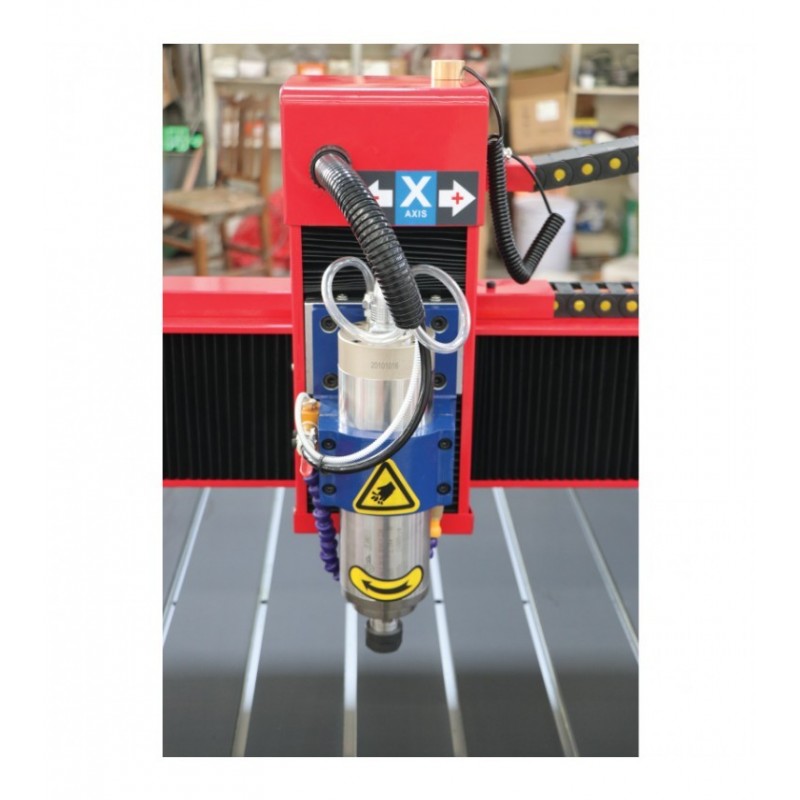

  • HSD Italian shaft



  • Lubrication system
  • Vacuum table with 4 sections and T-slots
  • Helical gears for X and Y axes ensure high accuracy
  • Control system DSP included
  • "CAD / CAM Artcam open" program included
  • 2 safety switches on the Y axis are guaranteed to stop the machine in case of emergency
  • A tool height sensor is included
  • Drive system with high quality stepper motors + controller



  • Required chip suction capacity 5000 m³ / h
  • Required compressor operating pressure and air consumption: 6 bar, 60 liters / min
  • Equipment dimensions and weight: 3.08x2.03x1.95m, 1300 kg



Option:

  • "BECKER KVT 3.140" vacuum pump with air cooling, capacity 129 m3 / h




Technical specifications:

X-axis working area 1300 mm
Y-axis working area 2500 mm
Z-axis working area 200 mm
Shaft power 6kW with air cooling, ceramic bearings
Shaft rotation speed up to 18,000 rpm
Max. speed of movement up to 33 m / min
Max. working speed up to 25 m / min
Work accuracy (manual) 0.05 mm
Work accuracy (program) 0.01 mm
Feeding 3 phases 400V, 50Hz
Chip extractor output Ø 100 mm



The set includes:

  • vacuum table
  • vacuum pump
  • remote control
  • instrument height sensor
  • tools
  • etc.
