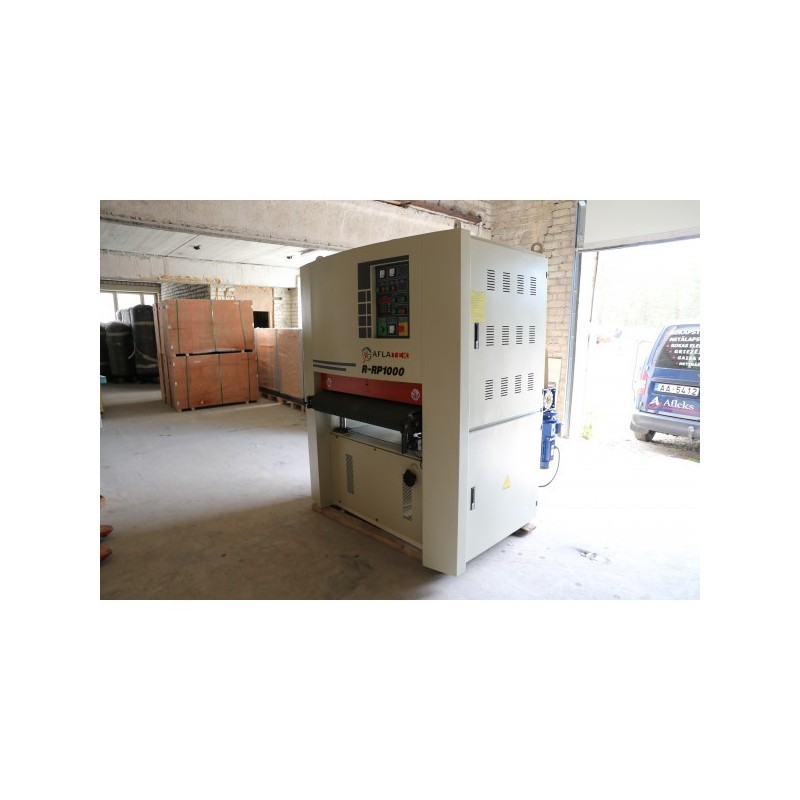

P-RP1000 Wide Belt Sander

Technical specifications:

Maximum working width 1000 mm
Minimum working length 500 mm
Working thickness 3-110 mm
Feeding speed 6-30 m / min
The total engine power is 35.25 kW
Engine for first unit 18.5 kW
Engine for second unit 15 kW
The conveyor motor has a power of 1.5 kW
Lifting motor 0,25 kW
The diameter of the first roller is 190 mm
The second roller has a diameter of 190 mm
The size of the abrasive tape is 1020 x 2000mm
Operating air pressure 0.6 MPa
Volume of dust collection device 8000 m3 / h
Total dimensions 1900 x 1600 x 2100 mm
Weight 2000 kg
