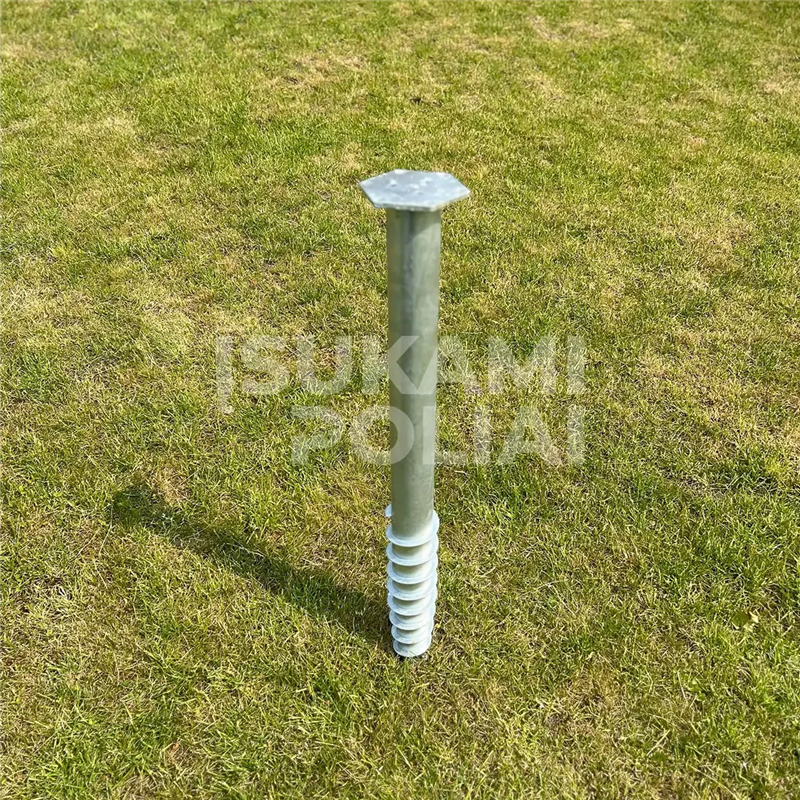

Galvanised M-type ground screw M1000

Galvanised M-type ground screw for timber frames and decking

The M-type ground screw M1000 provides a concrete-free foundation solution for decking, outbuildings, timber frames, and structural supports where standard load requirements apply. The screw pile features an integrated top bracket plate designed to support framework beams directly.

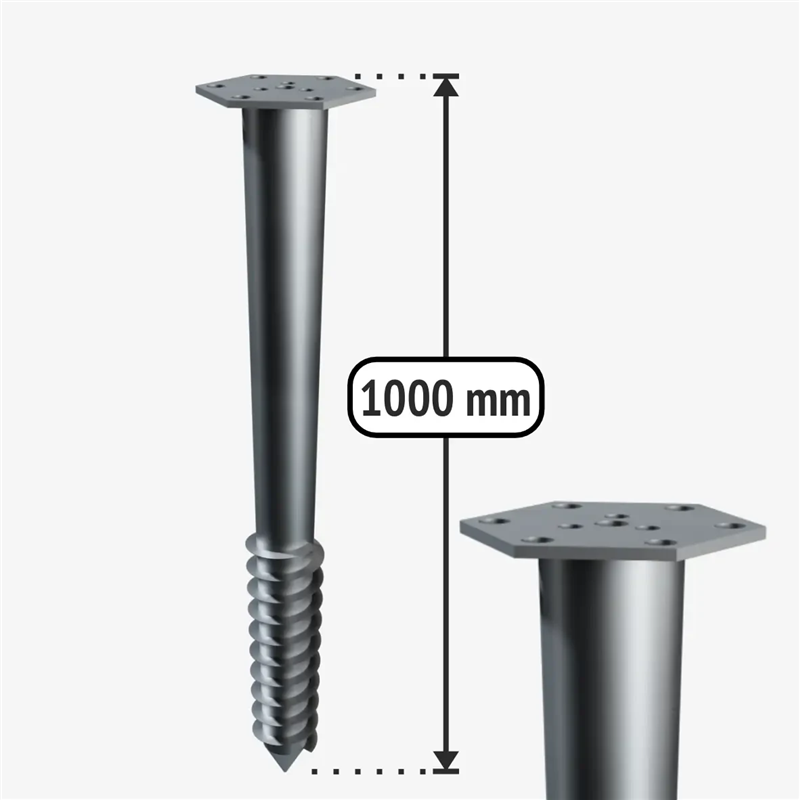

The wide mounting plate permits secure timber framework installation even if ground insertion is slightly off-axis or beams do not sit precisely in the centre. The plate includes a dedicated threaded rod mounting point alongside auxiliary mounting holes for off-centre alignments. Utilizing a threaded rod allows precise millimetre-level elevation levelling across all mounting points. Custom framework brackets can be fastened directly onto the plate surface.

Technical specifications
