Galvanised M-type ground screw M1200/68

EEAL-5672

The M-type galvanised steel ground screw M1200/68 provides robust foundation anchoring for timber decking, outbuildings, and lightweight frameworks. Featuring a length of 1200 mm, 68 mm diameter, and up to 1300 kg load capacity. Fitted with a wide flange plate and threaded rod receptor for millimetre-accurate leveling across uneven terrain.

More details

deck foundation, earth screw, foundation screw, galvanised screw pile, ground screw, M1200/68, M-type ground screw, screw pile

15,37 € tax incl.

Ask about product
Galvanised M-type ground screw M1200/68

Galvanised M-type ground screw M1200/68

The M-type galvanised steel ground screw M1200/68 provides robust foundation anchoring for timber decking, outbuildings, and lightweight frameworks. Featuring a length of 1200 mm, 68 mm diameter, and up to 1300 kg load capacity. Fitted with a wide flange plate and threaded rod receptor for millimetre-accurate leveling across uneven terrain.



More info

Galvanised ground screw for decking and light structures

The M-type ground screw M1200/68 provides a secure foundation for timber decking, outbuildings, and lightweight frame structures without concrete pouring. It delivers dependable support for moderate load requirements and accommodates varied ground contours.

Mounting features and practical application

  • Suitable for decking subframes, garden buildings, and lightweight timber frameworks.
  • Wide mounting flange supports bearer timbers even when screw alignment is slightly off-centre.
  • Integrated threaded rod mounting position and secondary holes allow millimetre-precise height adjustment.
  • Top flange accepts standard brackets and timber post connectors.
  • Installation height above ground compensates for sloped and uneven terrain.

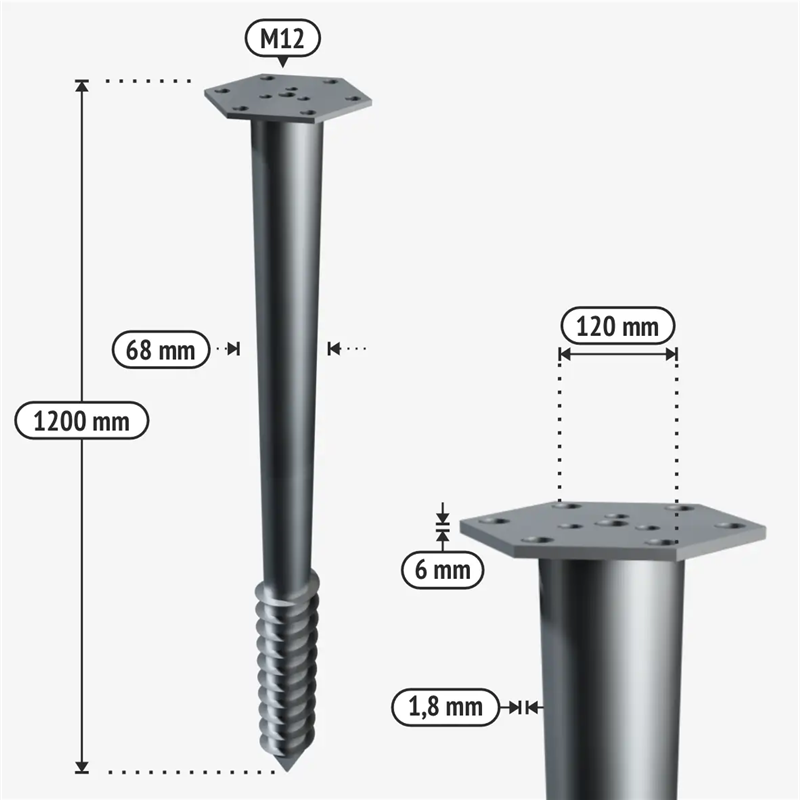

Technical specifications

Specification Value
Type M
Length 1200 mm
Diameter 68 mm
Wall thickness 1.8 mm
Material Galvanised steel
Load capacity 1300 kg
Weight 4.5 kg
Height above ground Up to 250 mm
