M-type ground screw M750

BUCL-0347

The M750 M-type ground screw provides a stable foundation for light structures, fence posts, and timber frames. Produced from 1.8 mm galvanised steel with a 68 mm diameter, it supports loads up to 890 kg without requiring excavation or concrete.

More details

foundation screw, ground screw, M-type ground screw, screw pile, galvanised ground screw, 68mm ground screw, ground screw M750, timber post anchor

10,87 € tax incl.

Ask about product
M-type ground screw M750

M-type ground screw M750

The M750 M-type ground screw provides a stable foundation for light structures, fence posts, and timber frames. Produced from 1.8 mm galvanised steel with a 68 mm diameter, it supports loads up to 890 kg without requiring excavation or concrete.



More info

M-type ground screw for foundation mounting

The M750 M-type ground screw provides a solid foundation solution for small structures, timber frames, fencing posts, and light-duty supports. Ground screw installation avoids soil excavation and eliminates concrete curing times.

Manufactured from galvanised steel with a 1.8 mm wall thickness, the pile provides corrosion resistance in damp ground environments. The head features an M12 threaded mounting point for securing structural brackets and framework.

Applications

  • Lightweight timber structures and garden sheds
  • Fencing uprights and gate posts
  • Decking frames and walkways
  • Signposts and external notice boards

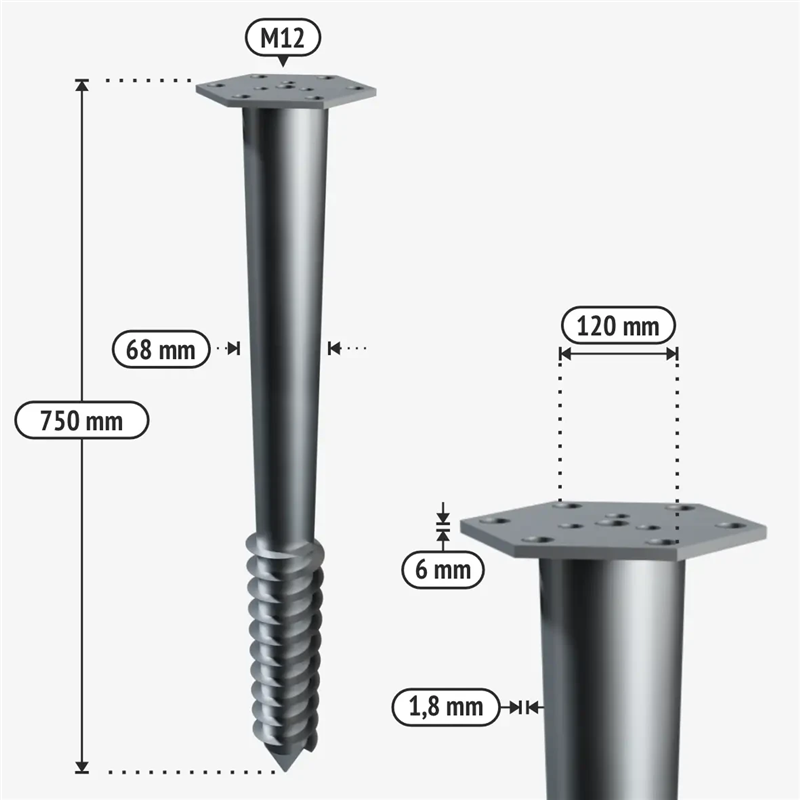

Technical specifications

Parameter Value
Model M750
Type M
Material Galvanised steel
Diameter 68 mm
Total length 1000 mm
Height above ground Up to 220 mm
Steel thickness 1.8 mm
Load capacity 890 kg
Thread size M12
Weight 3.9 kg
