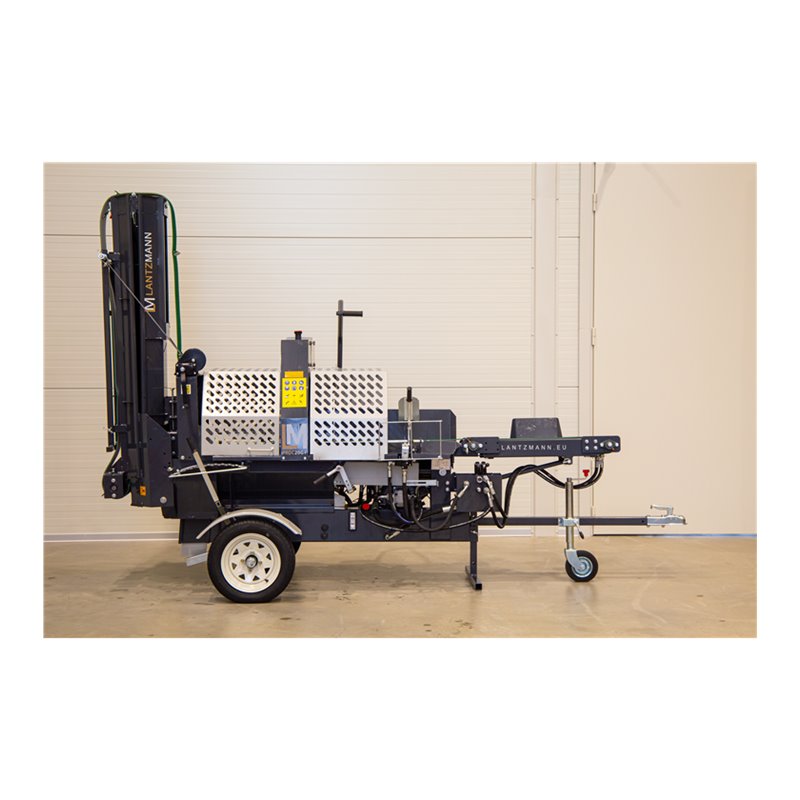

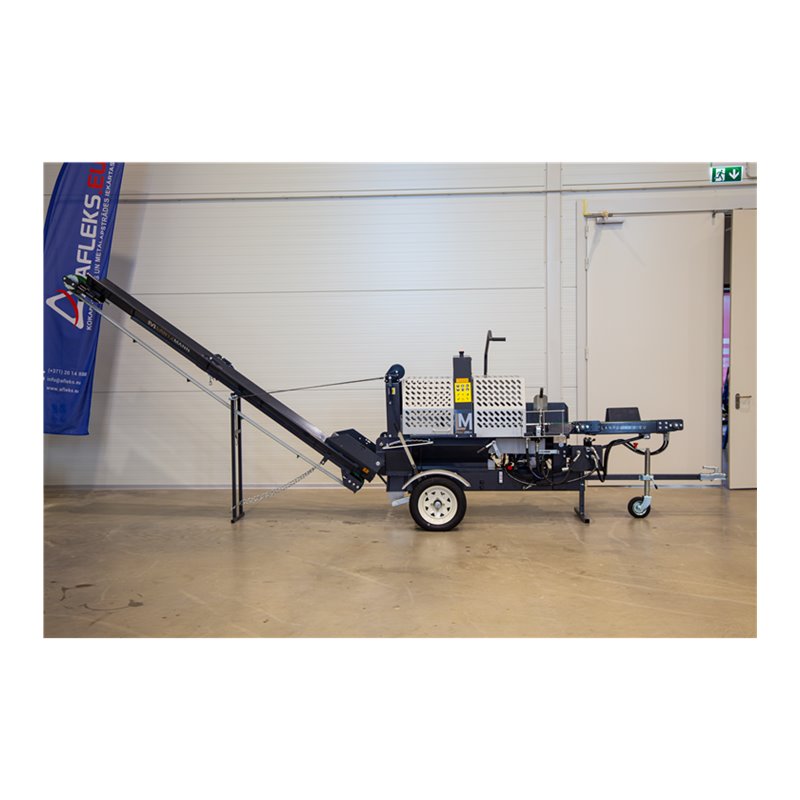

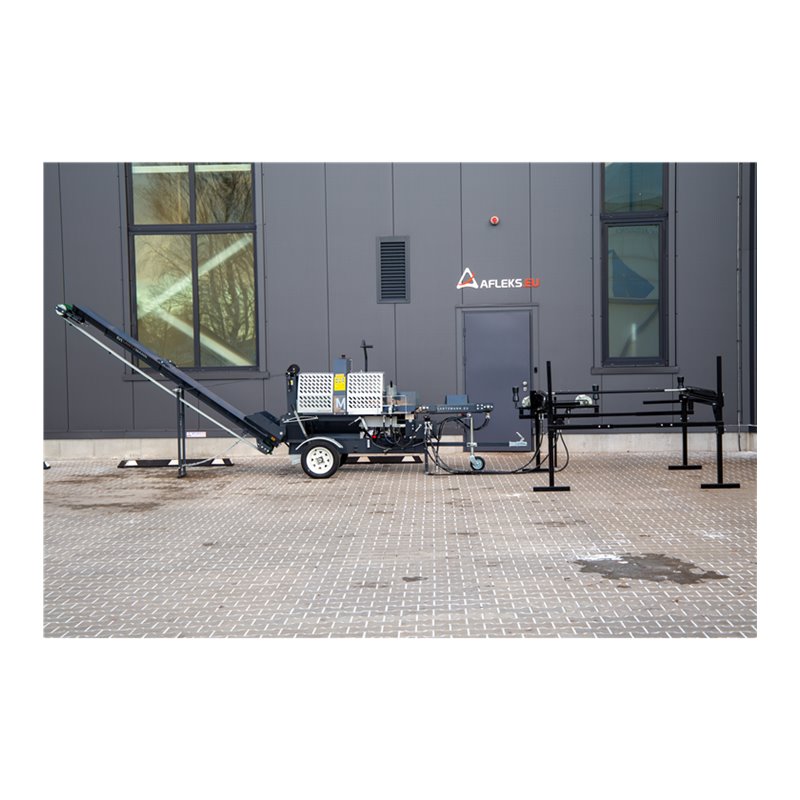

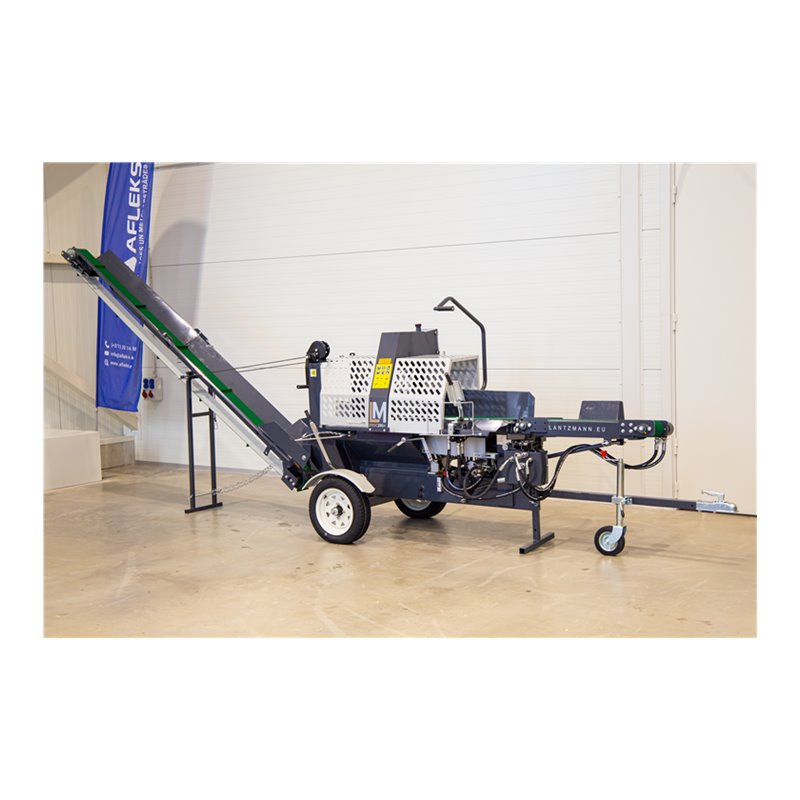

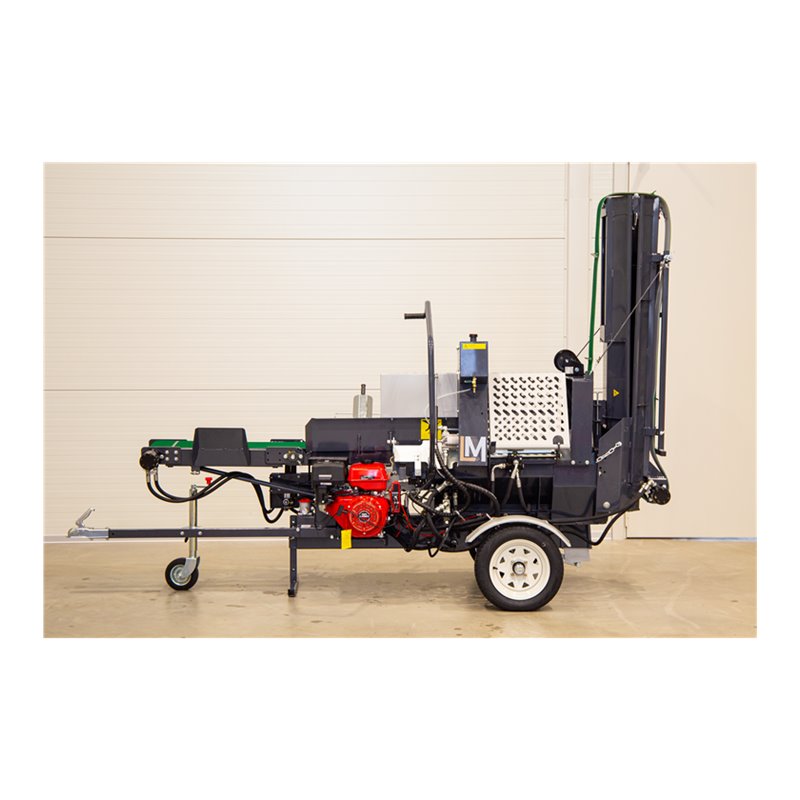

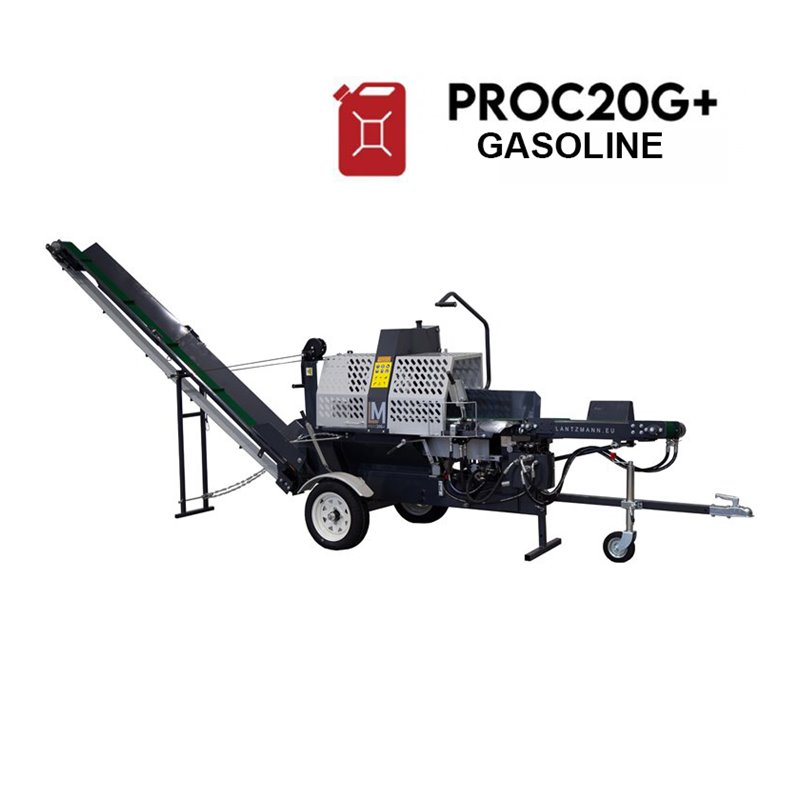

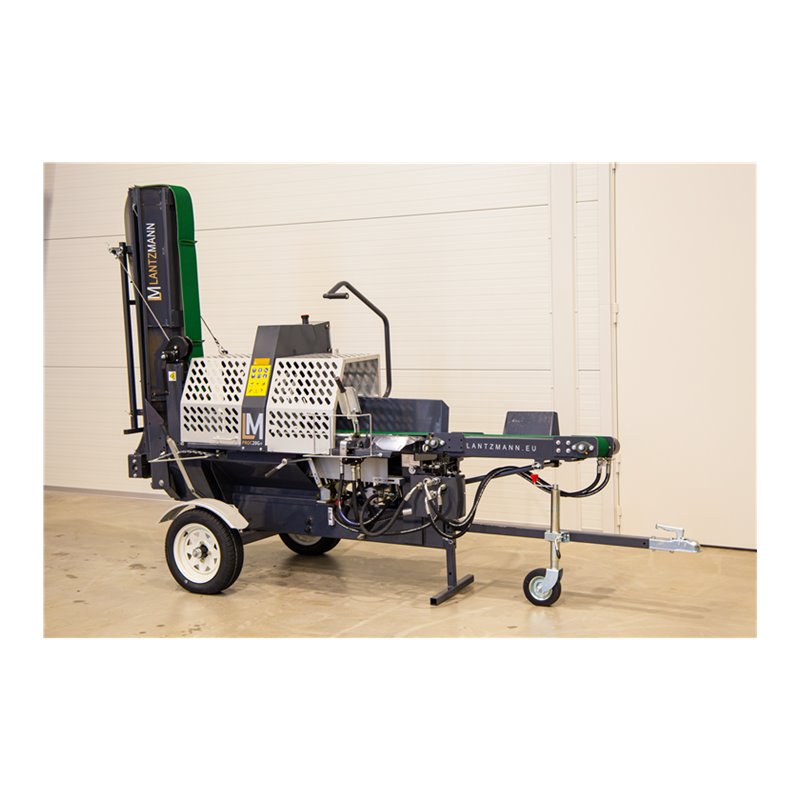

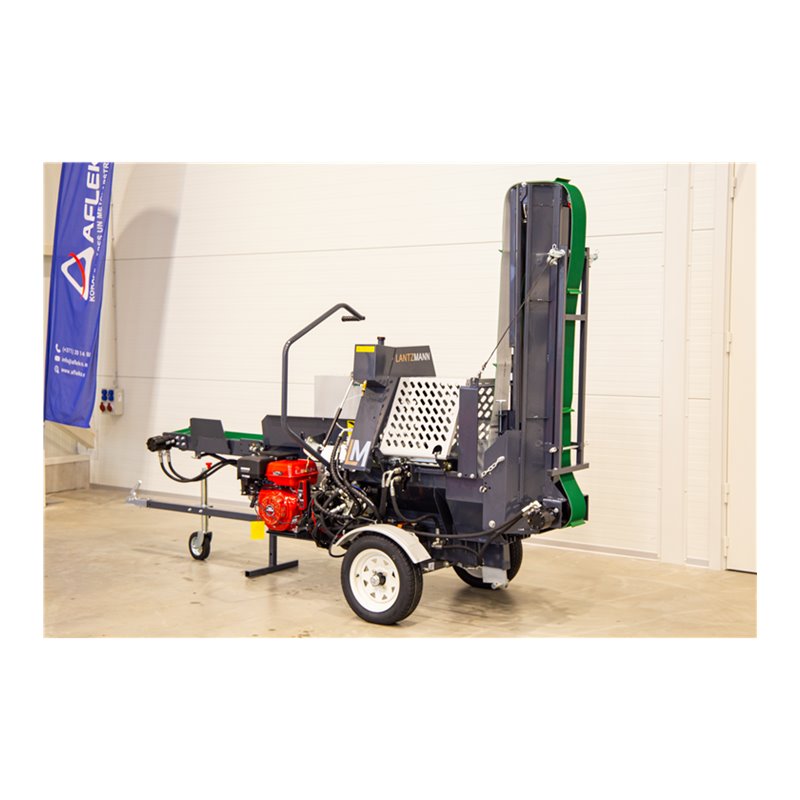

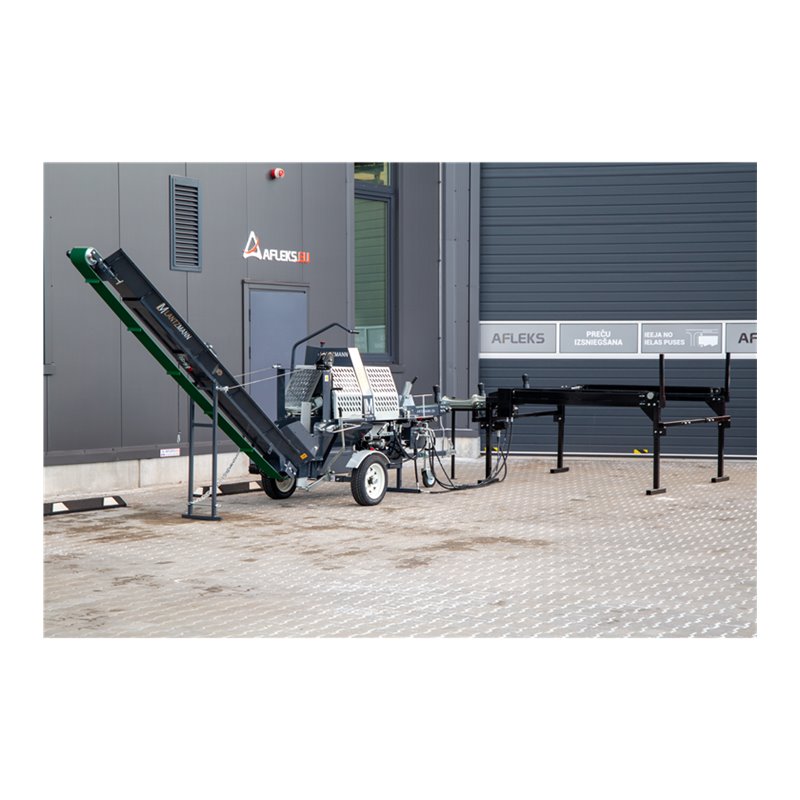

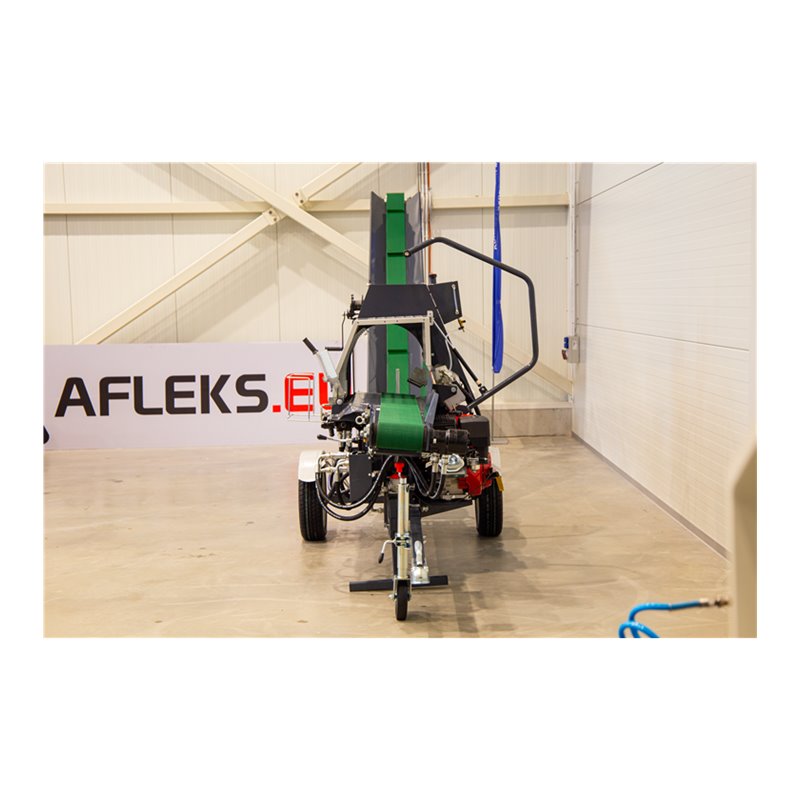

FIREWOOD SAW / SPLITTER LANTZMANN PROC20G+ (20T, LIFAN, PETROL)

Description:

Powerful, fully hydraulic wood saw with battery
Lifan motor with electric starter, feed and conveyor belt (Fuel consumption ~ 3 l/h)
Hydraulic feed and conveyor belt 320 cm long and 15 cm wide

The conveyor belt is raised and lowered by a winch
The length of the firewood can be set as desired. The maximum length is 57 cm, diameter 37 cm
The price includes a 3.2 meter conveyor with a winch and a hydraulic feeding table 180 cm with an electromagnet. the switch

The chainsaw cuts the wood to the desired length, then the splitter divides the pre-cut log into two or four parts, the processed wood is transported by a conveyor belt to the selected location
The maximum diameter of the wood to be processed is 550 mm, the splitting force is up to 20 tons
Logs are sawn with a hydraulic chainsaw
Almost any type of wood can be processed
The cutting and splitting tools are hydraulically operated

The firewood processor is equipped with a 3.2 m long belt conveyor that can transport the processed wood directly to the trailer, the maximum height of the firewood feed through the conveyor belt is 2 m
The performance of the equipment is approximately 5 - 8 cubic meters of wood per hour. Depending on the type of wood
Various additional accessories can be used, such as hydraulic log lifting system, hydraulic log feeding table.

Technical indicators with a gasoline engine:

Technical indicators with electric motor:

15HP 190FD Lifan engine	Stihl saw rail	Saw chain lubrication system
Supply conveyor	Discharge conveyor	Splitting piston
4-part splitting wedge	Wedge height adjustment	Manual lifting and lowering of the conveyor
Saw lowering lever	Log press lever	Feed table port
Hydraulic oil level gauge with thermometer	Roller for moving the machine	Trailer coupling mechanism
	Compact folding conveyors
