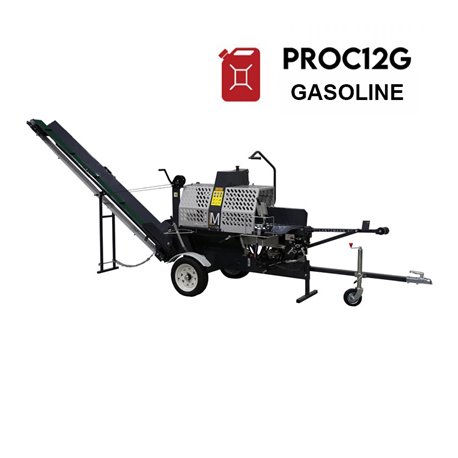

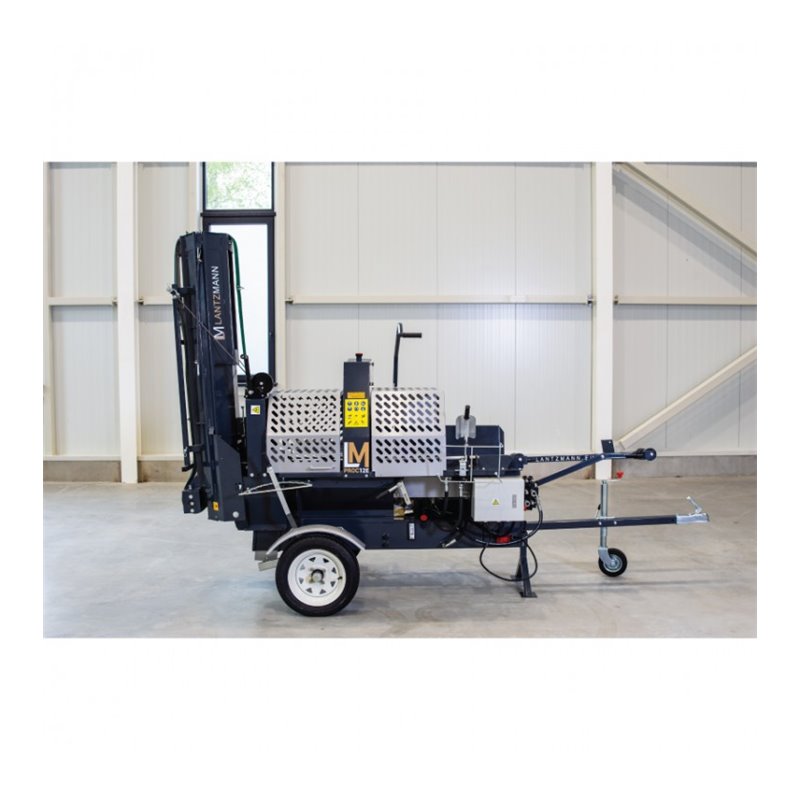

WOOD PROCESSOR / SPLITTER LANTZMANN PROC12G (12T, LIFAN, PETROL)

Lantzman-proc12G

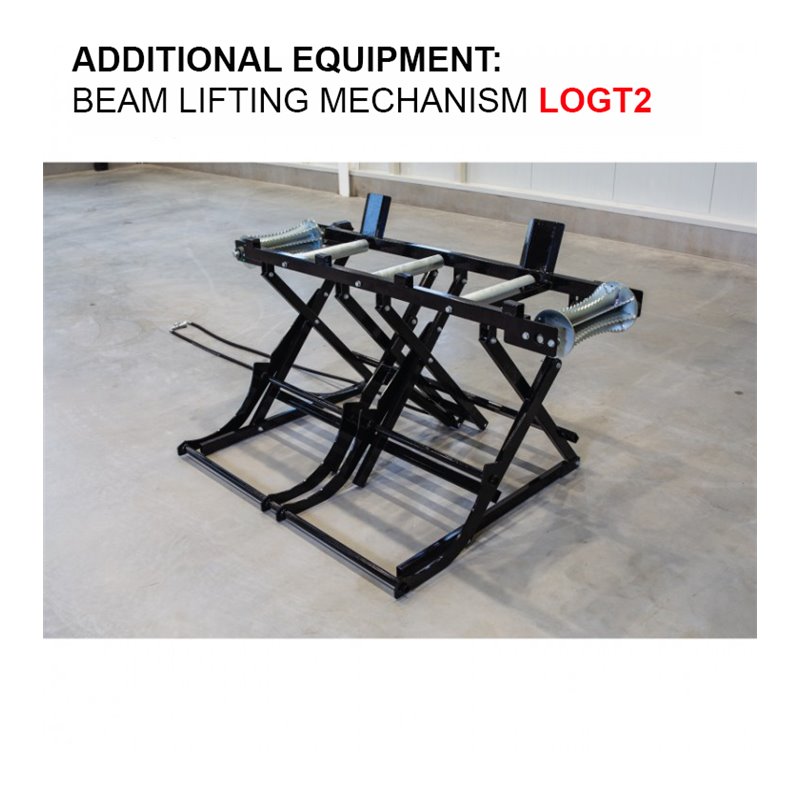

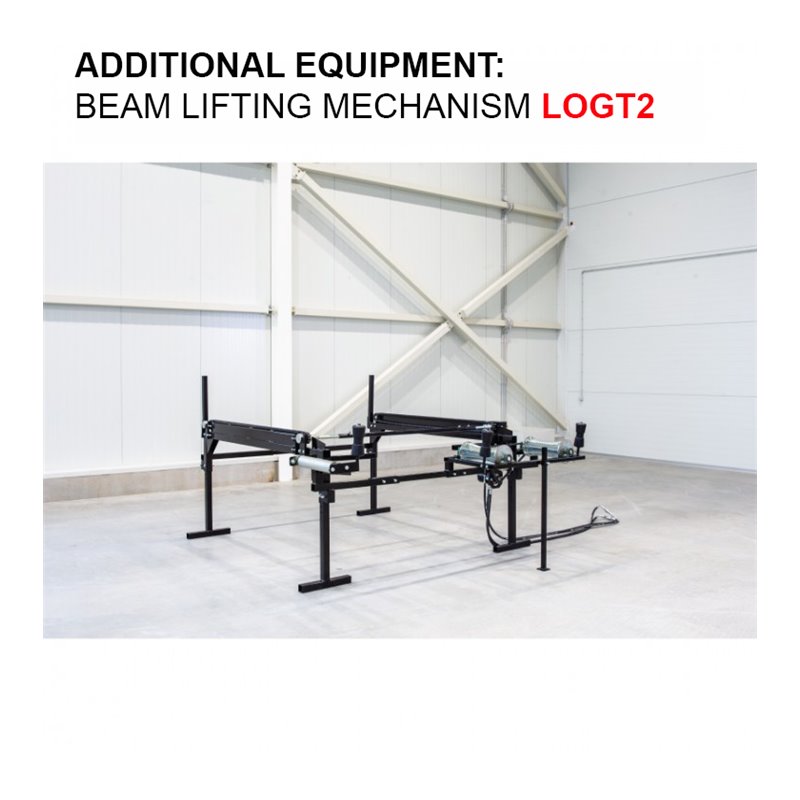

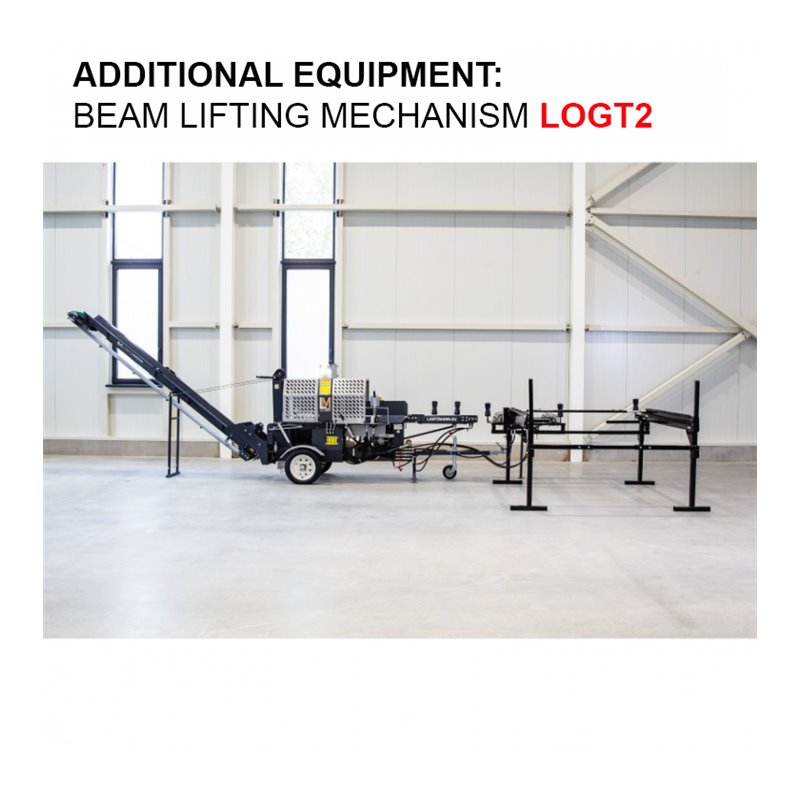

Splitting force - 12 tons Gasoline engine power - 15HP Can be equipped with a hydraulic feeding table and a log loading mechanism The price includes a 3.2 meter conveyor with winch, belt width 150 mm

More details

5 999,00 € tax incl.

Ask about product
WOOD PROCESSOR / SPLITTER LANTZMANN PROC12G (12T, LIFAN, PETROL)

WOOD PROCESSOR / SPLITTER LANTZMANN PROC12G (12T, LIFAN, PETROL)

Splitting force - 12 tons Gasoline engine power - 15HP Can be equipped with a hydraulic feeding table and a log loading mechanism The price includes a 3.2 meter conveyor with winch, belt width 150 mm



More info

Technical indicators with a gasoline engine:

Model
PROC12G (TOP model)
PROC20G+

Motor

188F LIFAN gasoline engine
188F LIFAN gasoline engine

Weight

520 kg
520 kg

Max. log diameter

38 cm
38 cm

Max. log length

55 cm
55 cm

Engine RPM

3800 rpm
3800 rpm

Saw chain

18 inches (STIHL)
18 inches (STIHL)

Cylinder bore

3.2 inches
4 inches

The duration of the duty cycle

7 seconds
8 seconds

Tires

12 inches
12 inches

Split wedge

4-arm (optionally 6-arm)
4-arm (optionally 6-arm)



Technical indicators with electric motor:

Model PROC12E PROC20E+

Motor

7.5kW, 50Hz, 380V, 3-phase
7.5kW, 50Hz, 380V, 3-phase

Weight

520 kg
520 kg

Max. log diameter

38 cm
38 cm

Max. log length

55 cm
55 cm

Engine RPM

4800 rpm
4800 rpm

Saw chain

18 inches (STIHL)
18 inches (STIHL)

Cylinder bore

3.2 inches
4 inches

The duration of the duty cycle

7 seconds
8 seconds

Tires

12 inches
12 inches

Split wedge

4-arm (optionally 6-arm)
4-arm (optionally 6-arm)





15HP Lifan 190F engine



15HP Lifan 190F engine

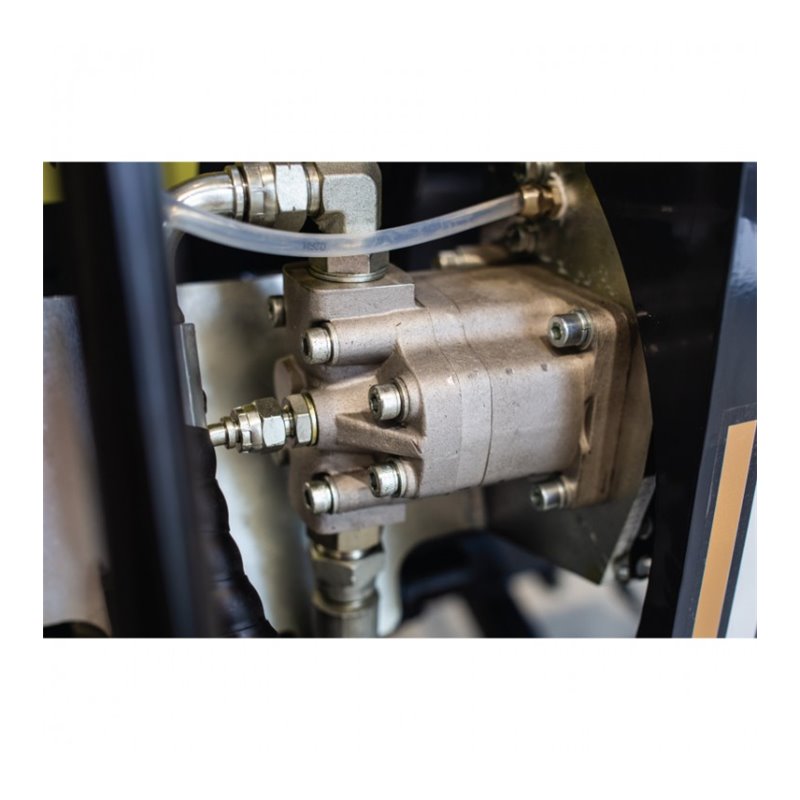

Hydraulic pump



Hydraulic pump

Log feed roller



Log feed roller

Stihl saw rail



Stihl saw rail

Saw chain lubrication system



Saw chain lubrication system

Log length adjustment plug



Log length adjustment plug

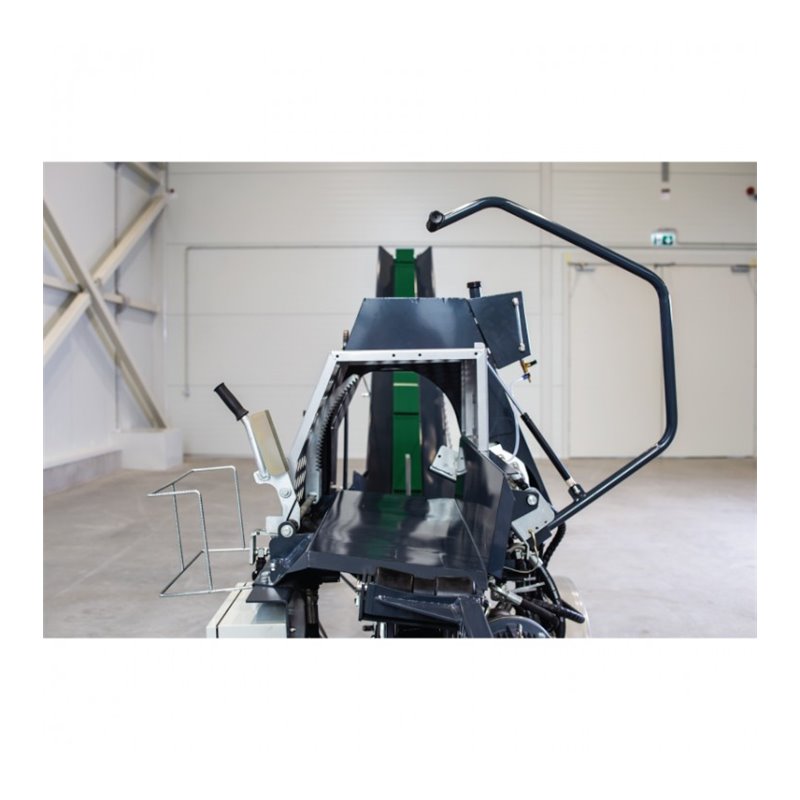

Log press lever



Log press lever

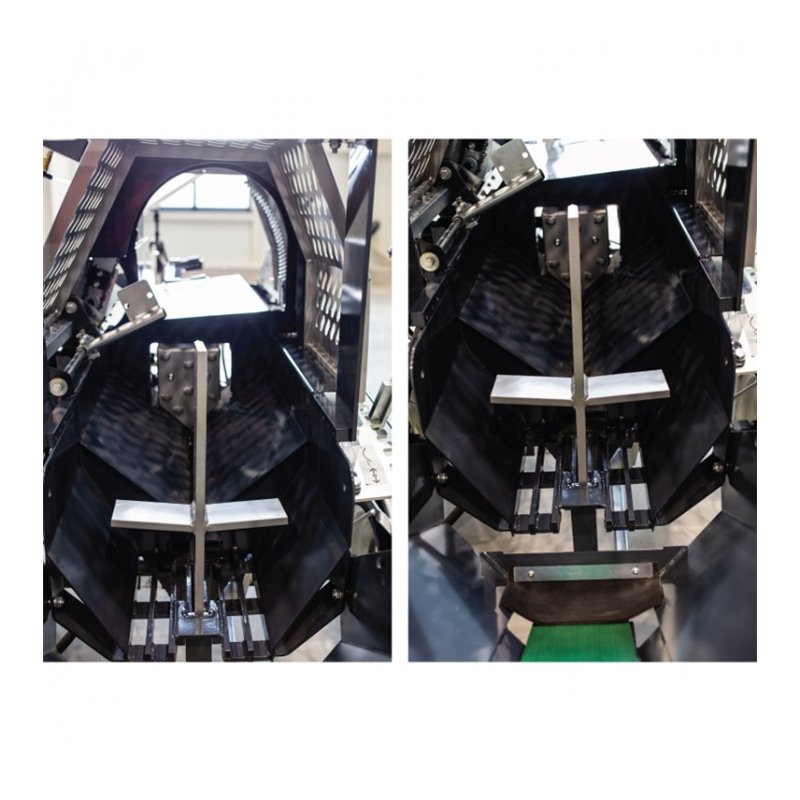

4-part splitting wedge



4-part splitting wedge

Wedge height adjustment



Wedge height adjustment

Splitting piston



Splitting piston

Manual lifting and lowering of the conveyor



Manual lifting and lowering of the conveyor

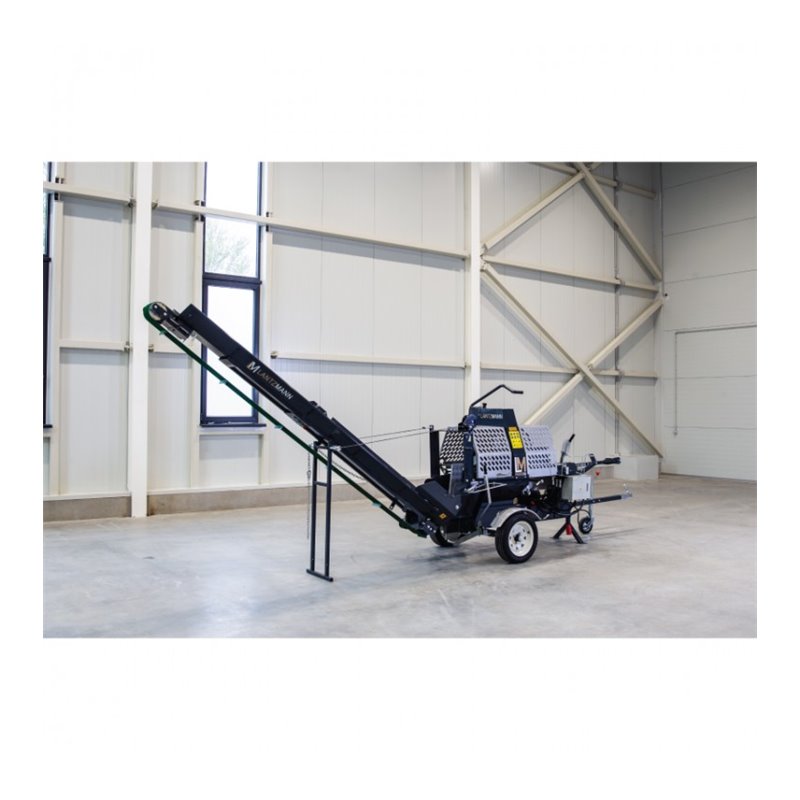

Extended firewood discharge conveyor



Extended firewood discharge conveyor
Compact collapsible discharge conveyor



Compact collapsible discharge conveyor

Feed table port



Feed table port

Trailer hitch



Trailer hitch

Additional roll for more convenient moving of the device



Additional roll for more convenient moving of the device

Hydraulic oil level gauge with thermometer



Hydraulic oil level gauge with thermometer

Saw lowering lever



Saw lowering lever

Introducing the Lantzmnn PROC12G Wood Processor and Splitter - the ultimate tool for any professional or DIY enthusiast in need of a reliable and efficient wood processing machine. This powerful wood splitter boasts a splitting force of 12 tons, powered by a 15HP gasoline engine, making it capable of handling even the toughest logs.

The Lantzmnn PROC12G can be equipped with a hydraulic feeding table and a log loading mechanism, allowing for easy and efficient loading of logs. The price also includes a 3.2 meter conveyor with winch, belt width 150 mm, which ensures a smooth and steady flow of processed wood.

This wood processor and splitter also features a fully hydraulic wood saw with battery, powered by a Lifan motor with an electric starter, feed, and conveyor belt. The conveyor belt is 320 cm long and 15 cm wide, and can be raised and lowered with a winch for easy adjustment.

With the Lantzmnn PROC12G, the length of the firewood can be set as desired, with a maximum length of 57 cm and a diameter of 37 cm. This allows for precise cutting and splitting of wood, making it ideal for use in a variety of applications, such as heating, cooking, and construction.

While the feeding is manual, the Lantzmnn PROC12G Wood Processor and Splitter is designed to be easy to operate, with simple controls and clear instructions. The sturdy and durable construction ensures long-lasting performance, even in the toughest conditions.

In summary, the Lantzmnn PROC12G Wood Processor and Splitter is a versatile and efficient wood processing machine that offers unmatched power and performance. Whether you're a professional woodworker or a DIY enthusiast, this wood splitter is the perfect tool for all your wood processing needs.
