AFLATEK StainlessTank1000/11 Pressure Vessel View larger

AFLATEK StainlessTank1000/11 Pressure Vessel

StainlessTank1000/11

Stainless Steel Pressure Vessel

Volume - 1000 liters

PS-Max Allowable Pressure 10.5 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50

More details

AFLATEK pressure vessel, AFLATEK stainless tank, corrosion-resistant tank, high-pressure storage, industrial pressure vessel, stainless steel tank, stainless tank 1000L

2 613,60 € tax incl.

Ask about product
AFLATEK StainlessTank1000/11 Pressure Vessel

AFLATEK StainlessTank1000/11 Pressure Vessel

Stainless Steel Pressure Vessel

Volume - 1000 liters

PS-Max Allowable Pressure 10.5 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50



More info

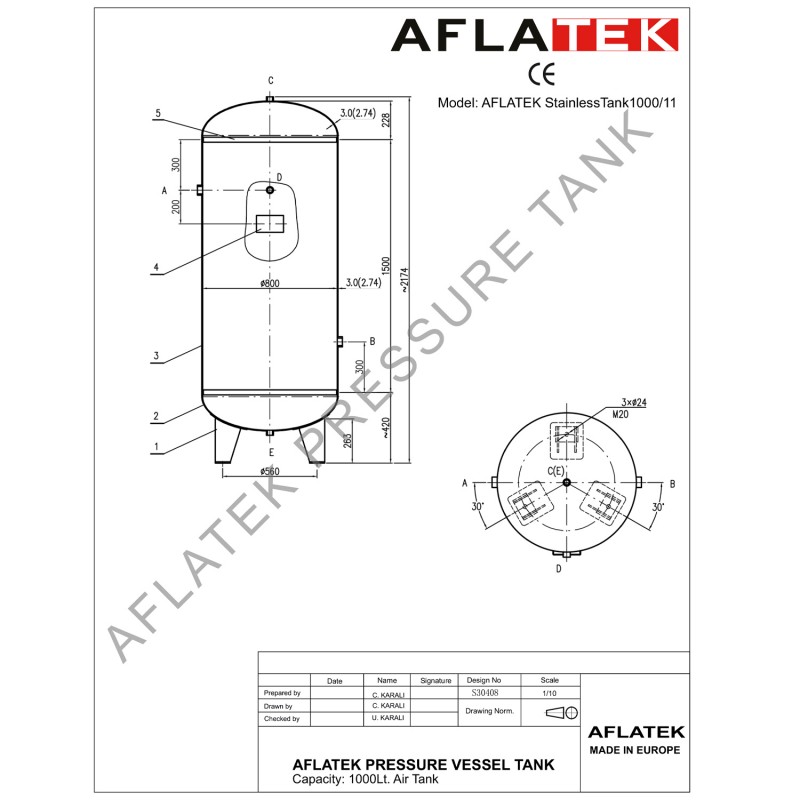

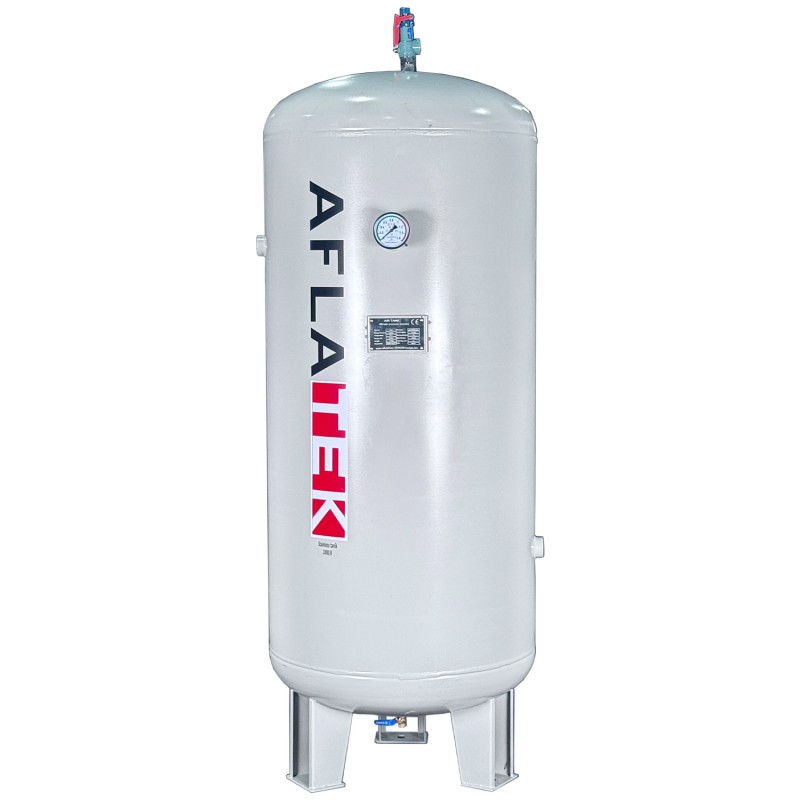

AFLATEK Stainless Steel Pressure Vessel Tank

Model: StainlessTank1000/11

Air Tank size: 1000 liters

Type: Vertical

Pressure: 10.5bar (tested 16.5bar)

Allowable temperature: -10/+50

Substance: Air

Height: 2010mm

Diameter: 800mm

Weight: 210kg

A hole: 40mm nominal diameter / Rp 1 1/2

B hole: 20mm nominal diameter / Rp 1 3/4

C hole: -/-mm nominal diameter / M20x1.5

D hole: 40mm nominal diameter / Rp 1 1/2

E hole: 15mm nominal diameter / Rp 1/2
