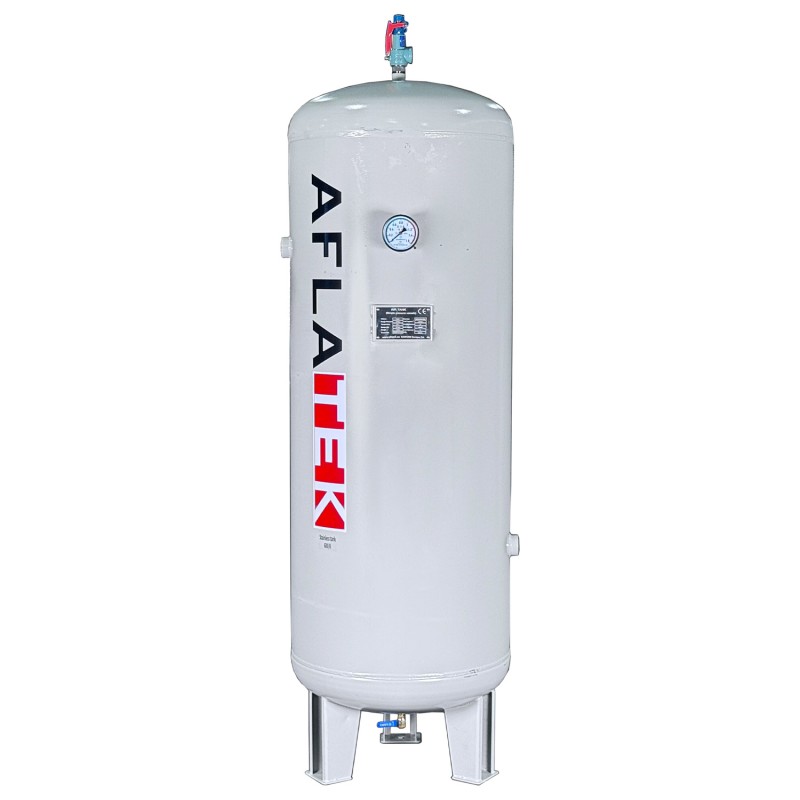

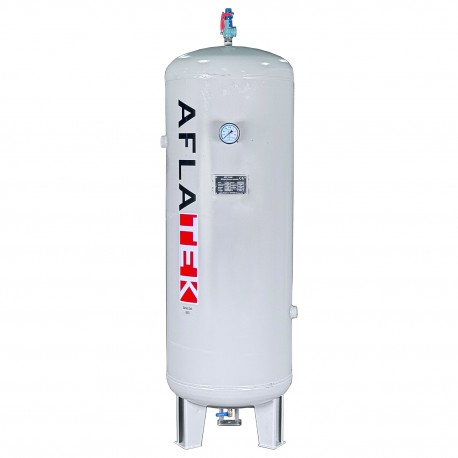

AFLATEK StainlessTank600/11 Pressure Vessel View larger

AFLATEK StainlessTank600/11 Pressure Vessel

StainlessTank600/11

Stainless Steel Pressure Vessel

Volume -600 liters

PS-Max Allowable Pressure 10.5 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50

More details

corrosion-resistant tank, stainless steel tank, AFLATEK StainlessTank600, chemical storage tank, high-pressure vessel, industrial pressure container, pressure vessel

1 863,40 € tax incl.

Ask about product
AFLATEK StainlessTank600/11 Pressure Vessel

AFLATEK StainlessTank600/11 Pressure Vessel

Stainless Steel Pressure Vessel

Volume -600 liters

PS-Max Allowable Pressure 10.5 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50



More info

AFLATEK Stainless Steel Pressure Vessel Tank

Model: StainlessTank600/11

Air Tank size: 600 liters

Type: Vertical

Pressure: 10.5bar (tested 16.5bar)

Allowable temperature: -10/+50

Substance: Air

Height: 2100mm

Diameter: 650mm

Weight: 206kg

A hole: 40mm nominal diameter / Rp 1 1/2

B hole: 20mm nominal diameter / Rp 3/4

C hole: -/-mm nominal diameter / M20x1.5

D hole: 40mm nominal diameter / Rp 1 1/2

E hole: 15mm nominal diameter / Rp 1/2
