AFLATEK AirTAnk 300/11 View larger

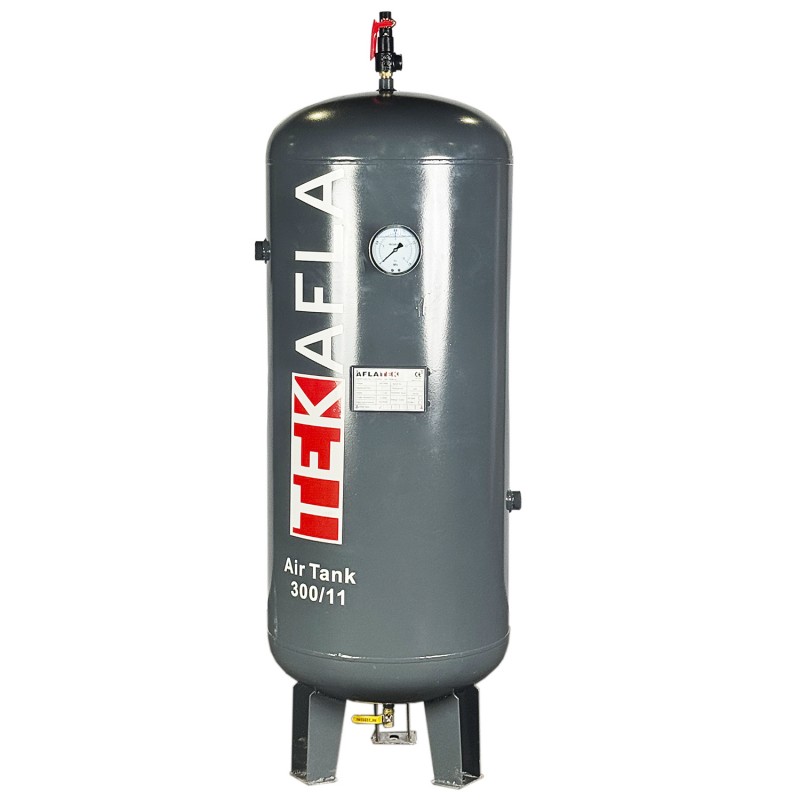

AFLATEK AirTank300/11 Pressure Vessel

AirTank300/11

Volume -300Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50

More details

pressure vessel, air compressor tank, durable air tank, industrial air storage, high-pressure tank, AFLATEK AirTank300/11, pneumatic system component

580,80 € tax incl.

Ask about product
AFLATEK AirTank300/11 Pressure Vessel

AFLATEK AirTank300/11 Pressure Vessel

Volume -300Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16 Bar

Alowable Temp. -10/+50



More info

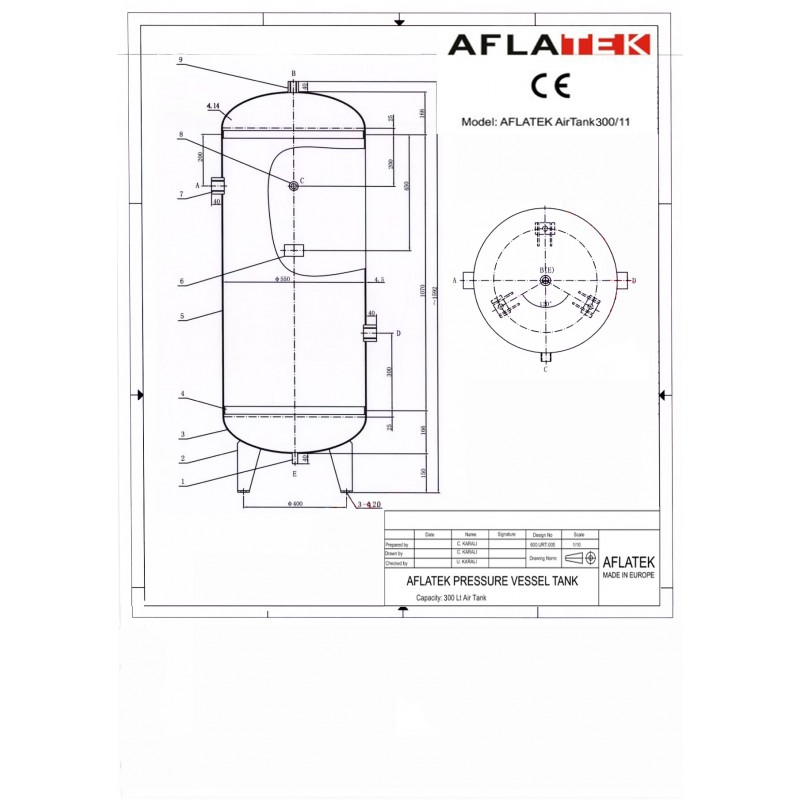

AFLATEK Pressure Vessel Tank

Model: AirTank300/11

Air Tank size: 300 liters

Type: Vertical

Pressure: 11bar (tested 16.5bar)

Allowable temperature: -10/+50

Substance: Air

Height: 1592mm

Diameter: 550mm

Weight: 109kg

A hole: 25mm nominal diameter / Rp 1

B hole: 20mm nominal diameter / Rp 3/4

C hole: -/-mm nominal diameter / M20x1.5

D hole: 25mm nominal diameter / Rp 1

E hole: 15mm nominal diameter / Rp 1/2
