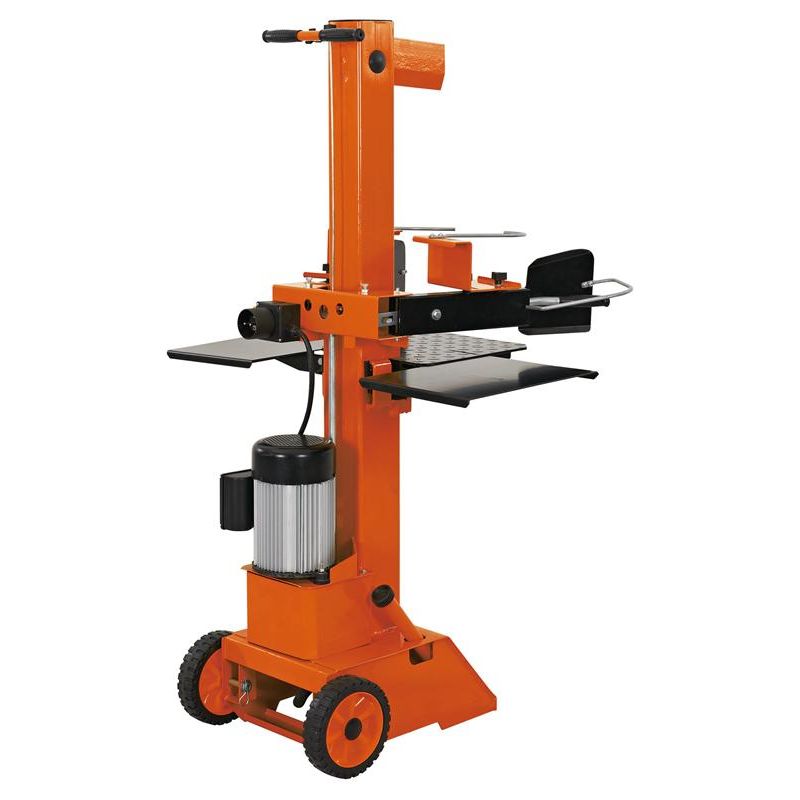

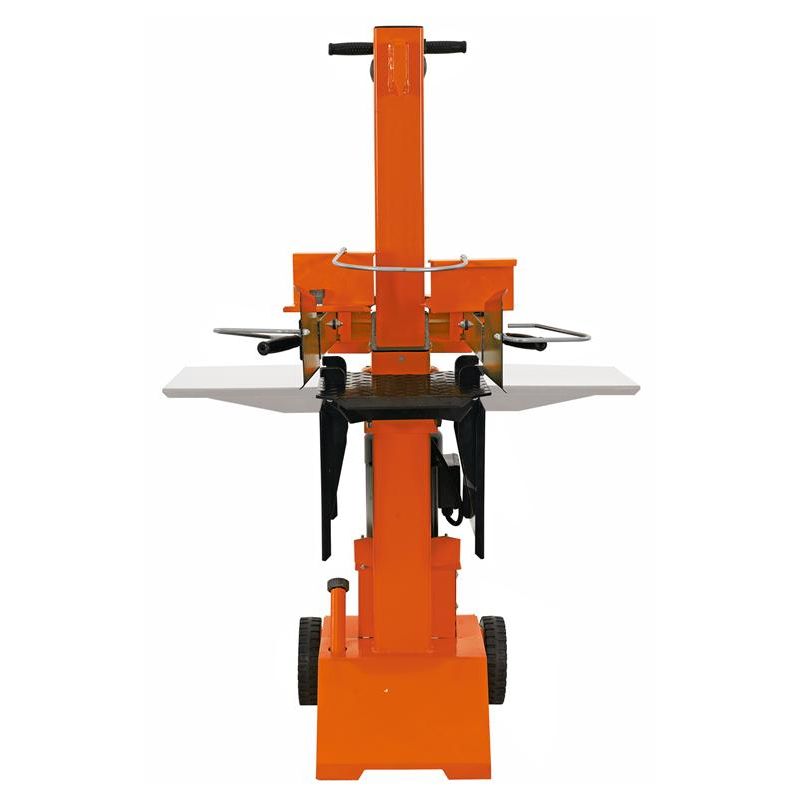

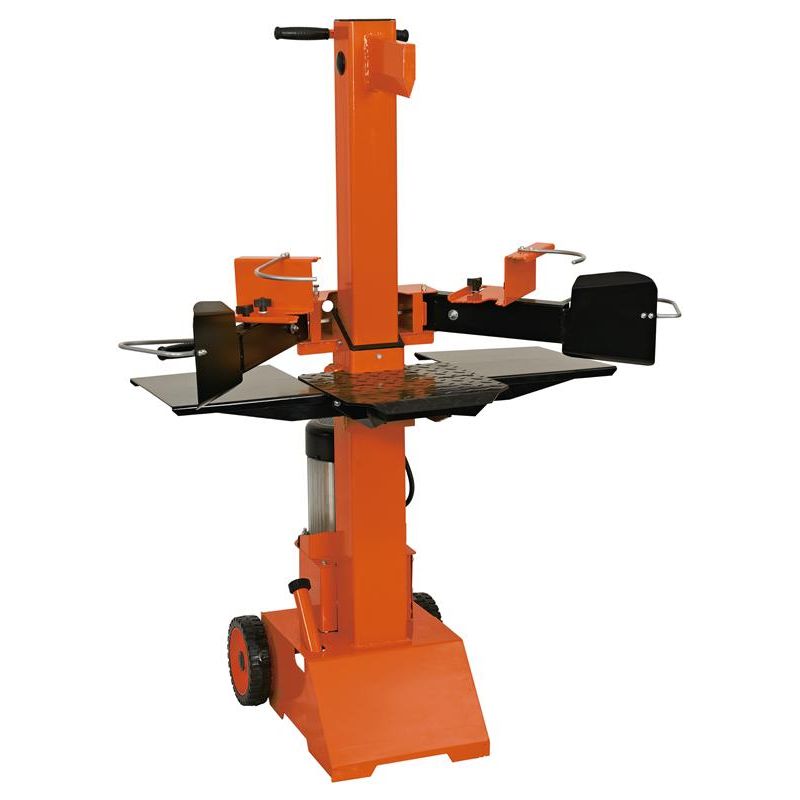

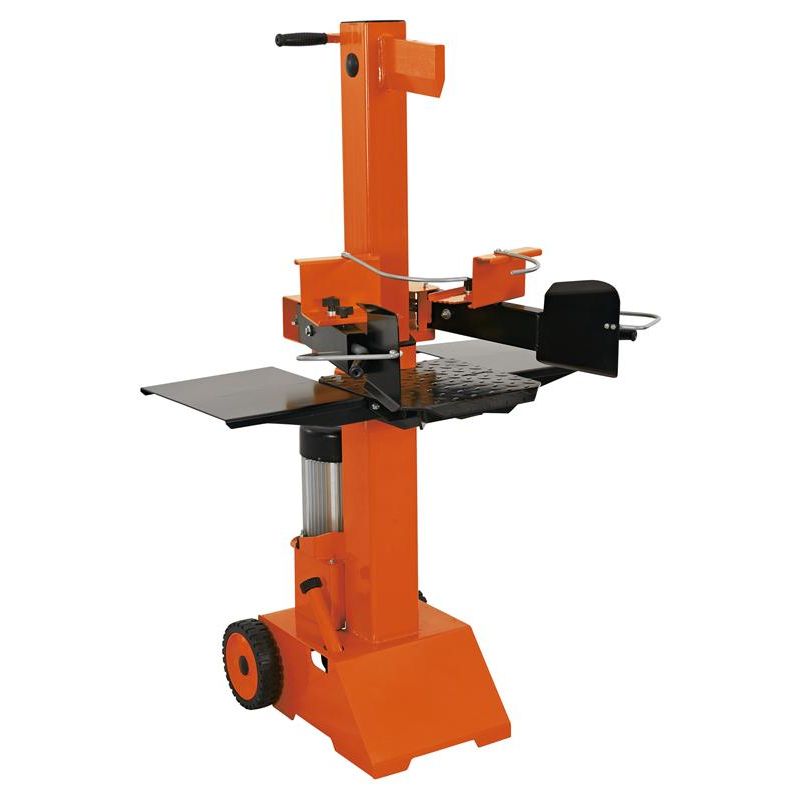

WOOD CHIPPER/SPLITTERS 8T 3500W KD5208

KD5208

Model: KD5208
Power supply: 230V / 50Hz
Rated power: 3500W

DESCRIPTION

The professional KD5208 wood splitter from Kraft & Dele is a reliable device that will significantly improve fuel preparation in any household or workshop. Thanks to its high pressing force – up to 8 tons – it can handle even hard and thick wood up to 55 cm long and 30 cm in diameter. Its compact design allows for convenient use and storage, and operation is quiet and vibration-free.

More details

599,00 € tax incl.

Ask about product
WOOD CHIPPER/SPLITTERS 8T 3500W KD5208

WOOD CHIPPER/SPLITTERS 8T 3500W KD5208

Model: KD5208
Power supply: 230V / 50Hz
Rated power: 3500W

DESCRIPTION

The professional KD5208 wood splitter from Kraft & Dele is a reliable device that will significantly improve fuel preparation in any household or workshop. Thanks to its high pressing force – up to 8 tons – it can handle even hard and thick wood up to 55 cm long and 30 cm in diameter. Its compact design allows for convenient use and storage, and operation is quiet and vibration-free.



More info

Technical data:

 Maximum splitting force: 8 tons
 Motor power: 3500W
 Voltage: 230V / 50Hz
 Hydraulic pressure: 21 MPa
 Hydraulic oil capacity: 4L (SHELL TELLUS 22, MOBIL DTE 11, ARAL VITAM GF 22, BP ENERGOL HLP-HM 22)
 Piston rod stroke: 48.5 cm
 Extension speed: 3.1 cm/s
 Retraction speed: 17.3 cm/s
 Block diameter: 8–30 cm
 Block length: 10–55 cm
 Noise level (LpA): 74.7 dBA (no load), 77.8 dBA (full load)
 Vibrations: < 2.5 m/s²
 Overall dimensions: 84.5 x 93.5 x 150 cm (L x W x H)
 Weight: 109.9 kg

Application:

 Firewood preparation
 Garden and forestry work
 Home and semi-professional use

Set contents:

 Chipper / Splitter KD5208
 User manual
 Original packaging
 Warranty: 12 months

Compliance and certification:

 2006/42/EC Machinery Directive
 2011/65/EU ROHS 2 Directive
 2000/14/EC Noise Emission Directive
 EN 609-1:1999/A2:2009
 EN 60204-1:2006/A1:2009
 EN 50581:2012
 EN ISO 3744:2011
