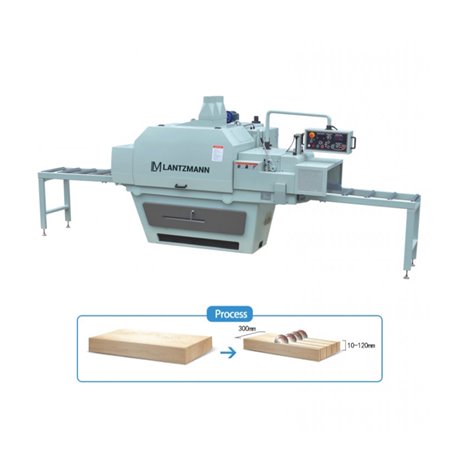

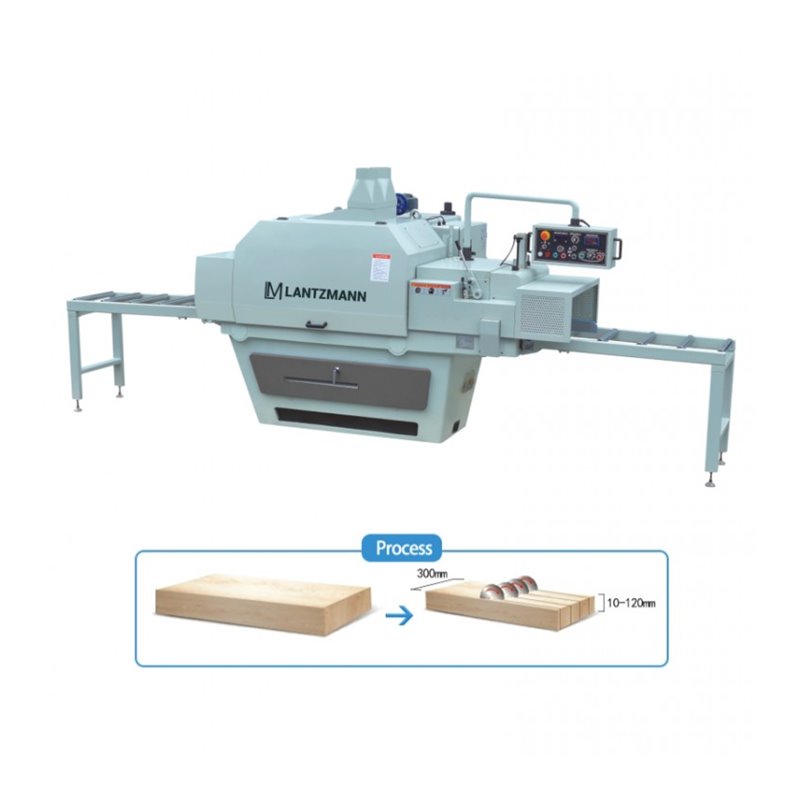

MULTI-SAW LANTZMANN MULTICUT 300/120 View larger

MULTI-SAW LANTZMANN MULTICUT 300/120

MULTICUT 300/120

  • Working thickness: 10 ~ 120 mm

  • Max. working width: 300 mm

  • Motor power: 37 kW

  • Weight: 2300 kg

More details

Warning: Last items in stock!

22 869,00 € tax incl.

Ask about product
MULTI-SAW LANTZMANN MULTICUT 300/120

MULTI-SAW LANTZMANN MULTICUT 300/120

  • Working thickness: 10 ~ 120 mm

  • Max. working width: 300 mm

  • Motor power: 37 kW

  • Weight: 2300 kg



More info

Description:

  • Ideal multi-saw for obtaining lumber in companies and shops for the production of lumber, carpentry and construction products, and other woodworking industries.



Advantages:

  • Cast iron chrome feeding table: heat treated for maximum stability. Adjustments to the feed table and fence are quick using the quick adjustment levers

  • Professional electrical appliances: Siemens and Schneider ensure the good operation and stable performance of the whole machine

  • High precision spindle: spindles are precision engineered and specially heat treated to ensure maximum cutting stability and consistent accuracy

  • Anti-kick safety element: located on the supply ensures safe operation

  • Cast iron frame: Stable, very rigid construction


Technical indicators:

Work thickness

10 120 ~ mm

Min. working length (single / back to back)

600mm / 300mm

Max. working width

300 mm

Saw diameter

Ø205mm ~ Ø380mm

Sawing hole diameter

70mm

Shaft diameter

Ø 55mm

Spindle speed

4000 rpm

Shaft power

37 kW

Supply power

2,2 kW

Feed speed (inverter)

4~30m/min

Lifting/lowering motor power

0,37 kW

Vacuum cleaner diameter

2 x Ø150mm

Air requirement for suction

3800 m3 / h

Required suction speed

30 m / s

Table height

740 mm

Weight

2300 kg

Length

2300 mm

Width

1700 mm

Height

1900 mm



Processing parameters:

Saw blade diameter

Workpiece thickness (mm)

Number of saws

Ø205 ~ Ø255

20 to 30

15

30 to 40

12

Ø255 ~ Ø305

40 to 60

8

60 to 80

6

Ø305 ~ Ø380

80 to 100

5

100 to 120

4





  • To cut 10 mm thick wood, one blade requires 0,75 kW of power.
