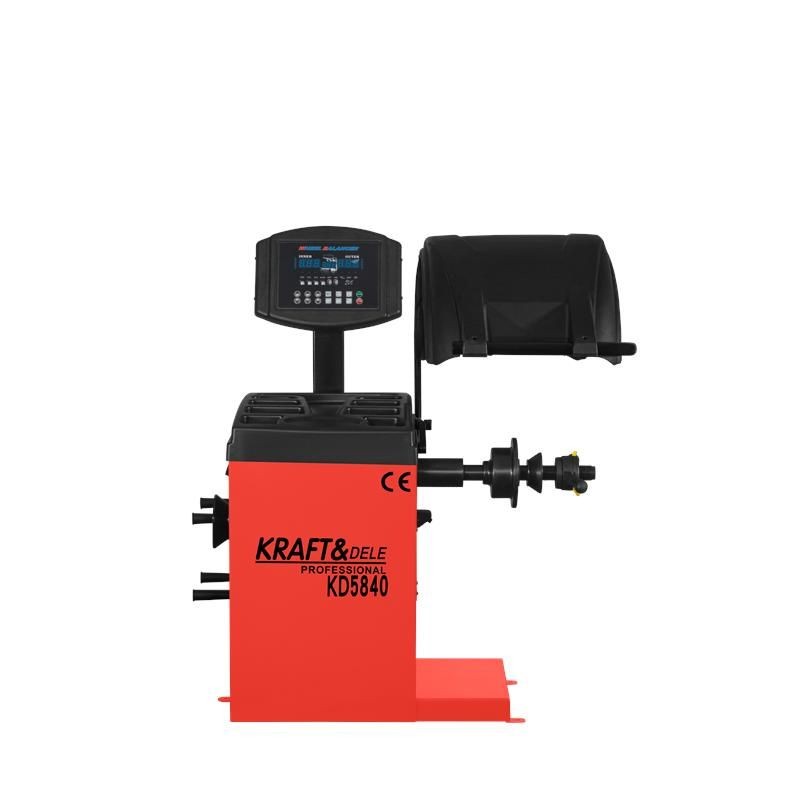

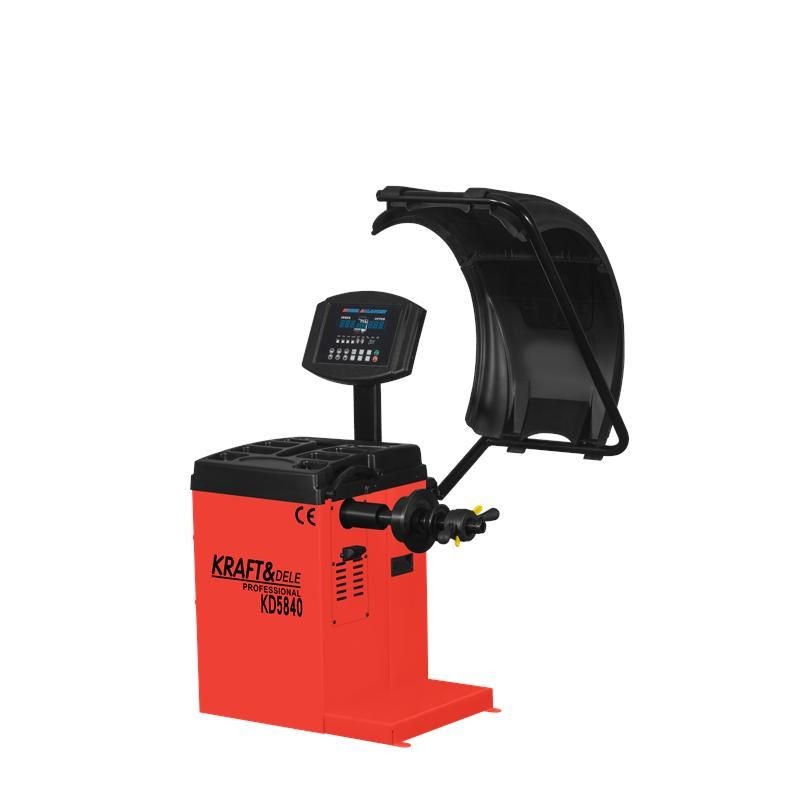

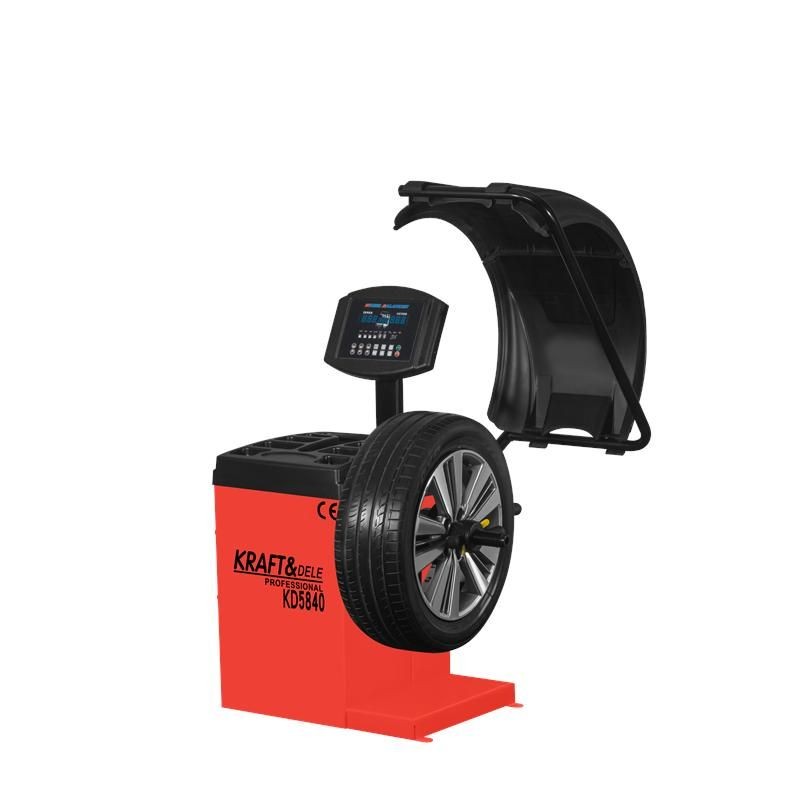

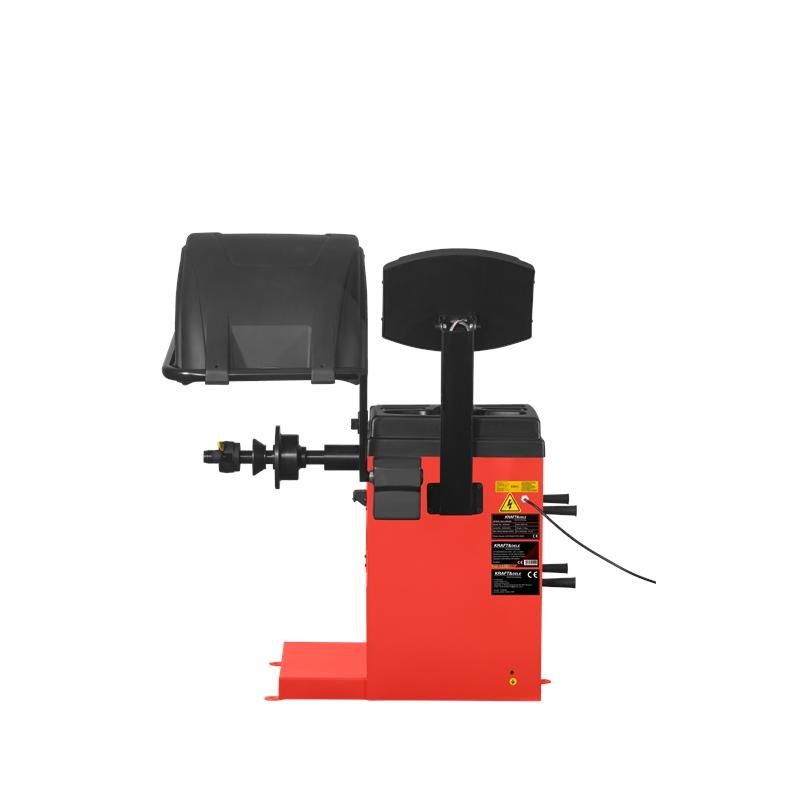

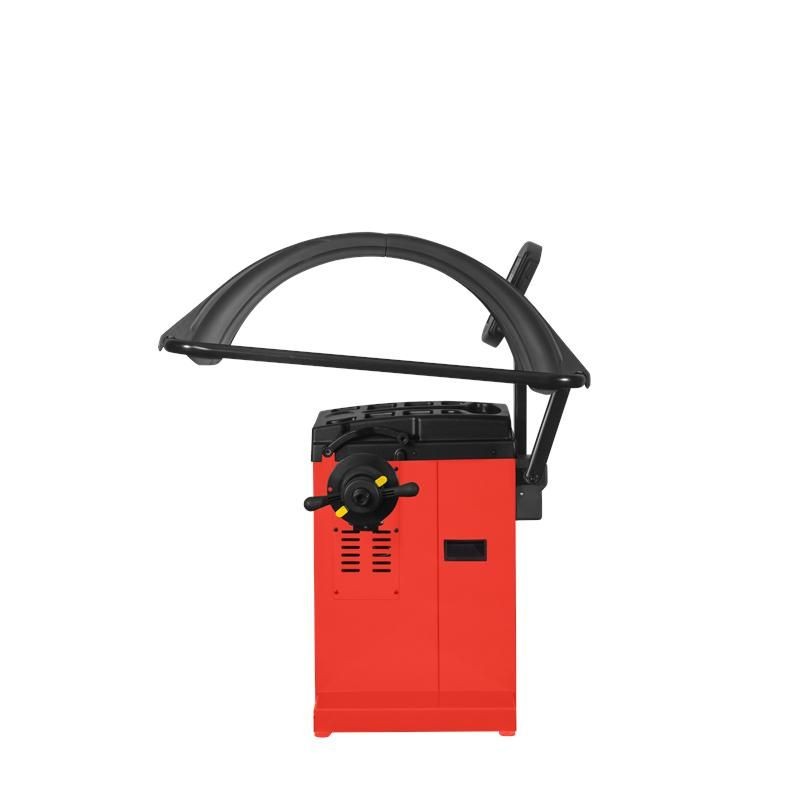

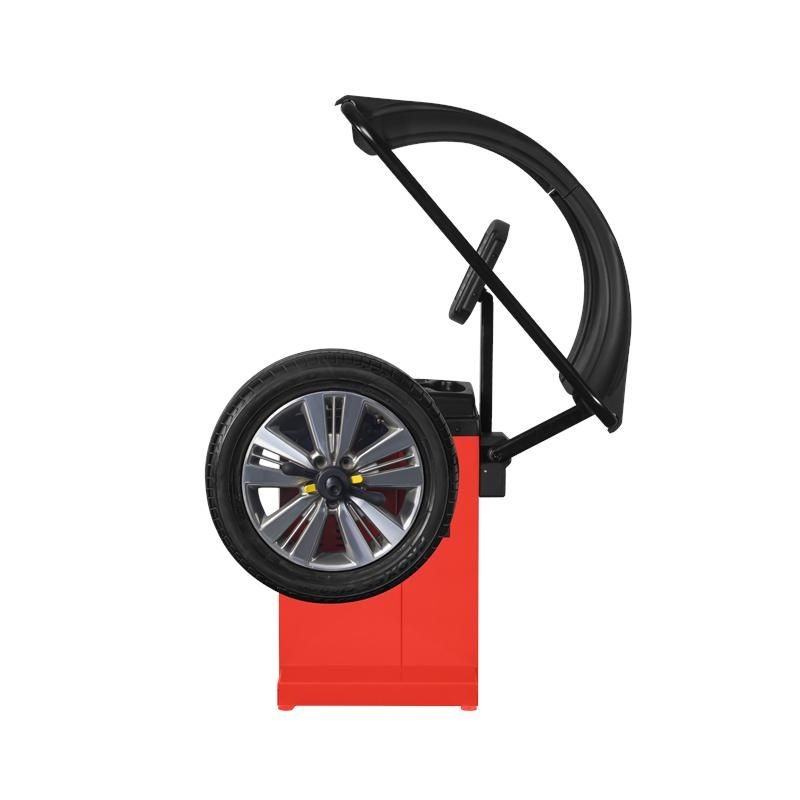

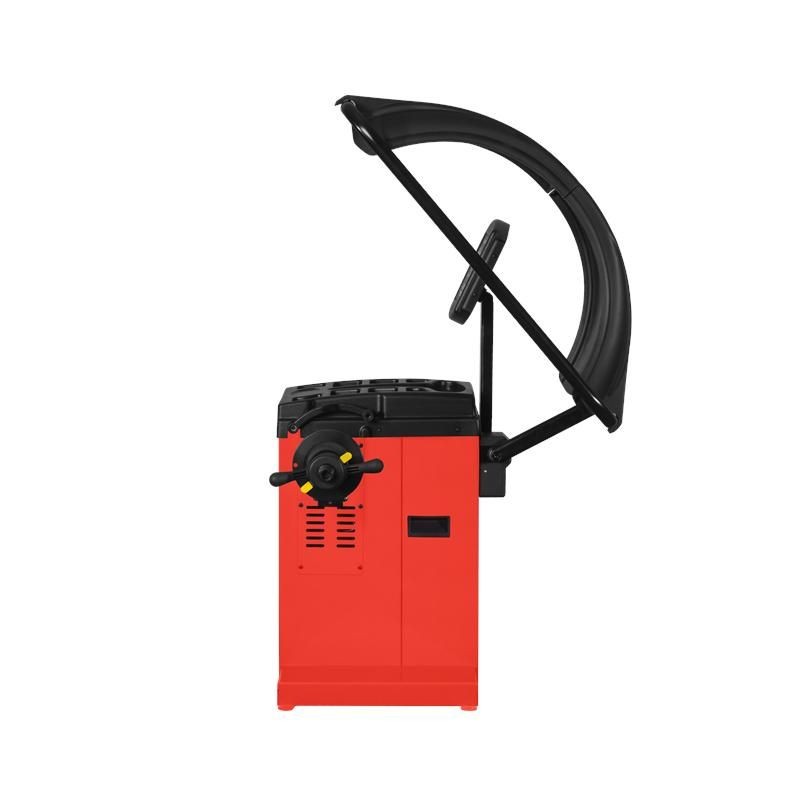

AUTOMATIC+LASER 230V KD5840 WHEEL BALANCER

KD5840

The KD5840 professional balancer is an advanced device intended for tire services, car repair shops and vulcanization points. Thanks to automatic measurement and a built-in laser, it ensures the highest precision of work, shortening service time and eliminating measurement errors.

The KD5840 model is equipped with an electromagnetic brake and an auto-calibration function. It allows you to operate wheels with a maximum weight of up to 65 kg and a rim diameter of 10' to 24'. It operates to an accuracy of +/- 1 g and performs a balancing cycle in just 8 seconds.

More details

990,00 € tax incl.

Ask about product
AUTOMATIC+LASER 230V KD5840 WHEEL BALANCER

AUTOMATIC+LASER 230V KD5840 WHEEL BALANCER

The KD5840 professional balancer is an advanced device intended for tire services, car repair shops and vulcanization points. Thanks to automatic measurement and a built-in laser, it ensures the highest precision of work, shortening service time and eliminating measurement errors.

The KD5840 model is equipped with an electromagnetic brake and an auto-calibration function. It allows you to operate wheels with a maximum weight of up to 65 kg and a rim diameter of 10' to 24'. It operates to an accuracy of +/- 1 g and performs a balancing cycle in just 8 seconds.



More info

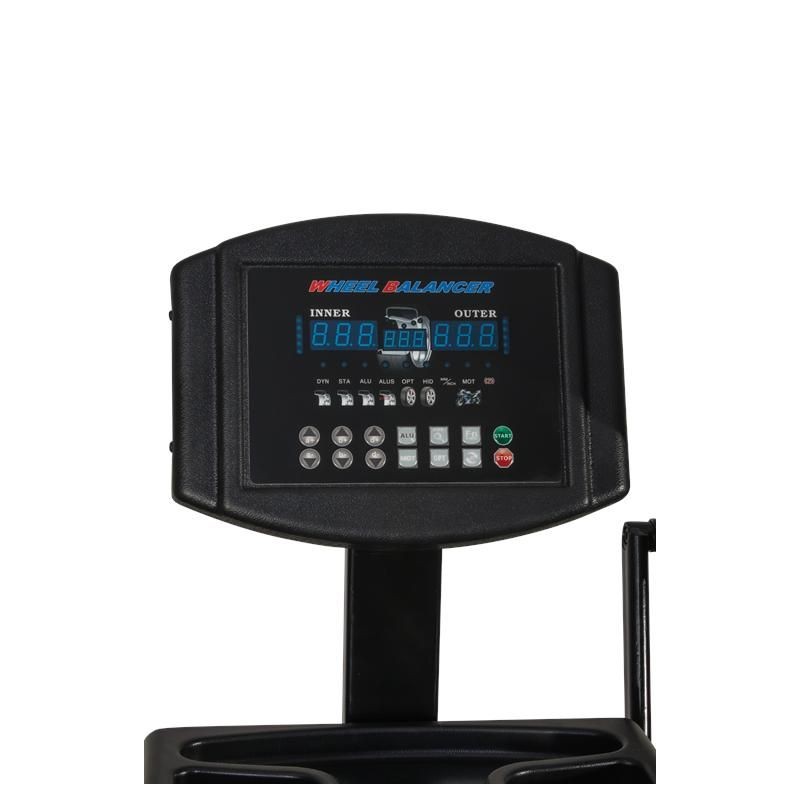

The device has as many as 6 programs for aluminum rims, Auto-ALU (ALU-S) program, weight hiding mode and optimization mode. Mechanical drive, low noise level (=< 70 dB) and stable construction make it a reliable tool in every professional workshop.

Automatic measurements of two values (distance/diameter) improve the machine configuration process. Thanks to its compact dimensions and well-thought-out structure, the balancing machine can be positioned 500 mm from the wall on the left and 600 mm from the back.

Technical data:

- ️Cycle time: 8 seconds

- ️Maximum wheel weight: 65 kg

- ️Balancing speed: < 200 rpm

- ️Balancing accuracy: +/- 1 g

- ️Shaft lock: Electromagnetic brake

- ️Role diameter: 10" - 24" (265 - 615 mm)

- ️Role width: 1.5" - 20" (40 - 510 mm)

- ️Engine power: 250W

- ️Hidden Weight Program: YES

- ️ALU Programs: 6 + Auto-ALU (ALU-S)

- ️Additional features: Autocalibration, ALU S, Optimization

- ️Motorcycle wheel operation: YES

- ️Laser: YES

- ️Drive: Mechanical

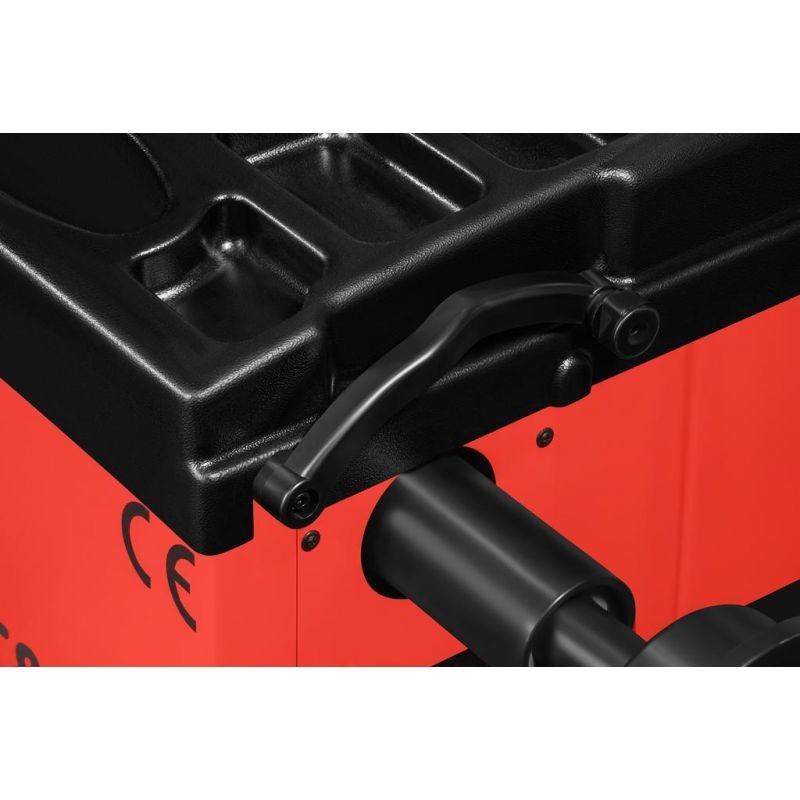

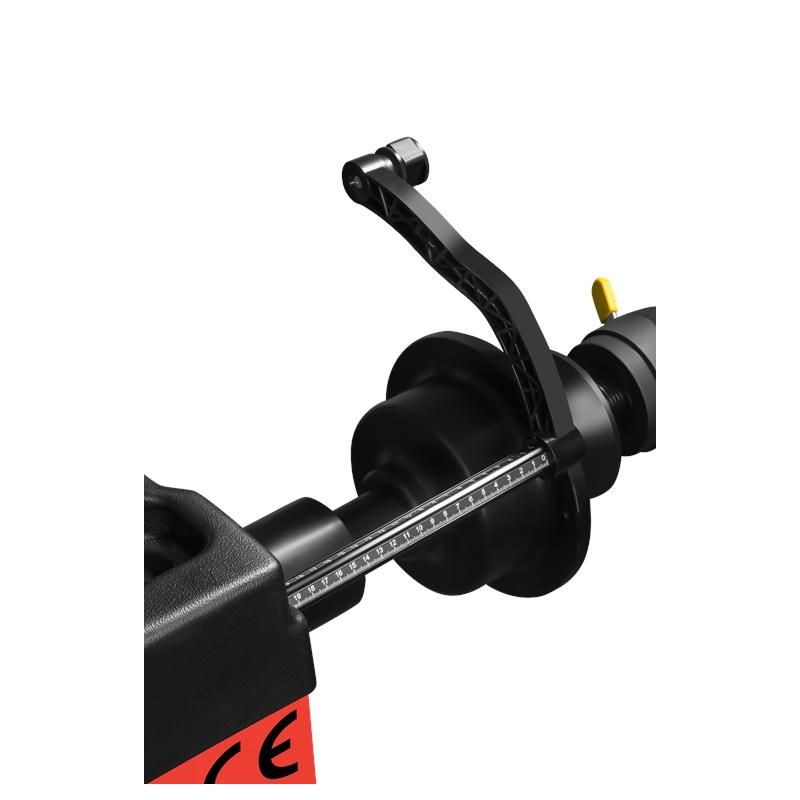

- ️Automatic measurement: 2 values (ODL/WK)

- ️Distance from walls: left 500 mm/rear 600 mm

- ️Noise level: ≤ 70 dB

- ️Weight: 90 kg

Product composition:

 KD5840 car wheel balancer

 Original packaging

 User manual in Polish

 12-month warranty
